Description

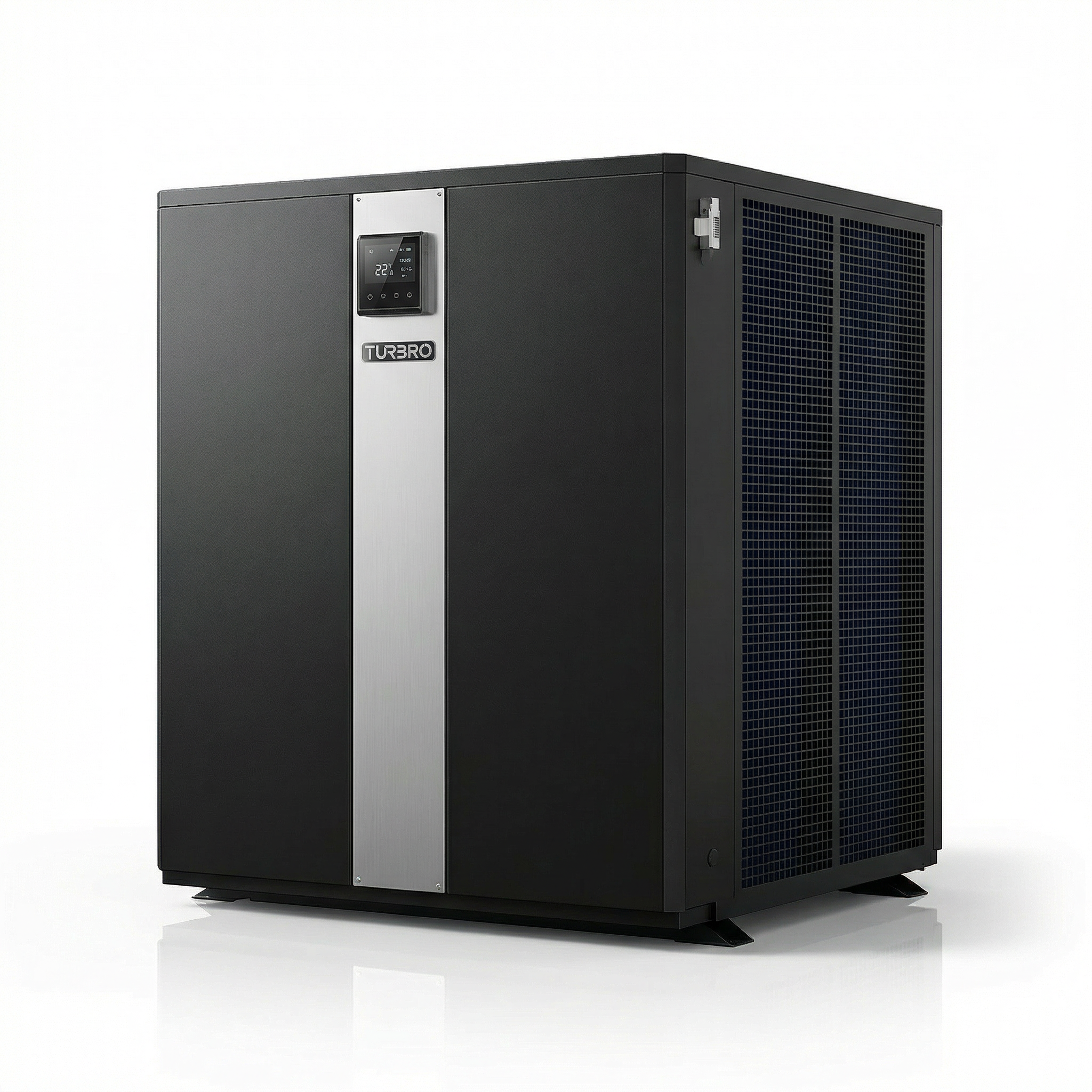

The TURBRO Beluga Inverter Top Discharge Swimming Pool Heat Pump is a premium full DC inverter pool heat pump engineered for large residential pools that demand maximum performance, energy efficiency, and whisper-quiet operation. Available in 116,000 BTU (B120V) and 143,450 BTU (B160V) models, this advanced heat pump features an innovative top-discharge airflow design that directs exhaust air upward, allowing installation in tighter spaces while improving airflow efficiency. Powered by a high-performance DC inverter compressor and equipped with a corrosion-resistant titanium heat exchanger, the Beluga automatically adjusts compressor and fan speeds to maintain precise water temperatures while significantly reducing energy consumption. With heating and cooling modes, Wi-Fi app control, and a full-color interactive display, it is an ideal solution for extending the swimming season in large in-ground or above-ground pools.

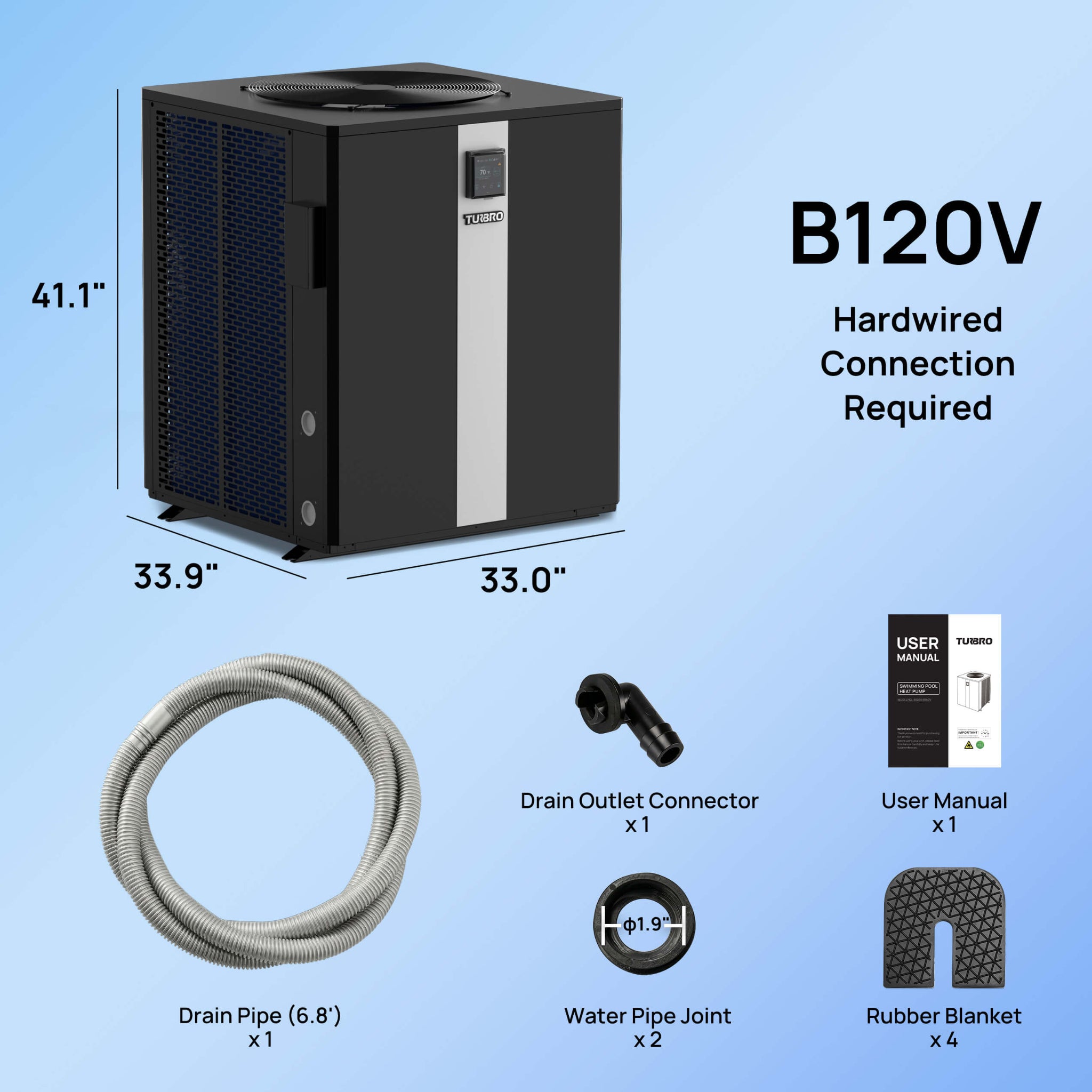

Package Includes
- TURBRO Beluga Inverter Top Discharge Pool Heat Pump (B120V or B160V)
- Water Pipe Connectors
- Drain Connector
- Rubber Mounting Pads
- Installation Hardware
- User Manual
Warranty
TURBRO backs the Beluga Inverter Top Discharge Pool Heat Pump with comprehensive manufacturer warranty coverage.
Warranty Includes
- 5-Year Compressor Warranty
- 2-Year Full Unit Warranty
- Coverage against manufacturing defects under normal residential use
- Technical support from TURBRO
- Repair or replacement of eligible defective components during the warranty period
Warranty Exclusions
The warranty does not cover damage caused by improper installation, misuse, freezing due to inadequate winterization, unauthorized repairs or modifications, accidents, commercial use (unless specified), or normal wear and tear. The B120V and B160V models require professional hardwired installation (220–240V) by a qualified electrician to maintain warranty coverage.
Key Features
- Available in 116,000 BTU (B120V) and 143,450 BTU (B160V) models
- Innovative top-discharge airflow design for space-saving installation

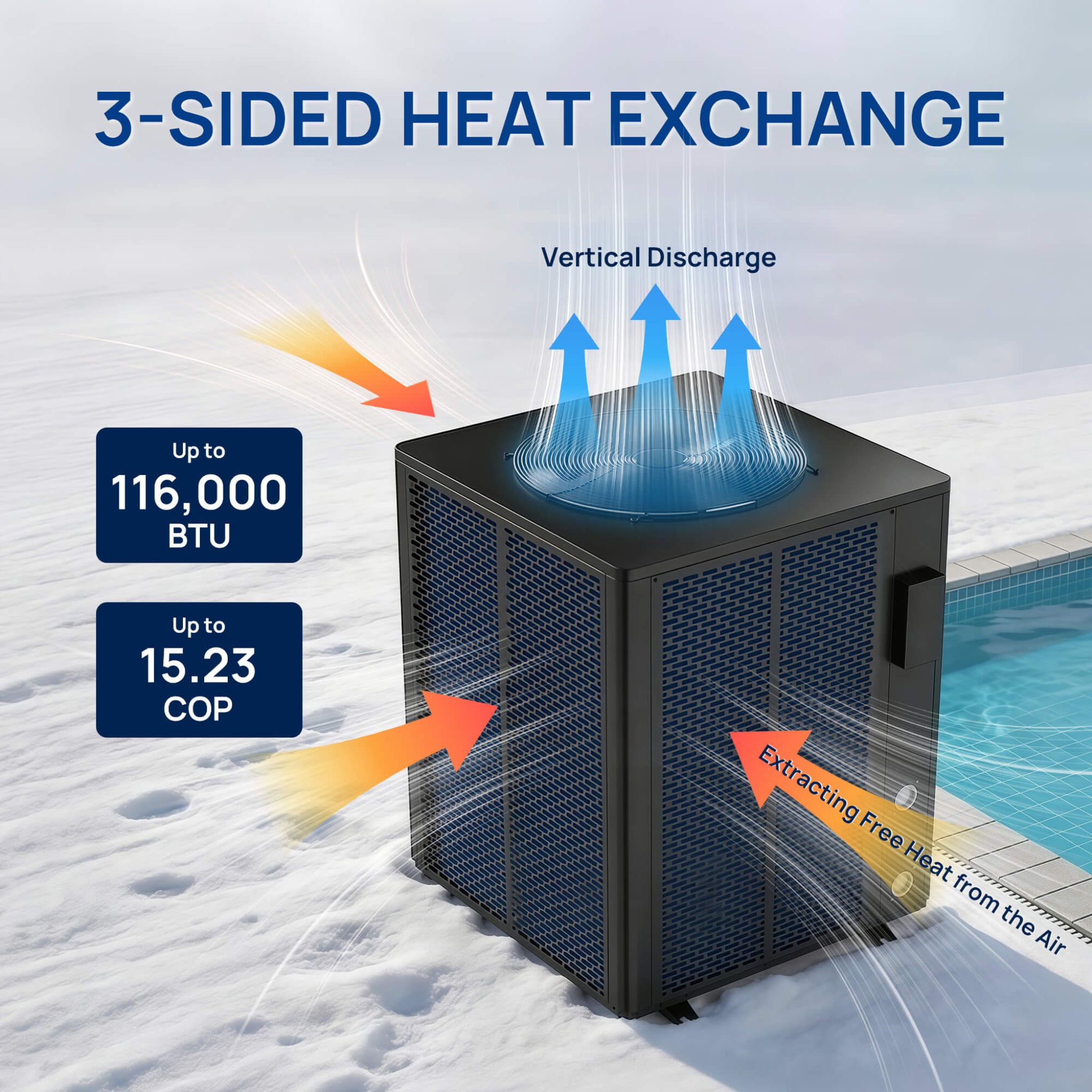

- Three-sided air intake improves heat exchange efficiency
- Full DC inverter technology automatically adjusts compressor and fan speed
- High efficiency with COP up to 15.23 (B120V) and 14.67 (B160V)
- Suitable for pools up to 30,000 gallons (B120V) or 40,100 gallons (B160V)
- Heating and cooling modes for year-round comfort

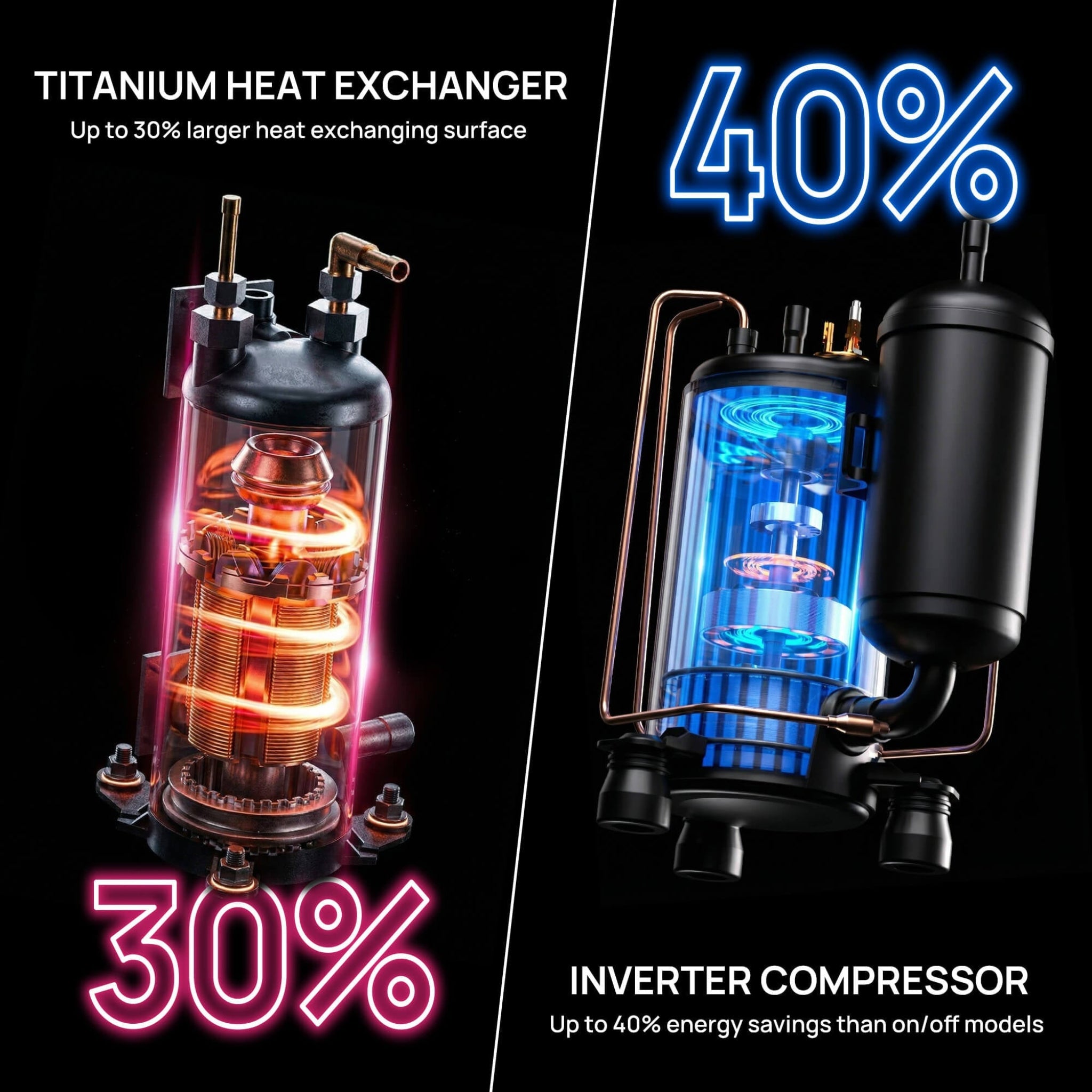

- Corrosion-resistant titanium heat exchanger compatible with saltwater pools
- Quiet operation with soft-start DC inverter compressor
- Wi-Fi smart app control for remote monitoring and temperature adjustment

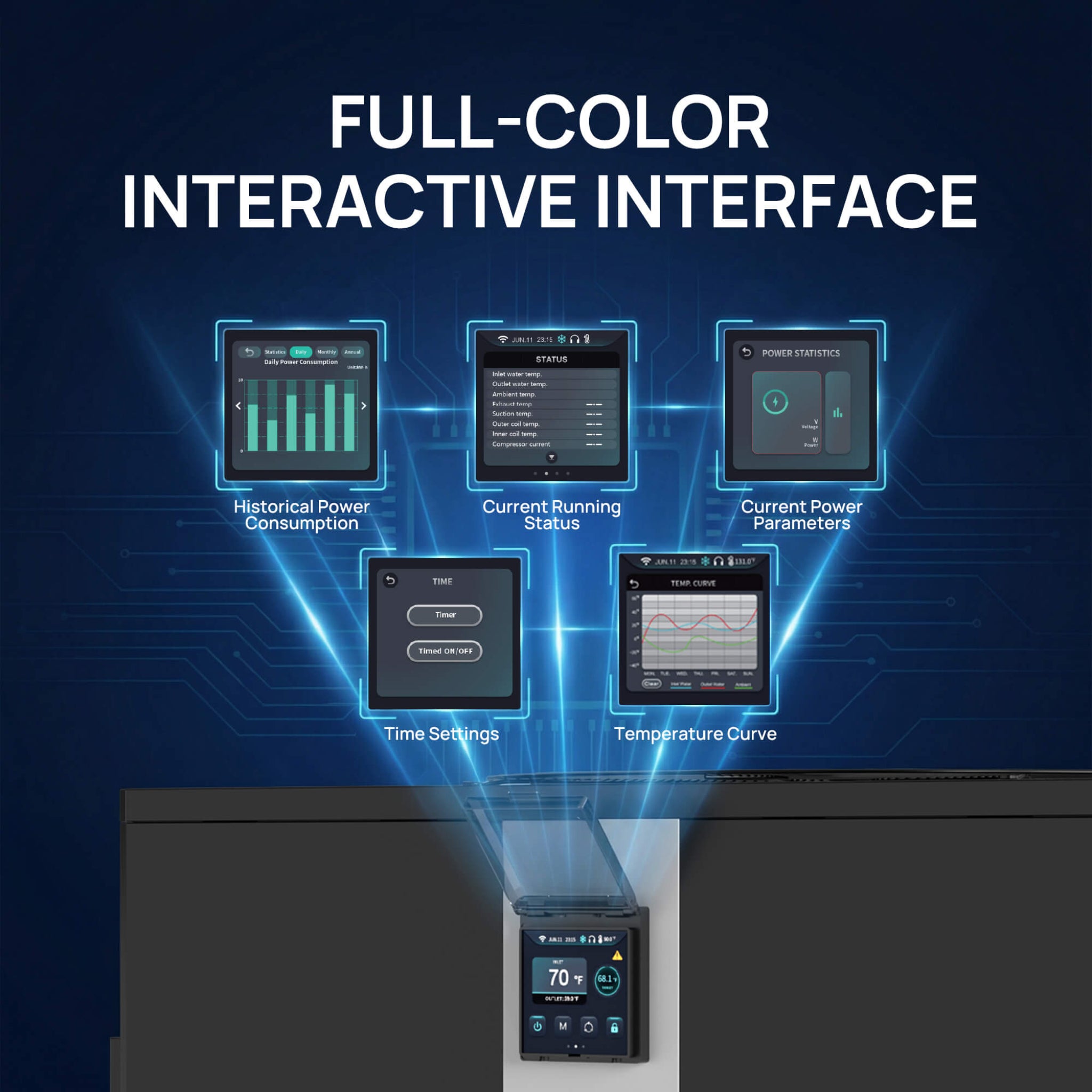

- Full-color interactive touchscreen interface with energy monitoring
- Automatic defrost function for reliable cold-weather operation
- Eco-friendly R32 refrigerant
- Durable IPX4 weather-resistant construction
- Energy savings of up to 70% compared to traditional gas pool heaters
- Designed for large residential in-ground and above-ground pools (not suitable for inflatable or low-pressure pools)
Specifications
| Specification | B120V | B160V |
|---|---|---|
| Product | TURBRO Beluga Inverter Top Discharge Pool Heat Pump | TURBRO Beluga Inverter Top Discharge Pool Heat Pump |
| Heating Capacity | 116,000 BTU/h | 143,450 BTU/h |
| Recommended Pool Size | Up to 30,000 Gallons | Up to 40,100 Gallons |
| Technology | Full DC Inverter | Full DC Inverter |
| COP | Up to 15.23 | Up to 14.67 |
| Power Supply | 220–240V / 50–60Hz | 220–240V / 50–60Hz |
| Rated Power | 519–5,370W | 749–7,348W |
| Maximum Input Current | 50A | 70A |
| Minimum Breaker | 40A Double Pole | 50A Double Pole |
| Heating Temperature | 59–104°F (15–40°C) | 59–104°F (15–40°C) |
| Cooling Temperature | 46–82°F (8–28°C) | 46–82°F (8–28°C) |
| Operating Ambient Temperature | 14–109°F (-10–43°C) | 14–109°F (-10–43°C) |
| Refrigerant | R32 | R32 |
| Heat Exchanger | Titanium | Titanium |
| Rated Water Flow | 66.0 GPM | 81.5 GPM |
| Water Connection | 2" PVC | 2" PVC |
| Waterproof Rating | IPX4 | IPX4 |
| Smart App Control | Yes | Yes |
| Display | Full-Color Interactive Interface | Full-Color Interactive Interface |
| Installation | Professional Hardwired Installation Required | Professional Hardwired Installation Required |
| Warranty | 5-Year Compressor / 2-Year Full Unit | 5-Year Compressor / 2-Year Full Unit |
