Description

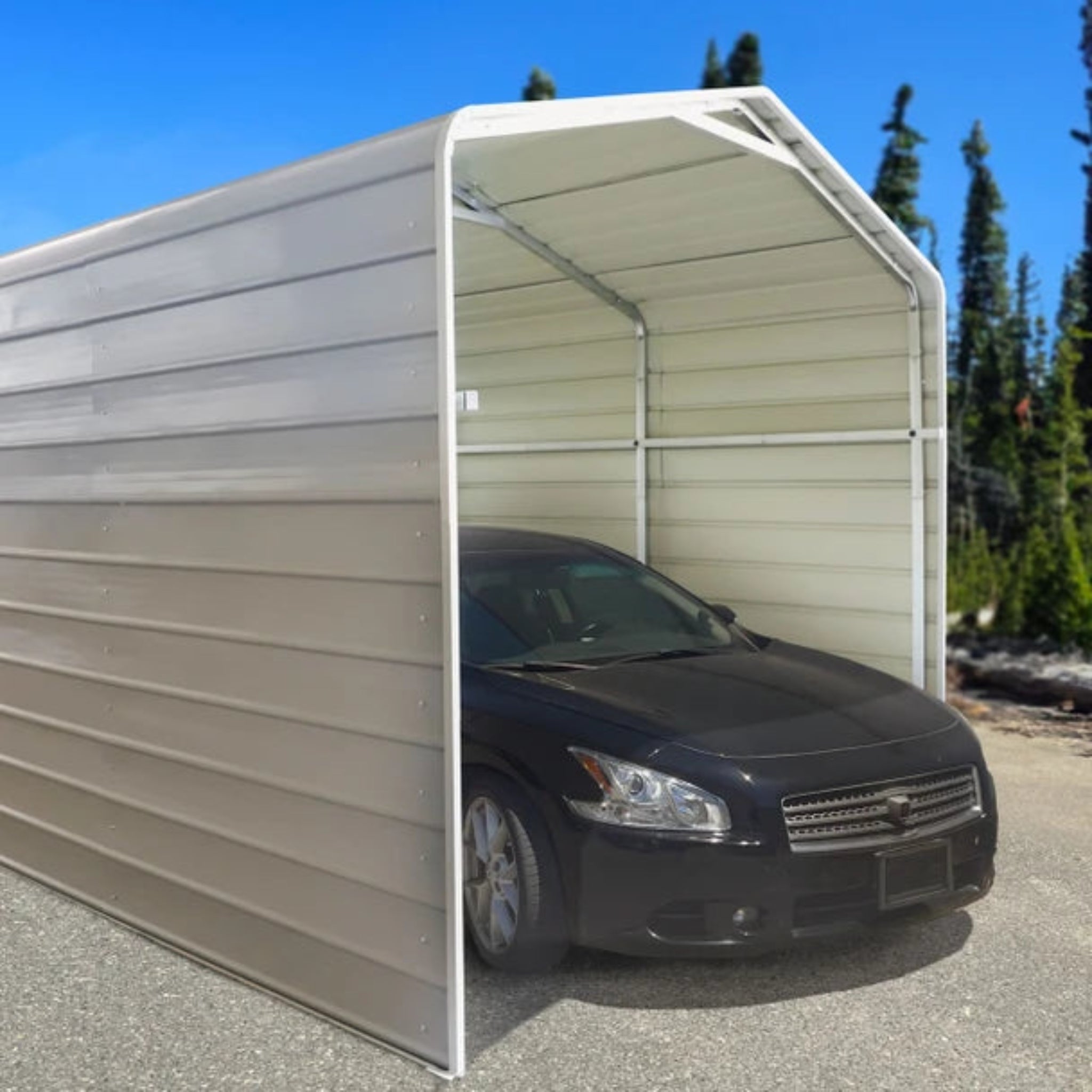

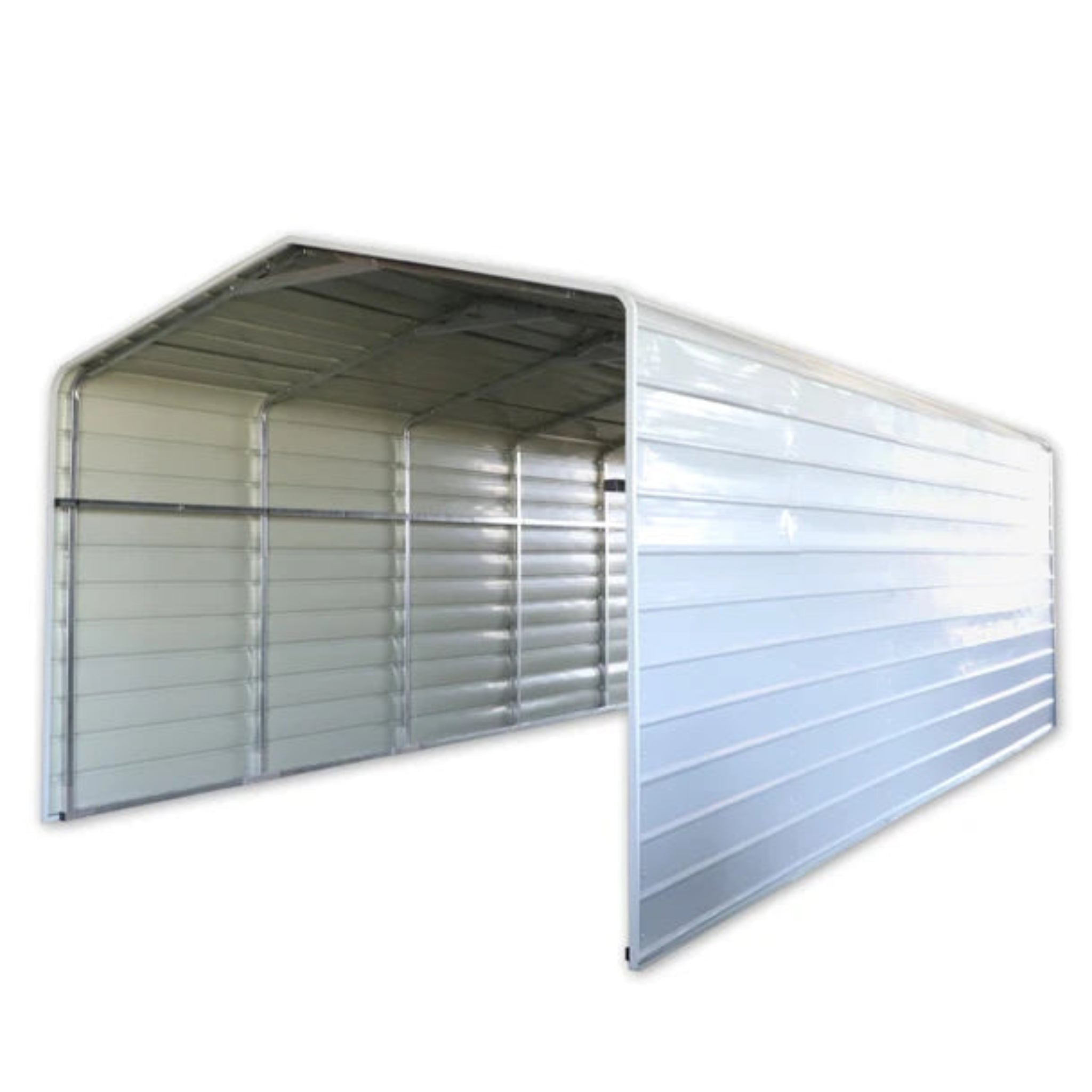

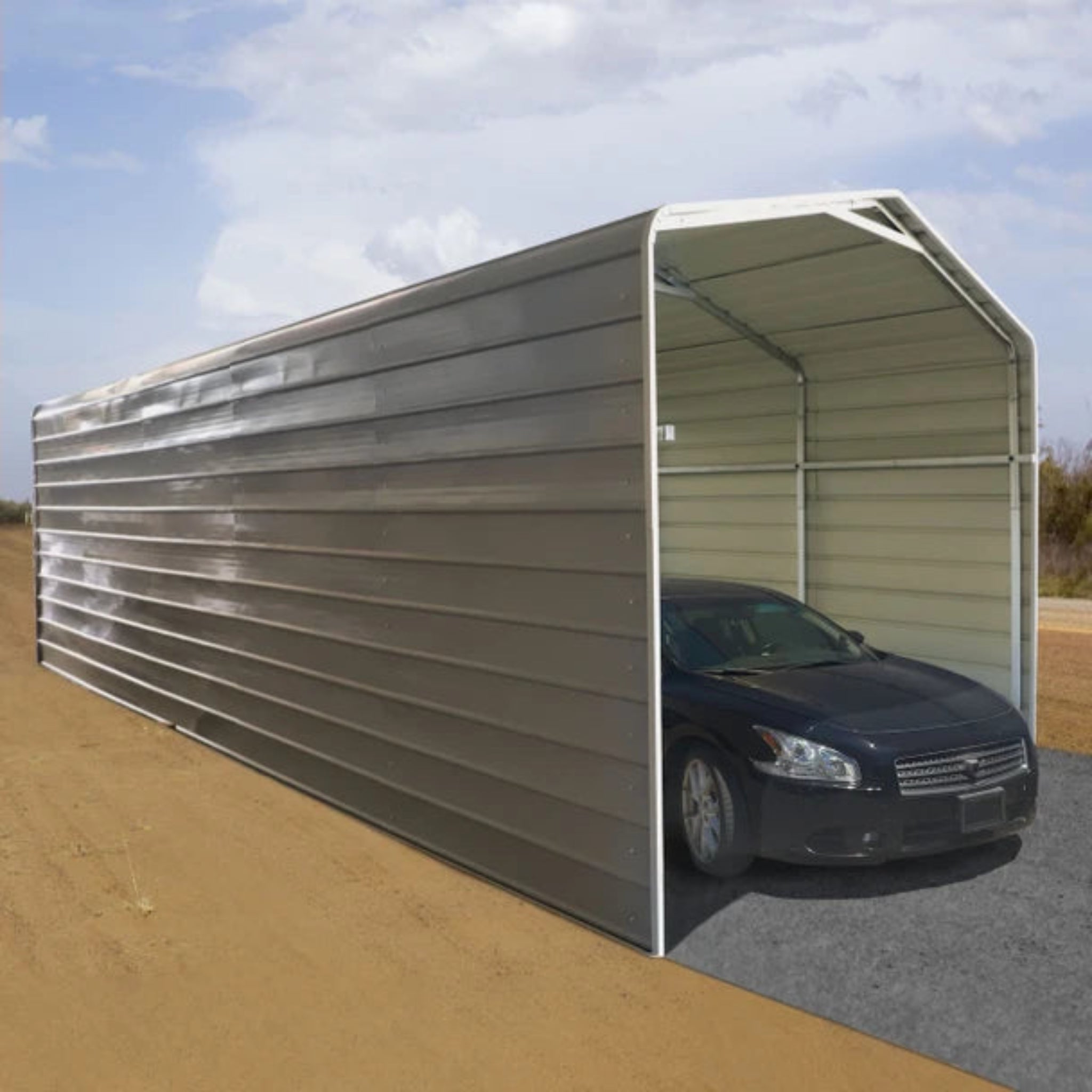

The ALEKO 12x28 Metal Carport with Corrugated Roof – Gray is a heavy-duty outdoor shelter designed to protect vehicles, boats, ATVs, and other outdoor equipment from rain, snow, hail, wind, UV rays, pollen, and tree sap. It features a galvanized steel frame with an anti-rust coating and durable 29-gauge corrugated steel roof panels for long-lasting outdoor protection.
The carport uses pre-cut frame components, slip-fit connections, pre-drilled holes, and self-drilling screws to simplify assembly. It can be installed on grass, concrete, and other level surfaces, making it suitable for residential and outdoor storage applications.
Key Features
- 12 x 28 ft. metal carport
- Gray finish

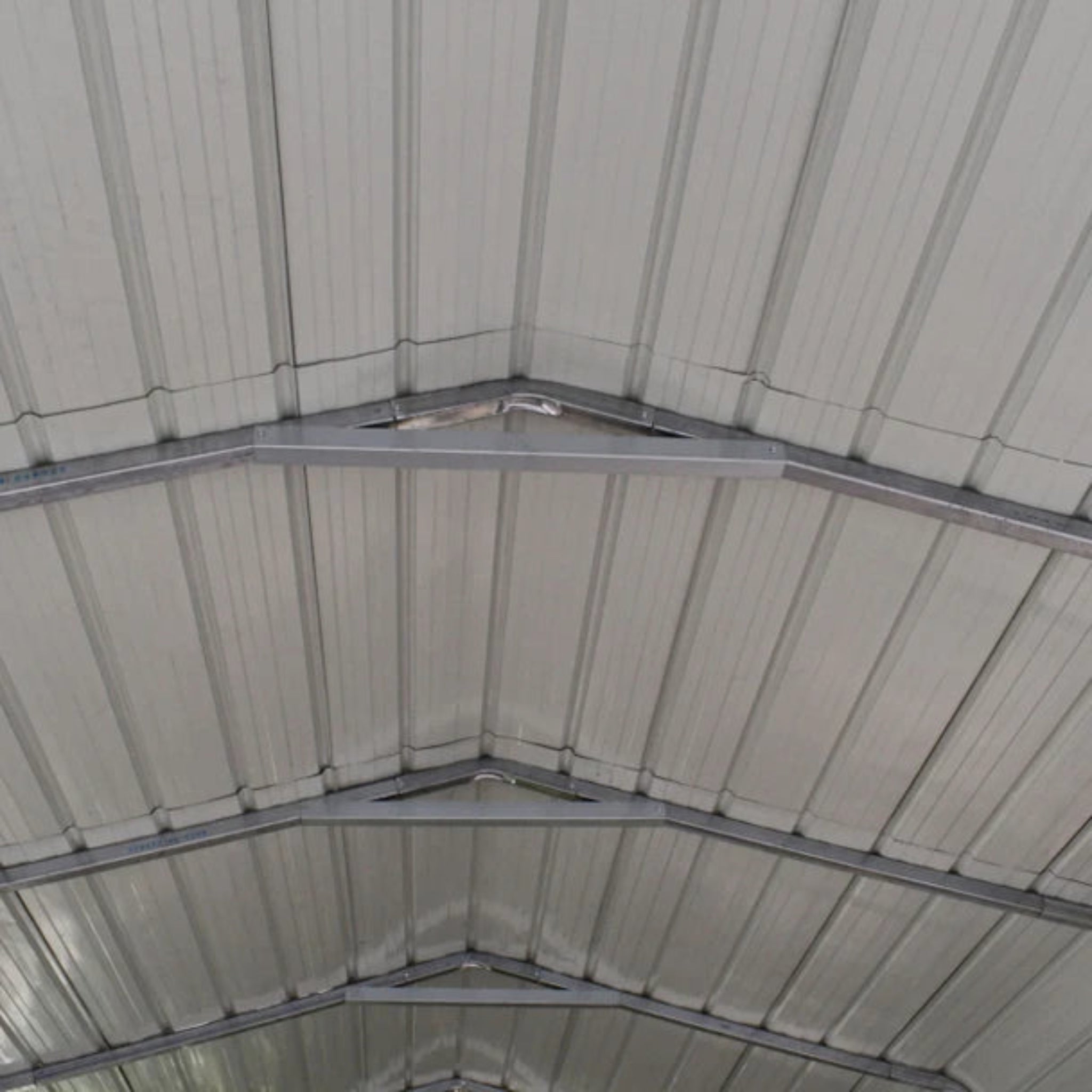

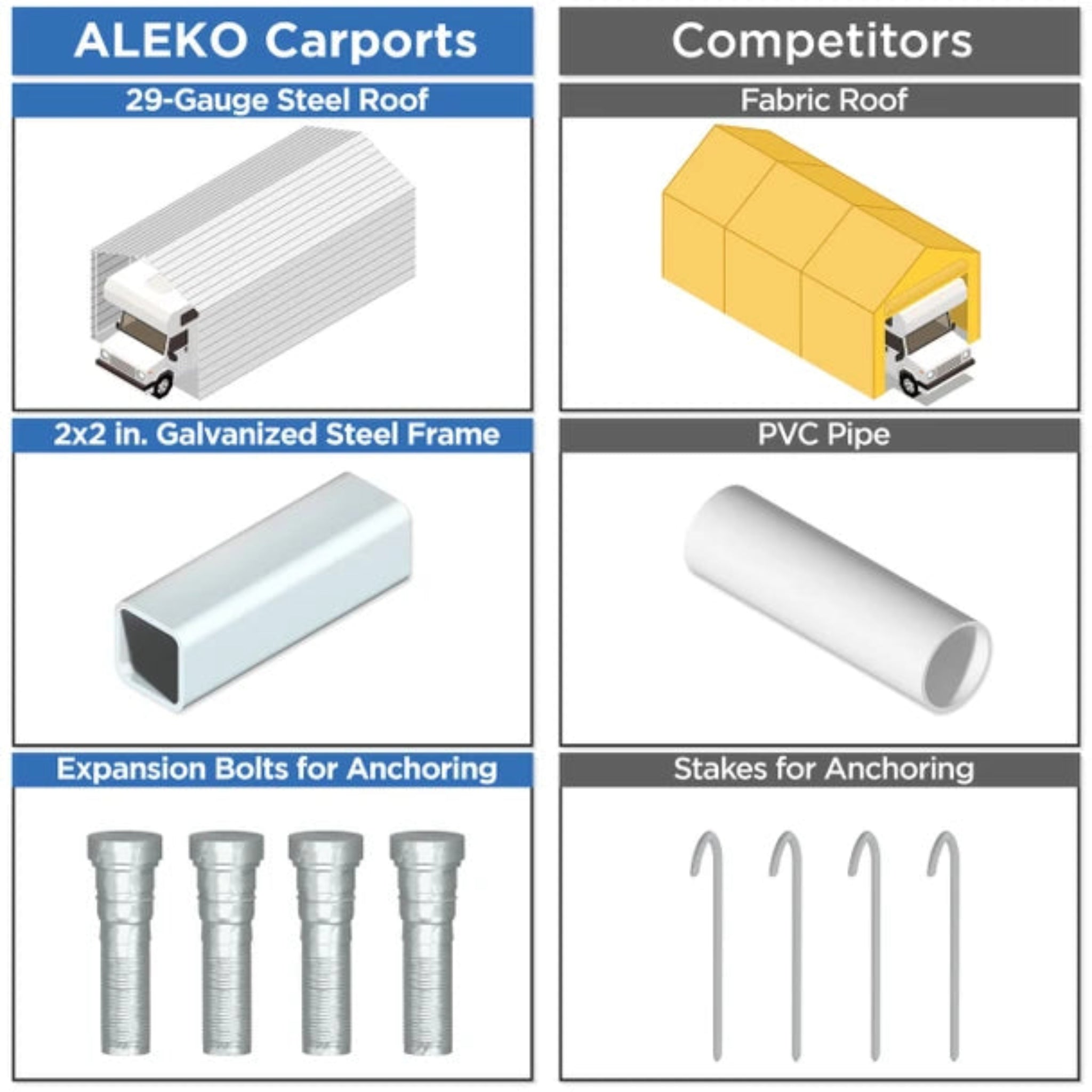

- Heavy-duty galvanized steel frame

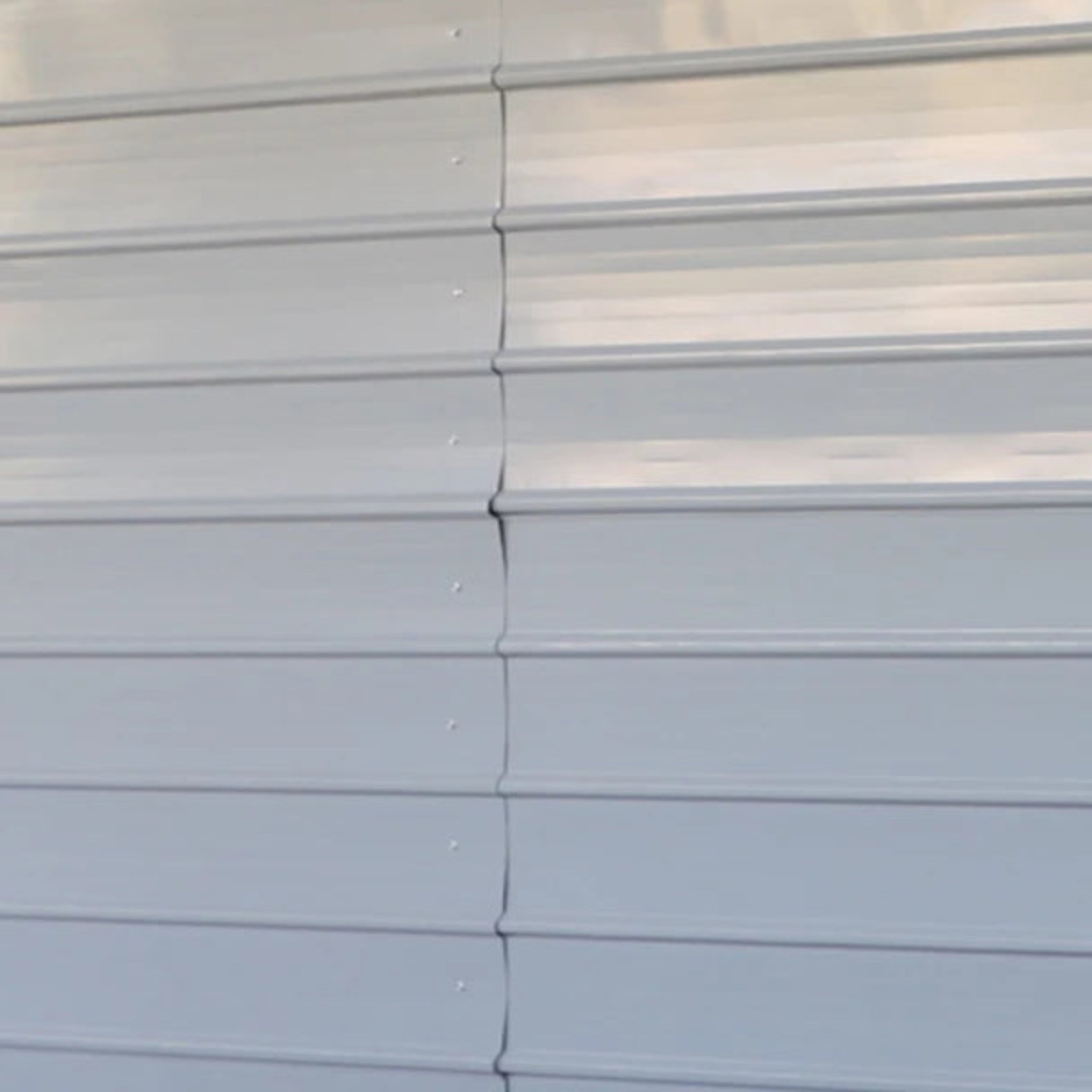

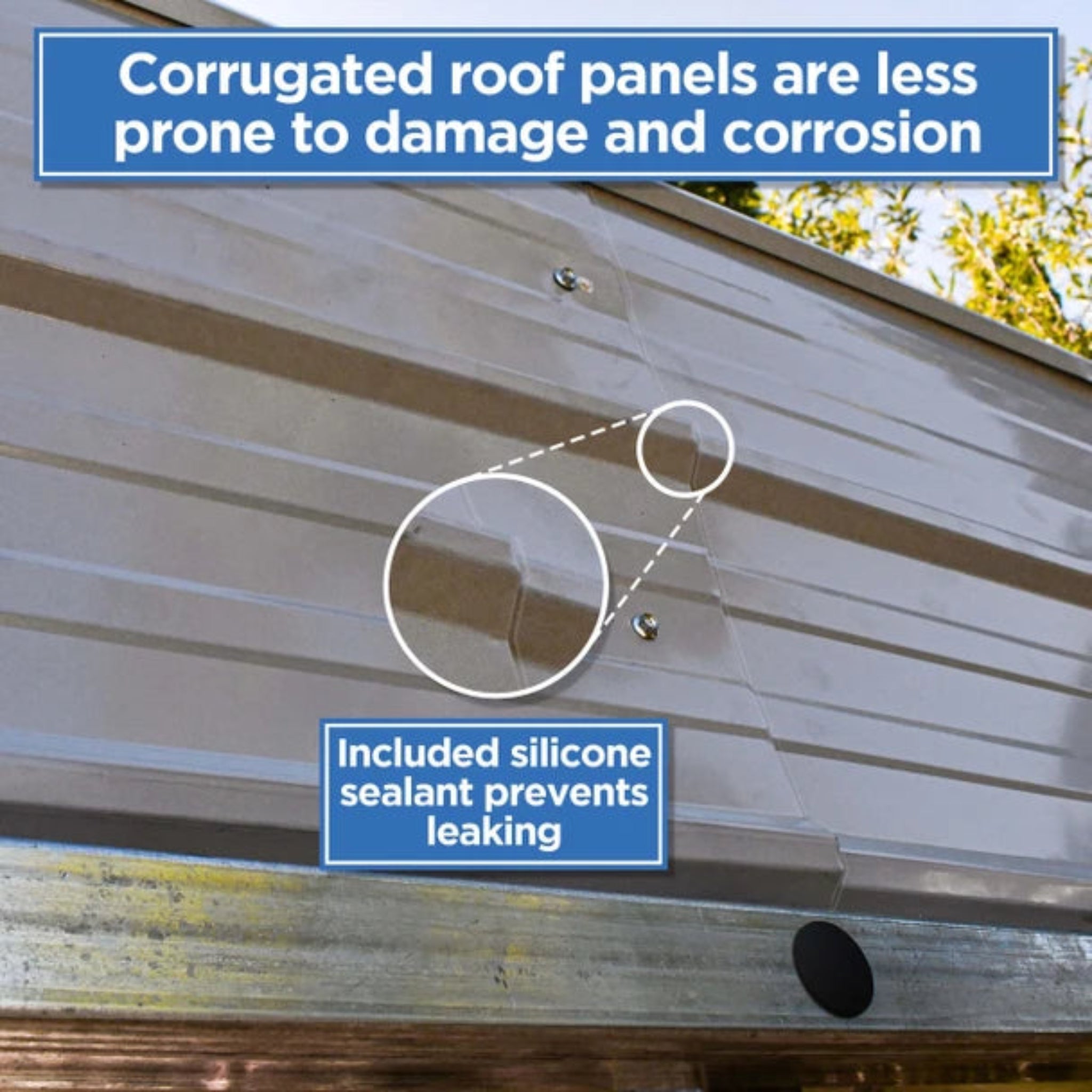

- 29-gauge corrugated steel roof panels
- Anti-rust coating for added durability
- Provides 335 sq. ft. of storage space
- Helps protect vehicles, boats, ATVs, and outdoor equipment
- Designed to withstand rain, snow, hail, wind, and intense sunlight
- Pre-cut frame components for easier installation
- Slip-fit frame construction
- Pre-drilled holes and self-drilling screws
- Suitable for installation on grass, concrete, and other level surfaces
- 10.24 PSF snow load rating
- Approx. 40 mph wind rating
- 1-year limited warranty
Specifications
| Specification | Details |
|---|---|
| Product | Metal Carport with Corrugated Roof |
| Model / SKU | CPMS-12-28-GY-AP |
| Product Type | Metal Carport |
| Size | 12 x 28 ft. |
| Color | Gray |
| Exterior Dimensions | 28.1L x 12.3W x 11.7H ft. |
| Interior Dimensions | 27.9L x 12.2W x 11.5H ft. |
| Total Storage Area | 335 sq. ft. |
| Frame Material | Galvanized Steel Square Tubing |
| Frame Tube & Crossbar Dimensions | 2 x 2 in. |
| Frame Tube & Crossbar Thickness | 0.1 in. |
| Steel Roof Thickness | 0.0137 in. |
| Roof Material | Corrugated Steel Panels |
| Roof Panel Gauge | 29 Gauge |
| Exterior Column Height | 10 ft. |
| Interior Column Height | 9.9 ft. |
| Exterior Peak Height | 11.7 ft. |
| Interior Peak Height | 11.5 ft. |
| Frame Gauge | 13 |
| Snow Load Rating | 10.24 PSF |
| Wind Rating | Approx. 40 mph |
| Sidewalls | Yes |
| Installation Surface | Grass, concrete, and other level surfaces |
| Includes | Metal carport with roof frame, necessary assembly hardware, instruction manual |
| Warranty | 1-Year Limited Warranty |
