Description

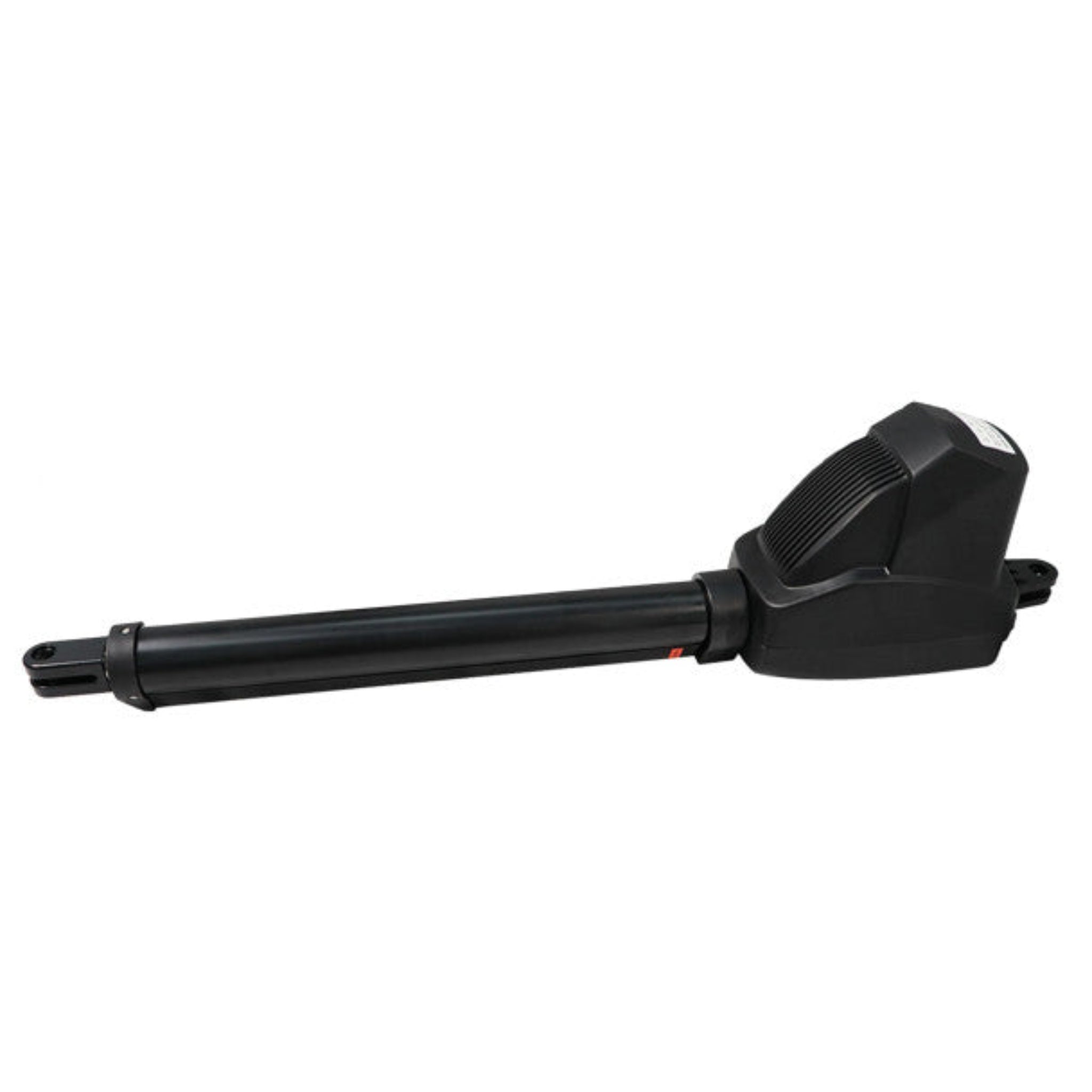

The ALEKO Actuator for Swing Gates – AS600/1200 Gate Opener Series is a replacement actuator designed specifically for ALEKO AS600/1200 swing gate opener systems. It provides smooth, low-noise gate movement and features automatic stop-and-reverse functionality when an obstruction is detected.
Built with anti-rust and water-resistant materials, the actuator delivers 80W of rated power and operates on 24V DC. It supports gates up to 18 ft. long or 880 lbs. and includes programmable automatic closing from 0–99 seconds. The actuator is also compatible with solar power systems, although solar panels are not included.
Key Features
- Replacement actuator for ALEKO AS600/1200 gate openers
- 80W rated power
- Low-noise motor operation
- Smooth swing motion
- Automatic stop and reverse when an obstruction is detected
- Anti-rust and water-resistant construction
- Programmable 0–99 second auto-close function
- 24V DC operating voltage
- Solar compatible
- Supports gates up to 18 ft. or 880 lbs.
- 15-1/8-inch actuator travel
- 5/8-inch-per-second actuator speed
- 1-year limited warranty
Specifications
| Specification | Details |
|---|---|
| Product | Actuator for Swing Gates – AS600/1200 Series |
| Model | ASARM600/1200 |
| SKU | ASARM600/1200-AP |
| MPN | ASARM600/1200 |
| UPC | 703980267912 |
| Product Type | Gate Opener Replacement Part |
| Component Type | Swing Gate Actuator |
| Compatible Series | ALEKO AS600/1200 |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz – not included |

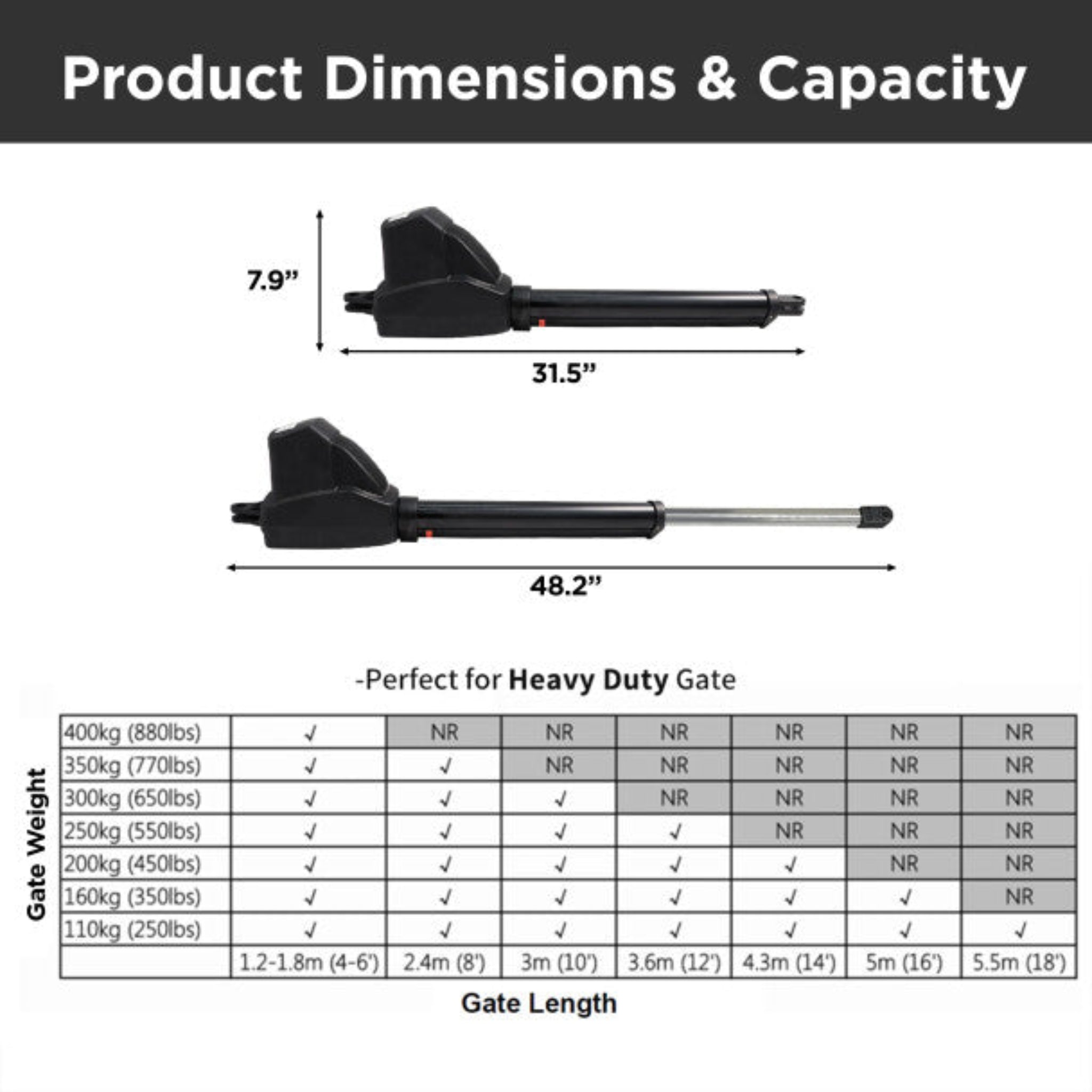

| Maximum Gate Capacity | 18 ft. or 880 lbs. |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes |
| Solar Panels Included | No |
| Auto-Close Setting | 0–99 seconds |
| Warranty | 1-Year Limited Warranty |
