Description
The ALEKO AS1200ACC Dual Swing Gate Operator Accessory Kit is designed to automate dual swing gates for residential and commercial properties. Its powerful 160W opener supports gates up to 36 ft. in length or 1,760 lbs. total, with a maximum capacity of 18 ft. or 880 lbs. per gate panel.
The system provides smooth and quiet swing operation, with two remote controls offering up to a 100 ft. range. A wireless keypad with backlight provides an additional convenient access option, while the programmable auto-close function helps improve security.
Safety features include automatic stop-and-reverse functionality when an obstruction is encountered and photocell sensors for obstacle detection. Two emergency release keys allow manual operation in the event of a power failure. The opener is also solar compatible, although solar panels and batteries are not included with this accessory kit.

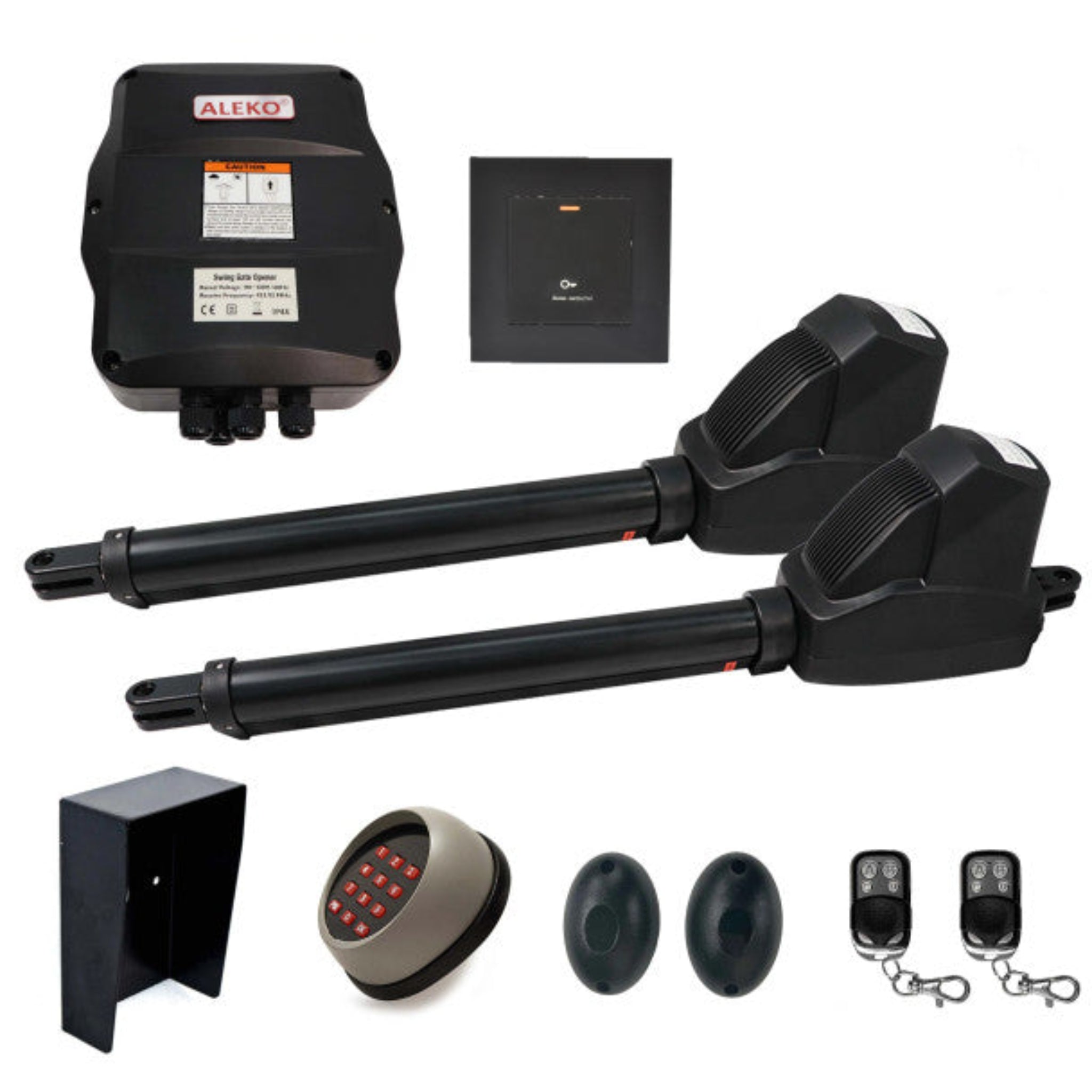

Package Includes
- (2) AS1200 actuators
- (1) Control box
- (1) Wired push button
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocell sensors
- (1) Wireless keypad with backlight
- (1) Metal keypad cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 36 ft. / 1,760 lbs. total
- Supports up to 18 ft. / 880 lbs. per panel
- Powerful 160W opener
- 24V DC power system
- Smooth swing motion
- Low motor noise
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Wireless keypad with backlight
- Metal keypad cover included
- Automatic stop-and-reverse protection
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close
- Two emergency release keys
- Anti-rust, water-resistant materials
- Solar compatible
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator Accessory Kit |
| Model | AS1200ACC |
| SKU | AS1200ACC-AP |
| MPN | AS1200NOR |
| Compatible Gate Type | Dual Swing Gates |
| Rated Power | 160W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

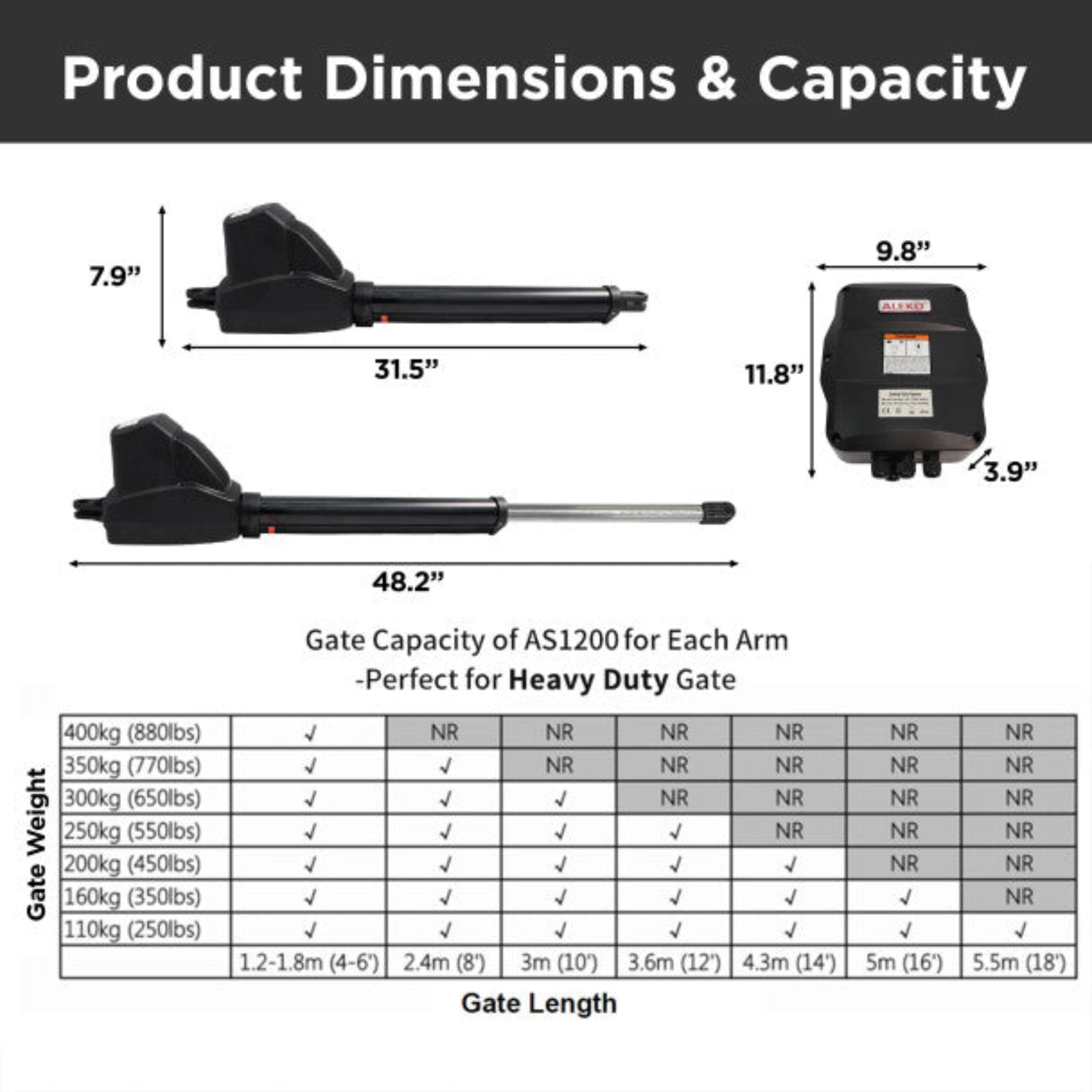

| Maximum Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Compatible | Yes |
| Solar Panels | Not included |
| Backup Batteries | Not included |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
