Description

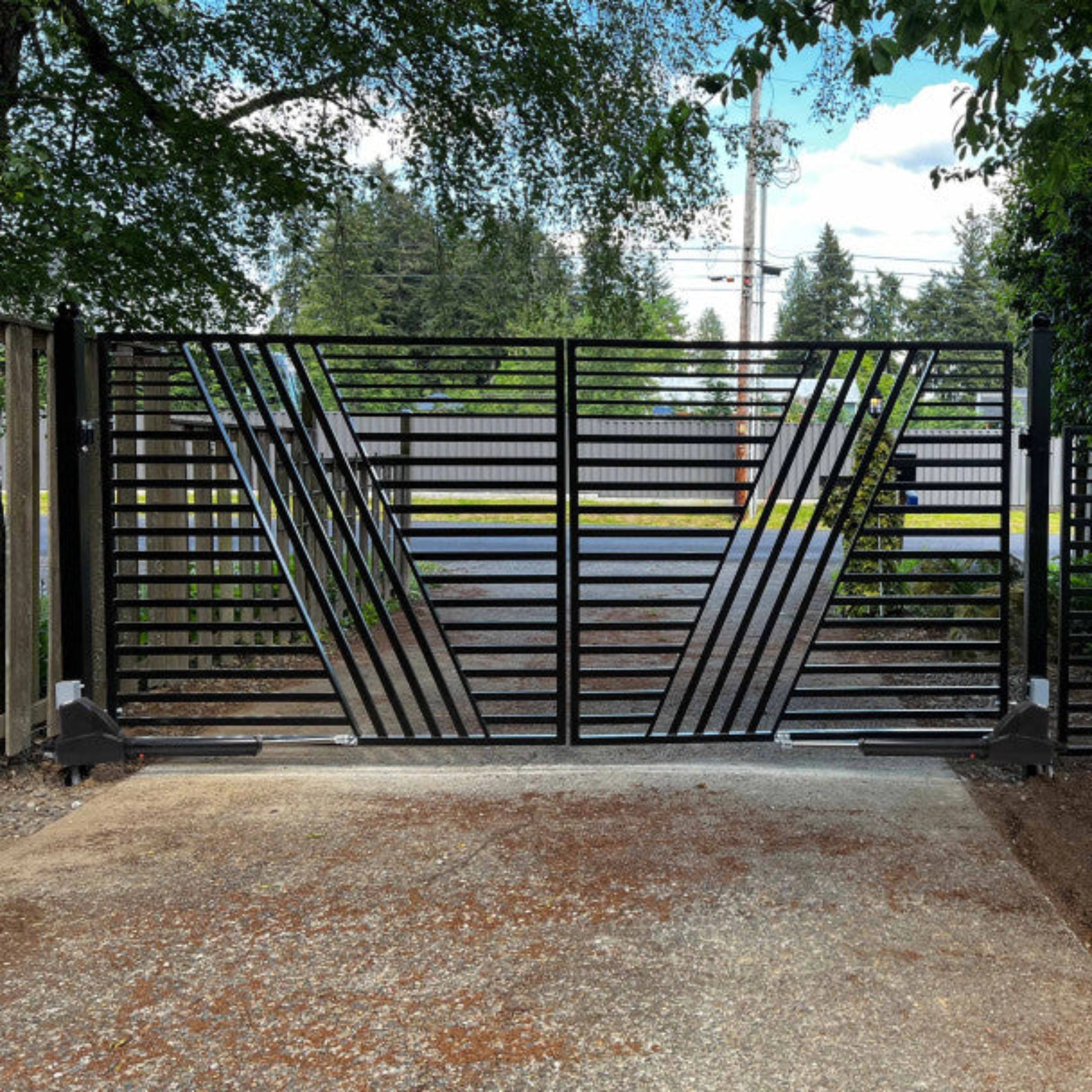

The ALEKO AS1200FULL Dual Swing Gate Operator 60W Solar Kit is designed to automate dual swing gates for residential and commercial properties. The powerful 160W opener provides smooth and quiet operation for dual swing gates up to 36 ft. in length or 1,760 lbs. total, supporting up to 18 ft. or 880 lbs. per gate panel.

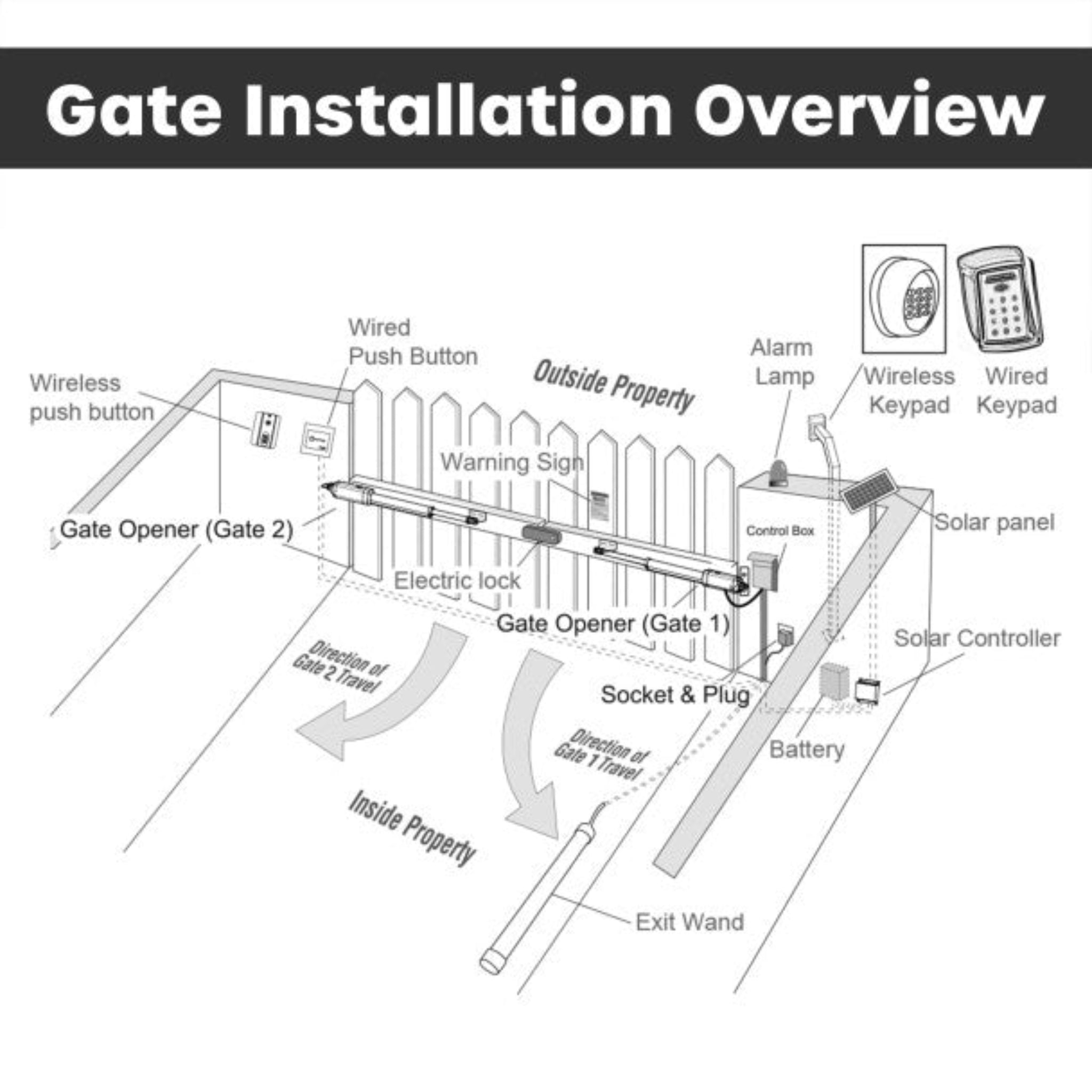

The system includes solar panels for efficient operation and offers multiple power options, including AC electricity, solar power with batteries, and backup battery operation. Two remote controls and a wireless backlit keypad provide convenient access, while the programmable auto-close function helps keep your property secure.
Safety features include automatic stop-and-reverse functionality when an obstruction is detected, photocell sensors, and emergency release keys for use during power failures. The opener also features anti-rust, water-resistant materials for outdoor use.

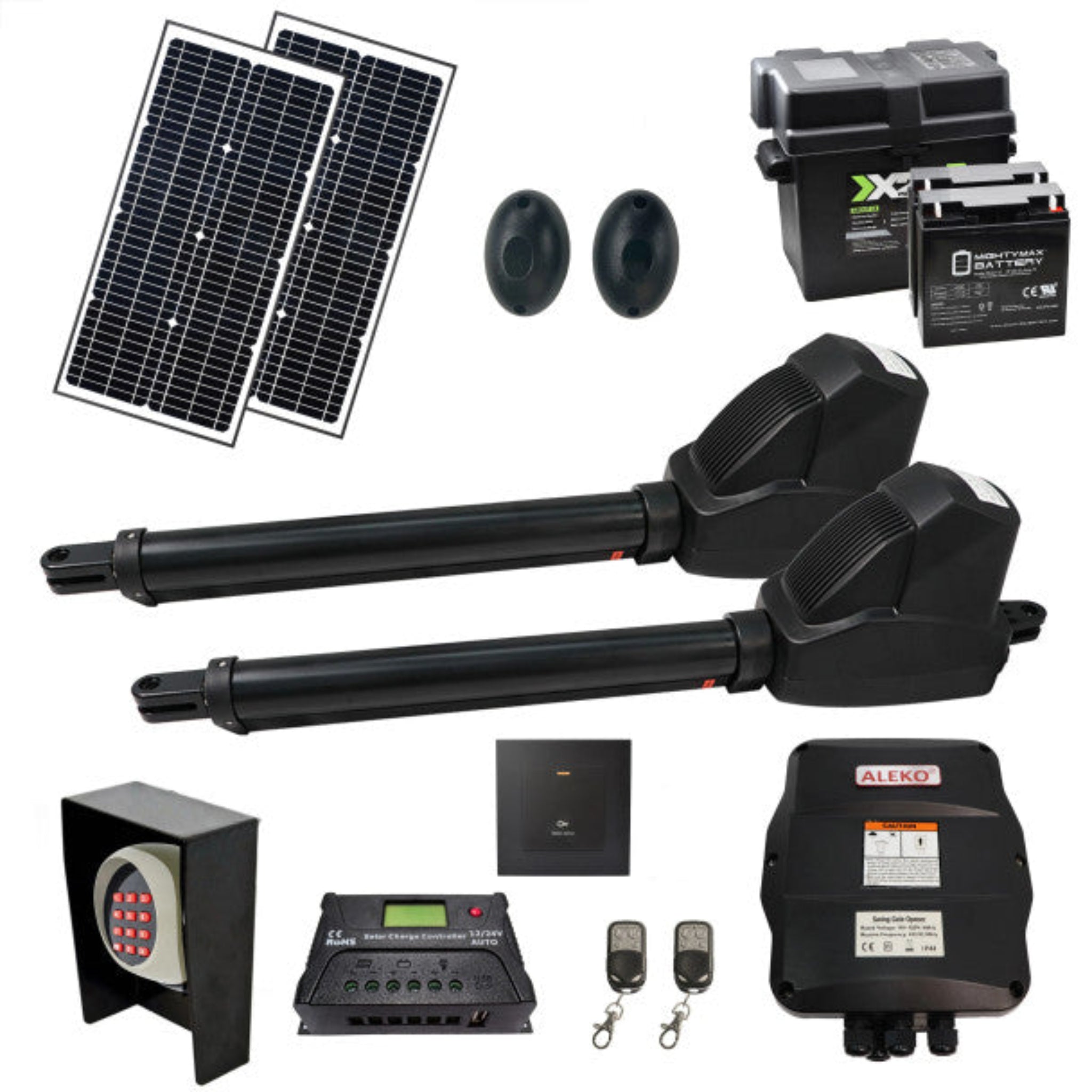

Package Includes

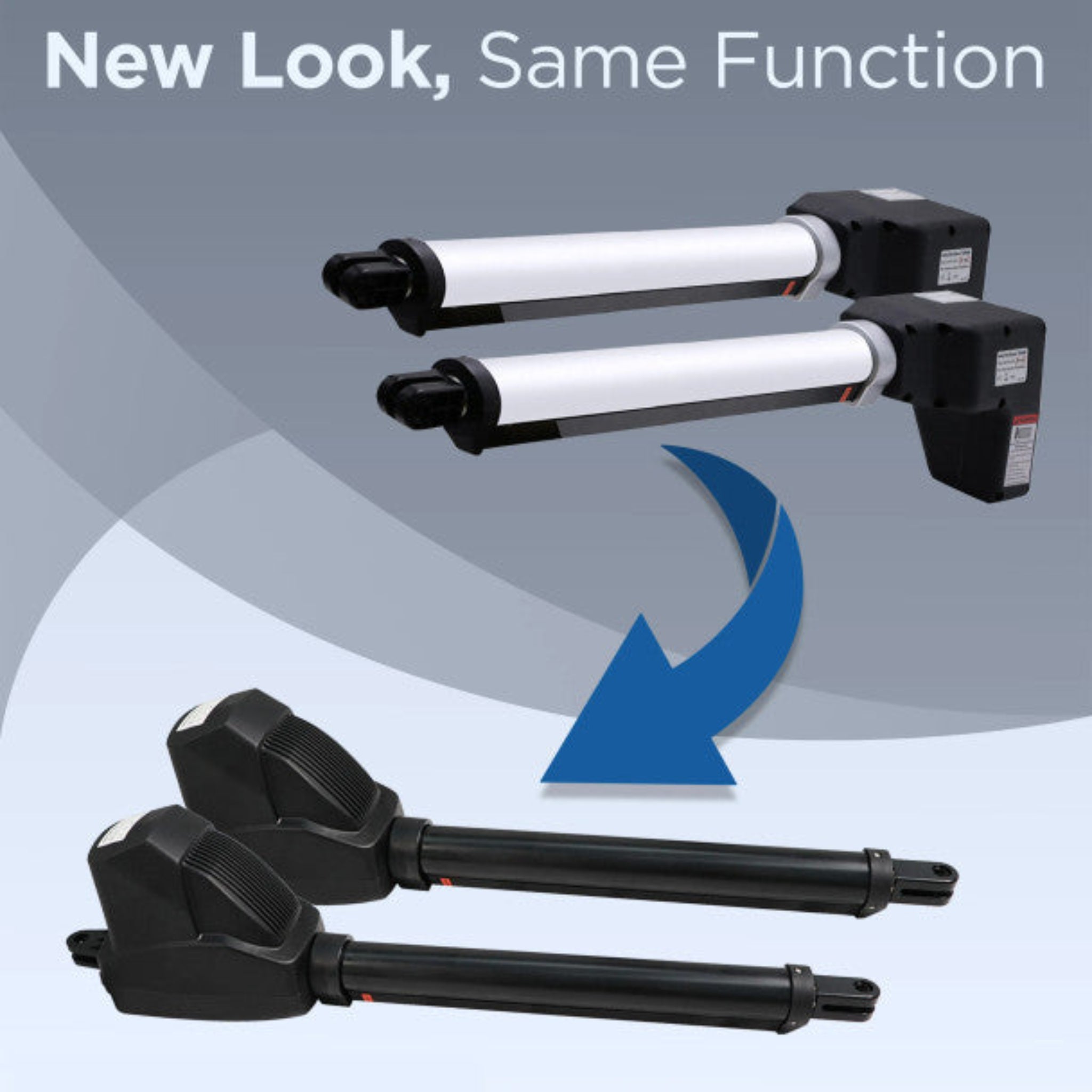

- (2) AS1200 gate actuators

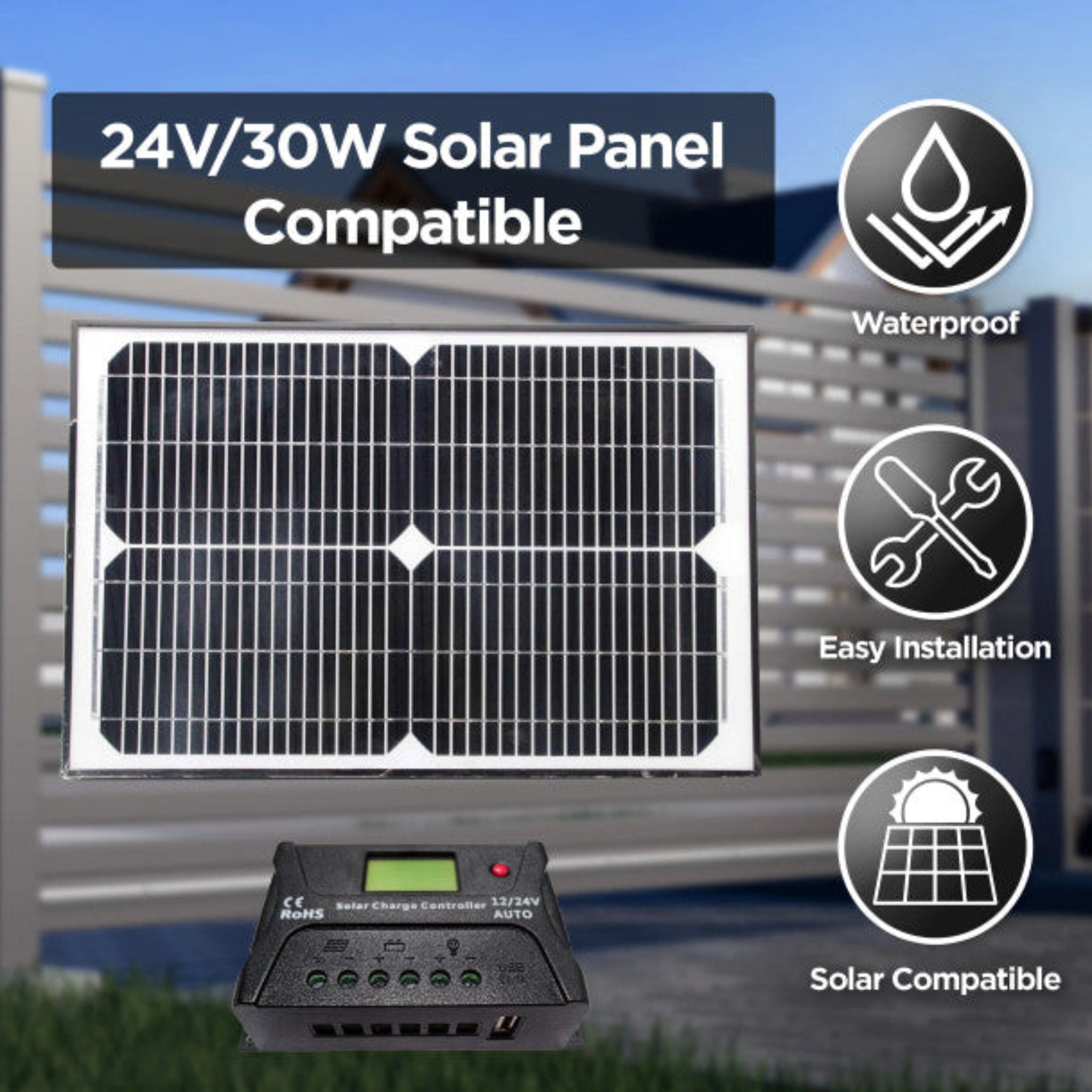

- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

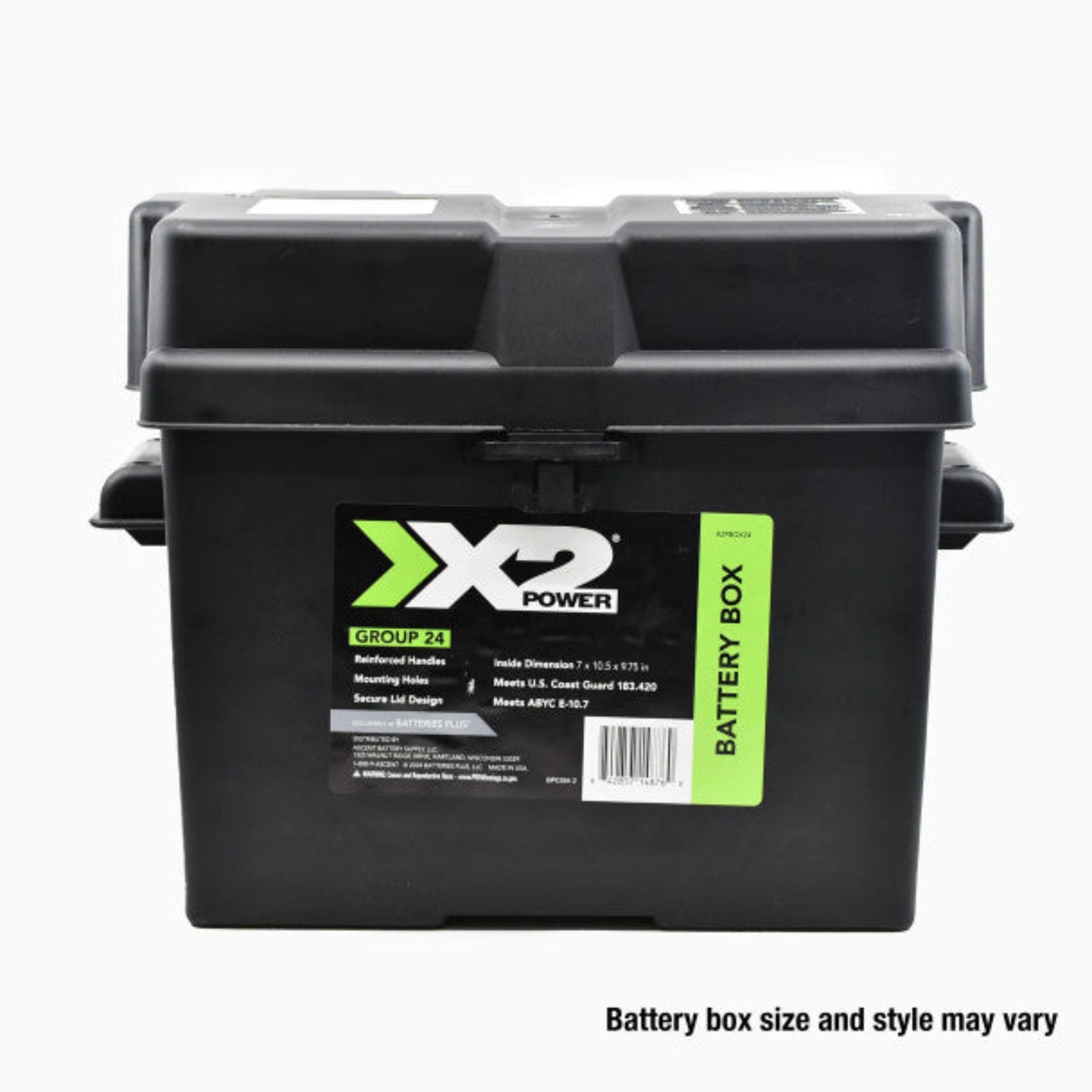

- (1) Battery box
- (1) Control box
- (1) Wired push button
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocell sensors
- (1) Wireless keypad with backlight
- (1) Metal keypad cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 36 ft. long or 1,760 lbs. total
- Supports up to 18 ft. or 880 lbs. per gate panel
- Powerful 160W opener
- 24V DC power system
- Smooth and quiet swing motion
- Low motor noise

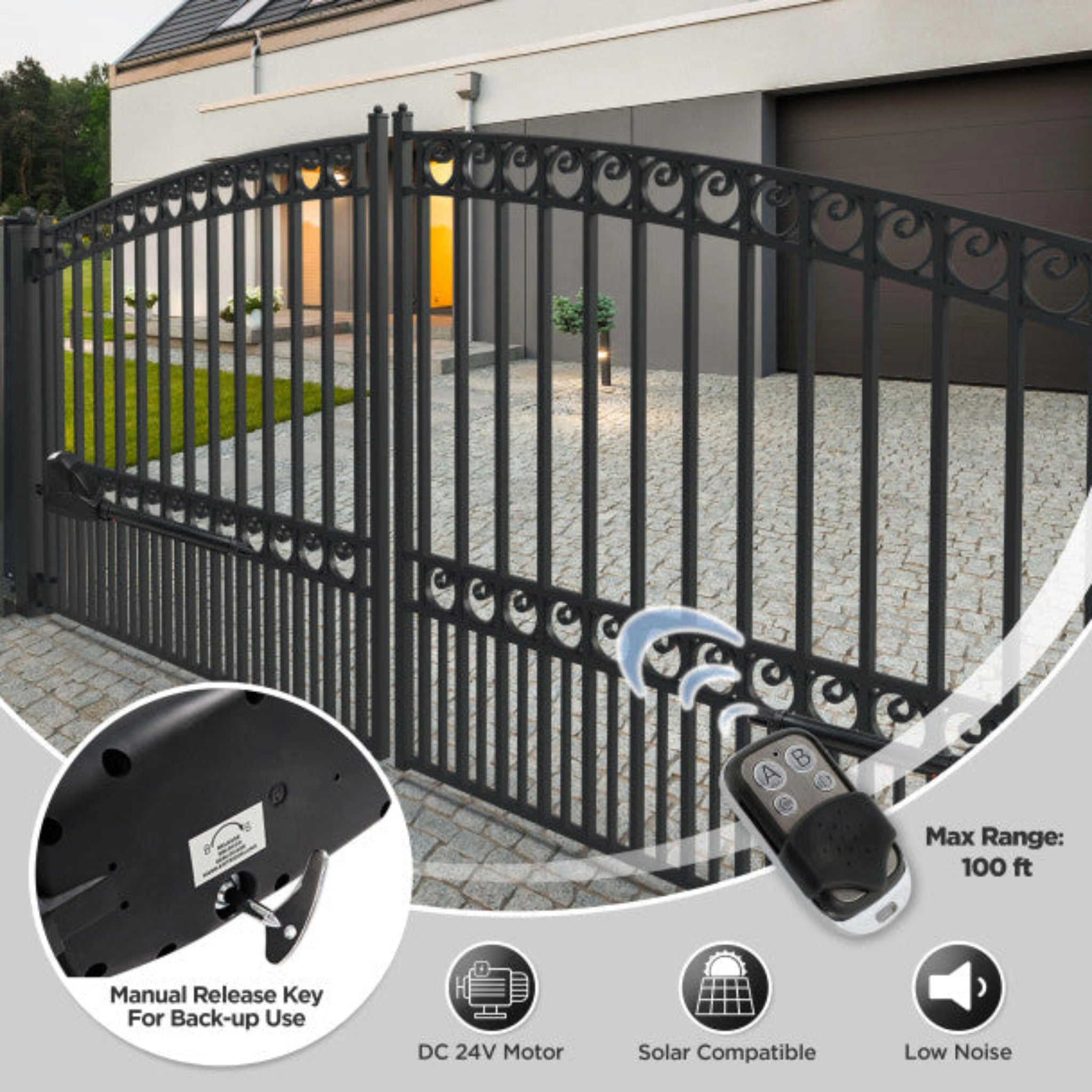

- Two remote controls with up to 100 ft. range
- Wireless keypad with backlight and metal cover
- Solar-powered operation for efficient energy use
- Automatic stop-and-reverse functionality when an obstruction is detected
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close
- Two emergency release keys for power failures

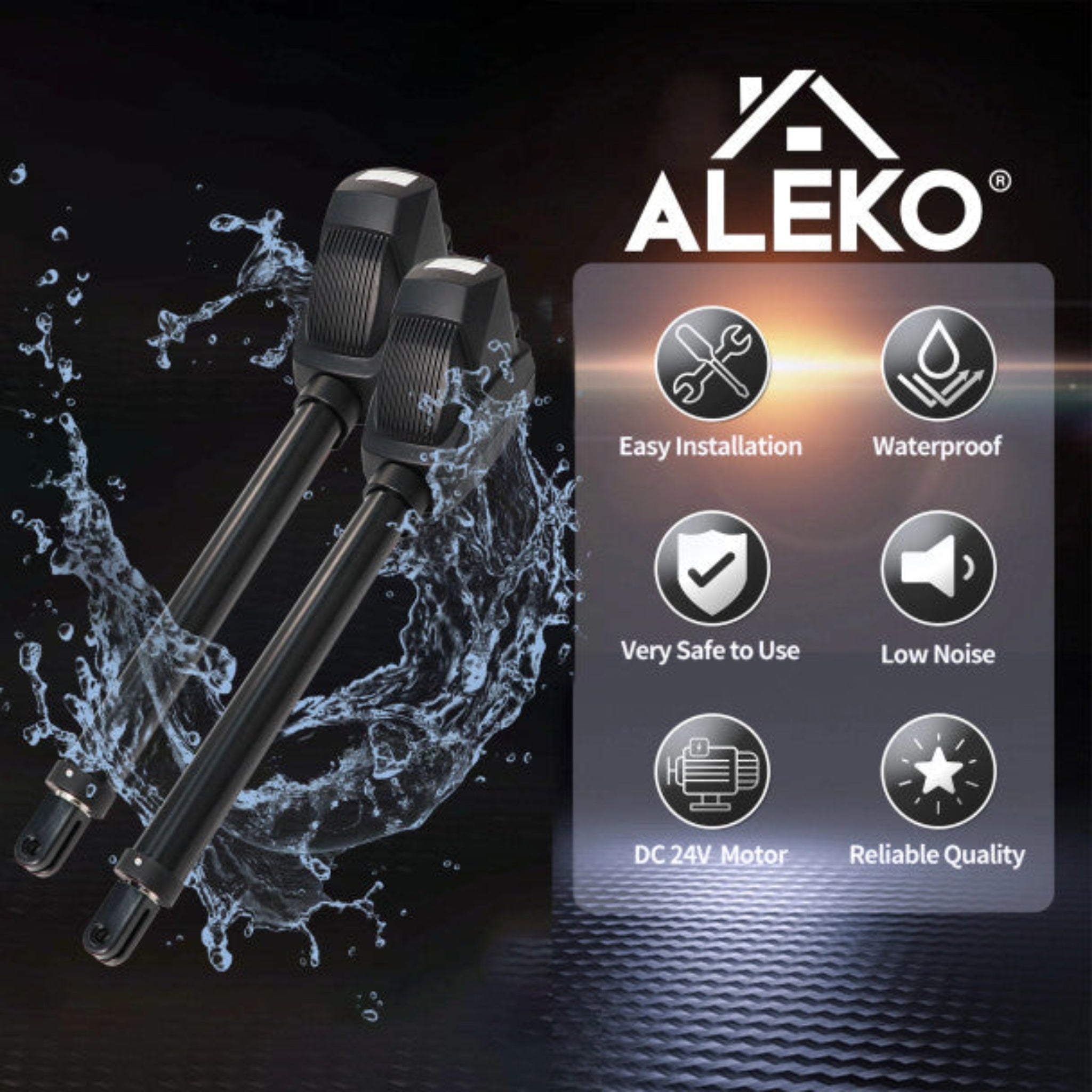

- Anti-rust, water-resistant materials
- Multiple power modes
- Assembly required
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator 60W Solar Kit |
| Model | AS1200FULL |
| SKU | AS1200FULL-AP |
| MPN | AS1200NOR |
| Compatible Gates | Dual Swing Gates |
| Rated Power | 160W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

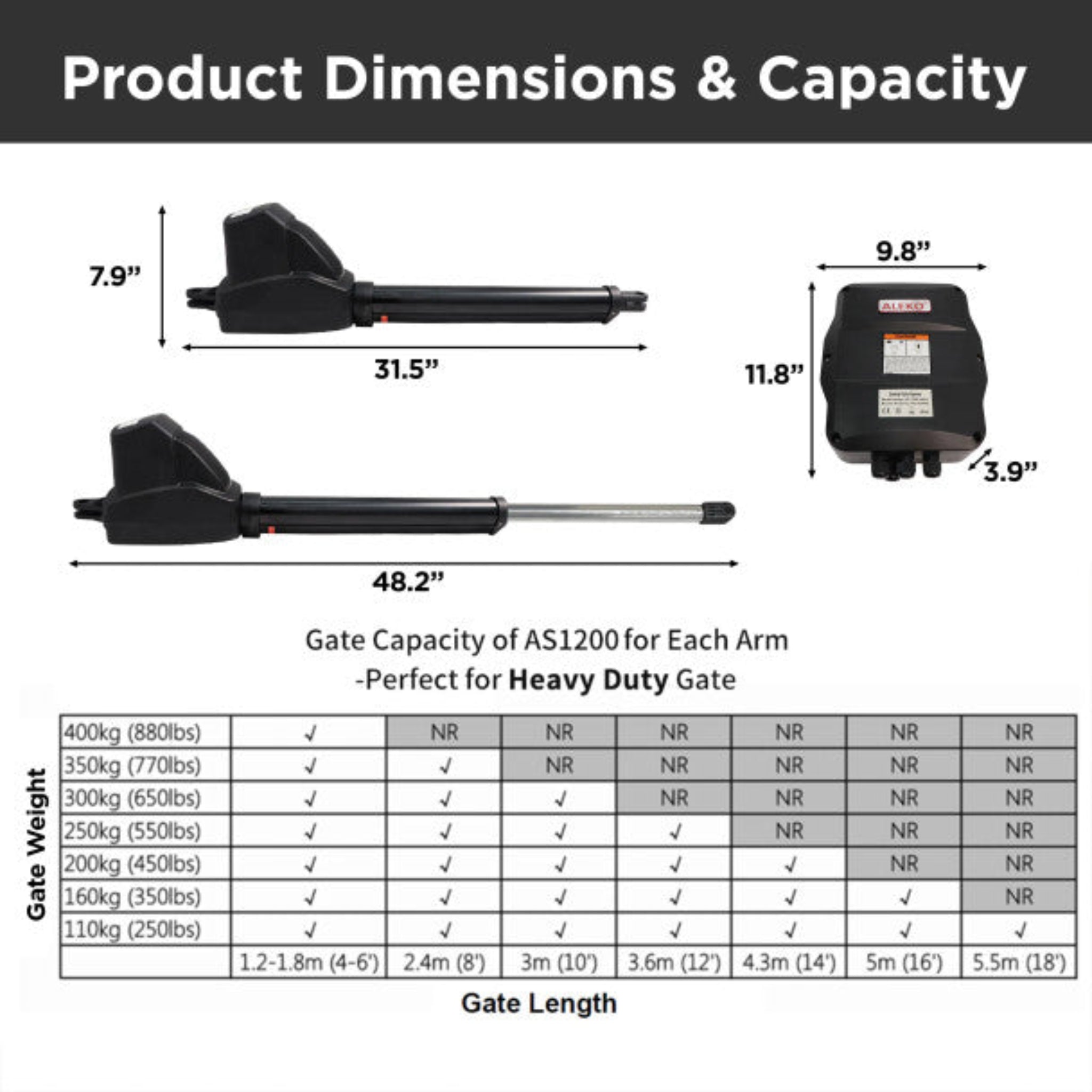

| Maximum Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Power Modes | AC; Solar + Batteries; AC + Backup Batteries; AC + Solar + Backup Batteries |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Panels | 2 × 30W, 24V |
| Batteries | 2 × 22 Ah |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
