Description
The ALEKO AS1200SOL Dual Swing Gate Operator 60W Solar Kit is designed to automate dual swing gates for residential and commercial properties. The powerful 160W opener supports gates up to 36 ft. in length or 1,760 lbs. total, with a maximum capacity of 18 ft. or 880 lbs. per gate panel.
The included 60W solar panels provide an efficient power option, while the system also supports AC electricity and backup batteries. Two remote controls with a 100 ft. range allow convenient operation from your vehicle, while the programmable auto-close function helps keep your property secure.
The opener provides smooth and quiet operation with automatic stop-and-reverse protection when an obstruction is detected. Anti-rust, water-resistant materials make it suitable for outdoor use, and emergency release keys allow manual operation during a power failure.

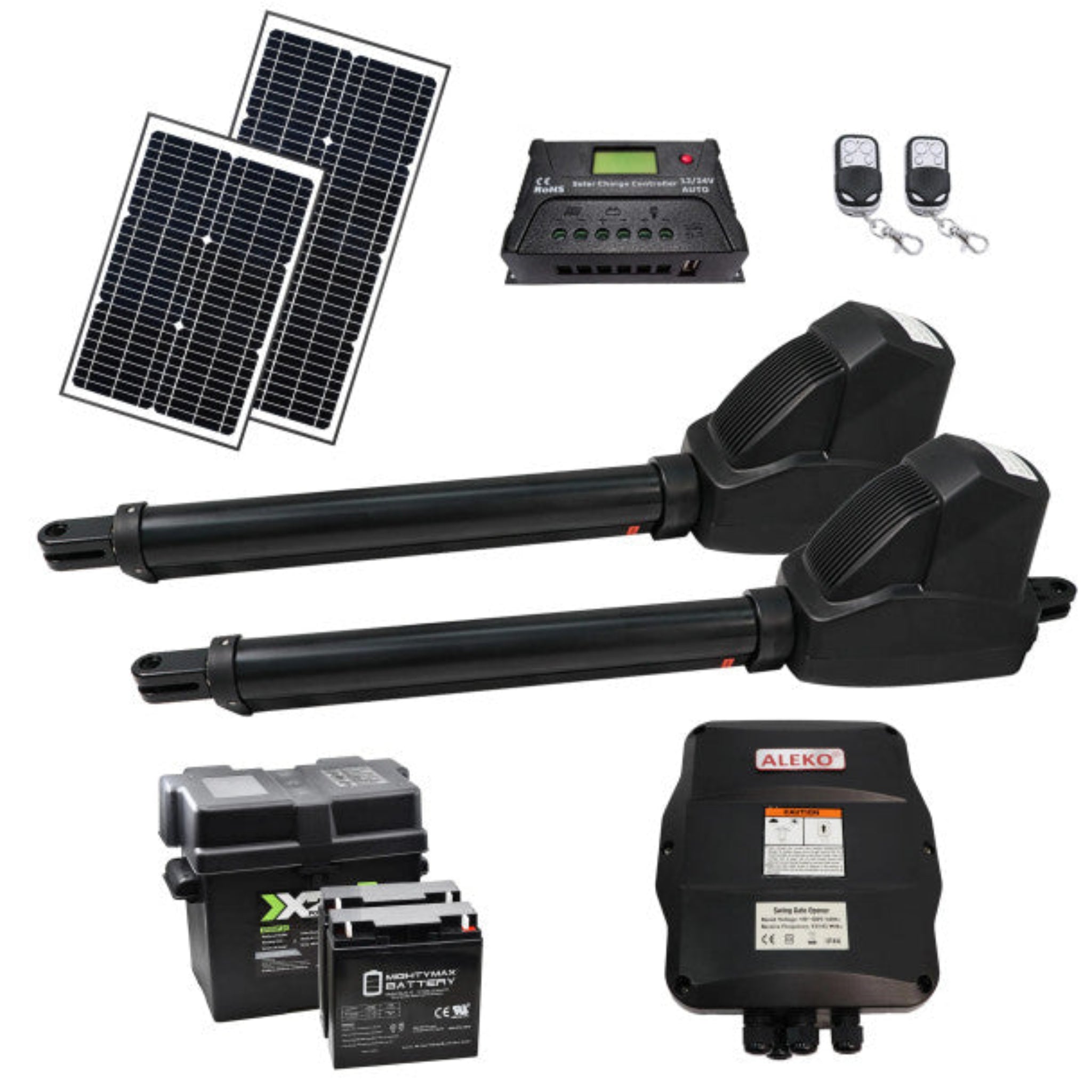

Package Includes

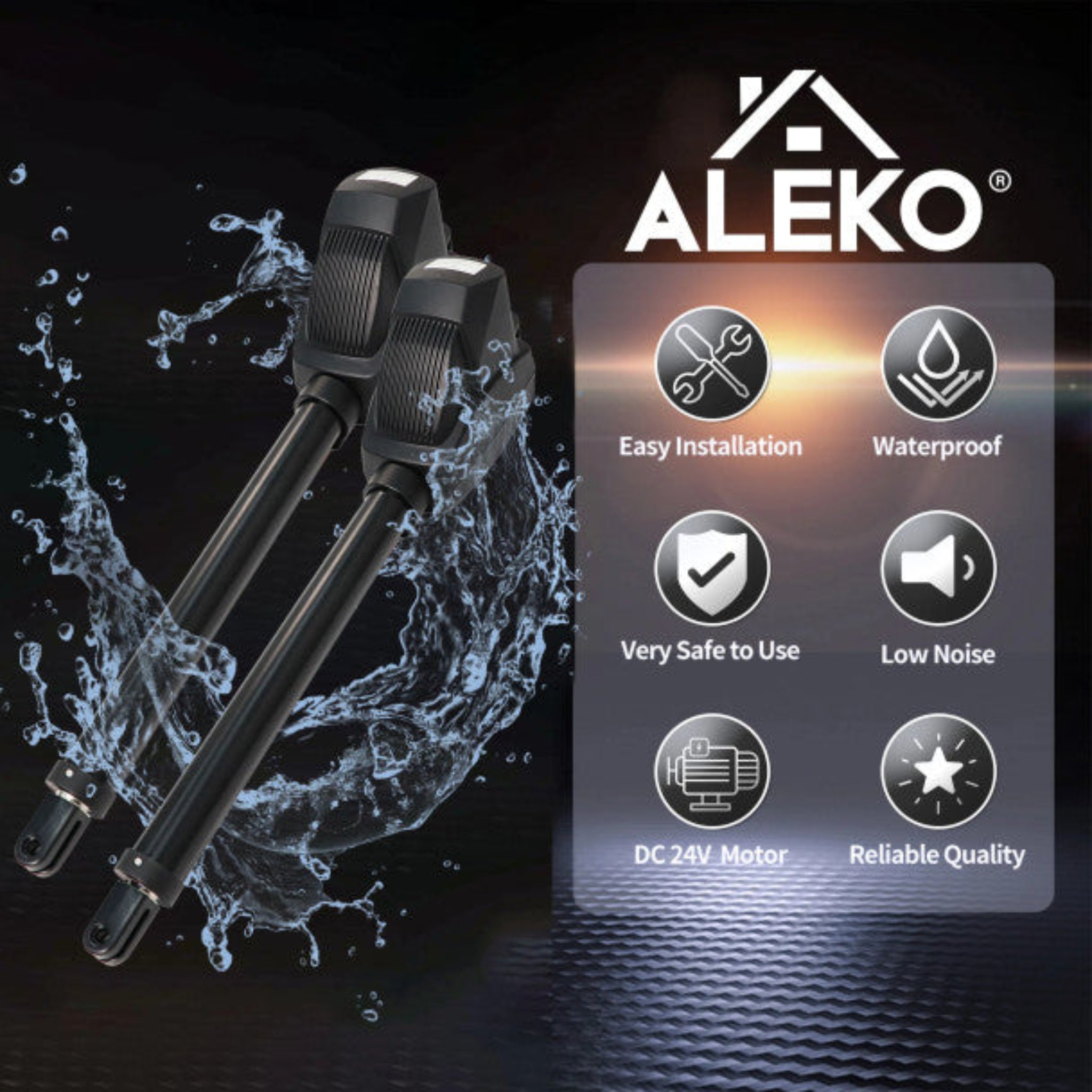

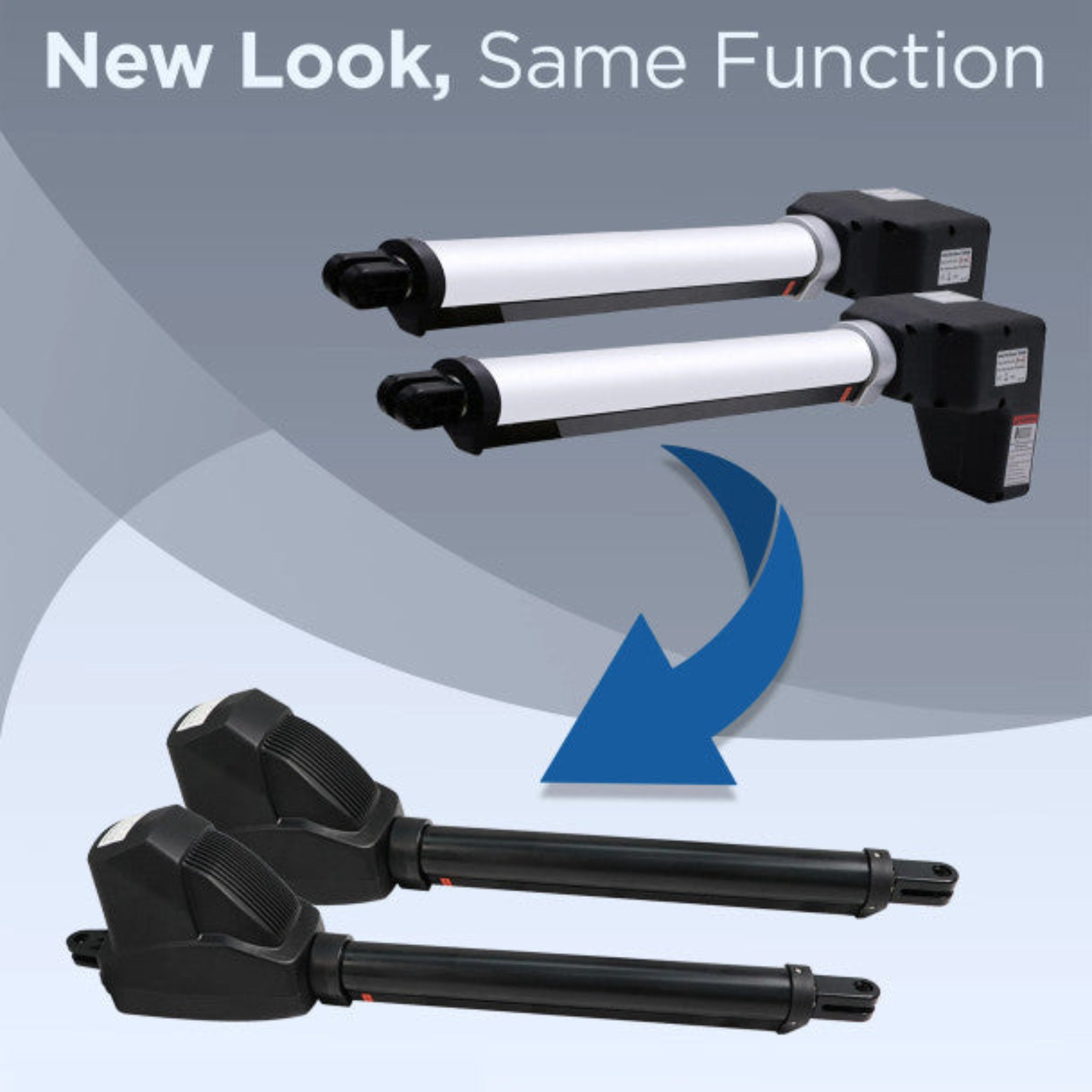

- (2) AS1200 actuators

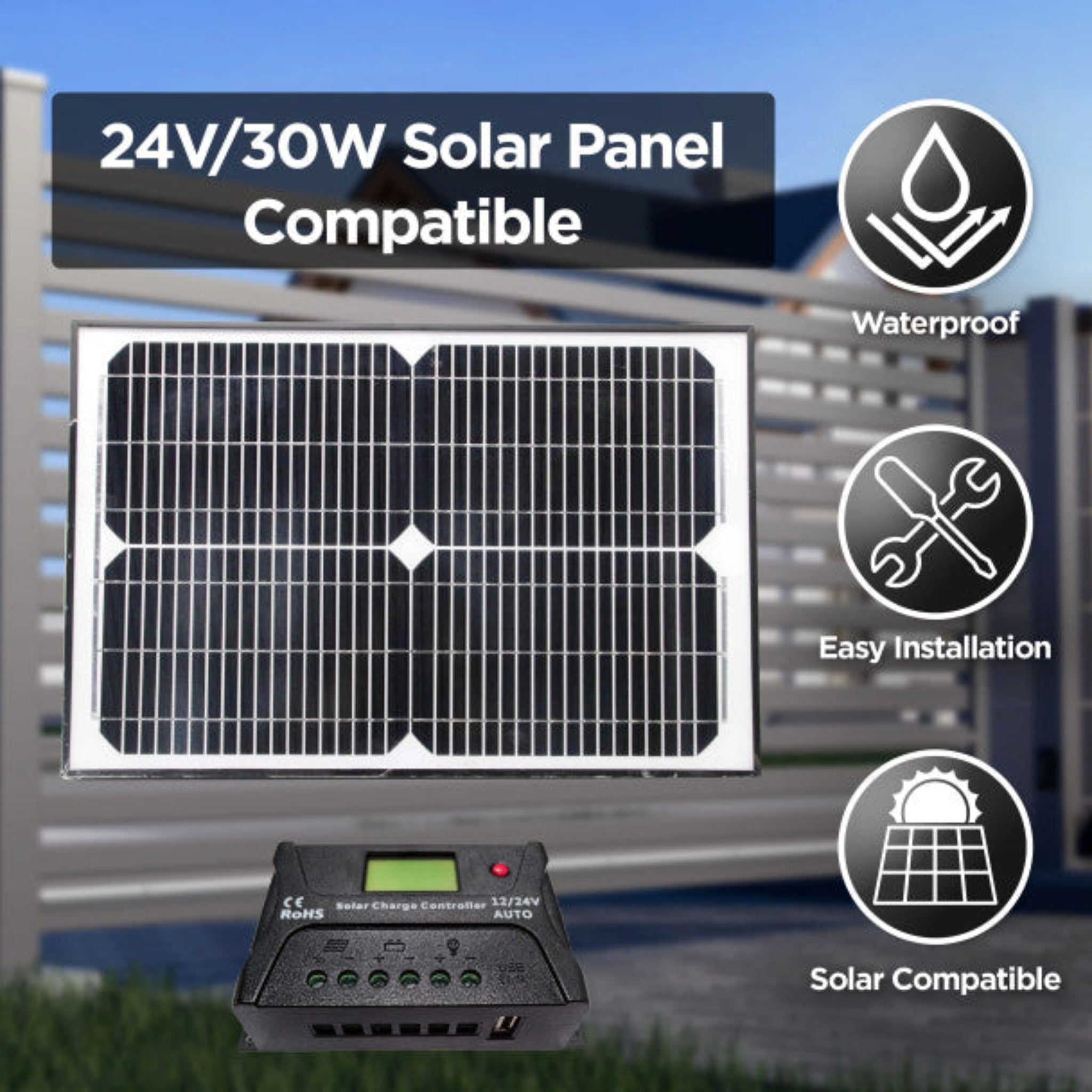

- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

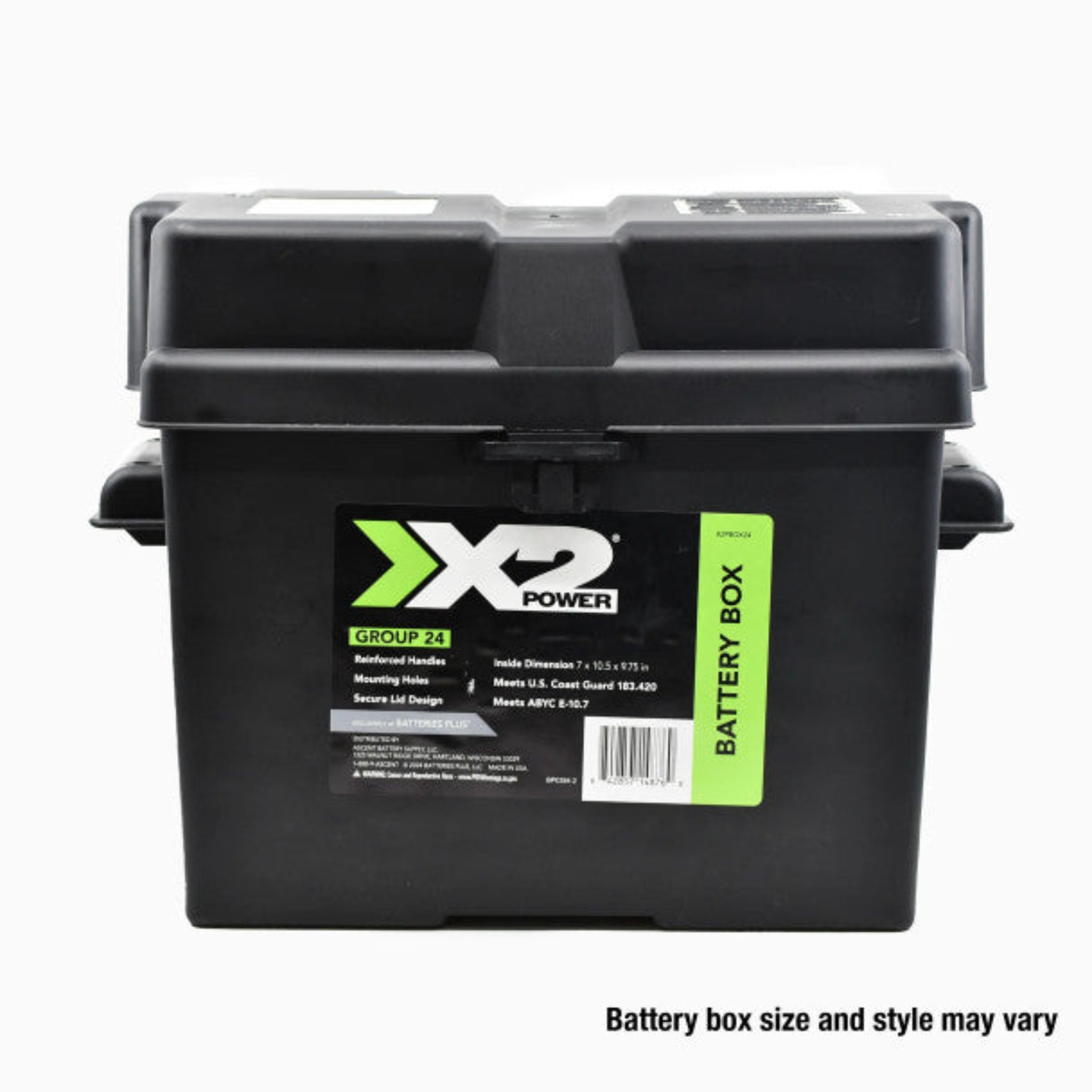

- (1) Battery box
- (1) Control box
- (1) Wired push button
- (2) 433 MHz remote controls
- (2) Emergency release keys
- Warning signs
- Mounting hardware
Key Features

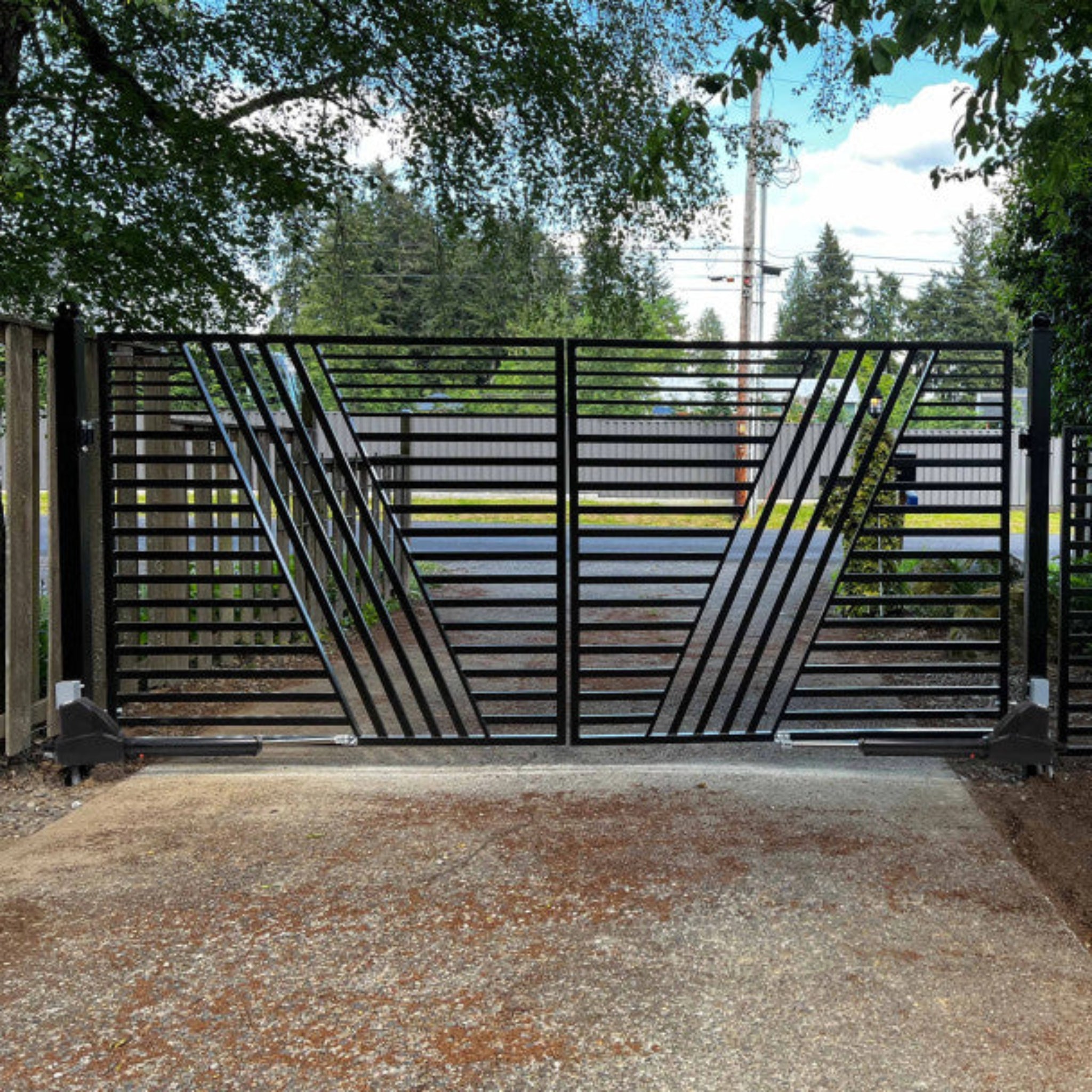

- Designed for dual swing gates
- Supports gates up to 36 ft. / 1,760 lbs. total
- Supports up to 18 ft. / 880 lbs. per panel
- Powerful 160W opener
- 60W solar power with included solar panels
- Smooth and quiet swing motion
- Low motor noise

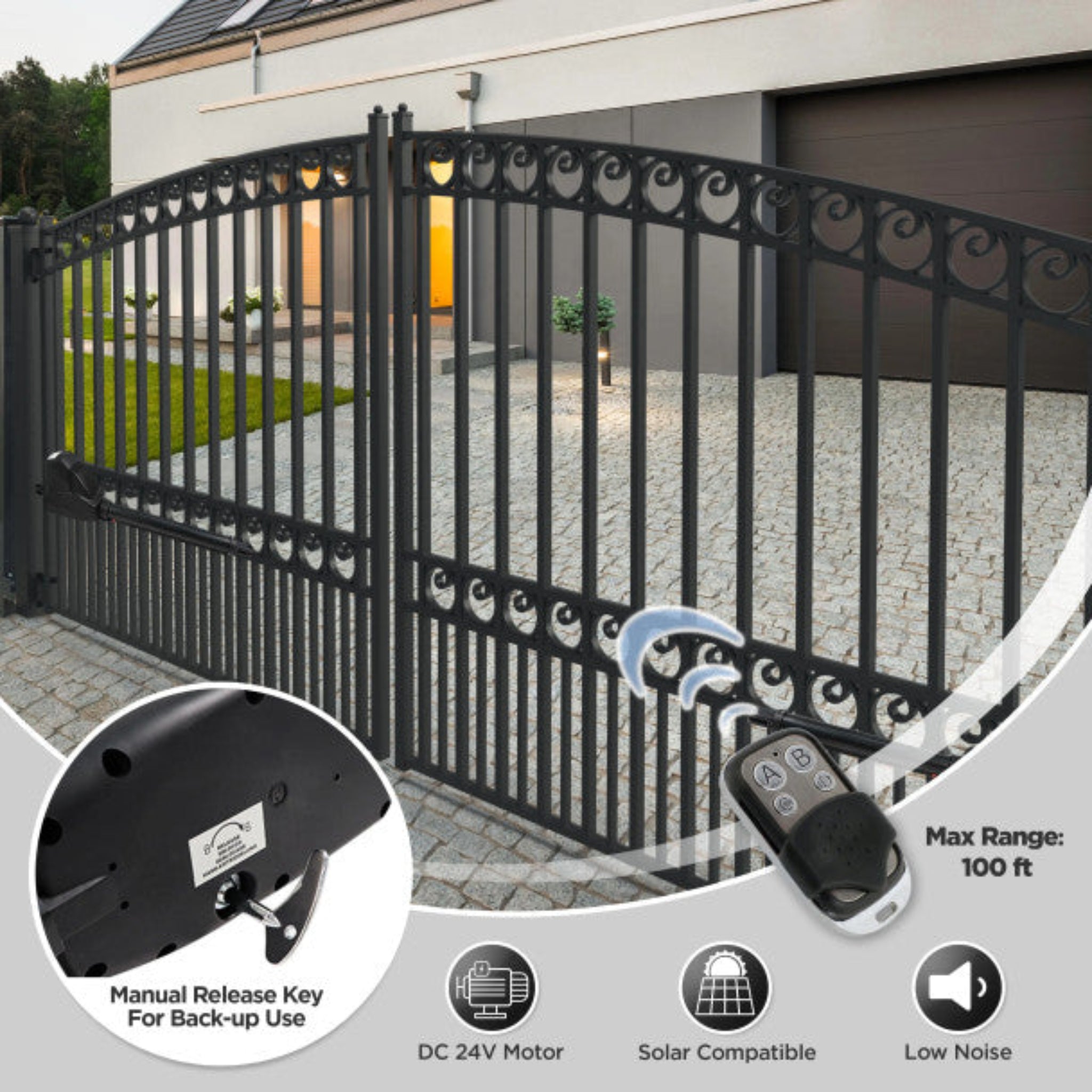

- Two remote controls with up to 100 ft. range
- Automatic stop-and-reverse functionality
- Anti-rust, water-resistant materials
- Programmable 0–99 second auto-close
- Two emergency release keys
- Multiple power options including AC, solar, and backup batteries
- Assembly required
Warranty
- 1-Year Limited Warranty
- Solar panels include a 15-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator 60W Solar Kit |
| Model | AS1200SOL |
| SKU | AS1200SOL-AP |
| MPN | AS1200NOR |
| Compatible Gates | Dual Swing Gates |
| Rated Power | 160W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

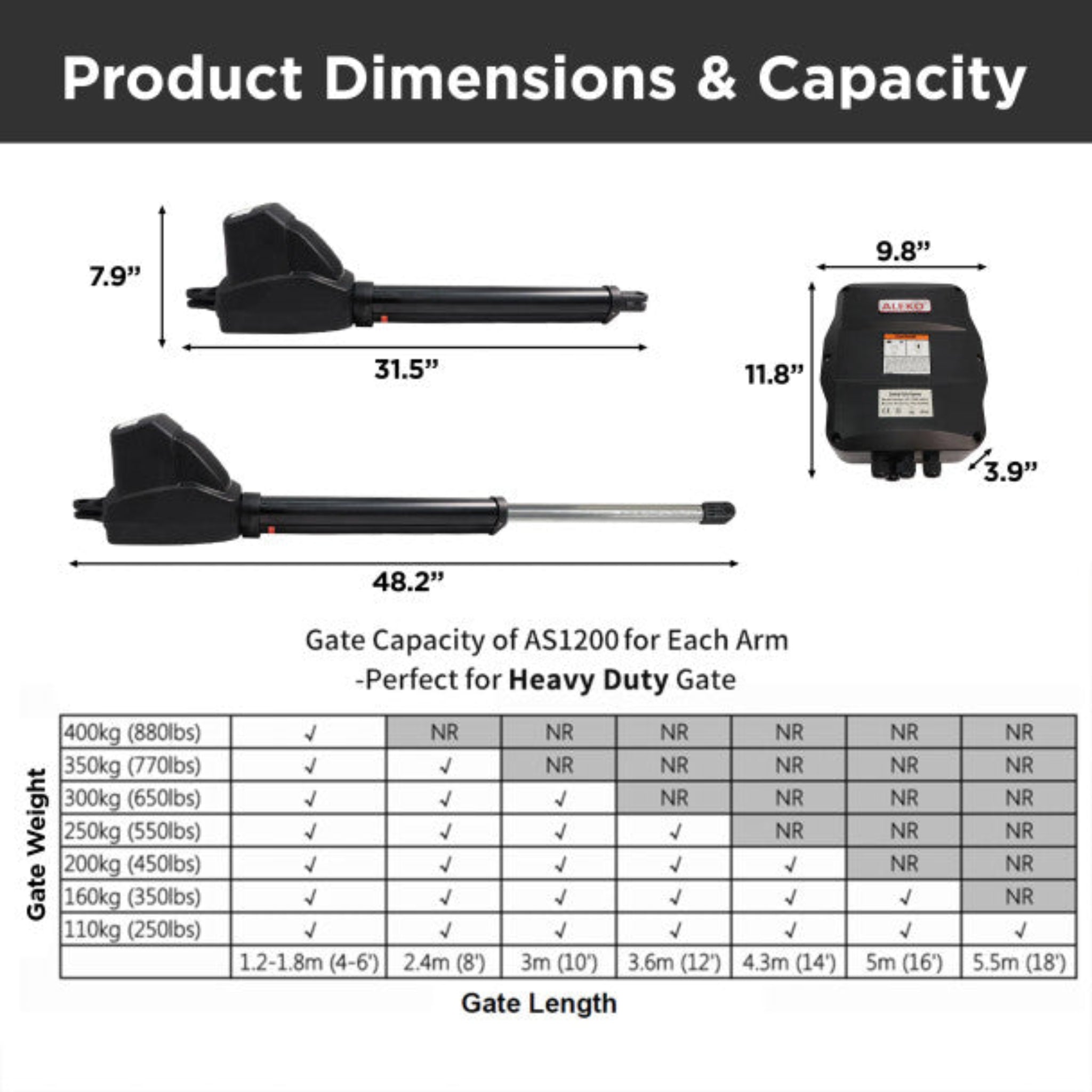

| Maximum Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Power Modes | AC; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes |
| Solar Panels | 2 × 30W, 24V |
| Batteries | 2 × 22 Ah |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Feature | Automatic Stop & Reverse |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
