Description
The ALEKO AS1200NOR Dual Swing Gate Operator Starter Kit is designed to automate dual swing gates for residential and commercial properties. Its 160W, 24V DC motor supports gates up to 36 ft. wide or 1,760 lbs. total, with a maximum capacity of 18 ft. or 880 lbs. per panel.
The operator provides smooth and quiet gate movement and features automatic stop-and-reverse protection when resistance or an obstruction is detected. Two 433 MHz remote controls with a range of up to 100 ft. provide convenient operation, while the programmable auto-close function helps improve security.
The durable, water-resistant construction is suitable for outdoor installation. Emergency release keys allow the gate to be operated manually during power failures, and the system is compatible with solar panels and backup batteries, which can be added separately.

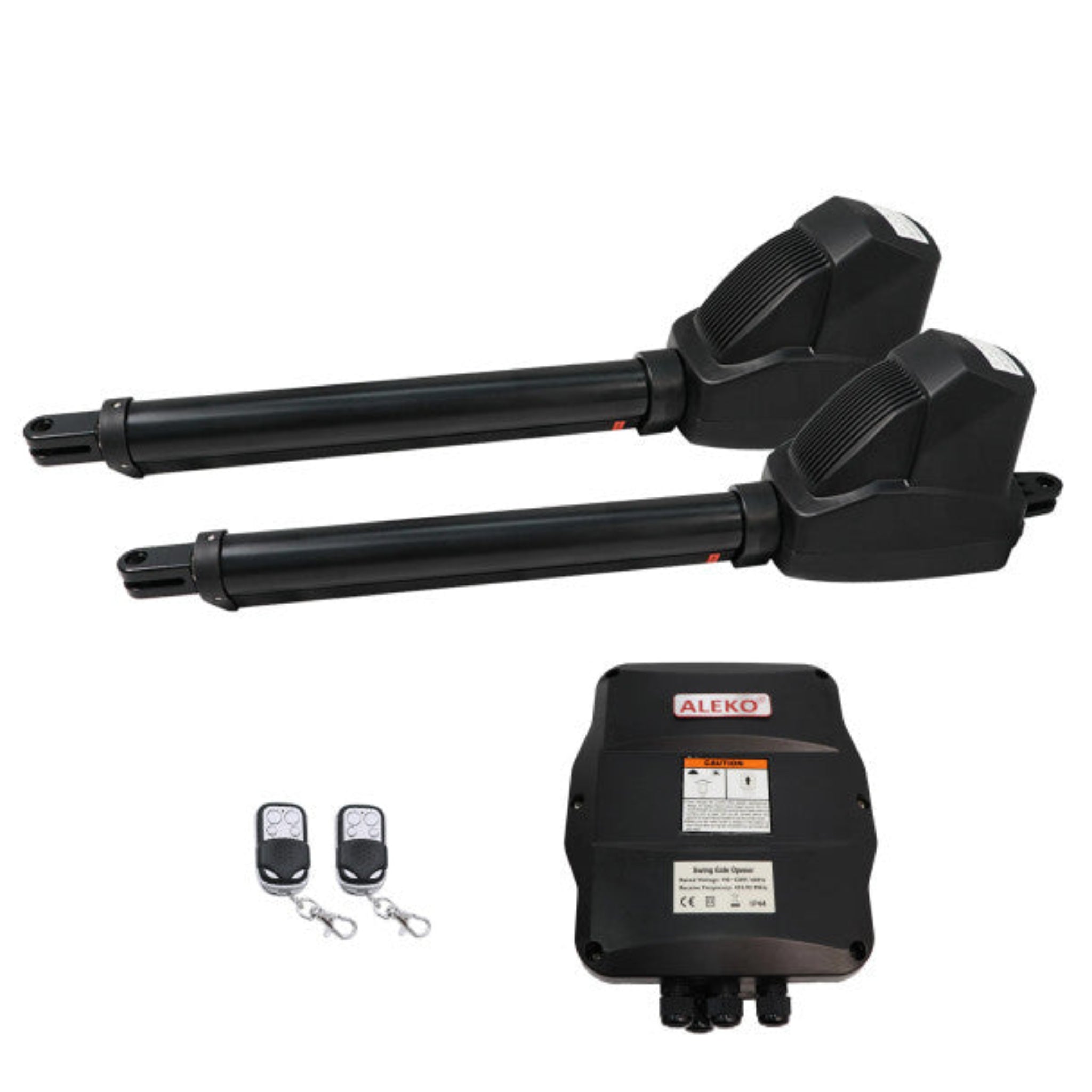

Package Includes
- (2) AS1200 gate actuators
- (1) Control box
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 36 ft. / 1,760 lbs. total
- Supports up to 18 ft. / 880 lbs. per panel
- Powerful 160W, 24V DC motor
- Smooth and quiet operation
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Programmable 0–99 second auto-close
- Automatic stop-and-reverse safety function
- Two emergency release keys
- Water-resistant, anti-rust construction

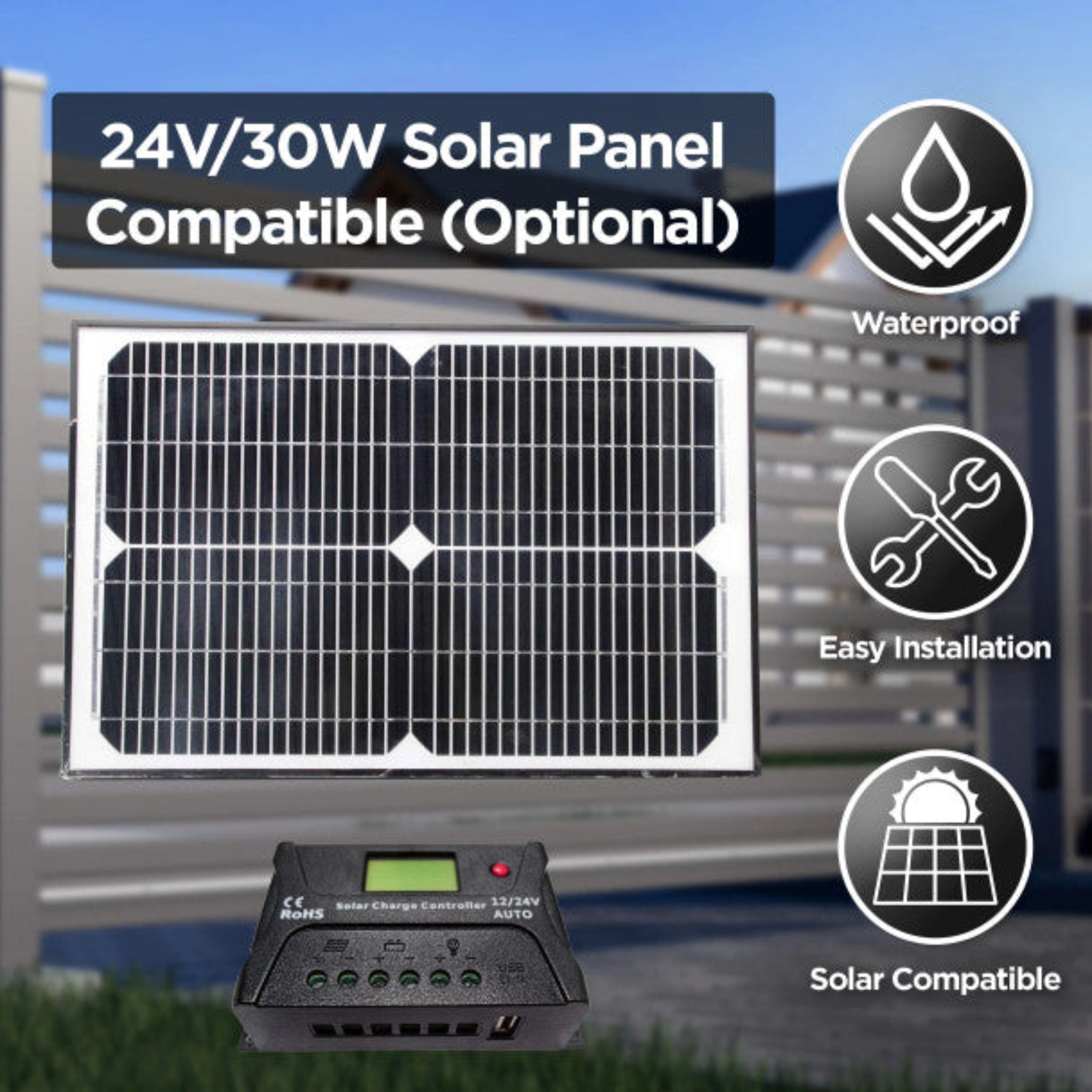

- Compatible with solar panels and backup batteries
- Suitable for residential and commercial applications
- Assembly required
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator Starter Kit |
| Model | AS1200NOR |
| SKU | AS1200NOR-AP |
| MPN | AS1200NOR |
| Compatible Gate Type | Dual Swing Gates |
| Rated Power | 160W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

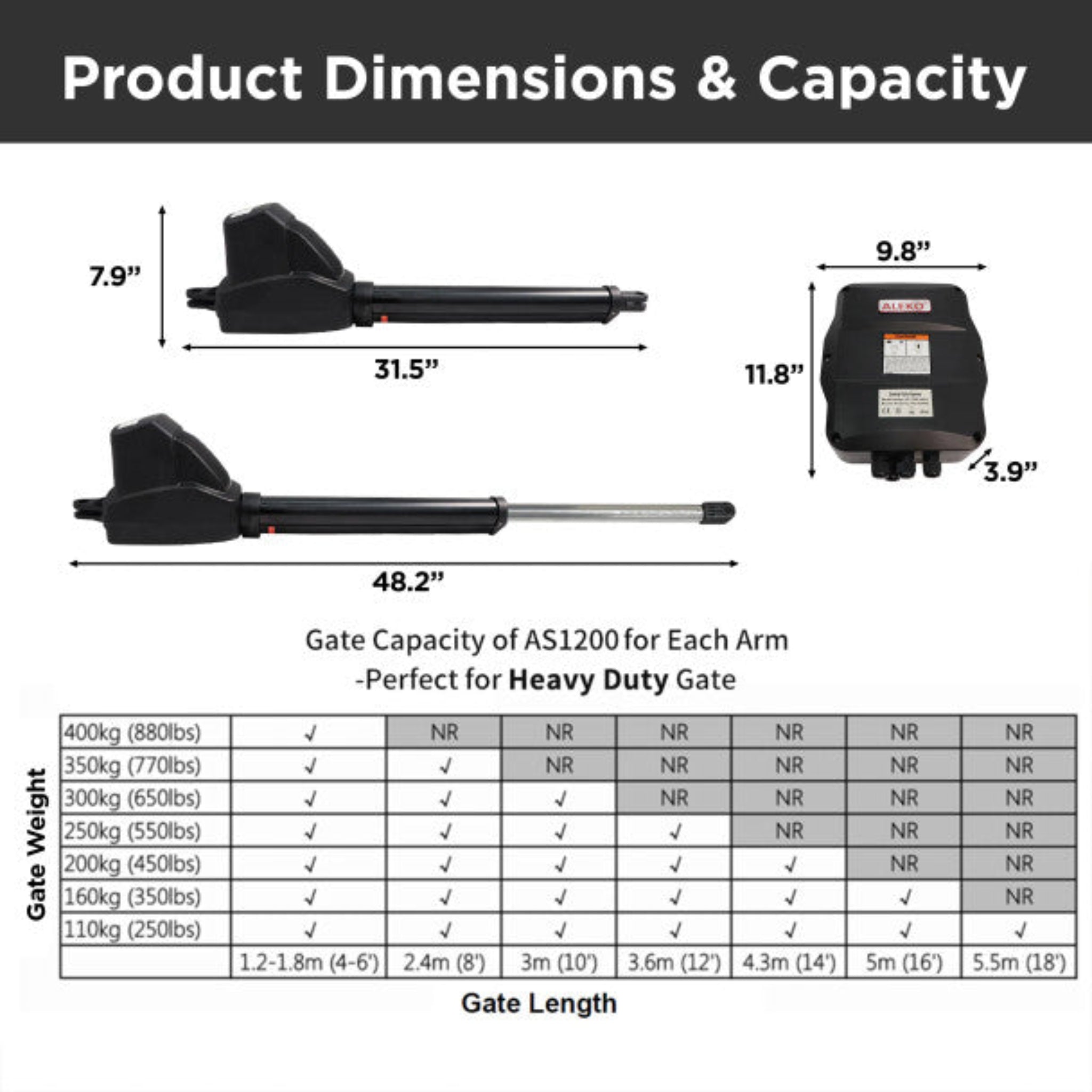

| Maximum Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | Not included |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Feature | Automatic Stop & Reverse |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
