Description

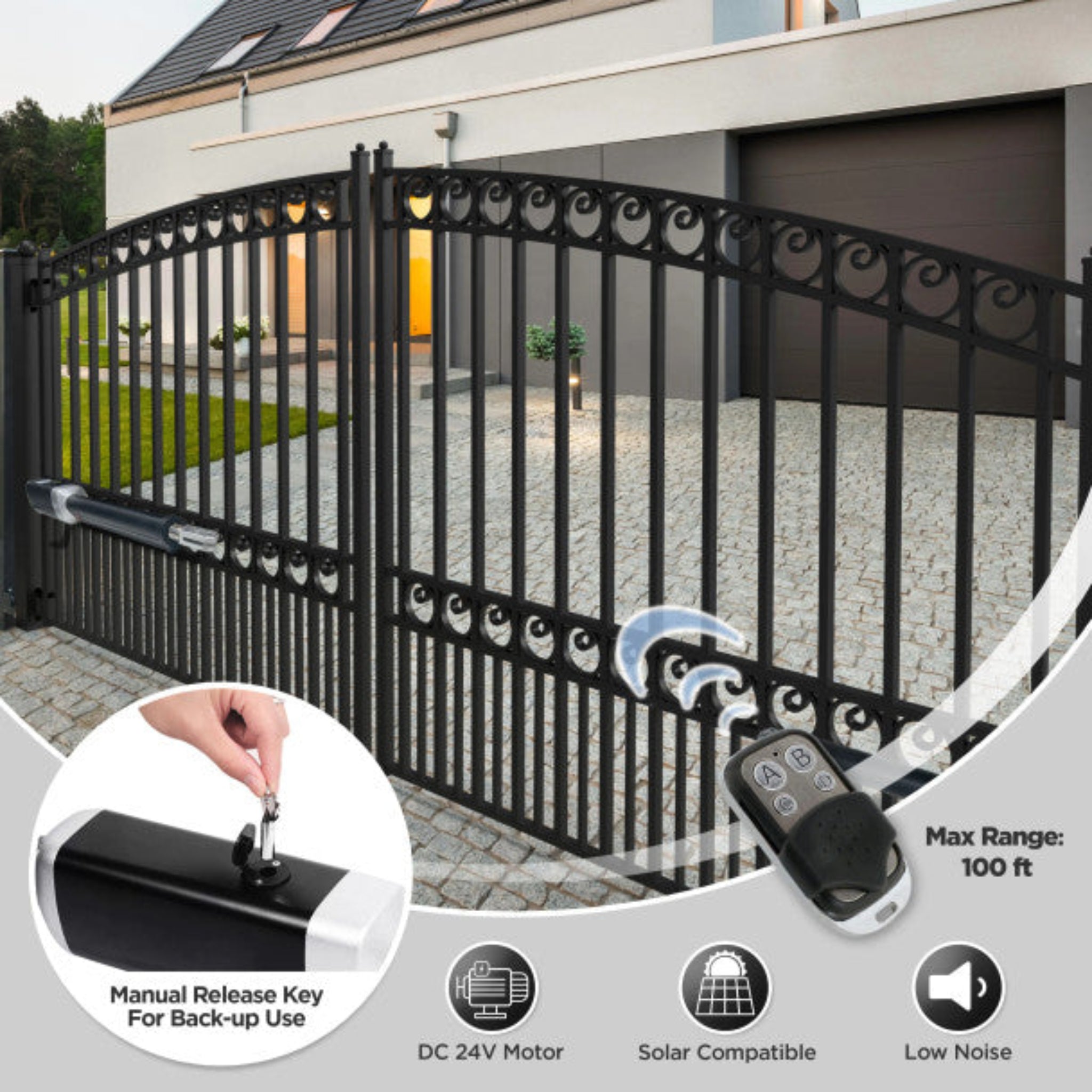

The ALEKO GG1700BACK Dual Swing Gate Operator Back-Up Kit is a powerful automatic gate opener designed for residential and commercial dual swing gates. Its 200W, 24V DC motor can operate gates up to 40 ft. wide or 2,200 lbs. total, supporting up to 20 ft. or 1,100 lbs. per panel.
Built with weather-resistant materials, the opener is designed to withstand outdoor conditions while helping resist rust and corrosion. The smooth and soft start/stop function provides quiet operation, while programmable auto-close, remote controls, adjustable electromagnetic limit switches, and emergency release keys provide convenient access and reliable operation.
Two backup batteries are included to help operate the gate during power failures. The system also features a stop/reverse safety sensor that responds to resistance or obstructions.

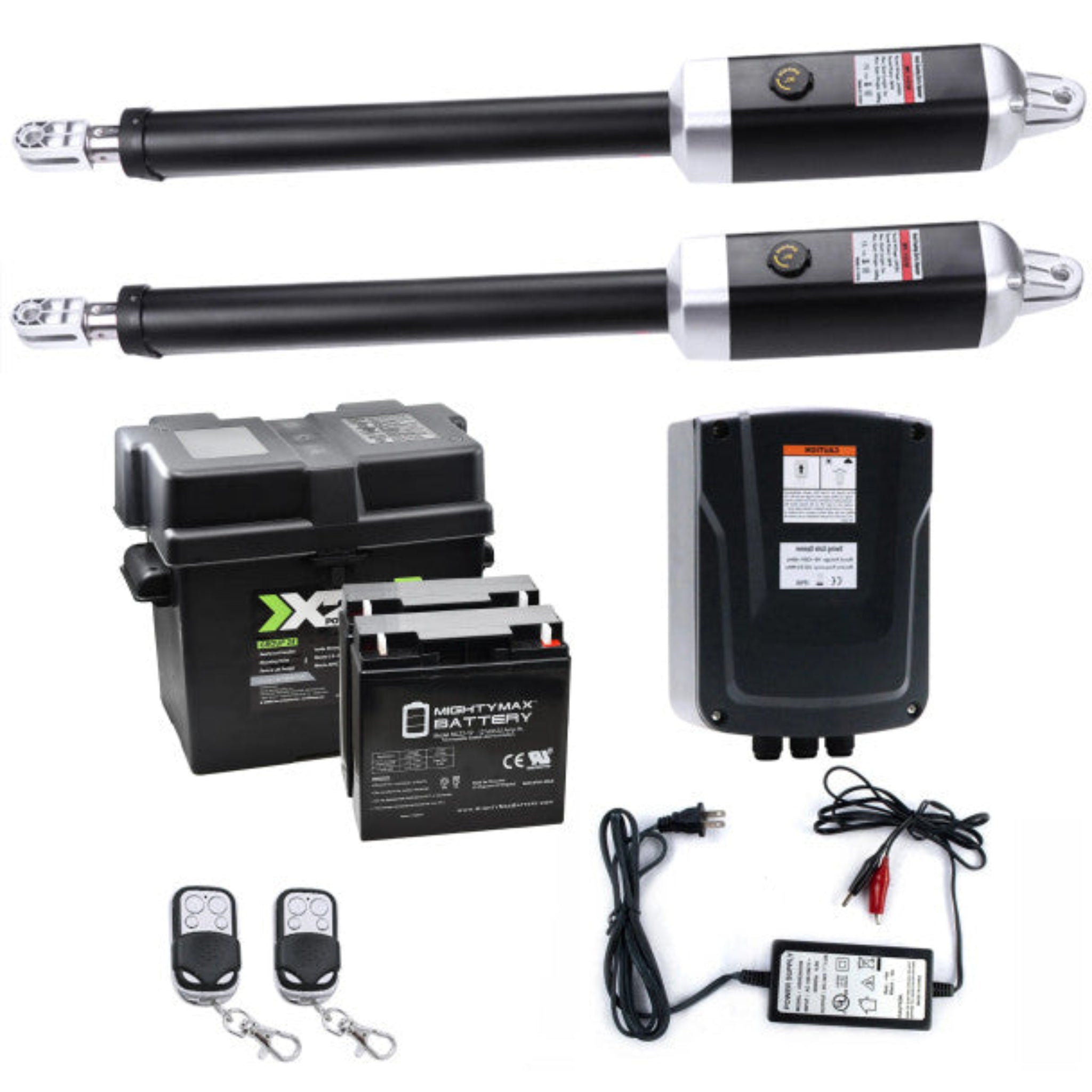

Package Includes
- (2) Gate actuators
- (2) 12 Ah batteries

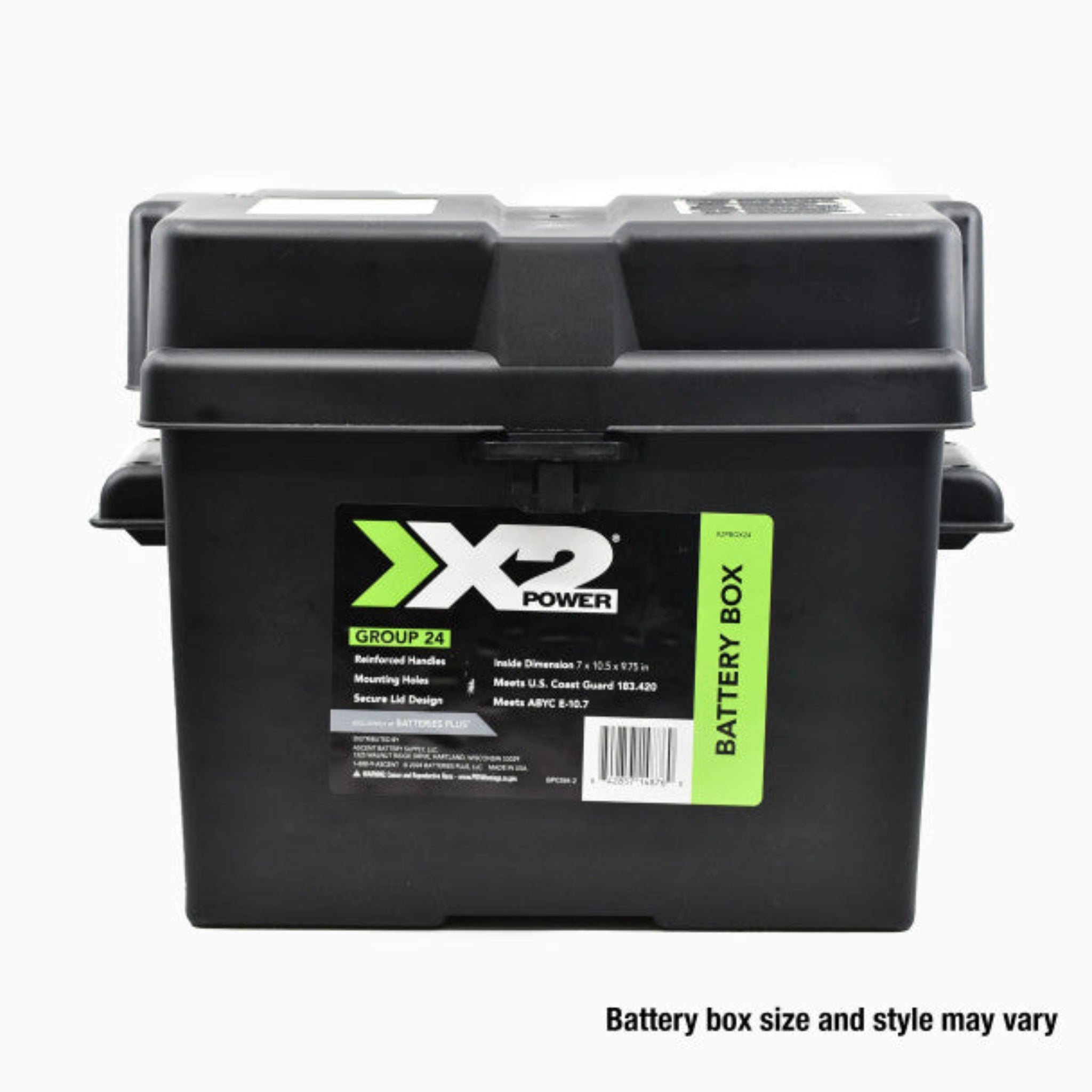

- (1) Battery box
- (1) 24V adapter/battery charger
- (1) Control box
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 40 ft. / 2,200 lbs. total
- Supports up to 20 ft. / 1,100 lbs. per panel
- Powerful 200W, 24V DC motor
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 12 Ah backup batteries included
- Two 433 MHz remote controls
- Programmable 0–99 second auto-close
- Stop/reverse safety sensor for obstruction protection
- Two emergency release keys for power failures
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion
- Compatible with a variety of dual-swing gate styles

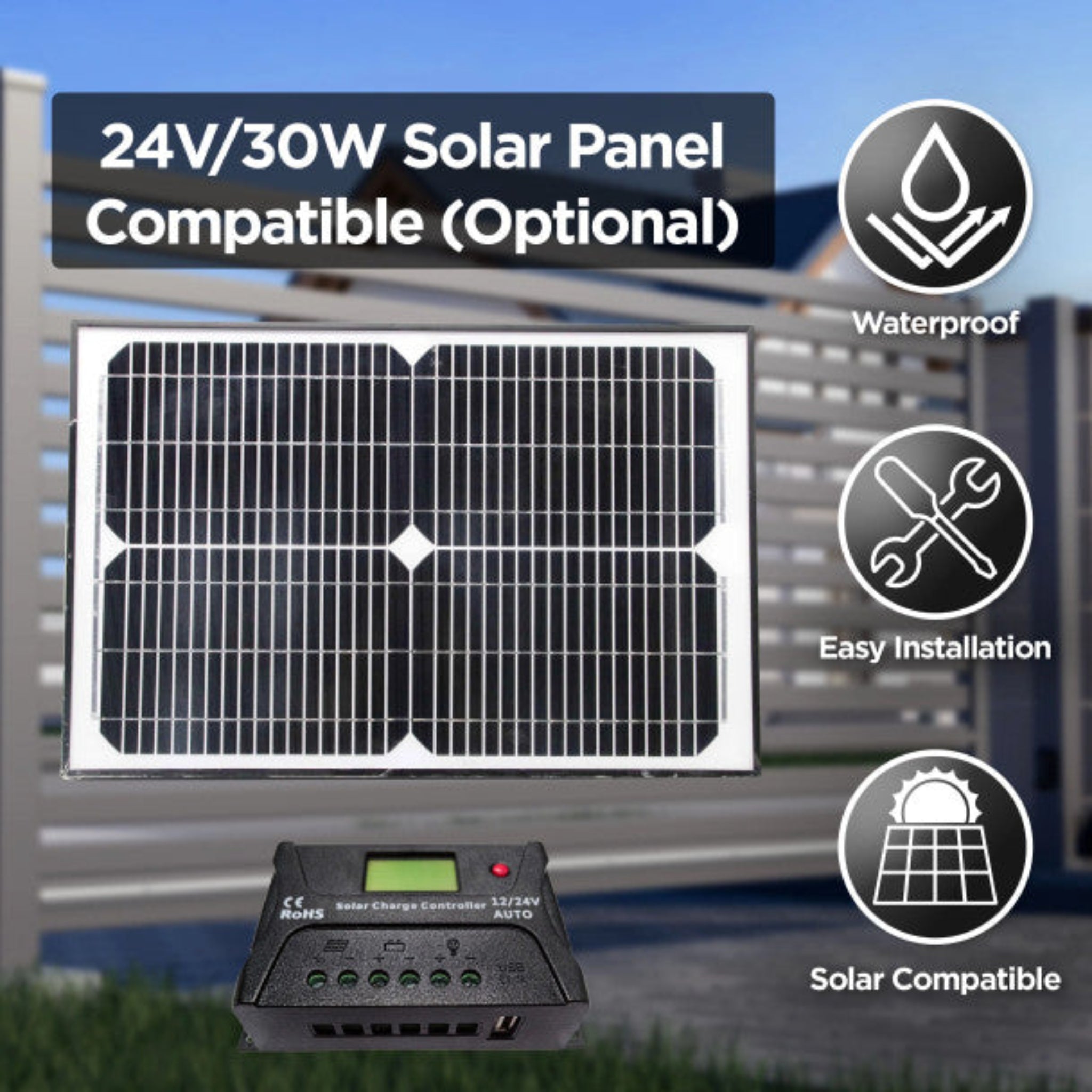

- Supports AC power, backup batteries, or solar panels with batteries
- Solar panels are not included
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator Back-Up Kit |
| Model | GG1700BACK |
| SKU | GG1700BACK-AP |
| MPN | GG1700NOR |
| Compatible Gate Type | Dual Swing Gates |
| Motor | 24V DC, 200W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |

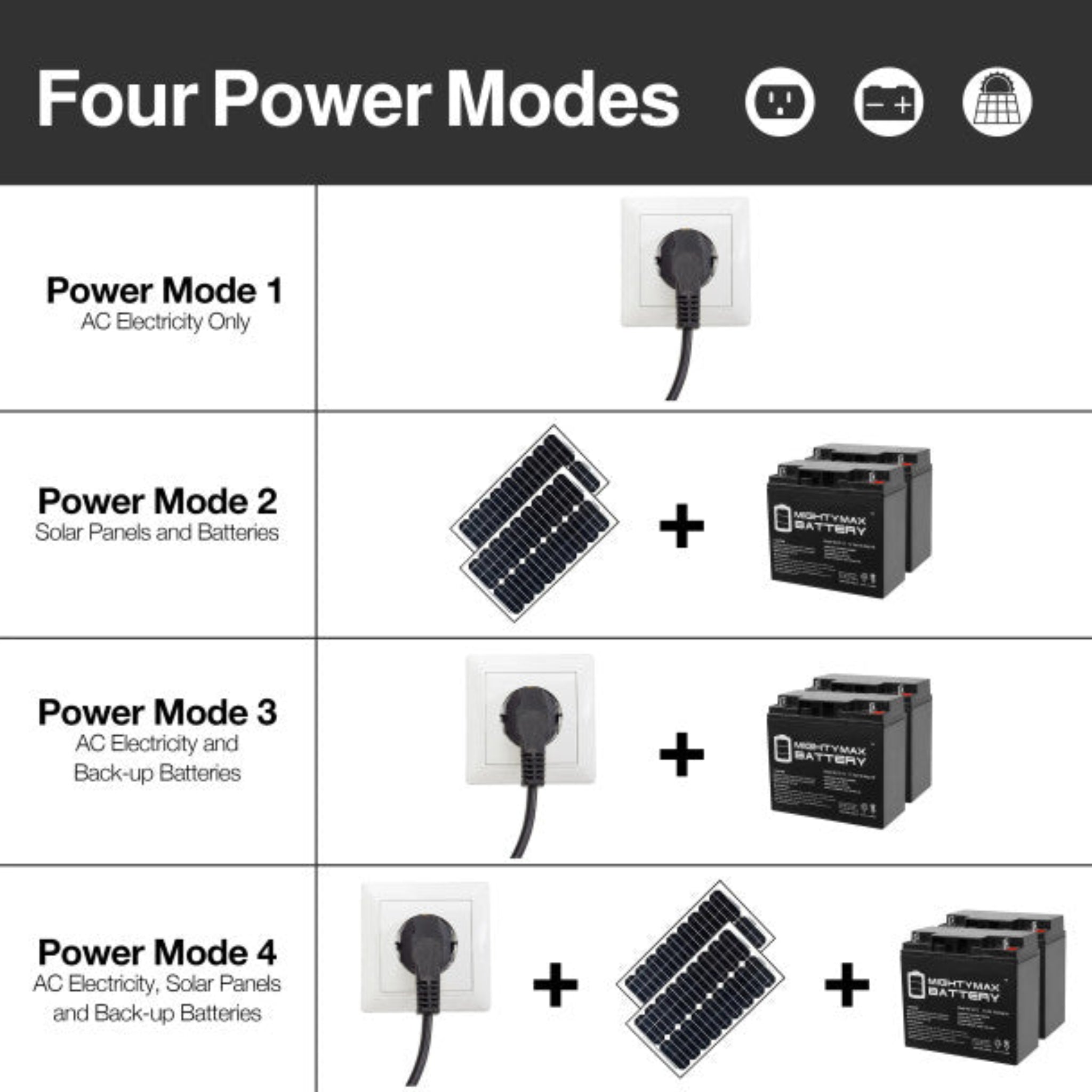

| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |

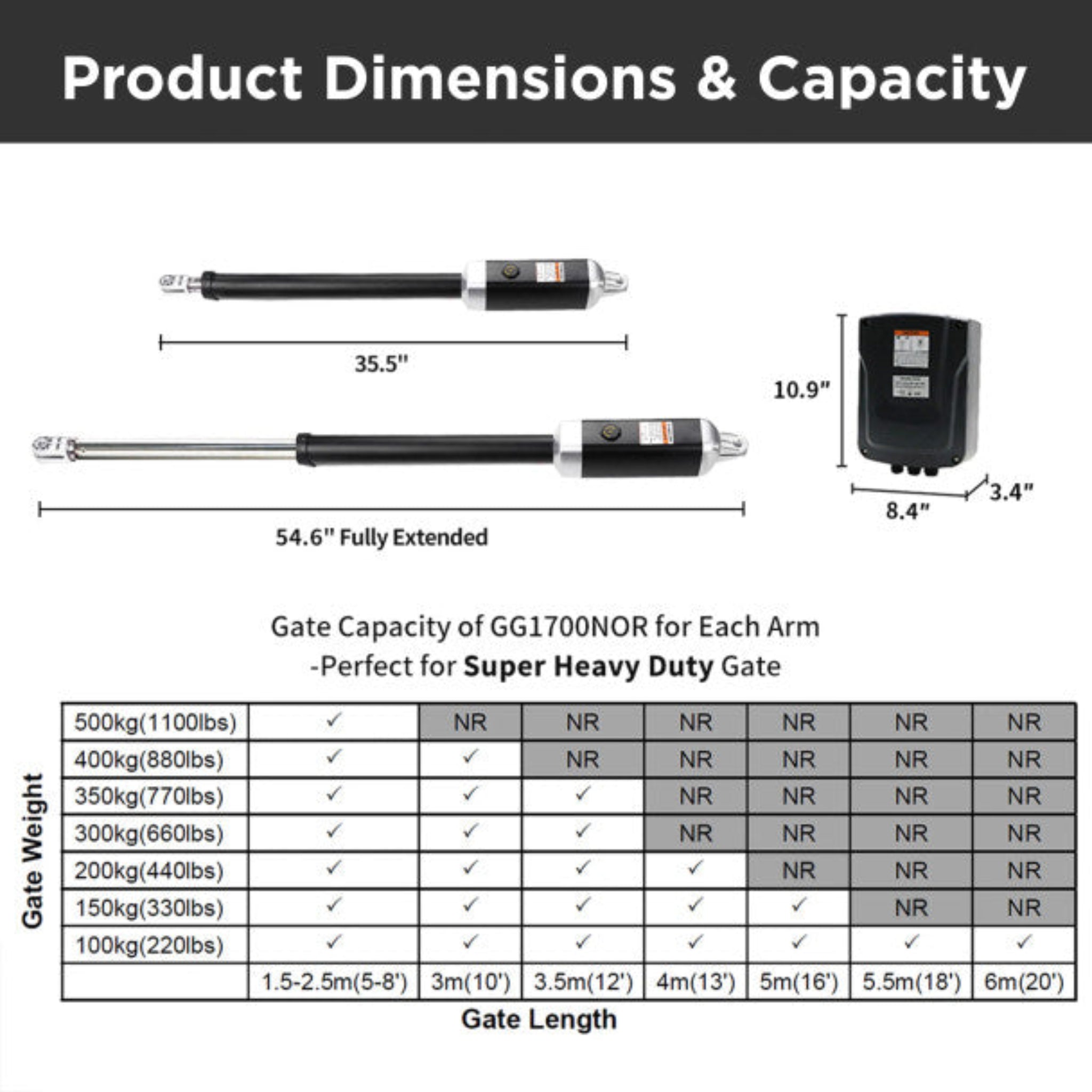

| Maximum Gate Capacity | 40 ft. / 2,200 lbs. total |
| Maximum Per Panel | 20 ft. / 1,100 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Batteries | 2 × 12 Ah |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Warranty | 1-Year Limited Warranty |
