Description
The ALEKO GG1700FULL Dual Swing Gate Operator 60W Solar Kit is a powerful automatic gate opener designed for dual swing gates in residential and commercial applications. The included 60W solar panels provide an energy-efficient power option, while the system can also operate using AC electricity and backup batteries.
Powered by a 200W, 24V DC motor, the GG1700FULL can operate dual swing gates up to 40 ft. in length or 2,200 lbs. total, supporting up to 20 ft. or 1,100 lbs. per panel. It features smooth start/stop operation, programmable auto-close, remote controls, emergency release keys, photocell sensors, and obstacle detection for convenient and safer operation.
The opener uses water-resistant materials designed to help prevent rust and corrosion and is built for outdoor operation in temperatures ranging from -4°F to 122°F.

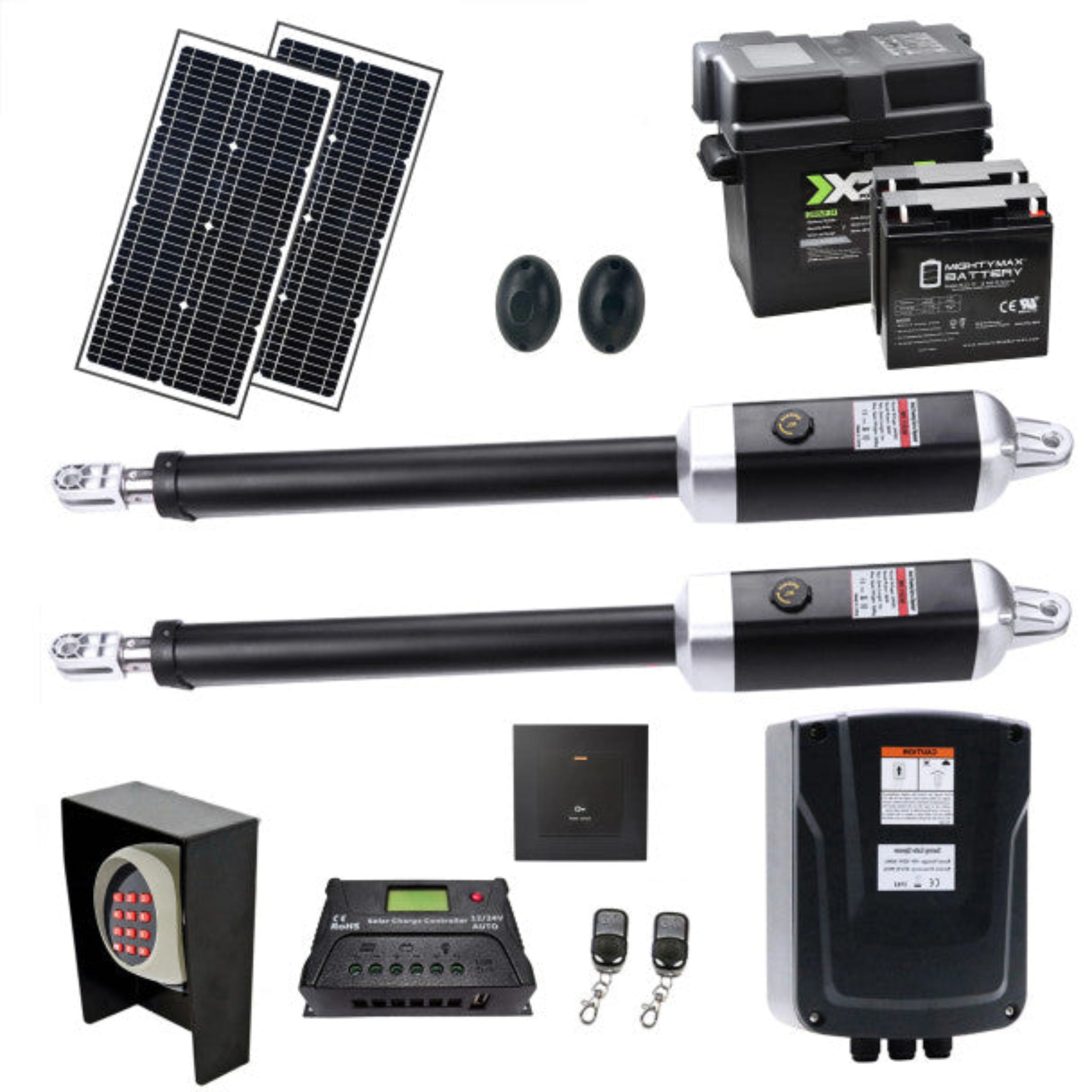

Package Includes
- (2) Gate actuators

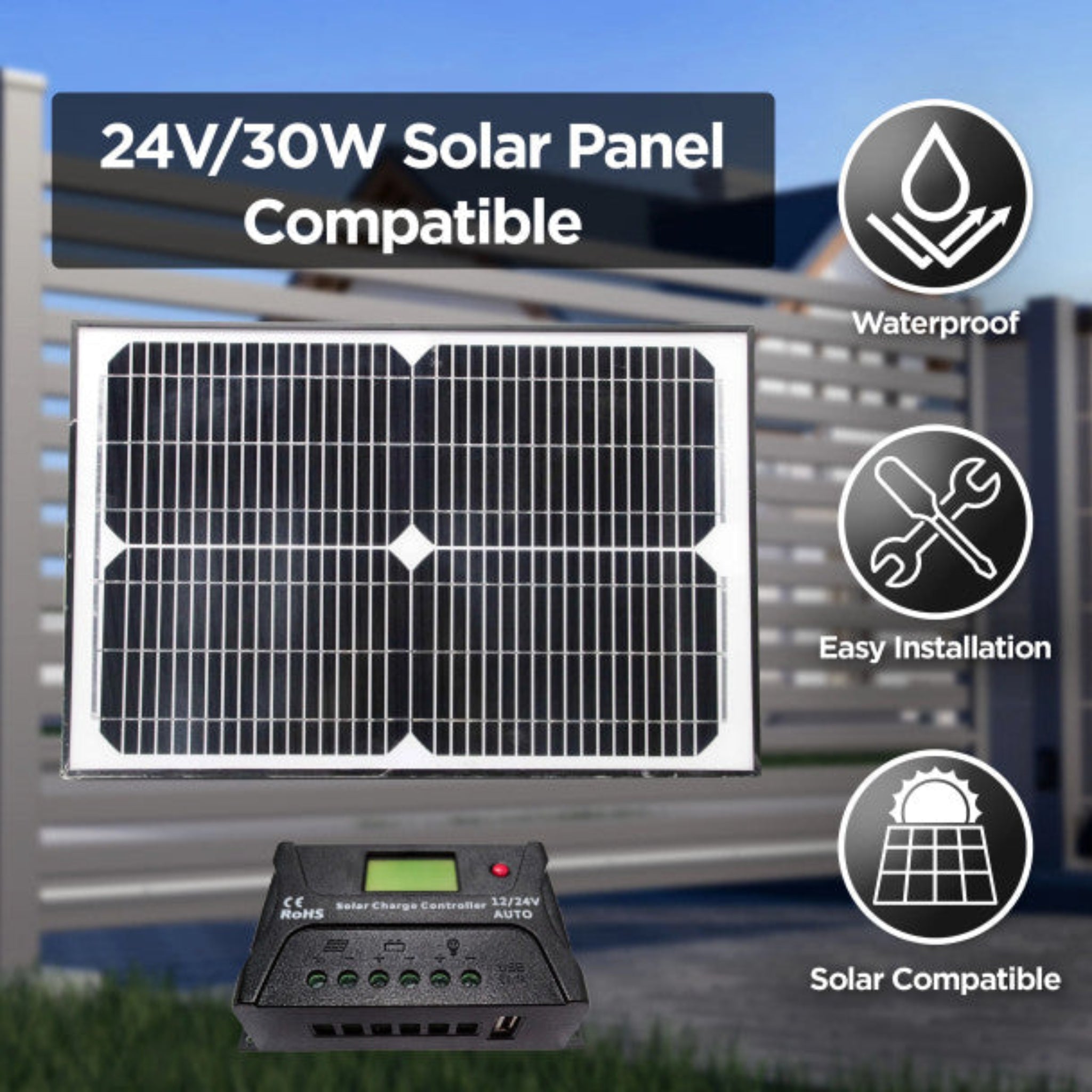

- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

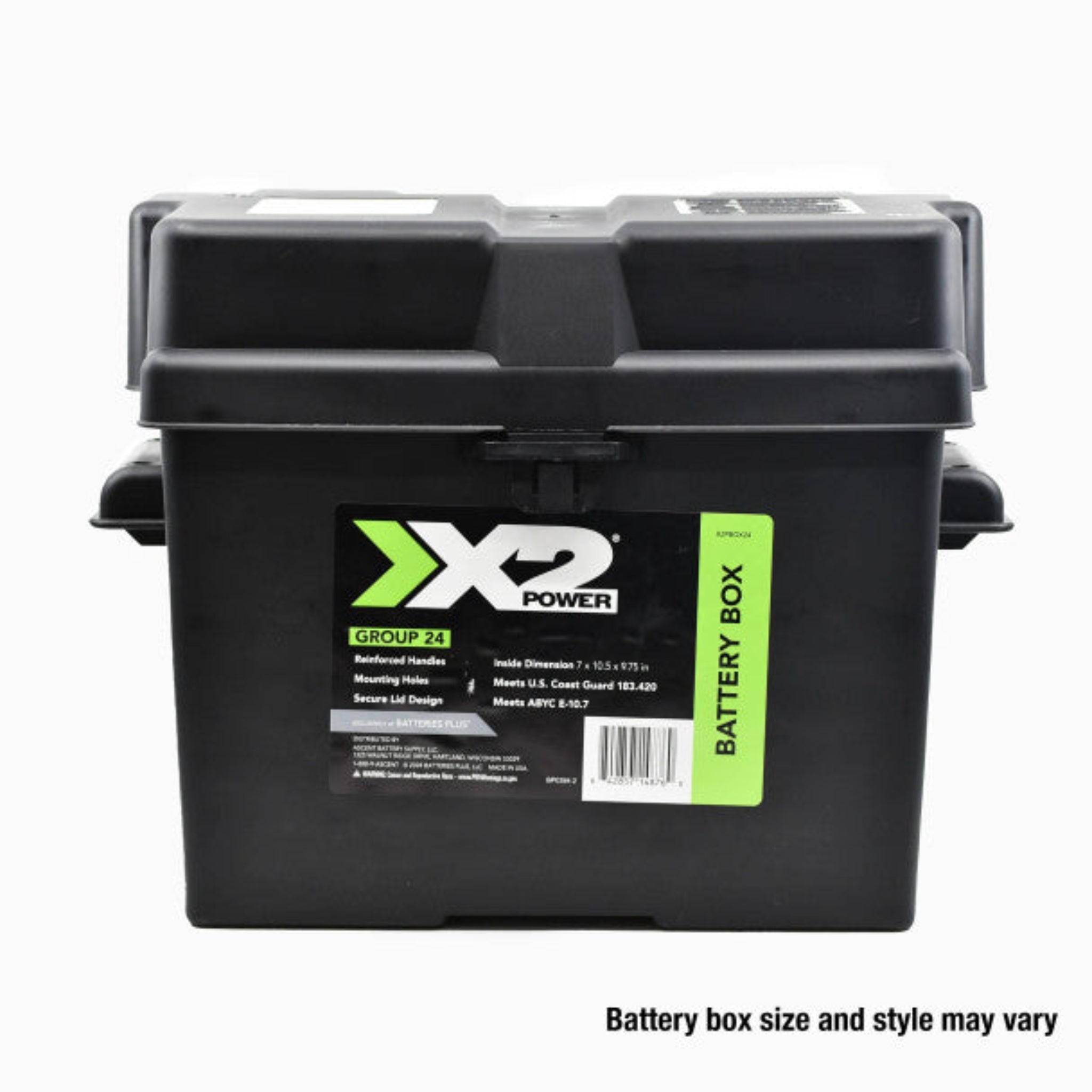

- (1) Battery box
- (1) Control box
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocells
- (1) Wired push button
- (1) Wireless keypad
- (1) Keypad metal cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware for the gate opener
- (1) User manual
Warranty
Warranty Includes
- 1-Year Limited Warranty for the gate opener
- 15-Year Limited Warranty for the solar panels
- Proof of purchase is required for warranty claims
- Warranty support is provided according to ALEKO's applicable warranty terms.
Warranty Exclusions
- Damage caused by improper installation or use
- Damage resulting from misuse, abuse, accidents, neglect, or unauthorized modifications
- Normal wear and tear
- Cosmetic damage
- Claims that do not meet ALEKO's warranty requirements
- Claims submitted without required proof of purchase
Key Features
- Designed for dual swing gates

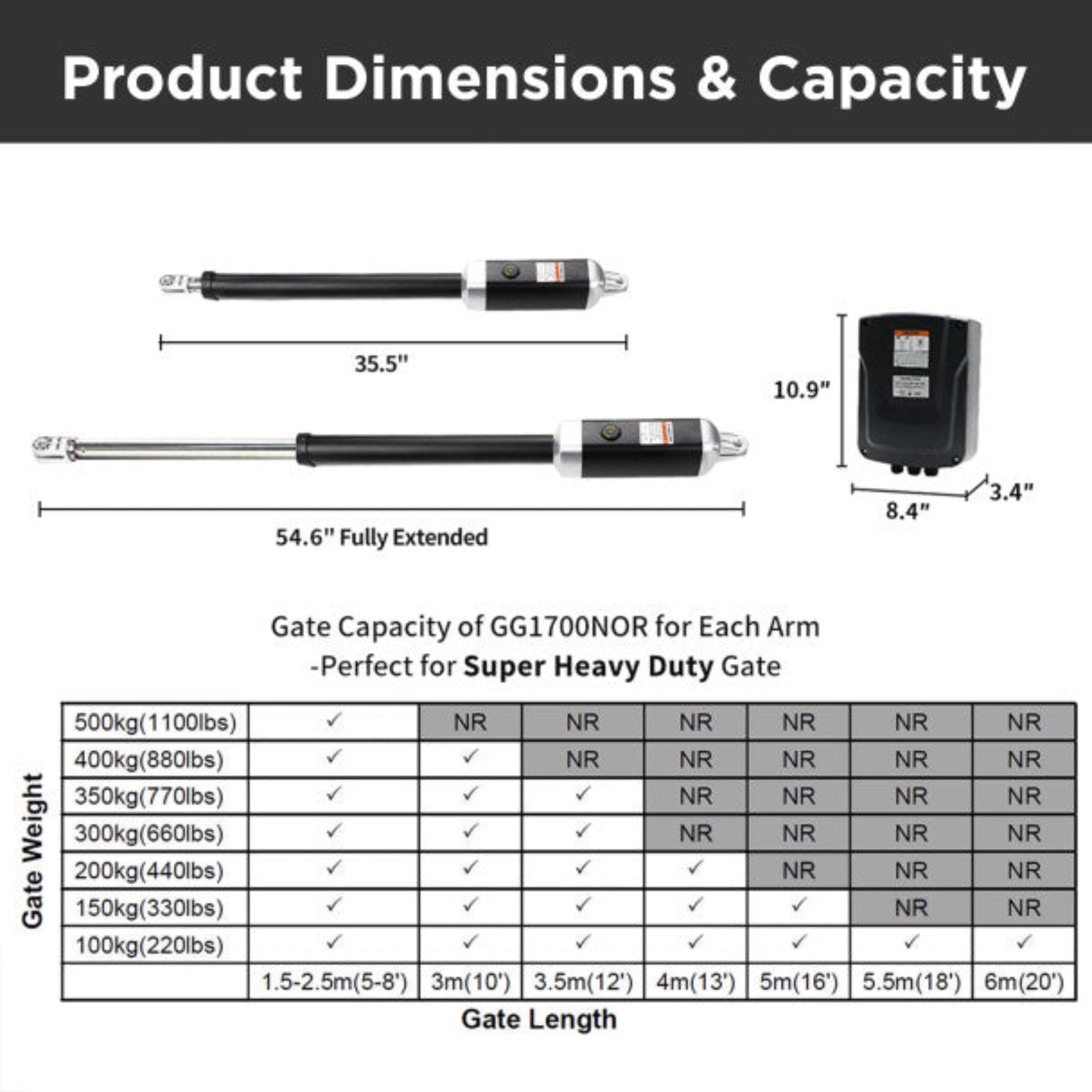

- Supports gates up to 40 ft. long or 2,200 lbs. total
- Supports up to 20 ft. or 1,100 lbs. per panel
- Powerful 200W, 24V DC motor
- Includes 60W total solar power from two 30W solar panels
- Supports multiple power configurations
- Smooth and quiet start/stop operation
- Programmable 0–99 second auto-close
- Includes 2 remote controls
- Stop/reverse safety sensor for obstruction detection
- Photocell sensors provide additional obstacle protection

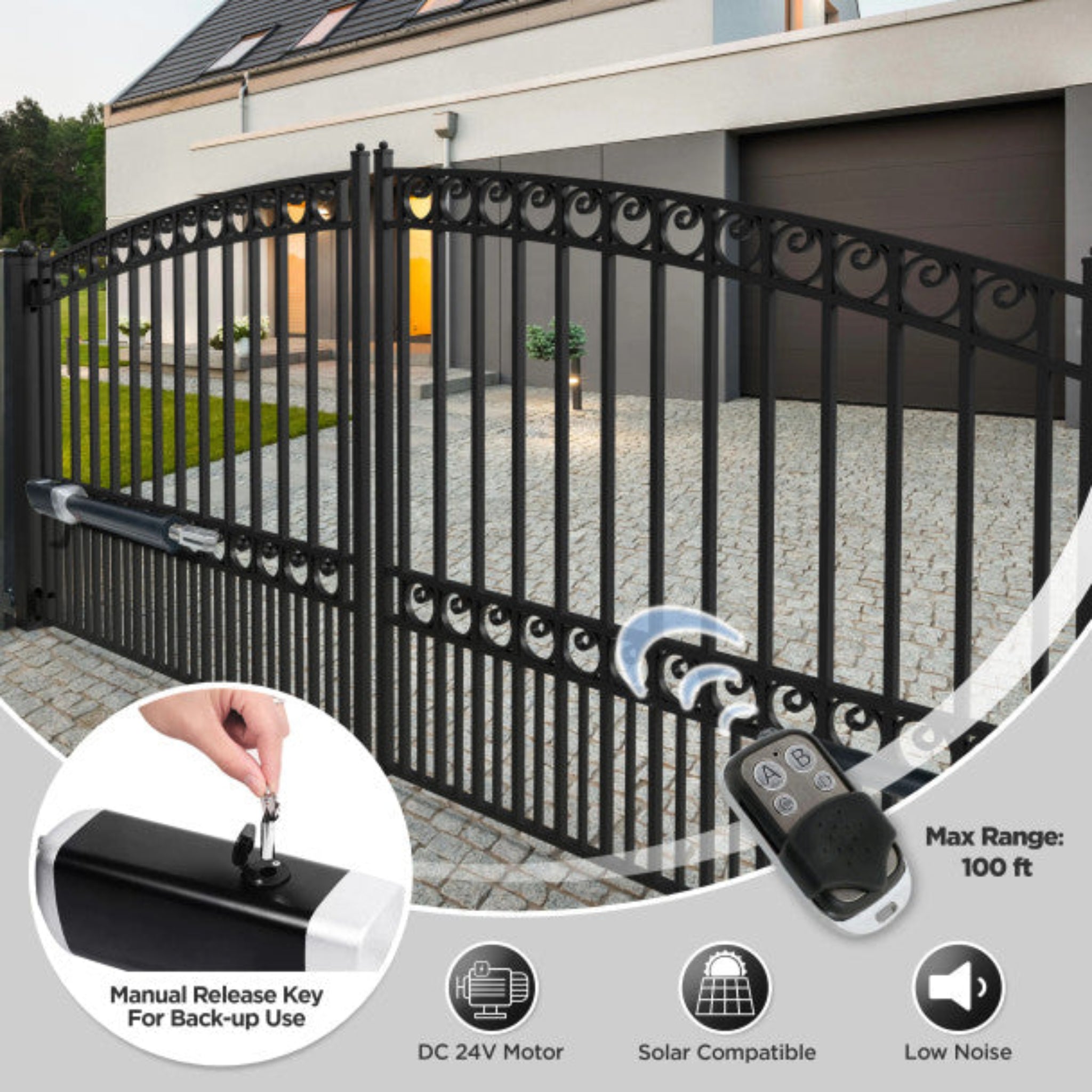

- 2 emergency release keys for power failures
- Wireless keypad and wired push button included
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion
- Operating temperature: -4°F to 122°F
- Actuator speed: 0.64 in./second
- Actuator travel: 19 in.
Specifications
| Specification | Details |
|---|---|
| Product | ALEKO Dual Swing Gate Operator 60W Solar Kit |
| Model | GG1700FULL |
| SKU | GG1700FULL-AP |
| MPN | GG1700NOR |
| Gate Type | Dual Swing Gates |
| Motor | 24V DC, 200W |
| Maximum Gate Length | 40 ft. total |
| Maximum Gate Weight | 2,200 lbs. total |
| Maximum Per Panel | 20 ft. / 1,100 lbs. |
| Solar Panels | 2 × 30W, 24V |
| Total Solar Output | 60W |
| Batteries | 2 × 22 Ah |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Only; Solar + Batteries; AC + Backup Batteries; AC + Solar + Backup Batteries |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Auto-Close | 0–99 seconds |
| Remote Frequency | 433 MHz |
| Operating Temperature | -4°F to 122°F |
| Safety Features | Obstacle Detection, Auto-Stop, Stop/Reverse Sensor, Photocells |
| Certification | Not specified on the current page |
| Current Price | $899.00 |
| Regular Price | $1,049.00 |
| Gate Opener Warranty | 1-Year Limited |
| Solar Panel Warranty | 15-Year Limited |
