Description
The ALEKO GG1700SOL Dual Swing Gate Operator 60W Solar Kit is a powerful automatic gate opener designed for dual swing gates in residential and commercial applications. Its 200W, 24V DC motor provides smooth and quiet operation while supporting gates up to 40 ft. wide or 2,200 lbs. total, with a maximum of 20 ft. or 1,100 lbs. per panel.
The included solar panels provide an energy-efficient power option, while the system also supports AC electricity and backup batteries. Features such as programmable auto-close, remote controls, emergency release keys, adjustable electromagnetic limit switches, and obstruction detection provide convenient and safer gate operation.
Built with water-resistant materials, the opener is designed for outdoor use and helps resist rust and corrosion.

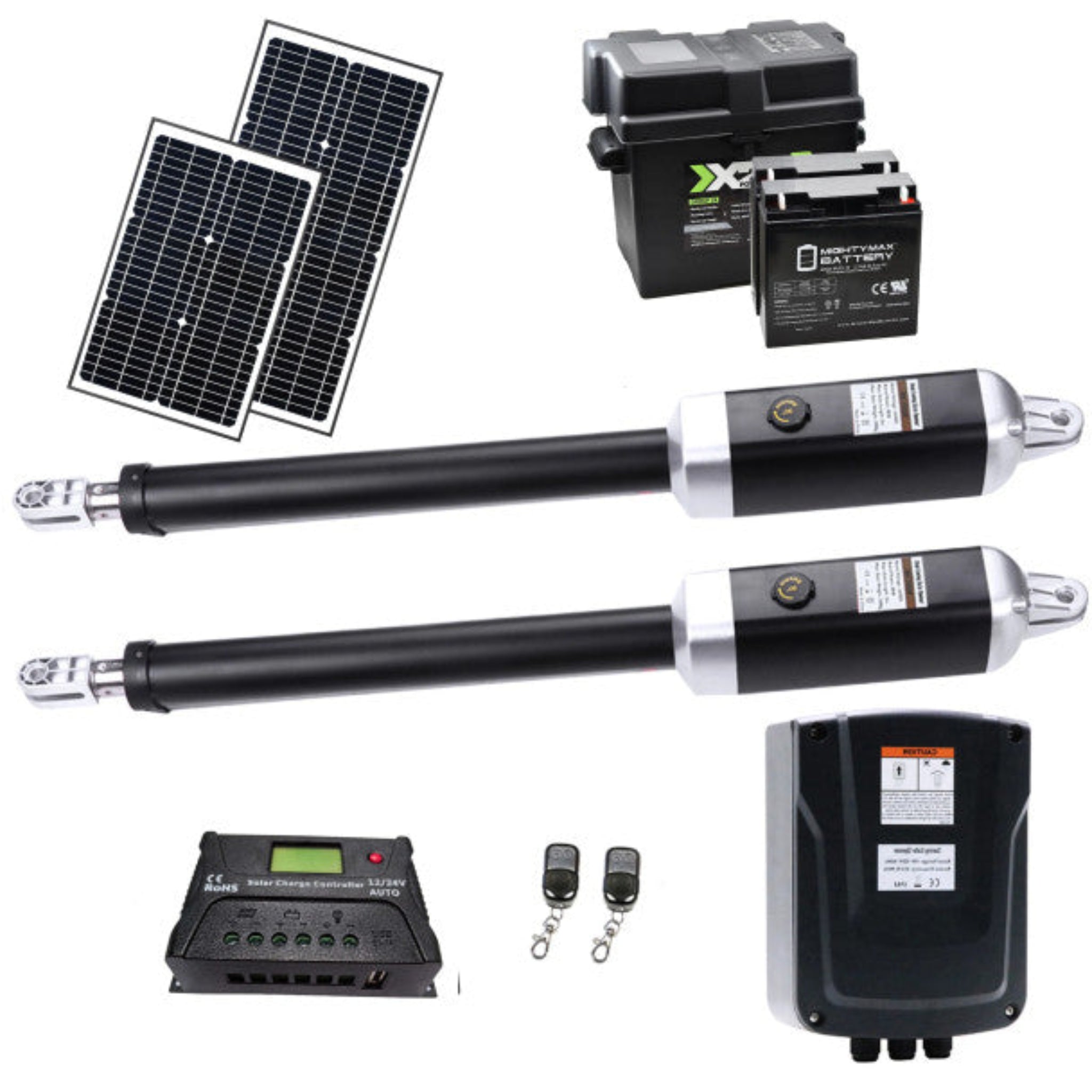

Package Includes

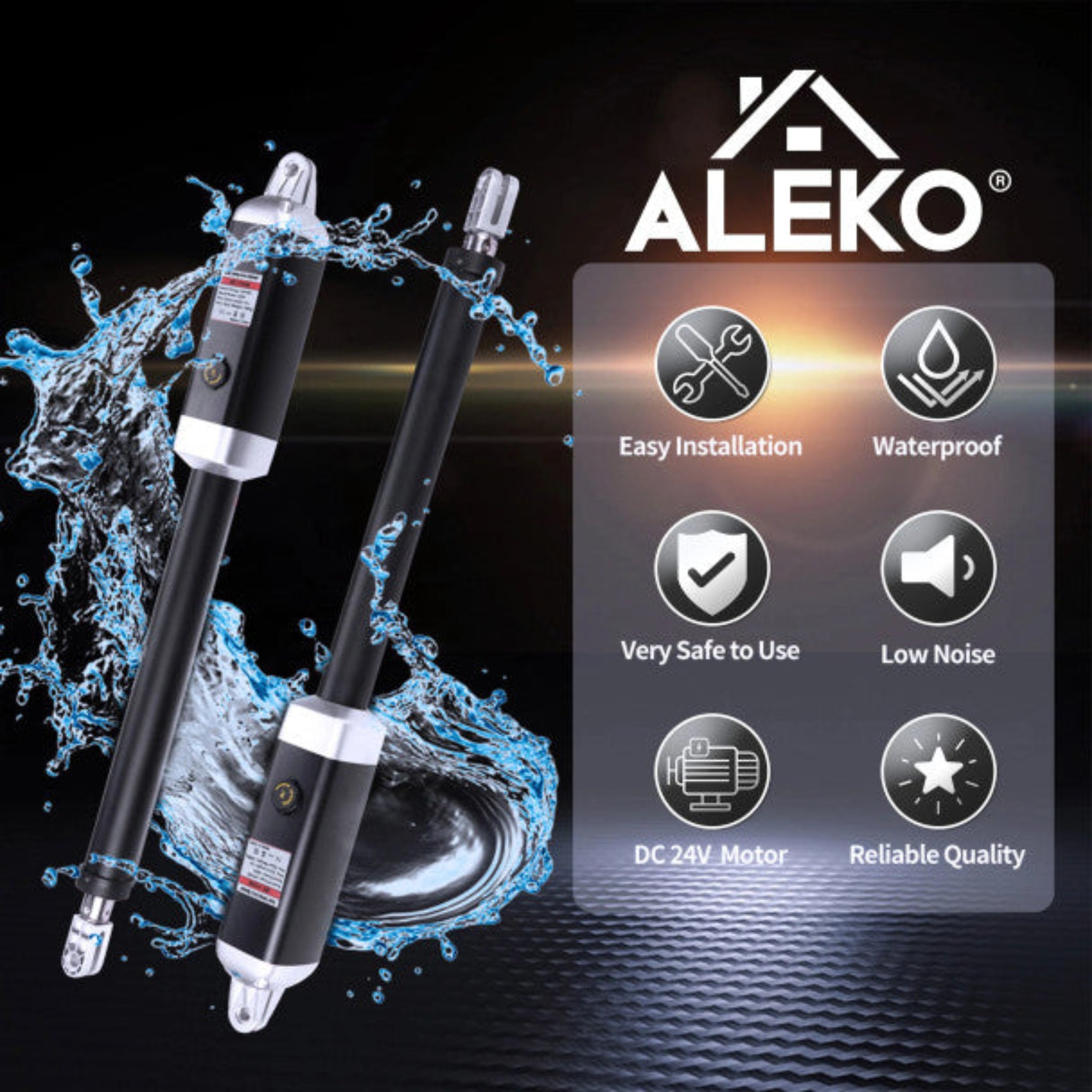

- (2) Gate actuators

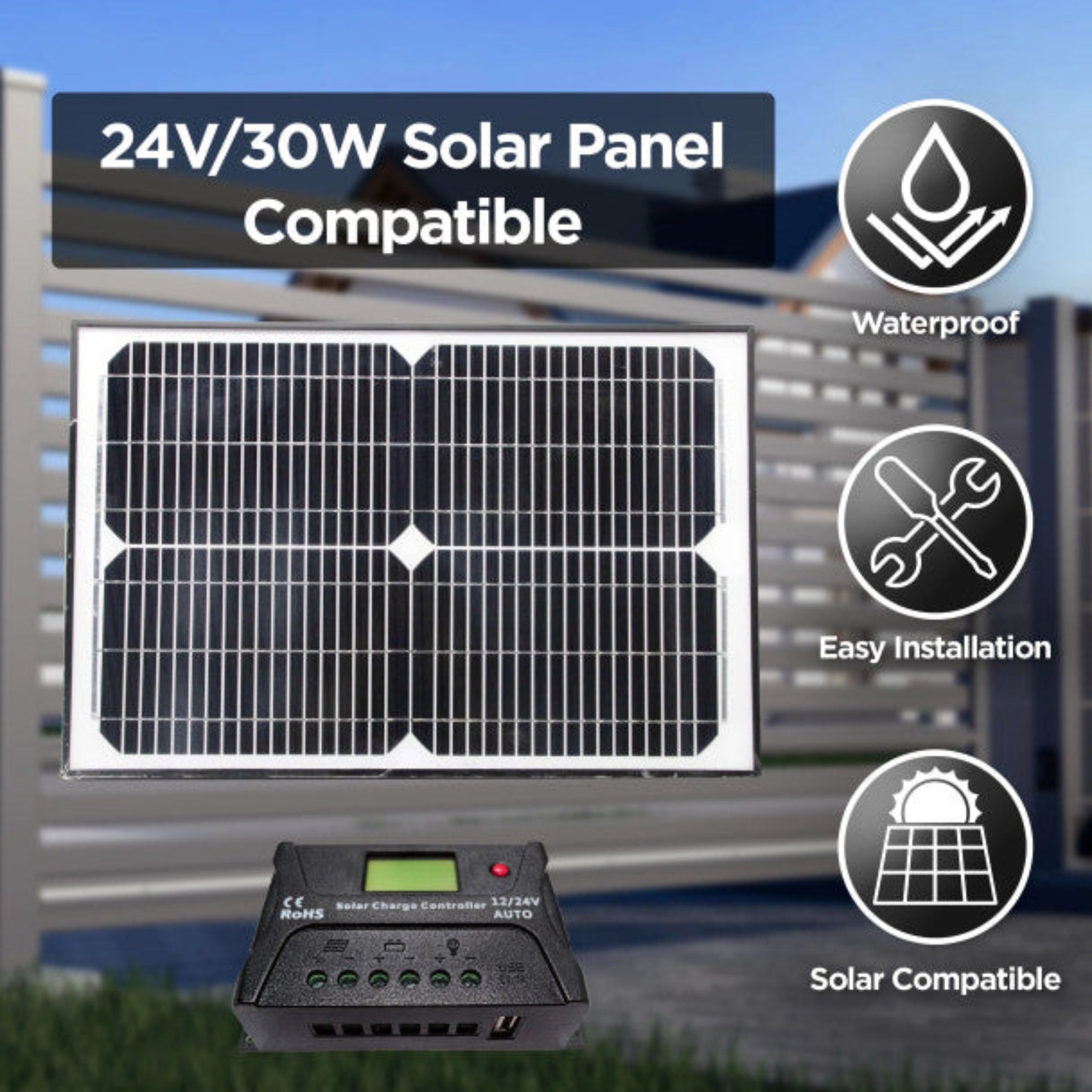

- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

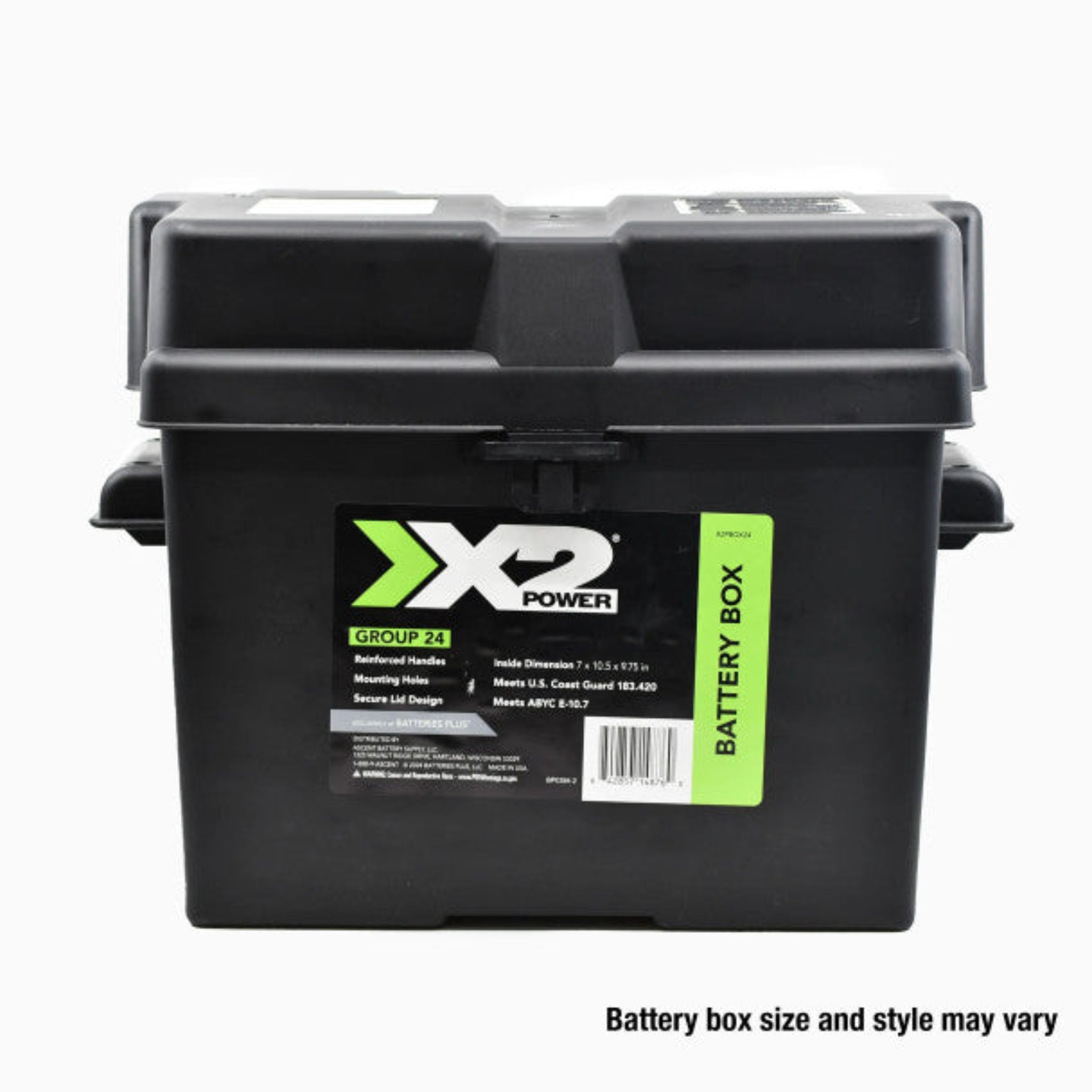

- (1) Battery box
- (1) Control box

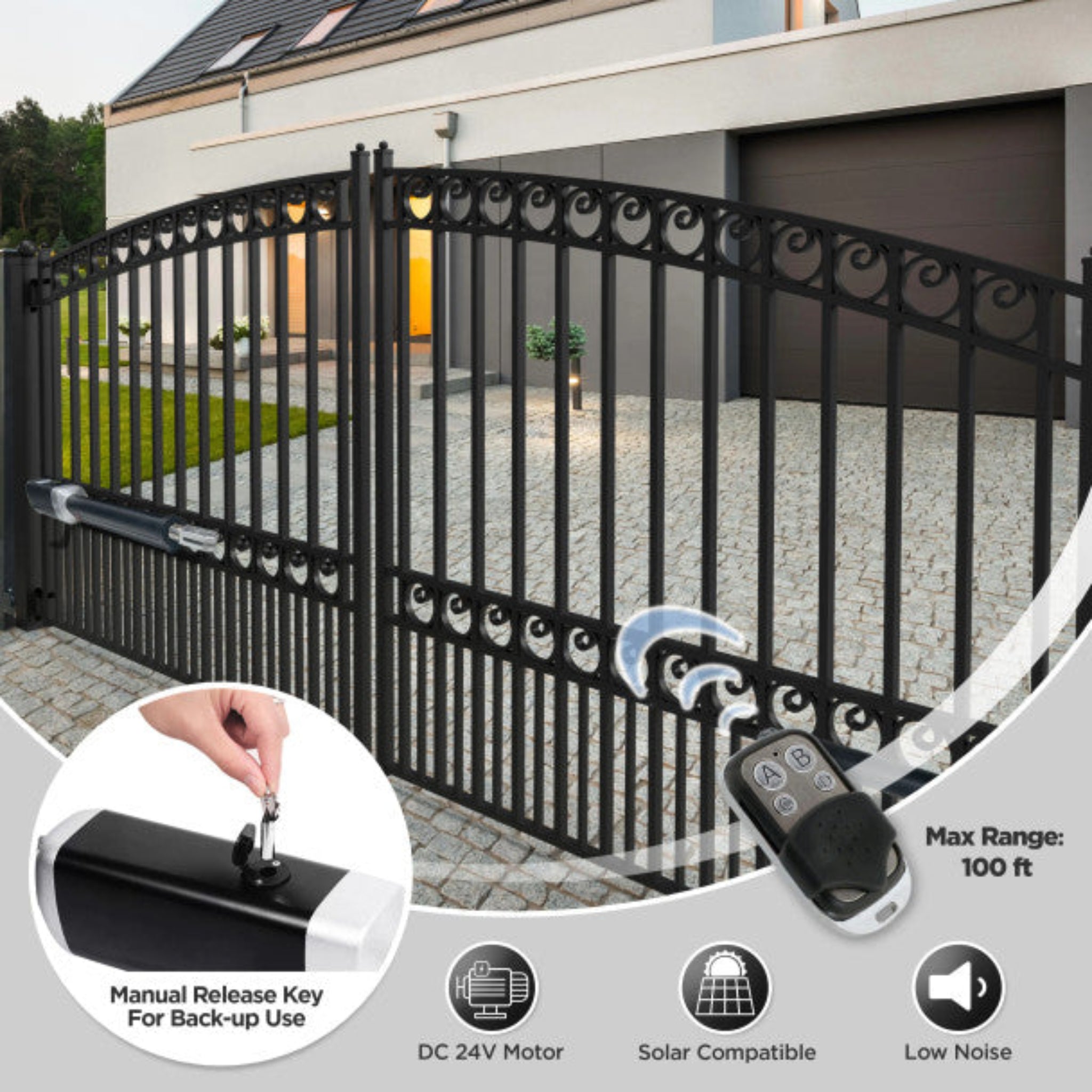

- (2) 433 MHz remote controls
- (2) Emergency release keys
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware for the gate opener
- (1) User manual
Warranty
Warranty Includes
- 1-Year Limited Warranty for the gate opener
- 15-Year Limited Warranty for the solar panels
- Proof of purchase is required for warranty claims
- Warranty claims are handled according to ALEKO's warranty terms.
Warranty Exclusions
- Damage caused by improper installation or use
- Damage caused by misuse, abuse, accidents, neglect, or unauthorized modifications
- Normal wear and tear
- Cosmetic damage
- Claims submitted without required proof of purchase
- Issues that do not meet ALEKO's warranty requirements
Key Features
- Designed for dual swing gates
- Supports gates up to 40 ft. or 2,200 lbs. total
- Supports up to 20 ft. or 1,100 lbs. per panel
- Powerful 200W, 24V DC motor
- Includes 60W total solar power from two 30W solar panels
- Multiple power options: AC, solar + batteries, AC + backup batteries, or combined power
- Smooth and quiet operation
- Programmable 0–99 second auto-close
- 2 remote controls included
- Stop/reverse safety sensor for obstructions
- 2 emergency release keys for power failures
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion
- Operating temperature range of -4°F to 122°F
- Actuator speed: 0.64 in./second
- Actuator travel: 19 in.
Specifications
| Specification | Details |
|---|---|
| Product | ALEKO Dual Swing Gate Operator 60W Solar Kit |
| Model | GG1700SOL |
| SKU | GG1700SOL-AP |
| MPN | GG1700NOR |
| Gate Type | Dual Swing Gates |
| Motor | 24V DC, 200W |

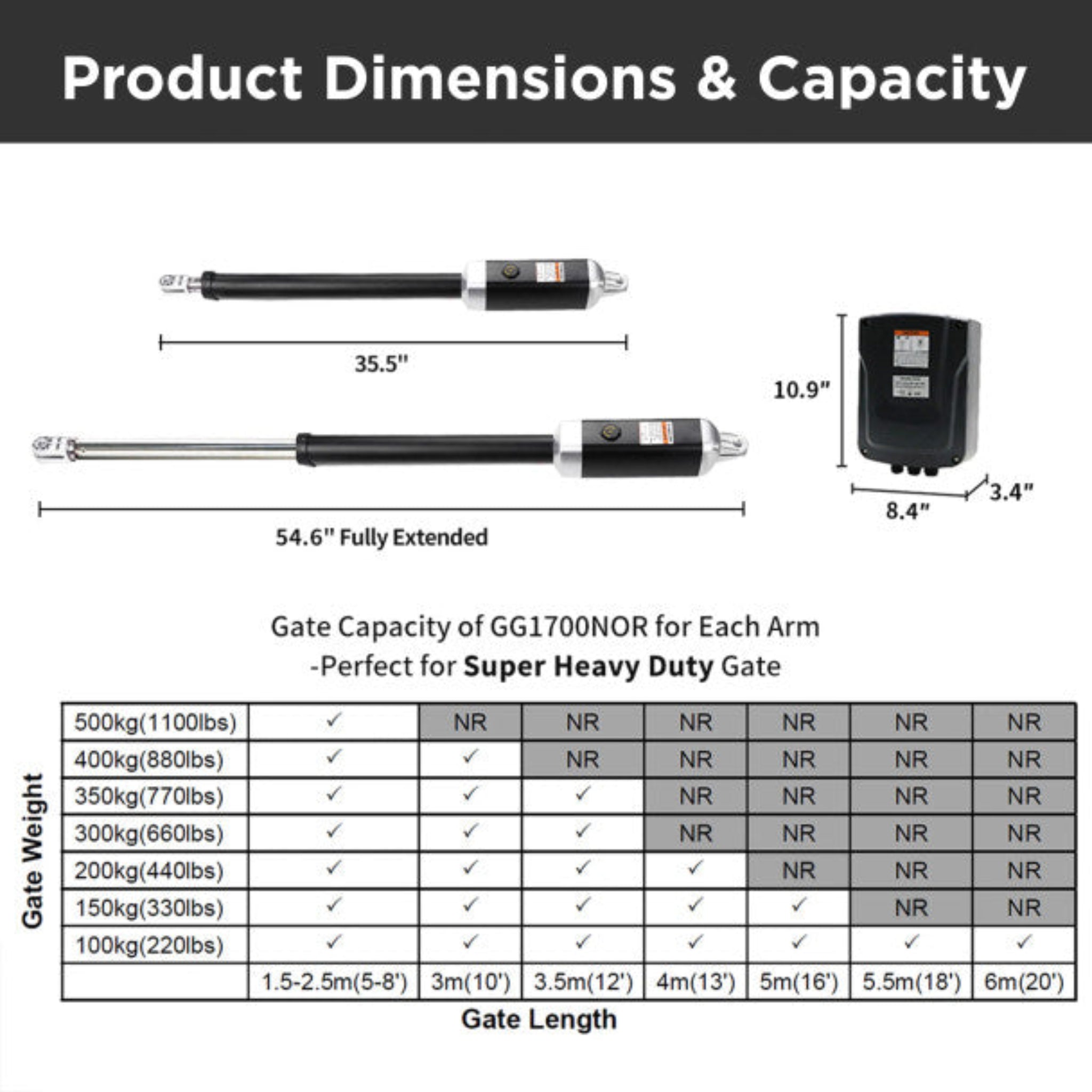

| Maximum Gate Capacity | 40 ft. / 2,200 lbs. total |
| Maximum Per Panel | 20 ft. / 1,100 lbs. |
| Solar Panels | 2 × 30W, 24V |
| Total Solar Output | 60W |
| Batteries | 2 × 22 Ah |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Only; Solar + Batteries; AC + Backup Batteries; AC + Solar + Backup Batteries |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Auto-Close | 0–99 seconds |
| Remote Frequency | 433 MHz |
| Operating Temperature | -4°F to 122°F |
| Safety Feature | Stop/Reverse Safety Sensor |
| Current Price | $899.00 |
| Regular Price | $949.00 |
| Gate Opener Warranty | 1-Year Limited |
| Solar Panel Warranty | 15-Year Limited |
