Description
The ALEKO GG1700NOR Dual Swing Gate Operator Starter Kit is designed to automate dual swing gates for residential and commercial properties. Its powerful 200W, 24V DC motor supports gates up to 40 ft. wide or 2,200 lbs. total, with a maximum capacity of 20 ft. or 1,100 lbs. per panel.
Built with durable, weather-resistant materials, the opener is designed for reliable outdoor operation and helps resist rust and corrosion. The smooth and soft start/stop function provides quiet operation, while remote controls allow convenient gate access from your vehicle.
Safety and convenience features include a programmable auto-close function, stop/reverse protection when resistance or an obstruction is detected, adjustable electromagnetic limit switches, and emergency release keys for manual operation during a power failure.

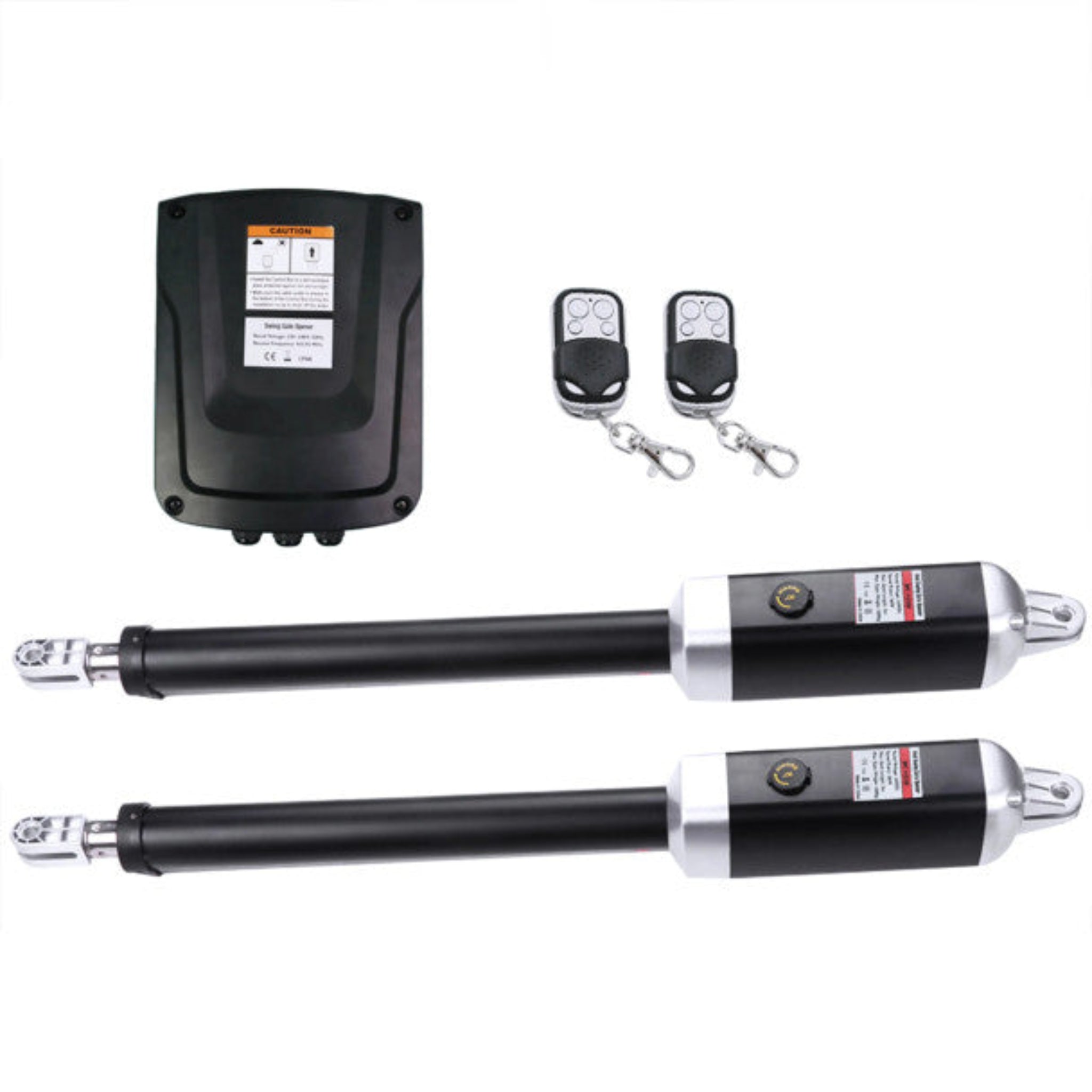

Package Includes
- (2) Gate actuators
- (1) Control box
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 40 ft. / 2,200 lbs. total
- Supports up to 20 ft. / 1,100 lbs. per panel
- Powerful 200W, 24V DC motor
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 433 MHz remote controls included
- Programmable 0–99 second auto-close
- Stop/reverse safety sensor for obstruction protection
- Two emergency release keys
- Adjustable electromagnetic limit switches
- Water-resistant materials help resist rust and corrosion
- Compatible with a variety of dual-swing gate styles

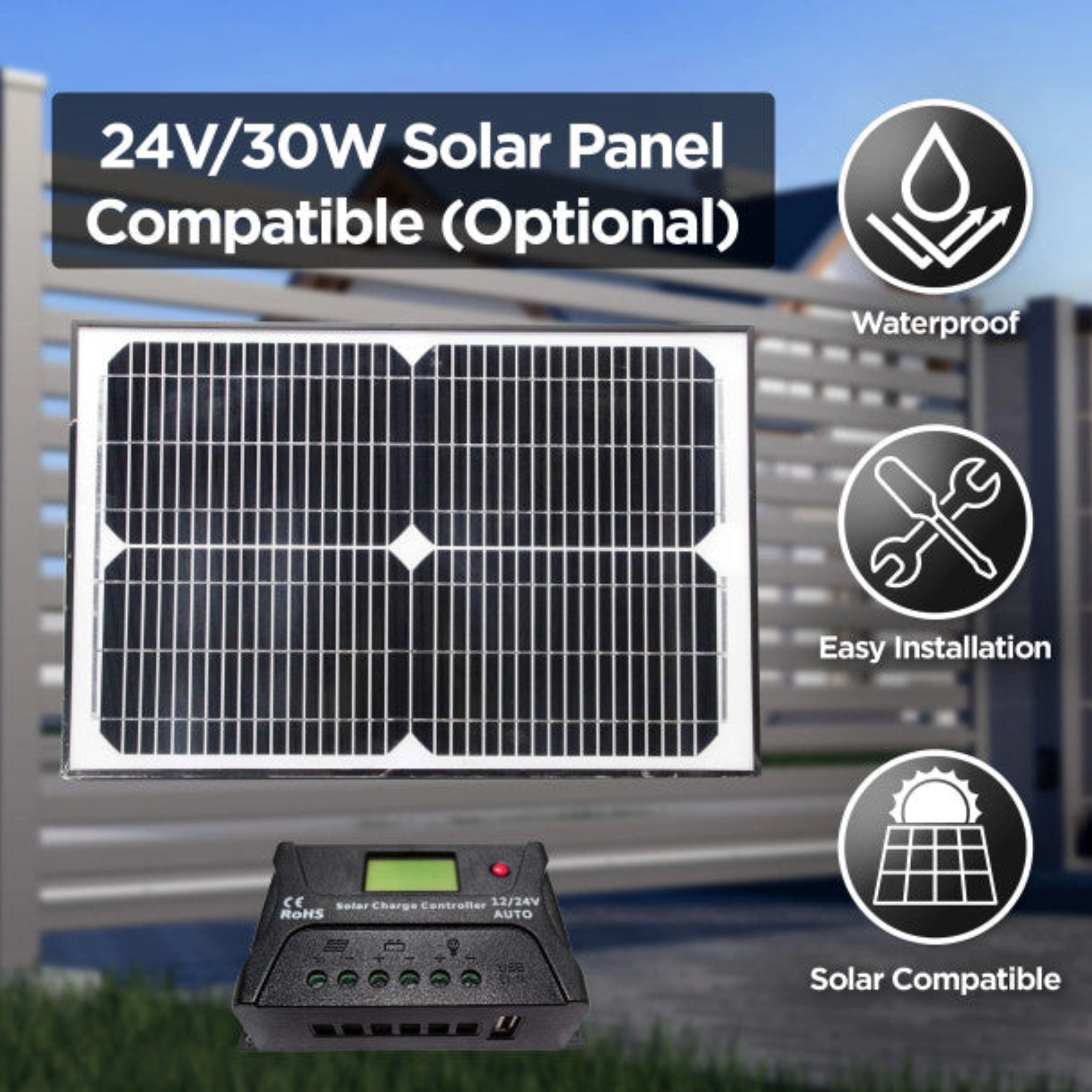

- Solar panels and backup batteries can be added separately
- Designed for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Dual Swing Gate Operator Starter Kit |
| Model | GG1700NOR |
| SKU | GG1700NOR-AP |
| MPN | GG1700NOR |
| Compatible Gate Type | Dual Swing Gates |
| Motor | 24V DC, 200W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | Not included |

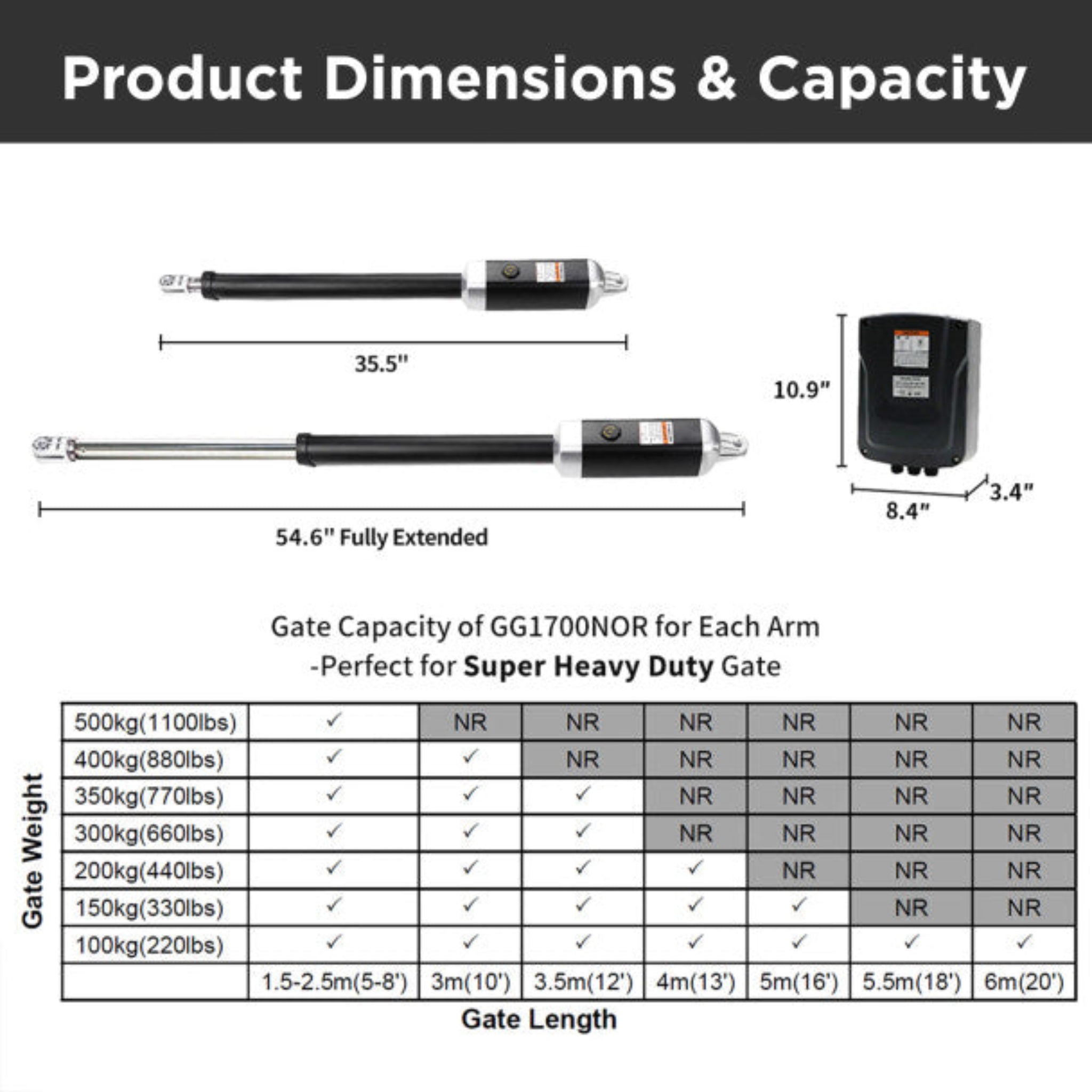

| Maximum Gate Capacity | 40 ft. / 2,200 lbs. total |
| Maximum Per Panel | 20 ft. / 1,100 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Water-Resistant |
| Warranty | 1-Year Limited Warranty |
