Description

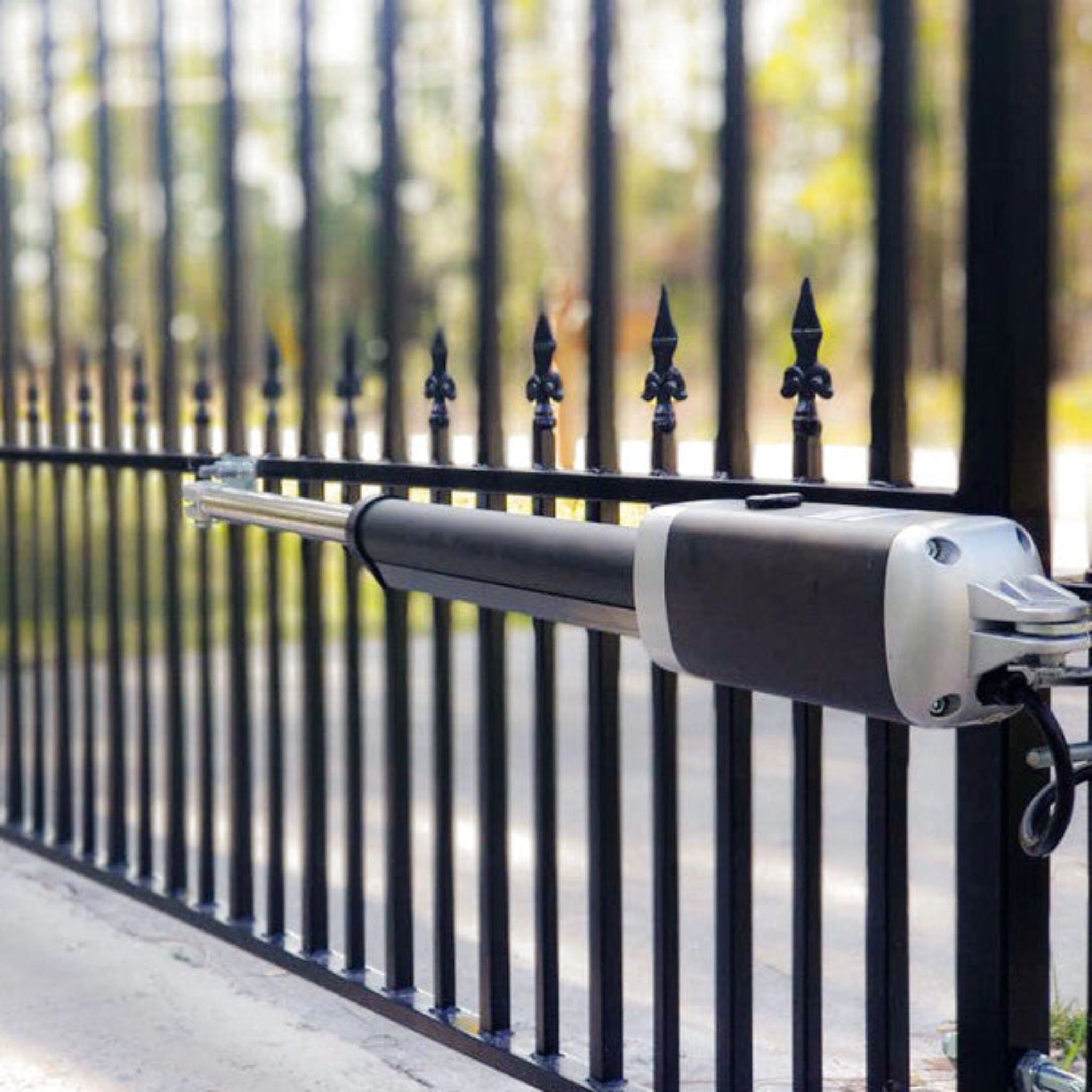

The ALEKO GG900UNOR ETL Certified Dual Swing Gate Operator Starter Kit is designed to automate dual swing gates for residential and commercial properties. Its powerful 100W, 24V DC motor supports gates up to 36 ft. wide or 1,320 lbs. total, with a maximum capacity of 18 ft. or 660 lbs. per panel.
Built with durable, water-resistant materials, the gate opener is designed for reliable outdoor operation and helps resist rust and corrosion. The smooth and soft start/stop function provides quiet operation, while the included remote controls allow convenient access from a vehicle.

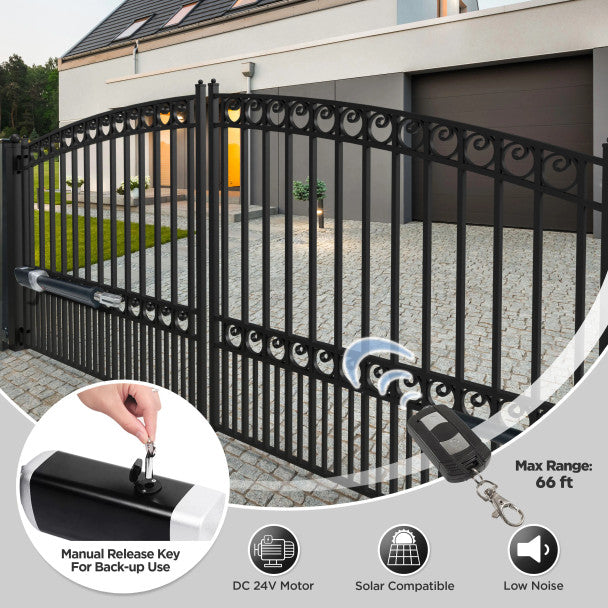

Safety and convenience features include a programmable 0–99 second auto-close, stop/reverse protection when resistance or an obstruction is detected, adjustable electromagnetic limit switches, and emergency release keys for manual operation during a power failure. The opener is also ETL Certified.

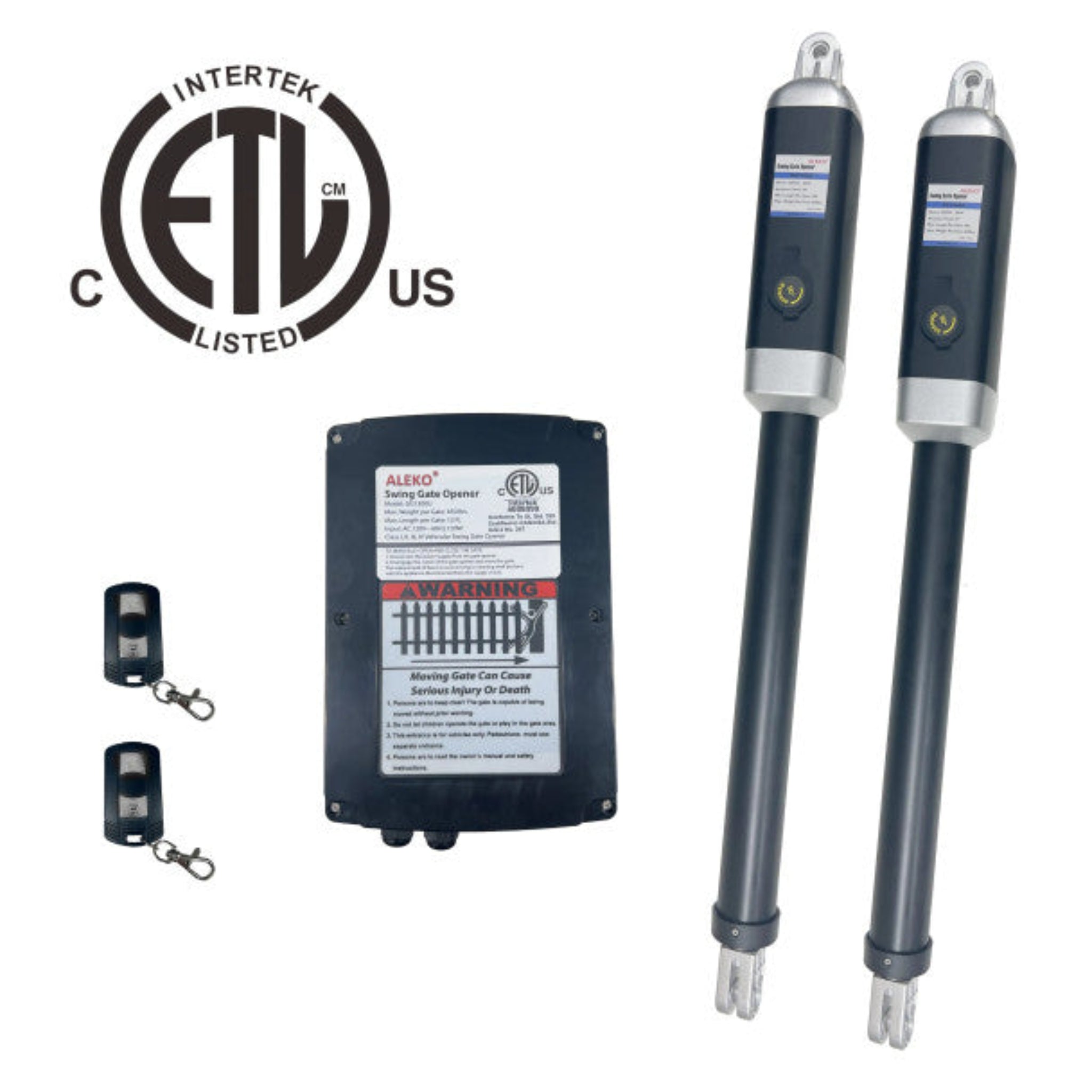

Package Includes
- (2) Gate actuators
- (1) Control box
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for dual swing gates
- Supports gates up to 36 ft. / 1,320 lbs. total
- Supports up to 18 ft. / 660 lbs. per panel
- Powerful 100W, 24V DC motor
- Smooth and soft start/stop operation
- Quiet gate operation
- ETL Certified
- Two 433 MHz remote controls
- Programmable 0–99 second auto-close
- Stop/reverse safety sensor for obstruction protection
- Two emergency release keys
- Adjustable electromagnetic limit switches
- Water-resistant materials help resist rust and corrosion
- Compatible with a variety of dual-swing gate styles

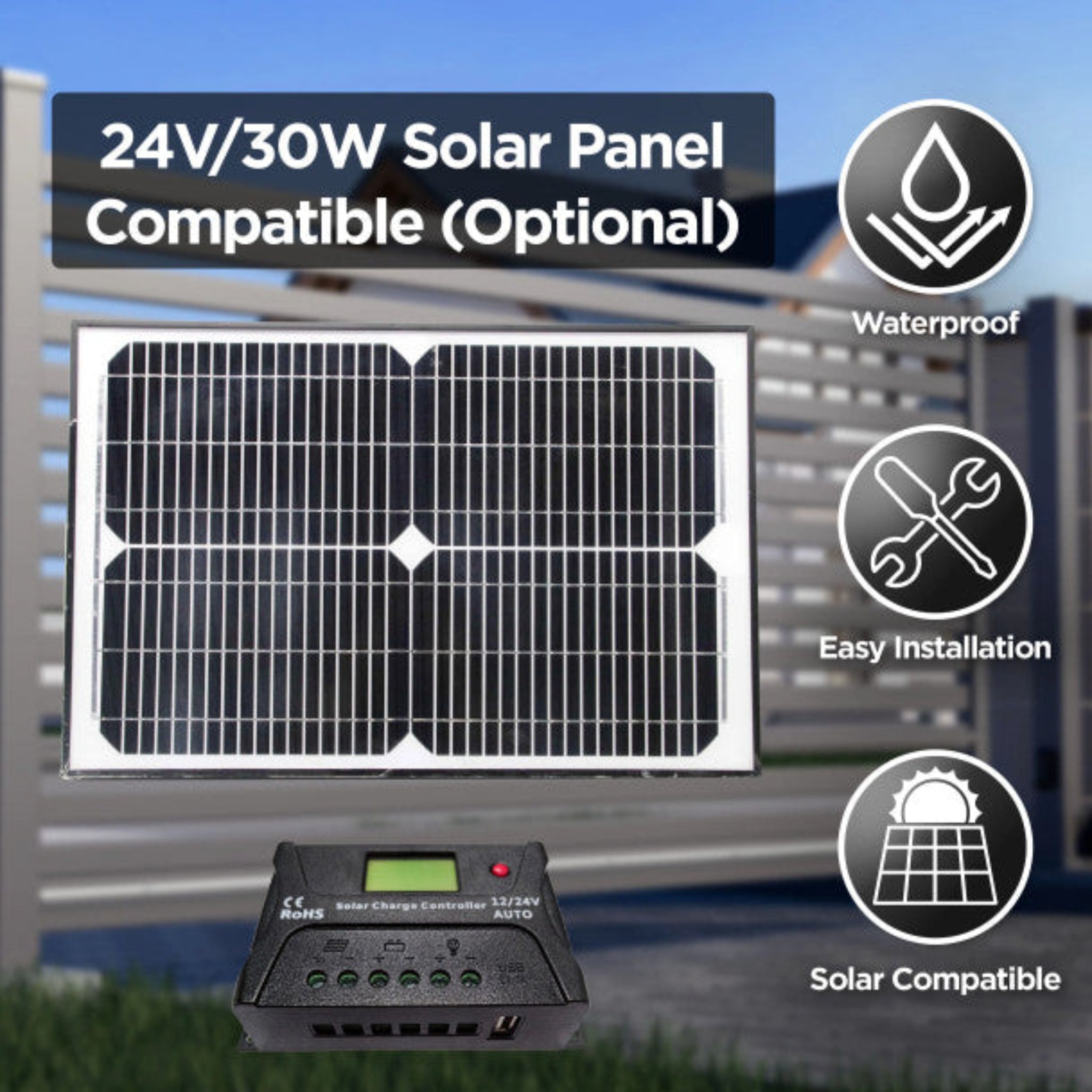

- Solar panels and backup batteries can be added separately
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | ETL Certified Dual Swing Gate Operator Starter Kit |
| Model | GG900UNOR |
| SKU | GG900UNOR-AP |
| MPN | GG900UNOR |
| Compatible Gate Type | Dual Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |

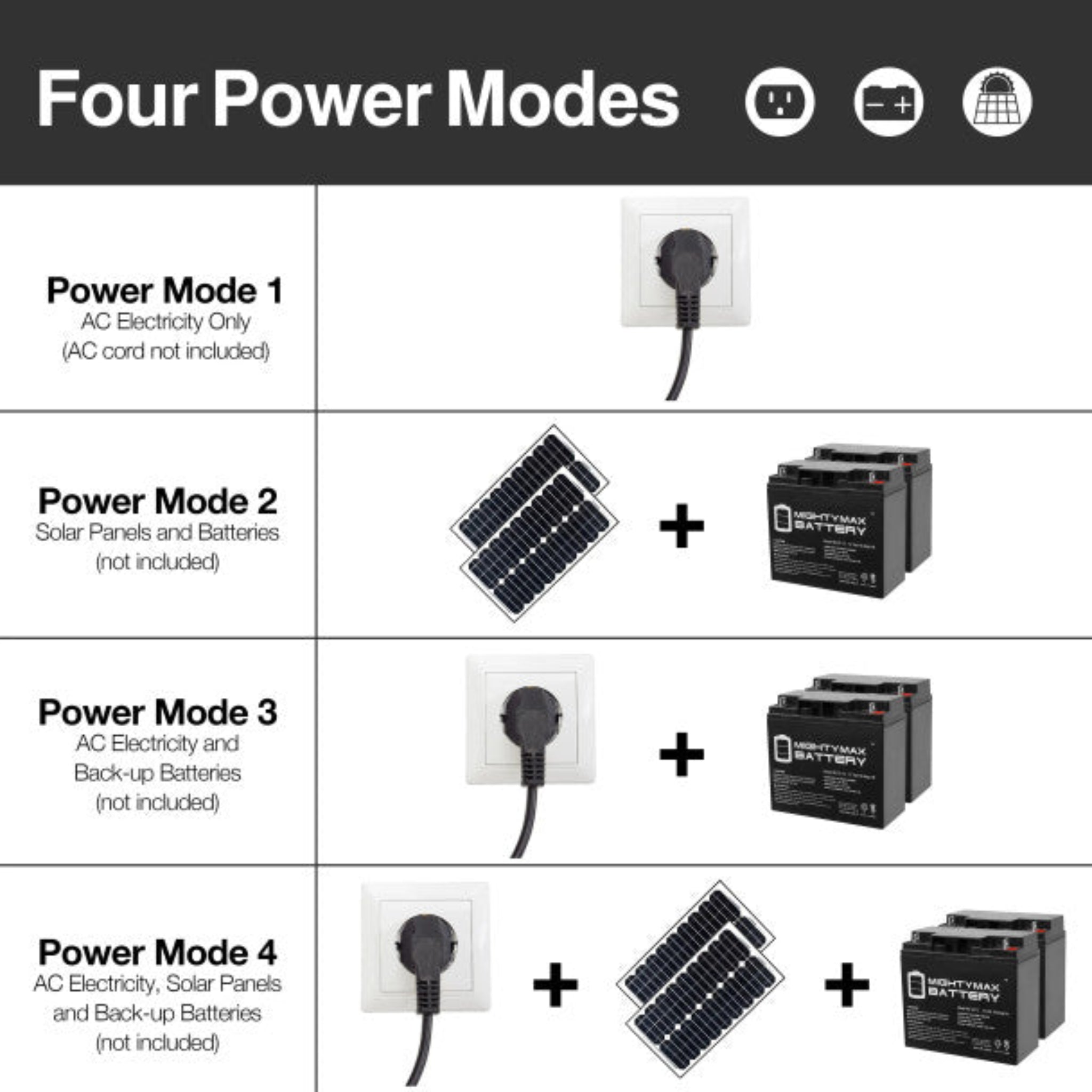

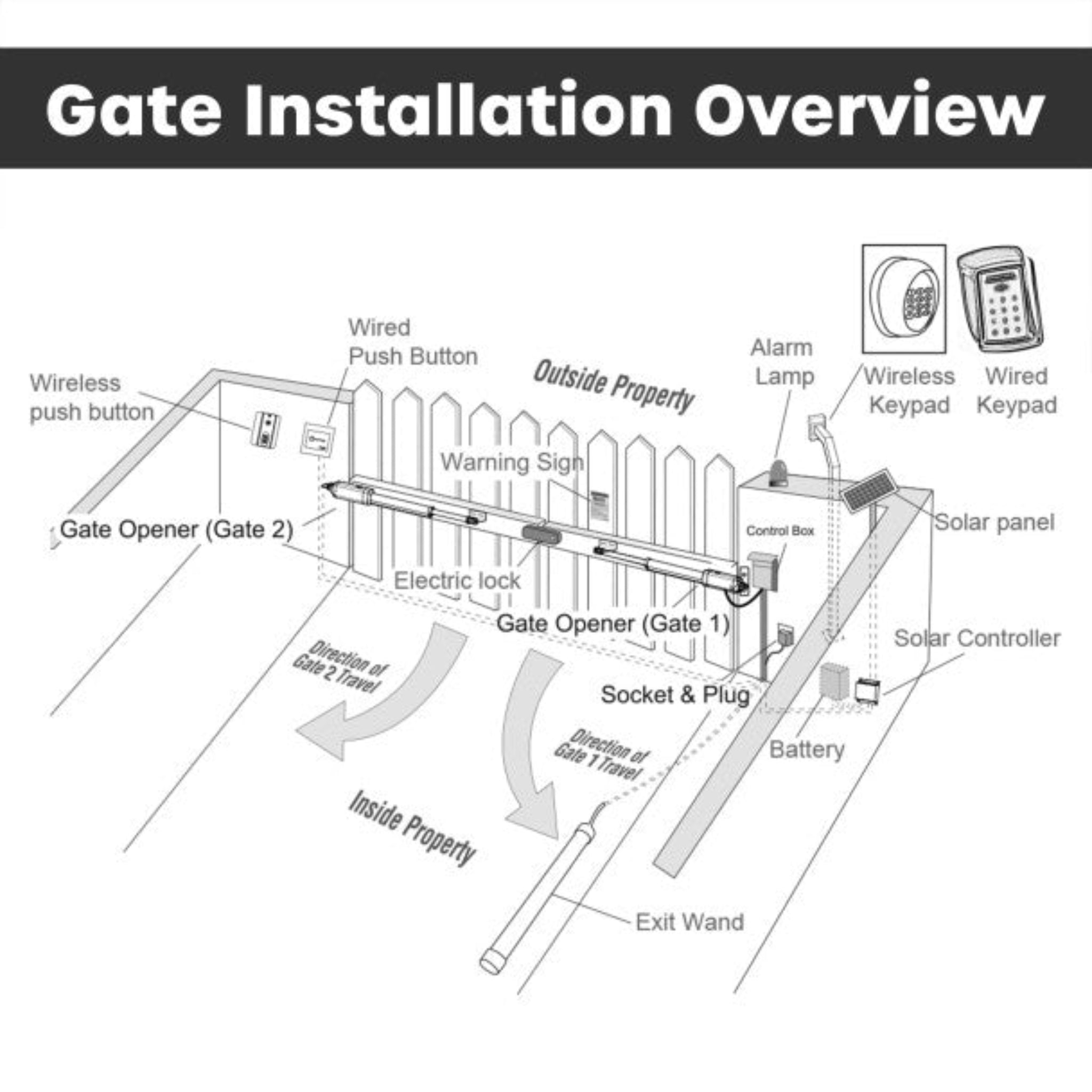

| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | Not included |

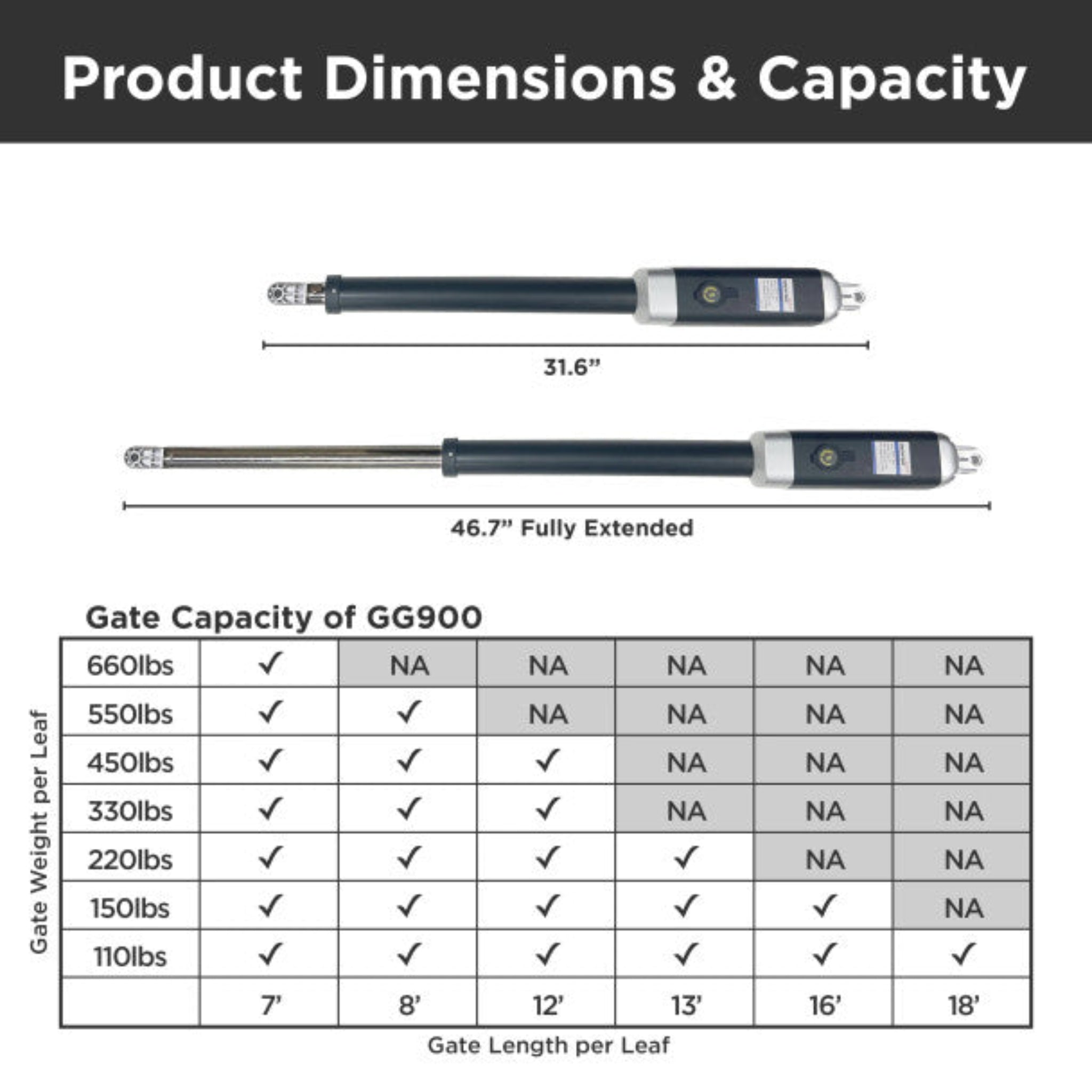

| Maximum Gate Capacity | 36 ft. / 1,320 lbs. total |
| Maximum Per Panel | 18 ft. / 660 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Water-Resistant |
| Certification | ETL Certified |
| Warranty | 1-Year Limited Warranty |
