Description
The ALEKO AS600ACC Single Swing Gate Operator Accessory Kit is designed to provide convenient and secure automation for residential and commercial single swing gates. The powerful 80W, 24V DC opener supports gates up to 18 ft. in length or 880 lbs., delivering smooth and quiet operation.
The system includes two remote controls with a 100 ft. range and a wireless keypad with backlight and metal cover, allowing convenient gate access from a vehicle or keypad. A programmable 0–99 second auto-close function helps improve security and convenience.

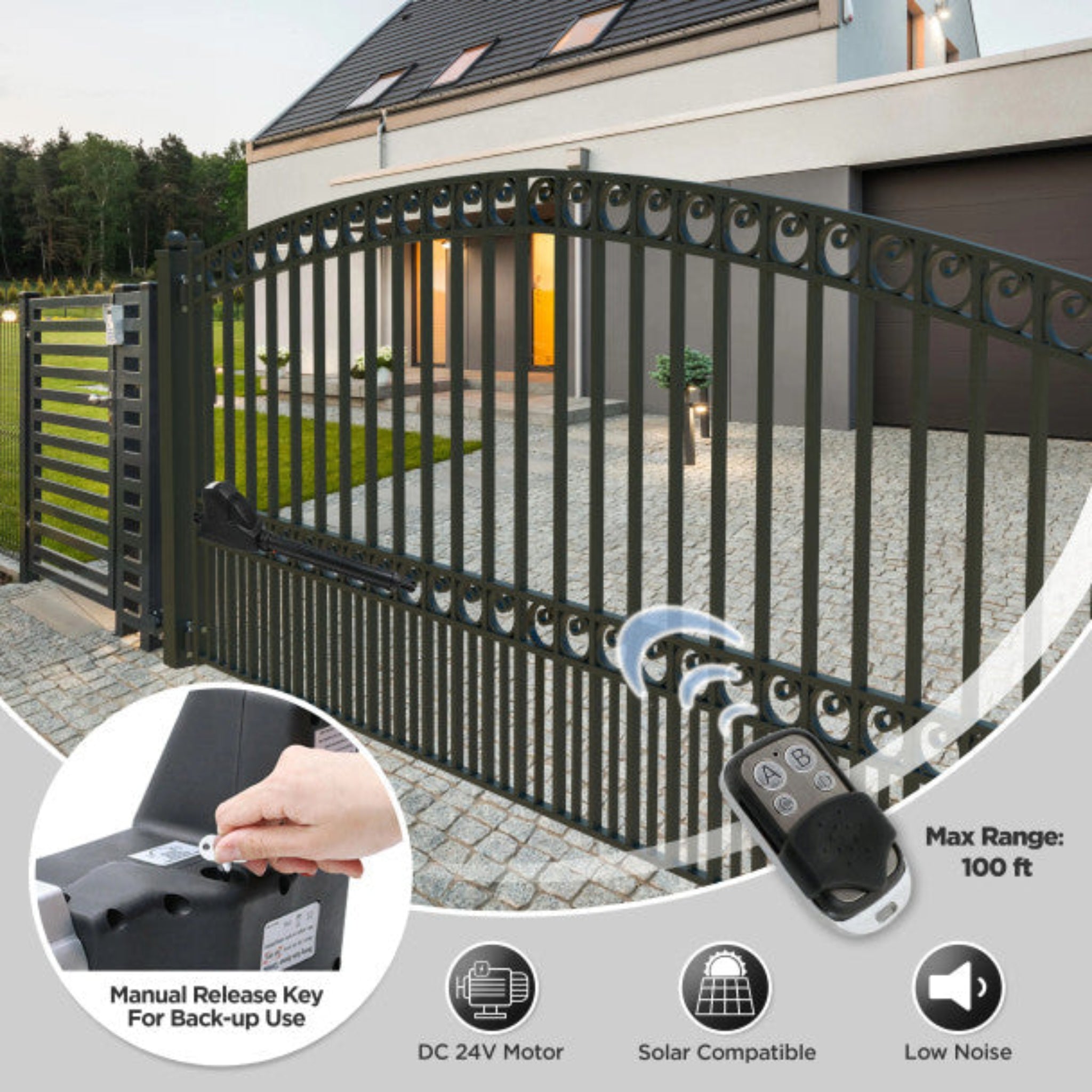

Safety features include automatic stop-and-reverse functionality when an obstruction is encountered, along with photocell sensors for obstacle detection. Two emergency release keys allow manual gate operation during a power failure. The opener is also constructed with anti-rust, water-resistant materials and is compatible with solar power when panels are purchased separately.

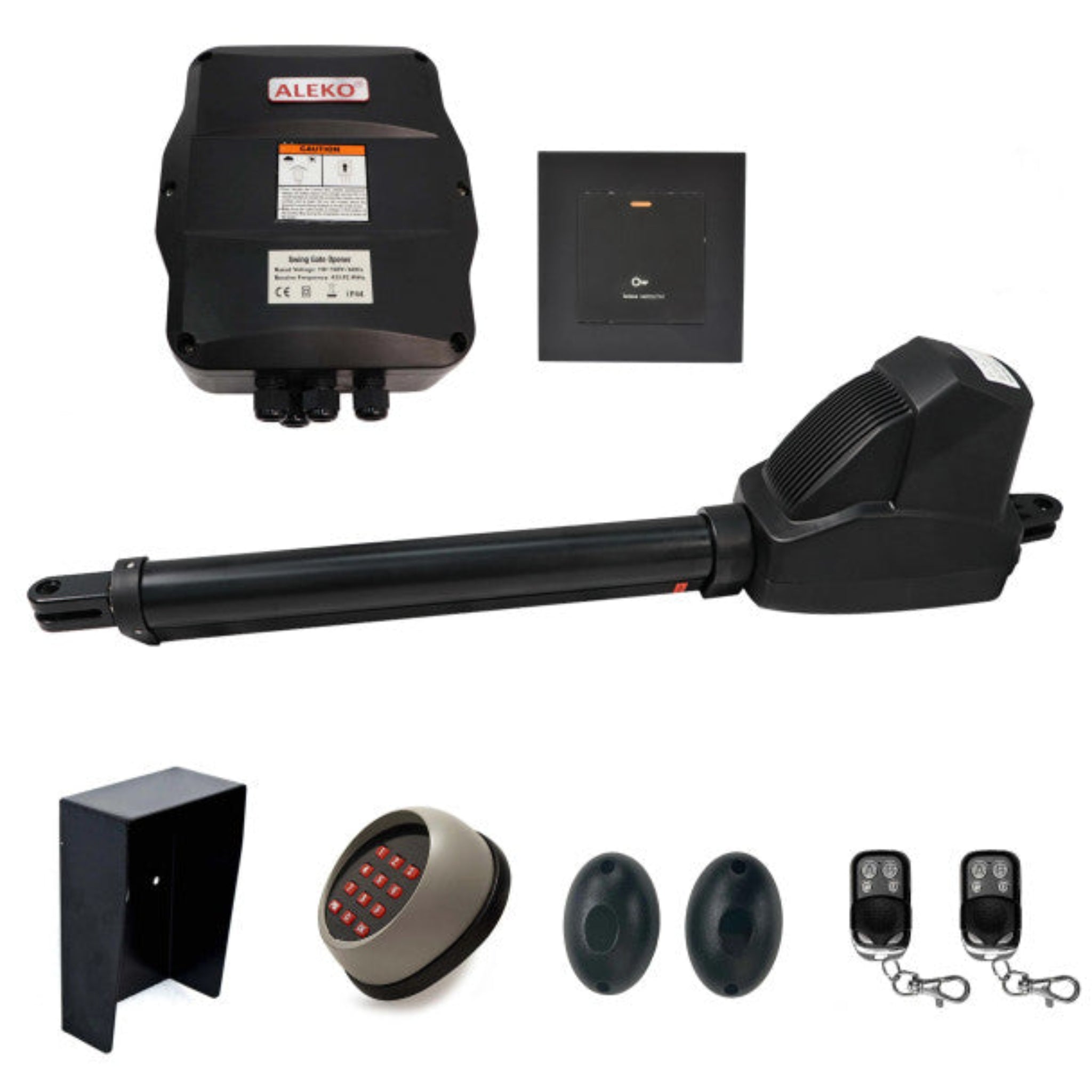

Package Includes

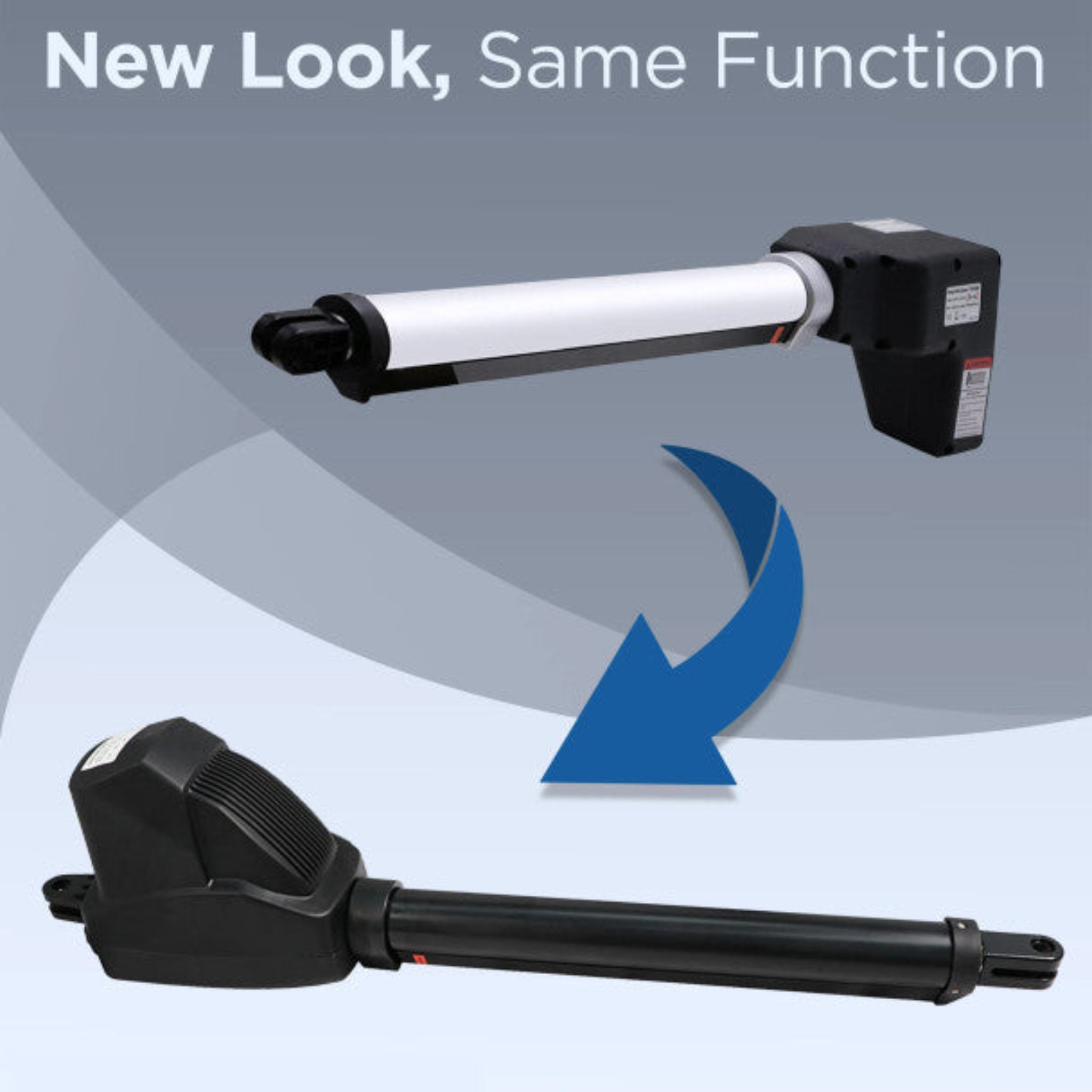

- (1) AS600 Actuator
- (1) Control Box
- (1) Wired Push Button
- (2) 433 MHz Remote Controls
- (2) Emergency Release Keys
- (2) Photocell Sensors
- (1) Wireless Keypad with Backlight
- (1) Metal Keypad Cover
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features
- Designed for single swing gates
- Supports gates up to 18 ft. / 880 lbs.
- Powerful 80W opener
- 24V DC power system
- Smooth swing motion
- Low motor noise
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Wireless keypad with backlight
- Metal keypad cover included
- Wired push button included
- Automatic stop-and-reverse protection
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close
- Two emergency release keys
- Anti-rust, water-resistant construction

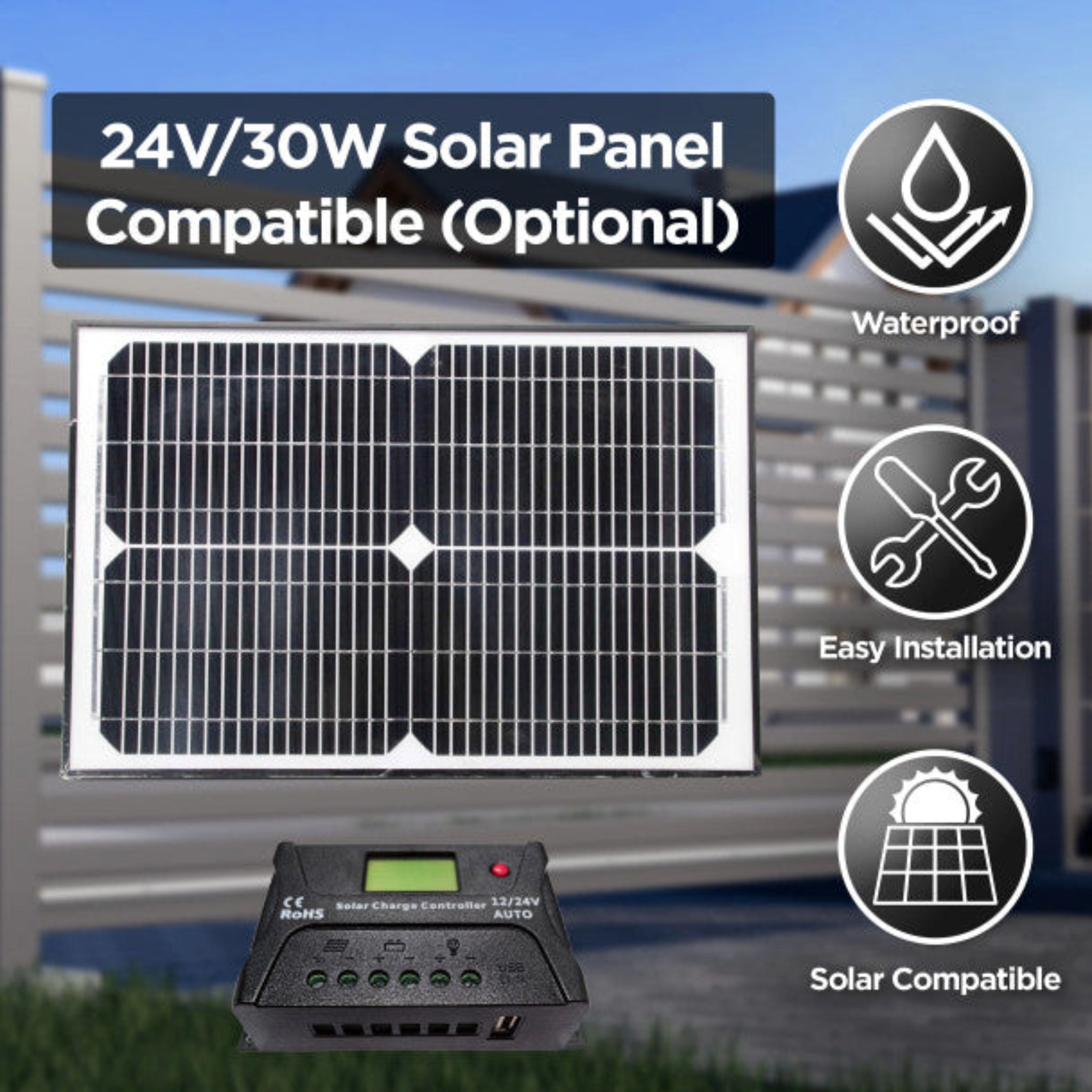

- Solar compatible
- Multiple power configurations supported
- Assembly required
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Accessory Kit |
| Model | AS600ACC |
| SKU | AS600ACC-AP |
| MPN | AS600NOR |
| Compatible Gate Type | Single Swing Gates |

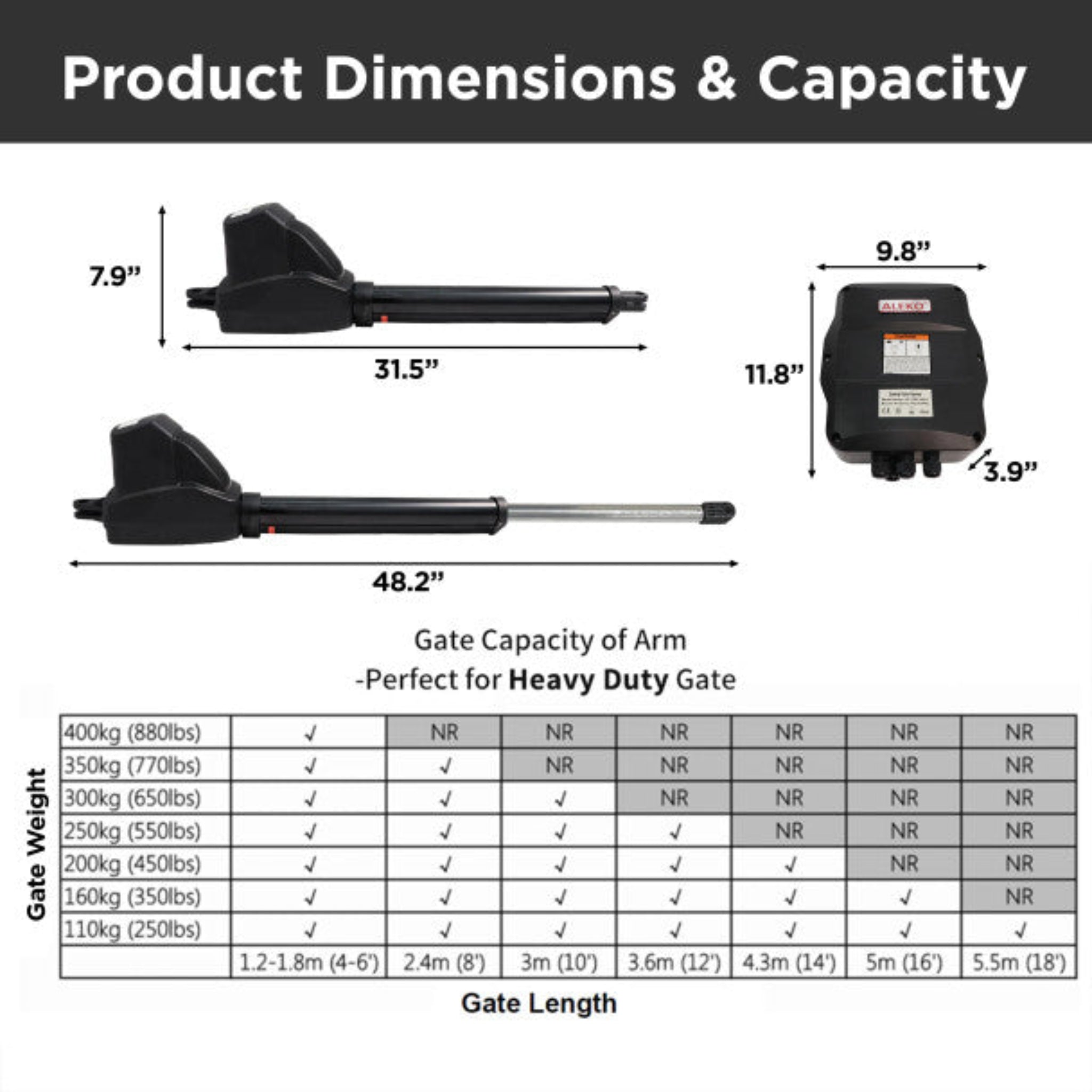

| Gate Capacity | 18 ft. / 880 lbs. |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

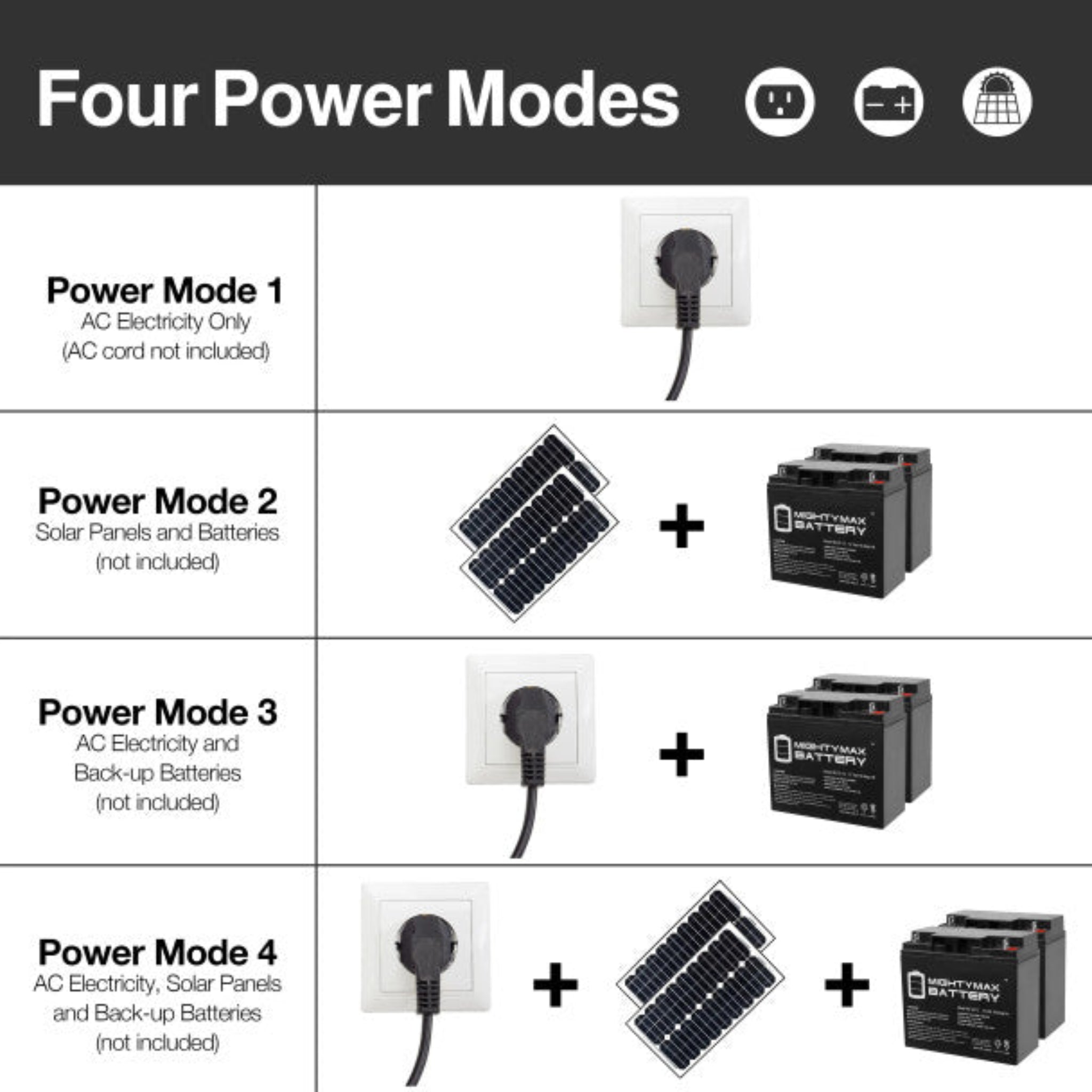

| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not Included |
| Backup Batteries | Not Included |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
