Description

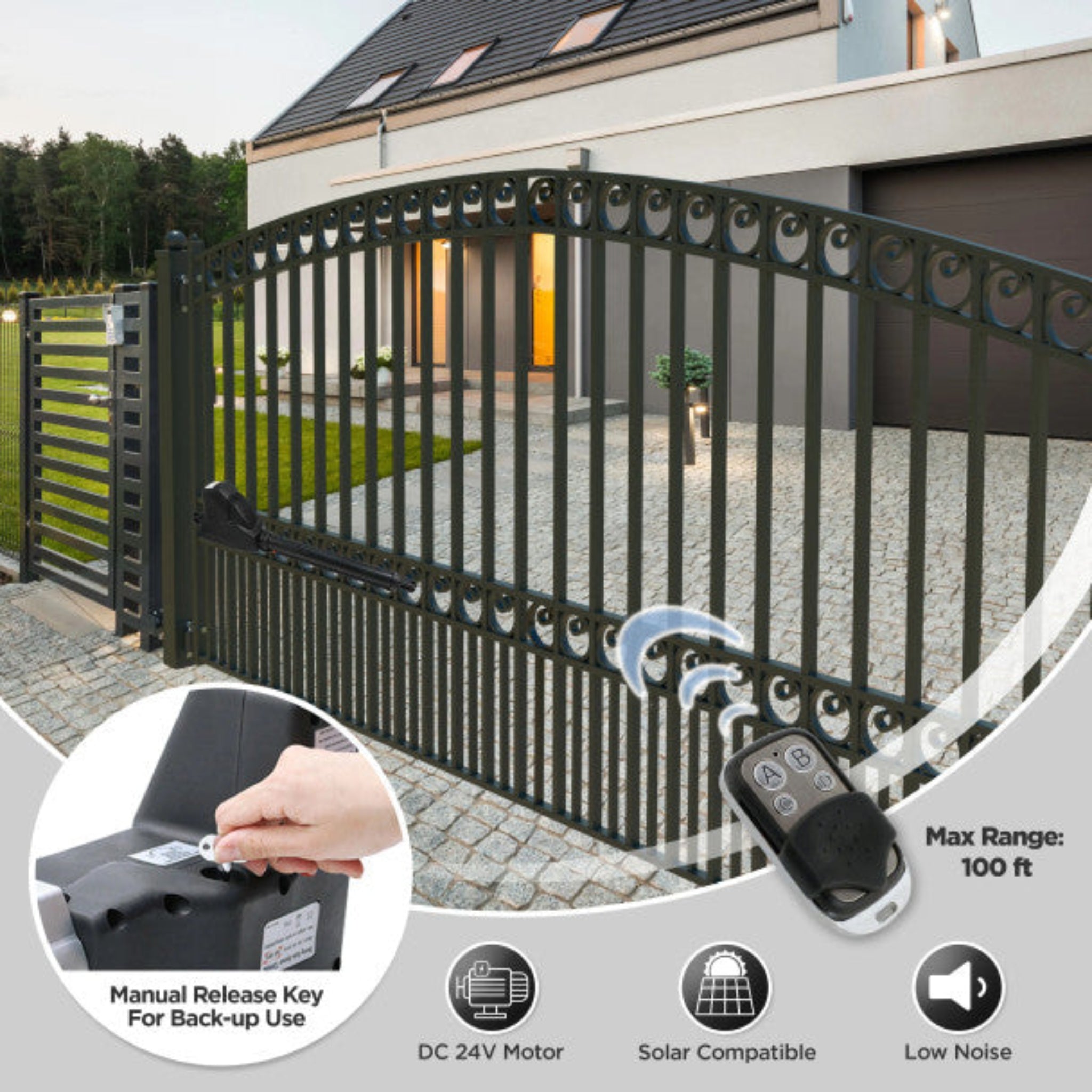

The ALEKO GG450BACK Single Swing Gate Operator Back-Up Kit is designed to automate single swing gates for residential and commercial properties. It supports gates up to 18 ft. in length or 660 lbs. and features a powerful 60W, 24V DC motor for smooth and quiet operation.
Built for outdoor use, the operator uses durable, water-resistant materials to help resist rust and corrosion. Its smooth start/stop function provides controlled gate movement, while the included remote controls allow convenient operation from a vehicle.
The back-up kit includes two 12 Ah batteries, a battery box, and a 24V adapter/battery charger to provide backup power during outages. Additional features include programmable auto-close, adjustable electromagnetic limit switches, an emergency release key, and stop/reverse safety protection when resistance or an obstruction is detected. The operator is also ETL Certified.

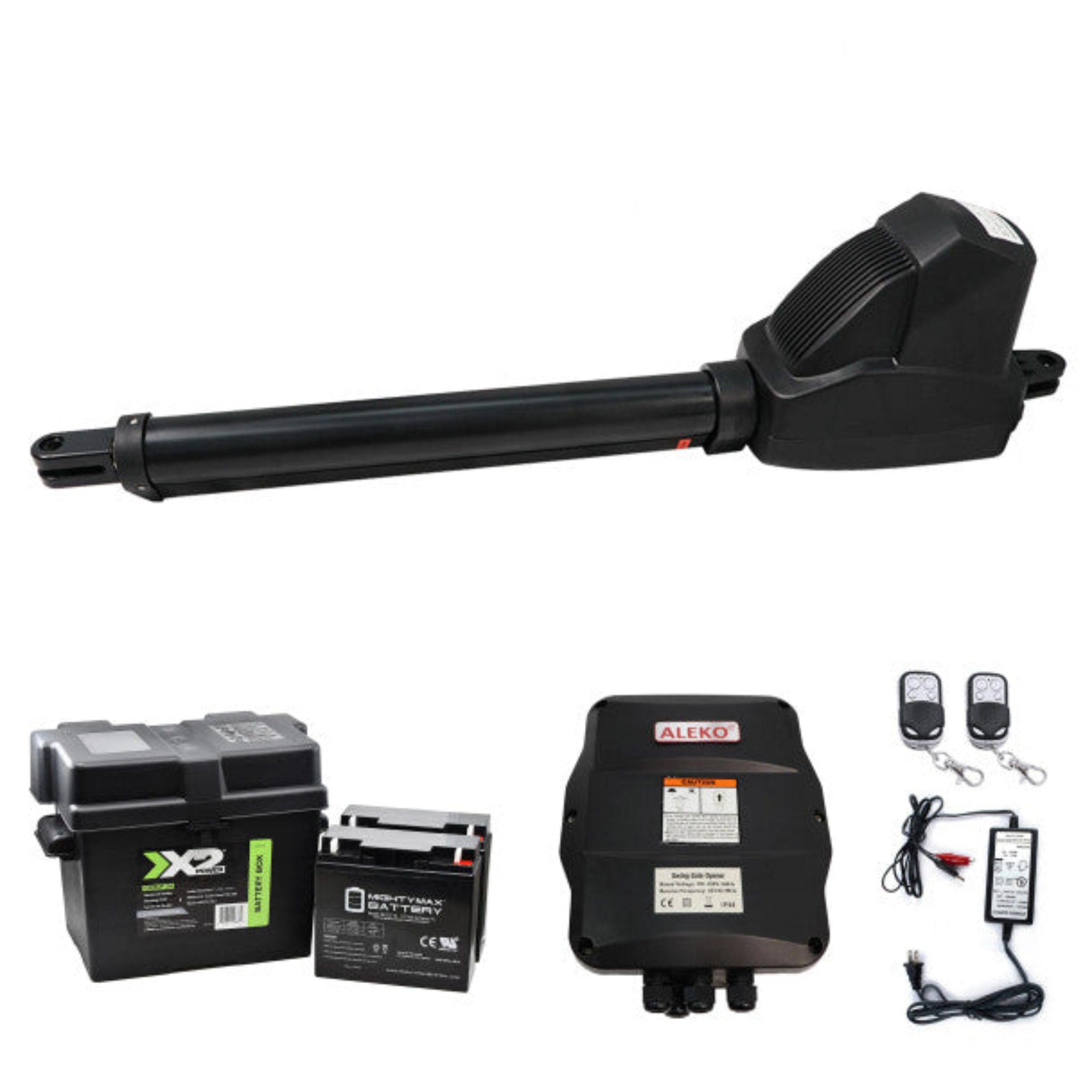

Package Includes
- (1) Gate actuator
- (2) 12 Ah batteries

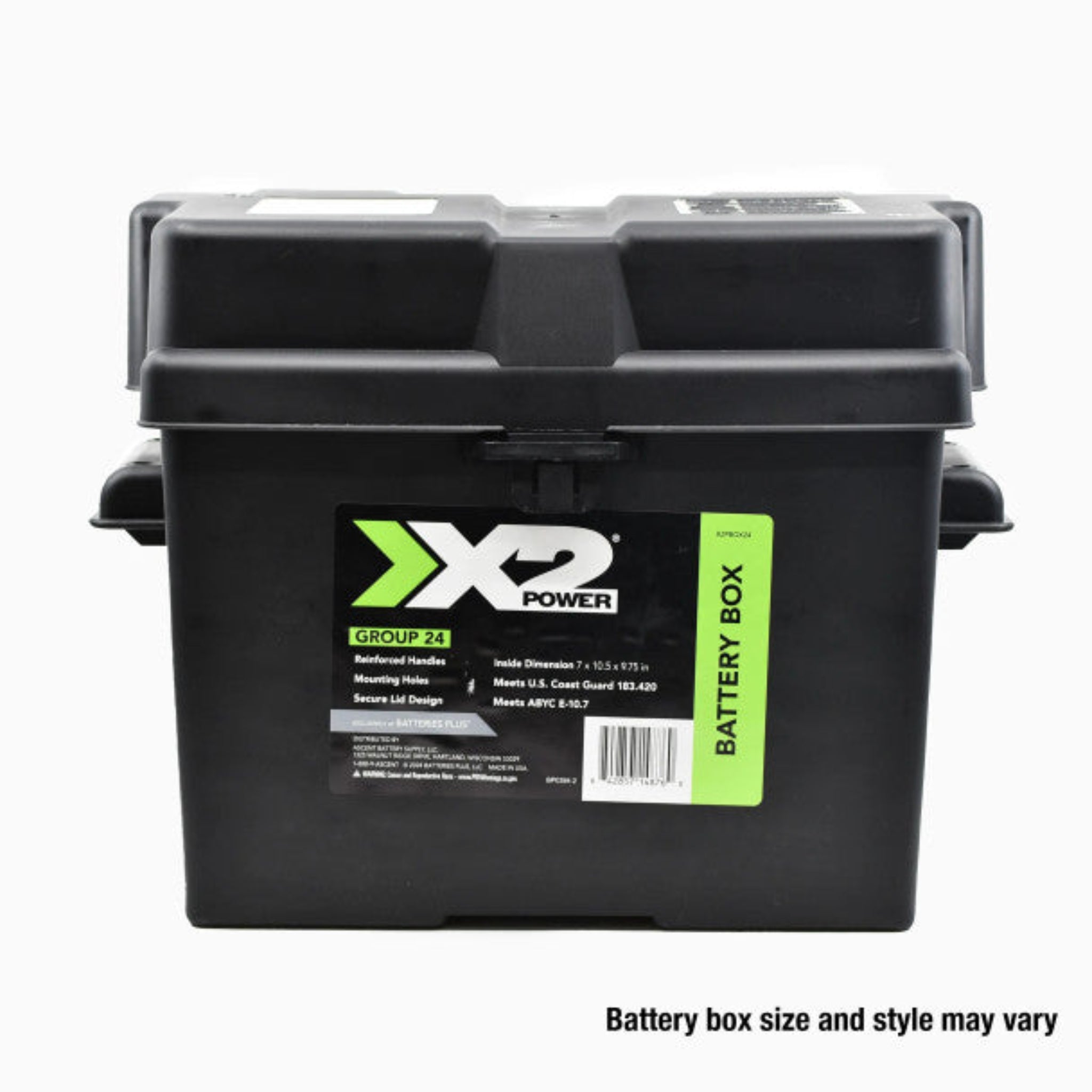

- (1) Battery box
- (1) 24V adapter/battery charger
- (1) Control box
- (2) 433 MHz remote controls
- (1) Emergency release key
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for single swing gates
- Supports gates up to 18 ft. / 660 lbs.
- Powerful 60W, 24V DC motor
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 433 MHz remote controls
- Stop/reverse safety sensor for obstruction protection
- Programmable 0–99 second auto-close
- Emergency release key for power failures
- Two 12 Ah backup batteries
- Battery box and 24V charger included
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion

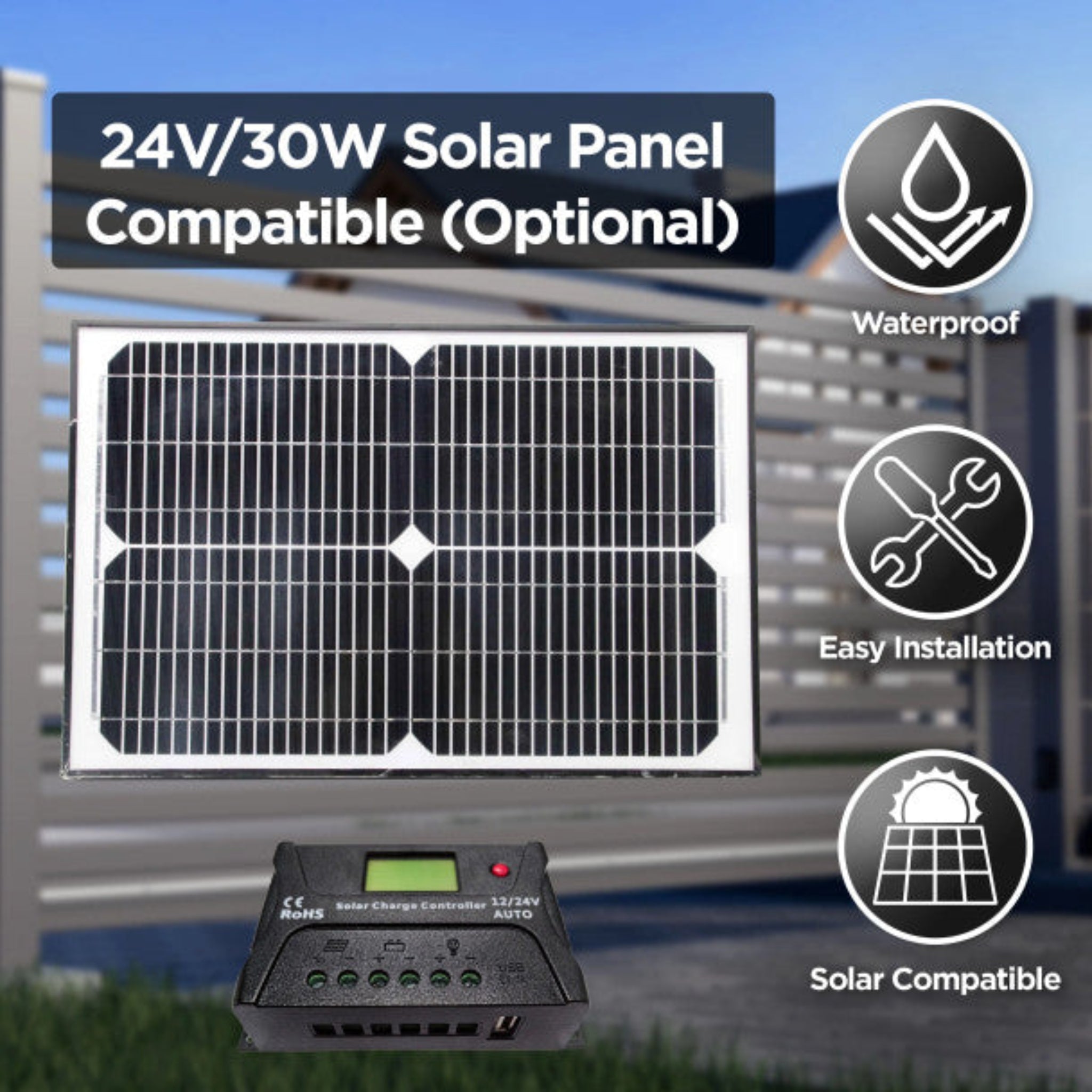

- Solar compatible when solar panels are added separately
- ETL Certified
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Back-Up Kit |
| Model | GG450BACK |
| SKU | GG450BACK-AP |
| MPN | GG450NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 60W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | 2 × 12 Ah |
| Battery Charger | 24V Adapter/Battery Charger |
| Battery Box | Included |

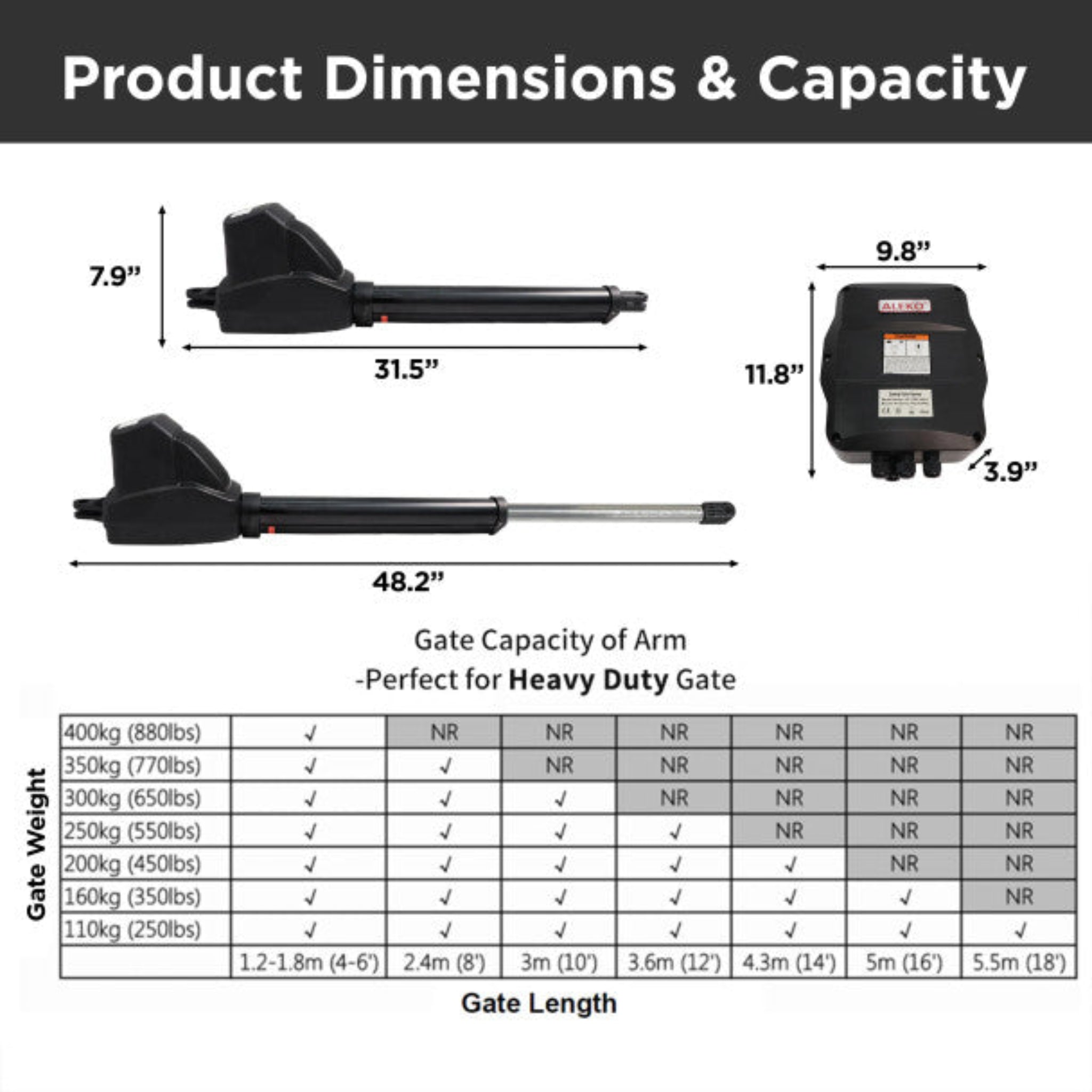

| Maximum Gate Capacity | 18 ft. / 660 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Water-Resistant |
| Certification | ETL Certified |
| Warranty | 1-Year Limited Warranty |
