Description
The ALEKO AS600FULL Single Swing Gate Operator 60W Solar Kit is designed to automate single swing gates for residential and commercial properties. Its powerful 80W, 24V DC motor supports gates up to 18 ft. in length or 880 lbs. The included 60W solar panel system provides an efficient power option for automated gate operation.

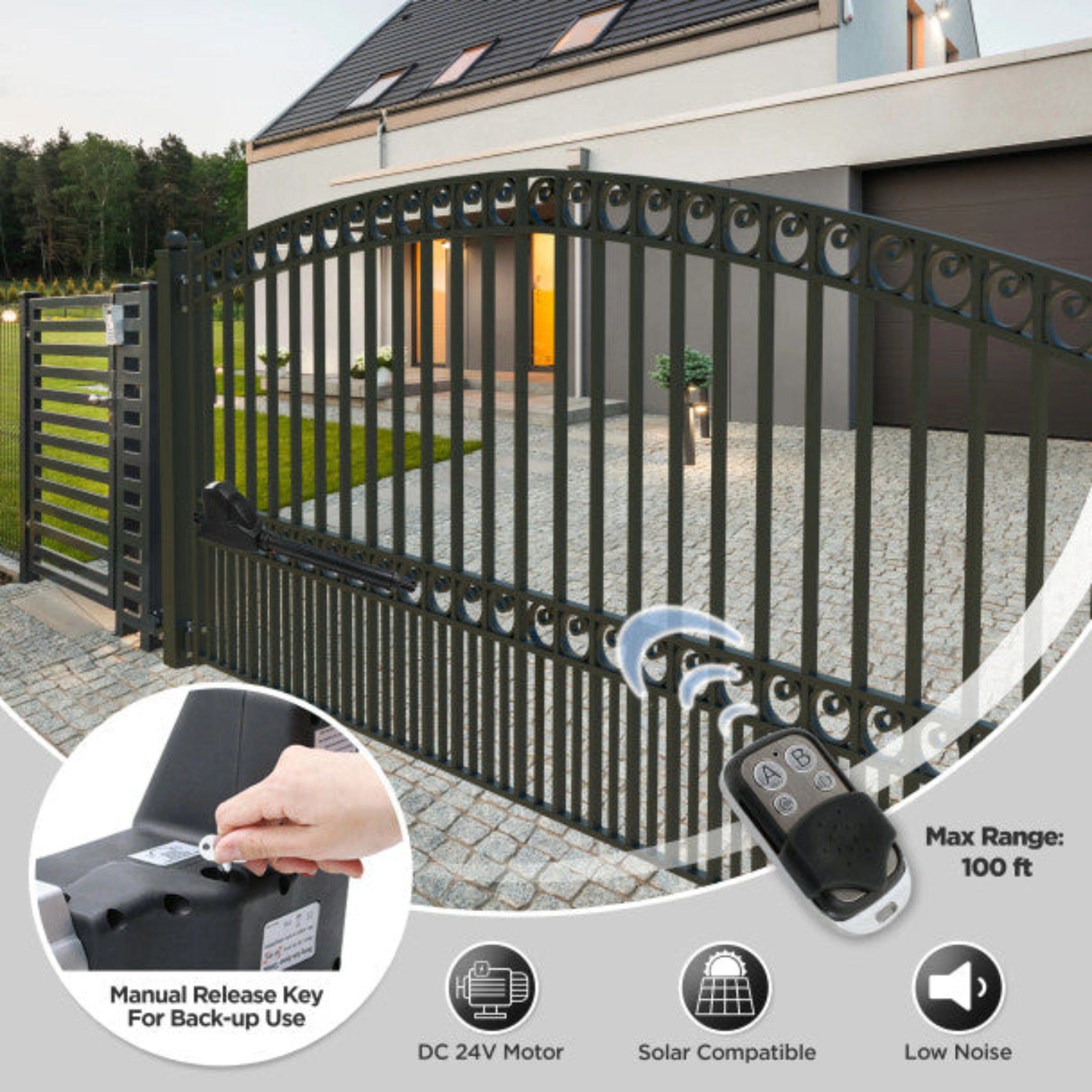

The opener provides smooth, quiet swing motion and includes two remote controls with up to a 100 ft. range, along with a wireless keypad with backlight for convenient access. A programmable auto-close function helps keep the property secure, while automatic stop-and-reverse protection and photocell sensors provide additional safety around obstacles.
Built with anti-rust, water-resistant materials, the operator is suitable for outdoor installation. Two emergency release keys are included for manual gate operation during a power failure.

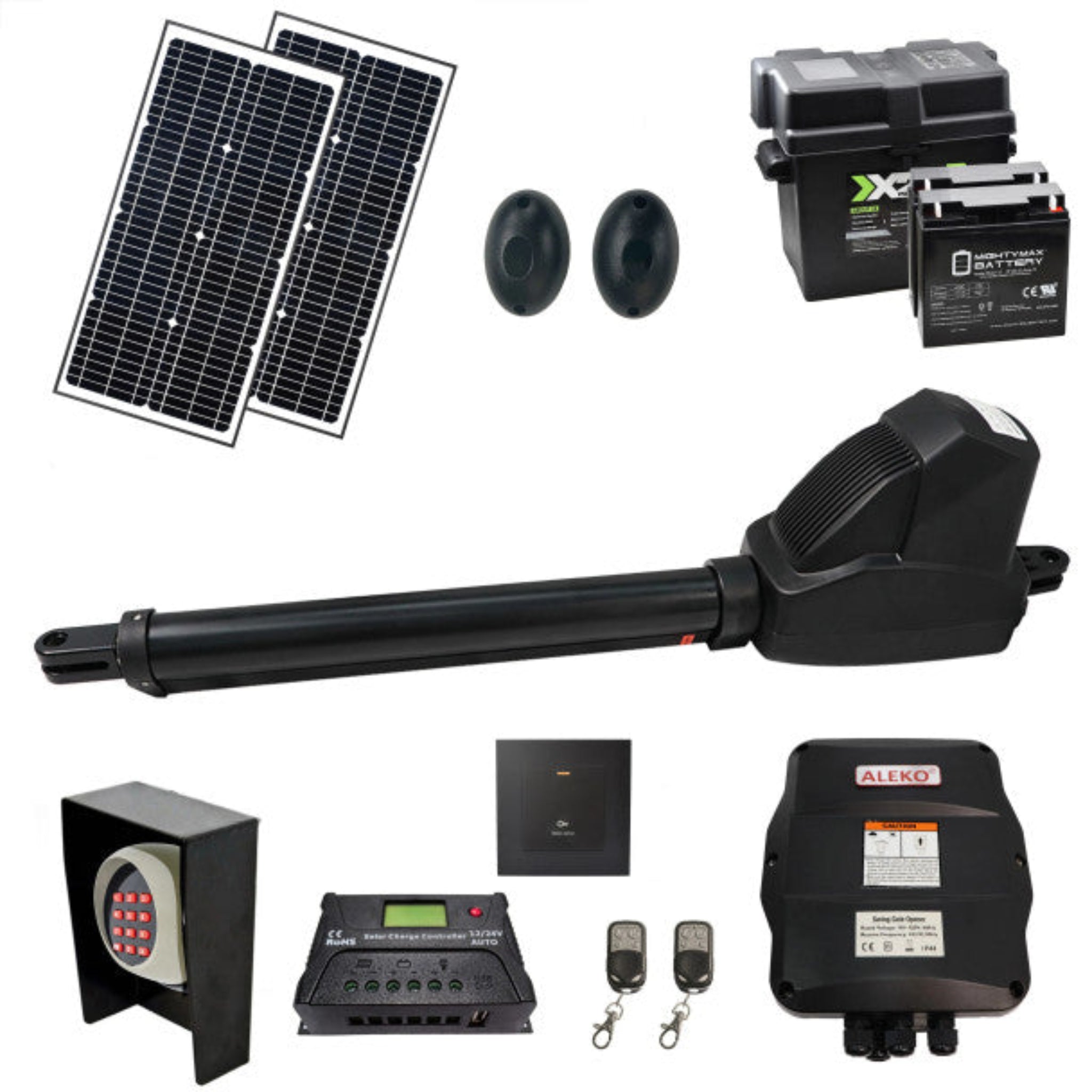

Package Includes
- (1) AS600 actuator

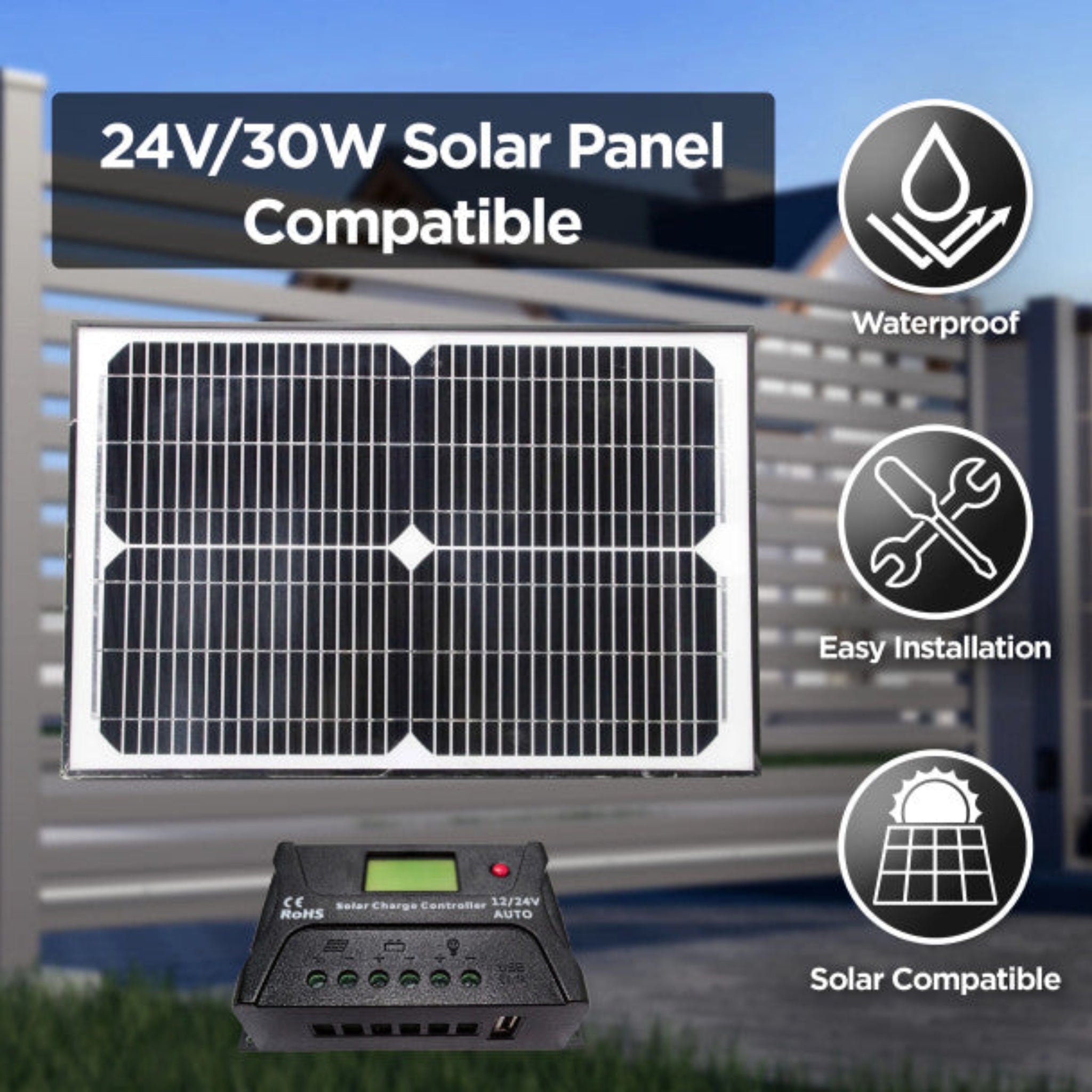

- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

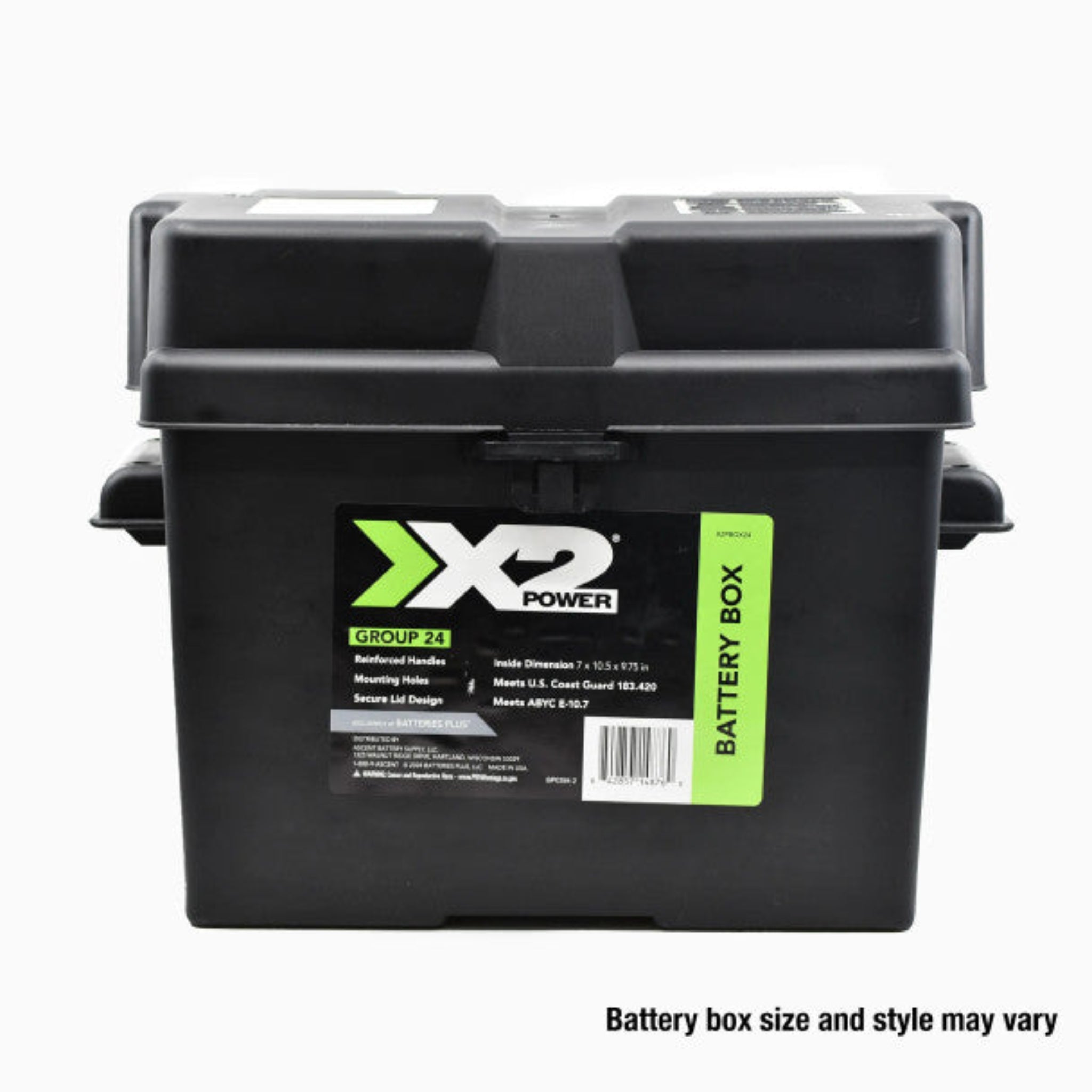

- (1) Battery box
- (1) Control box
- (1) Wired push button
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocell sensors
- (1) Wireless keypad with backlight
- (1) Metal keypad cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for single swing gates
- Supports gates up to 18 ft. / 880 lbs.
- Powerful 80W, 24V DC motor
- Includes 60W total solar power
- Two 30W, 24V solar panels
- 12V/24V solar charge controller included
- Two 22 Ah batteries
- Smooth swing motion
- Low motor noise
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Wireless keypad with backlight
- Metal keypad cover included
- Automatic stop-and-reverse functionality
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close
- Two emergency release keys
- Anti-rust, water-resistant materials
- Multiple power modes
- Assembly required
Warranty
- 1-Year Limited Warranty
- Solar panels carry a 15-Year Limited Warranty.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator 60W Solar Kit |
| Model | AS600FULL |
| SKU | AS600FULL-AP |
| MPN | AS600NOR |
| Compatible Gate Type | Single Swing Gates |

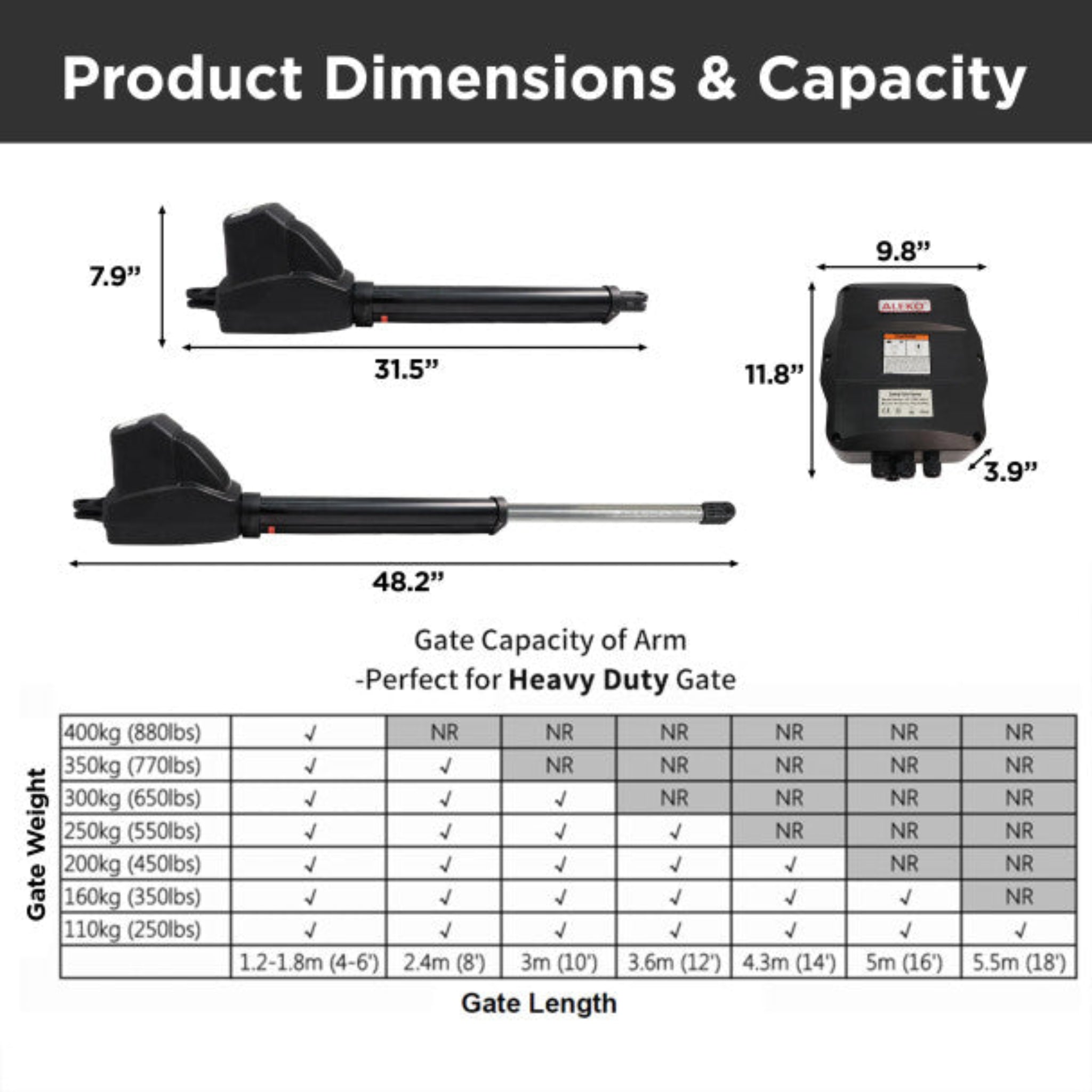

| Gate Capacity | 18 ft. / 880 lbs. |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes |
| Solar Panels | 2 × 30W, 24V |
| Solar Charge Controller | 12V/24V |
| Batteries | 2 × 22 Ah |
| Battery Box | Included |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Solar Panel Warranty | 15-Year Limited Warranty |
| Product Warranty | 1-Year Limited Warranty |
