Description
The ALEKO AS600SOL Single Swing Gate Operator 60W Solar Kit is designed to provide convenient and secure automation for residential and commercial swing gates. The powerful 80W, 24V DC opener supports gates up to 18 ft. wide or 880 lbs. and provides smooth, quiet operation. The included 60W solar panel system offers an efficient power option for automated gate operation.

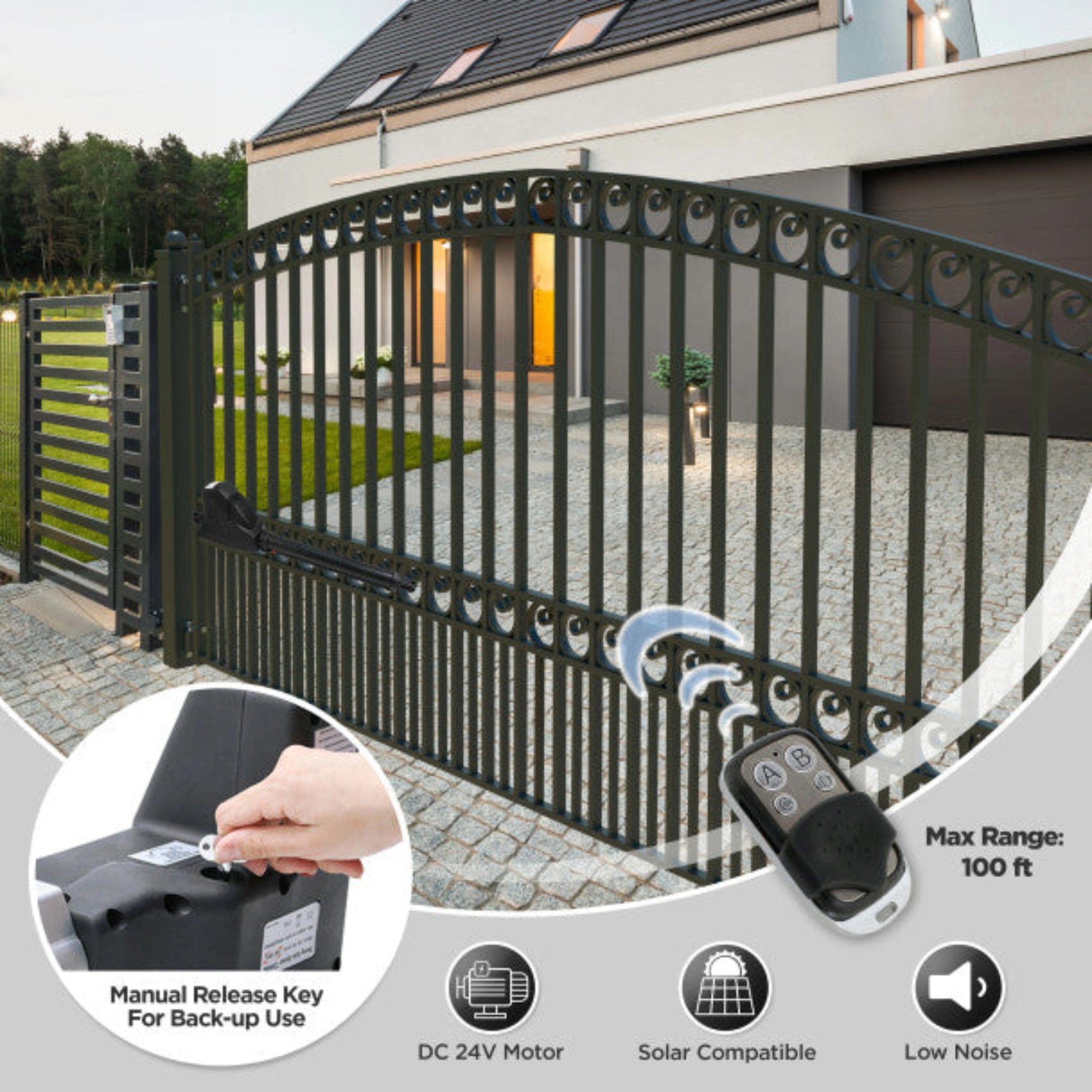

Two remote controls with a 100 ft. range allow convenient operation from a vehicle, while the programmable auto-close function can be adjusted from 0–99 seconds. The opener also features automatic stop-and-reverse functionality when an obstruction is encountered, helping provide added safety during operation.
Built with anti-rust, water-resistant materials, the system is suitable for outdoor installations. Two emergency release keys are included to allow manual operation in the event of a power failure.

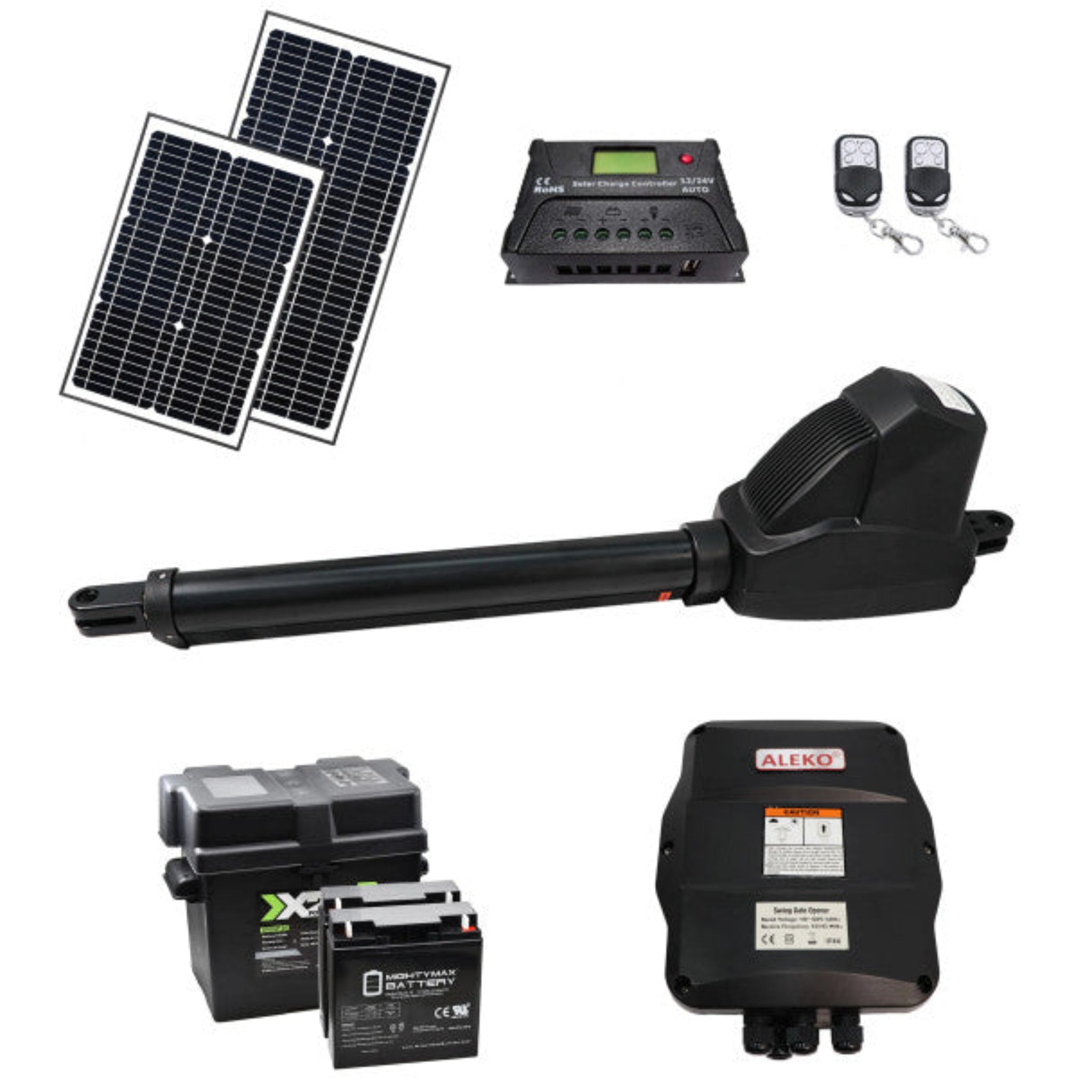

Package Includes

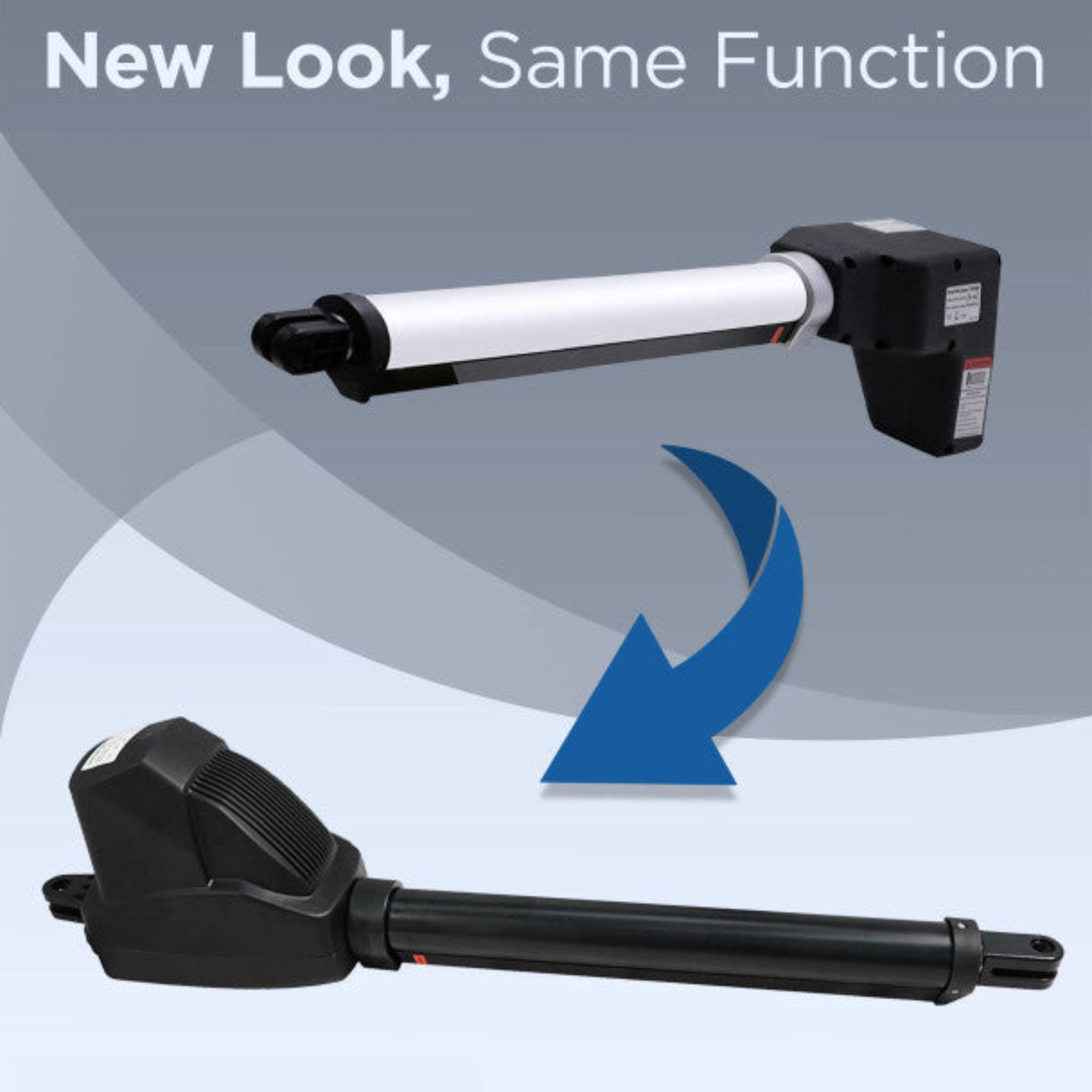

- (1) AS600 Actuator

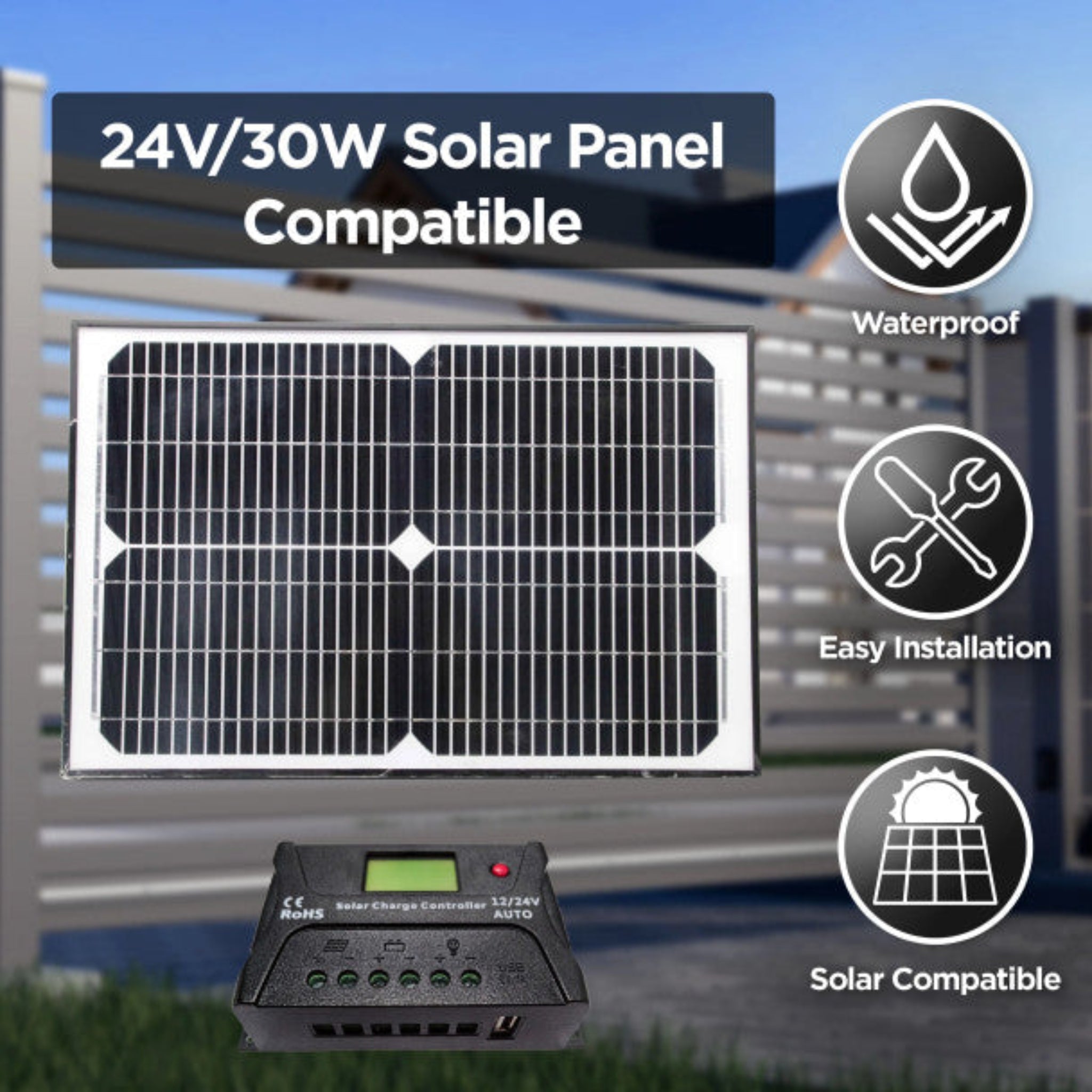

- (2) 30W, 24V Solar Panels
- (1) 12V/24V Solar Charge Controller
- (2) 22 Ah Batteries

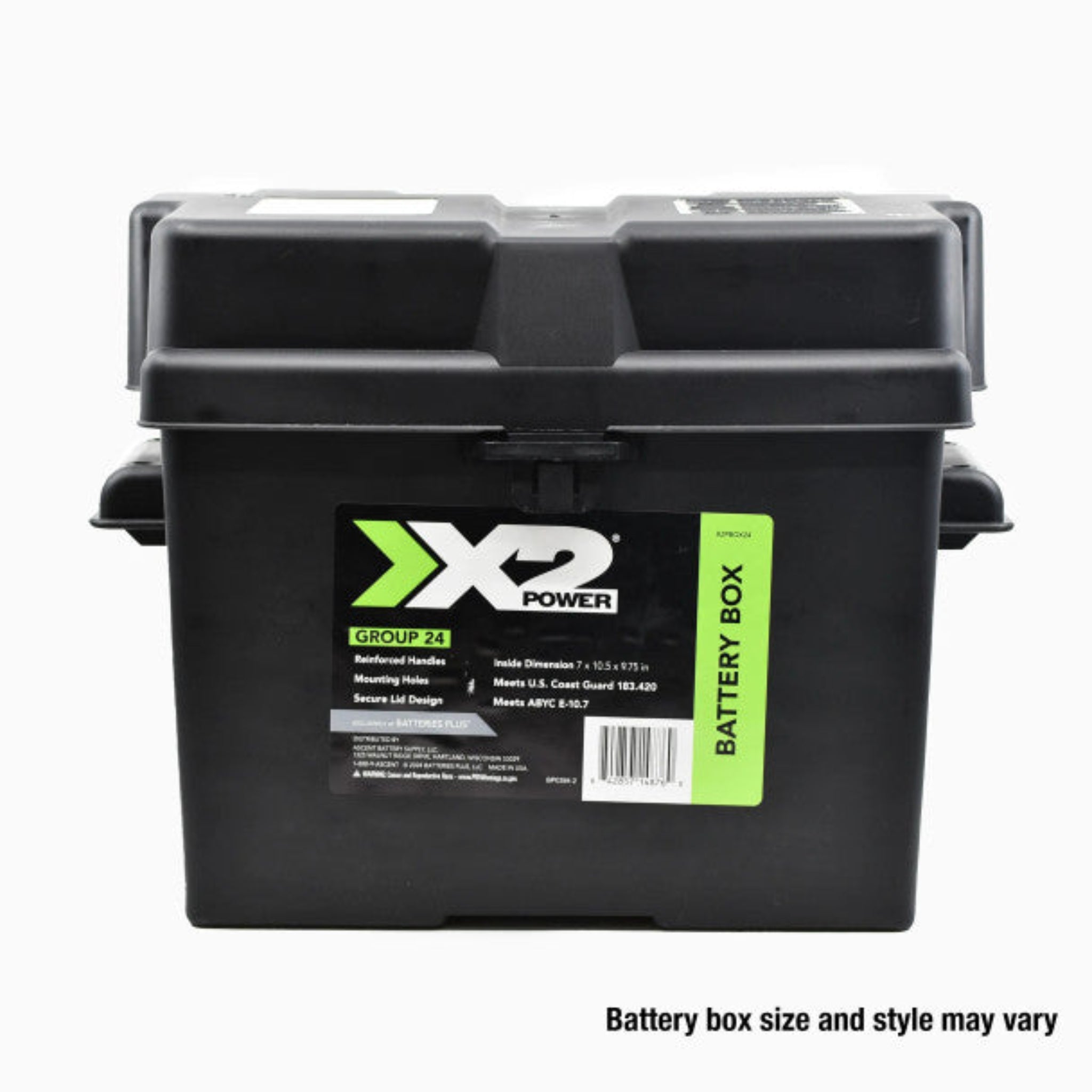

- (1) Battery Box
- (1) Control Box
- (1) Wired Push Button
- (2) 433 MHz Remote Controls
- (2) Emergency Release Keys
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features
- Designed for single swing gates
- Supports gates up to 18 ft. / 880 lbs.
- Powerful 80W opener
- 24V DC power system
- Includes 60W total solar power
- Two 30W, 24V solar panels
- Solar charge controller included
- Two 22 Ah batteries
- Smooth swing motion
- Low motor noise
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Automatic stop-and-reverse protection
- Programmable 0–99 second auto-close
- Two emergency release keys

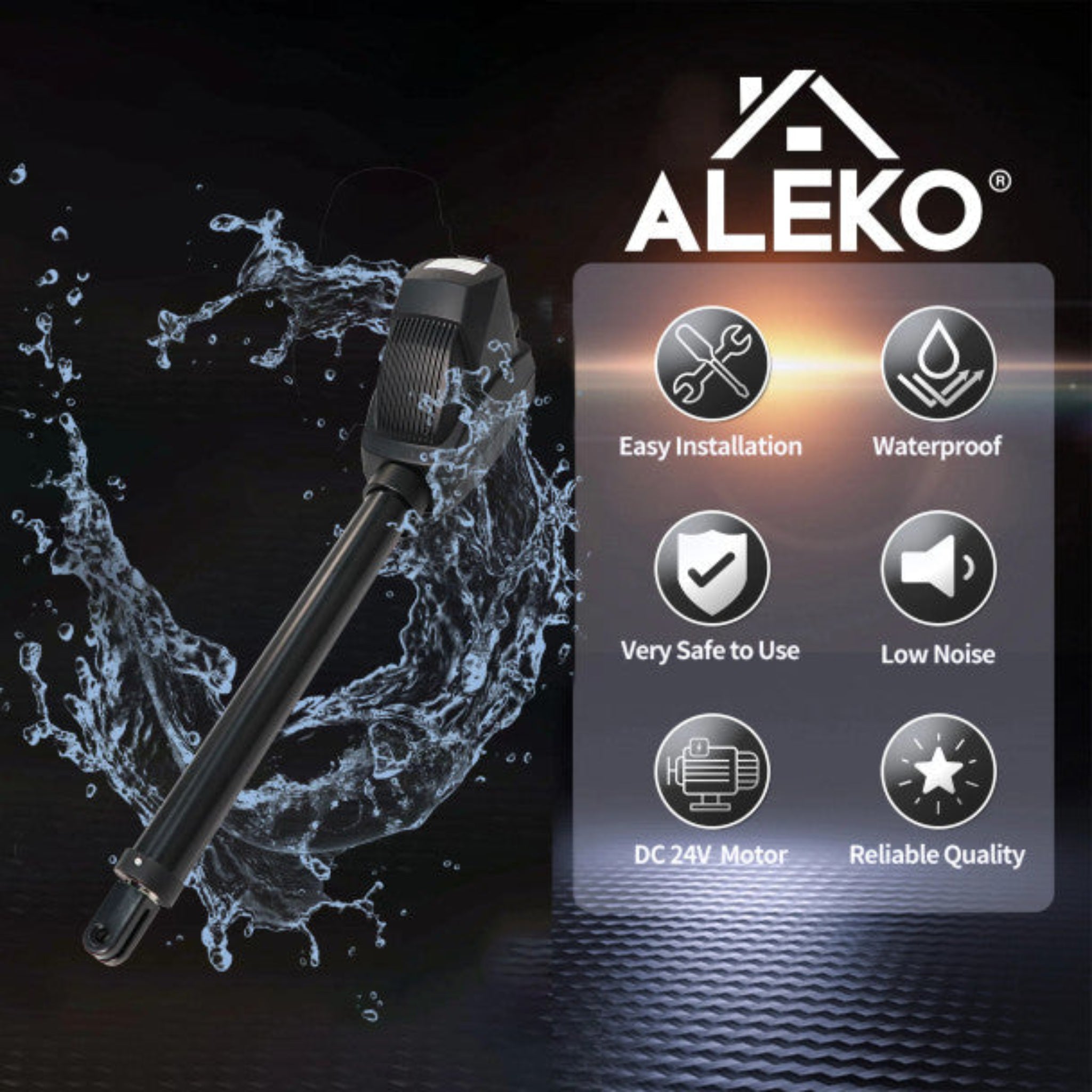

- Anti-rust, water-resistant materials
- Solar compatible
- Suitable for residential and commercial applications
- Assembly required
Warranty
- 1-Year Limited Warranty
- Solar panels carry a 15-Year Limited Warranty.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator 60W Solar Kit |
| Model | AS600SOL |
| SKU | AS600SOL-AP |
| MPN | AS600NOR |
| Compatible Gate Type | Single Swing Gates |

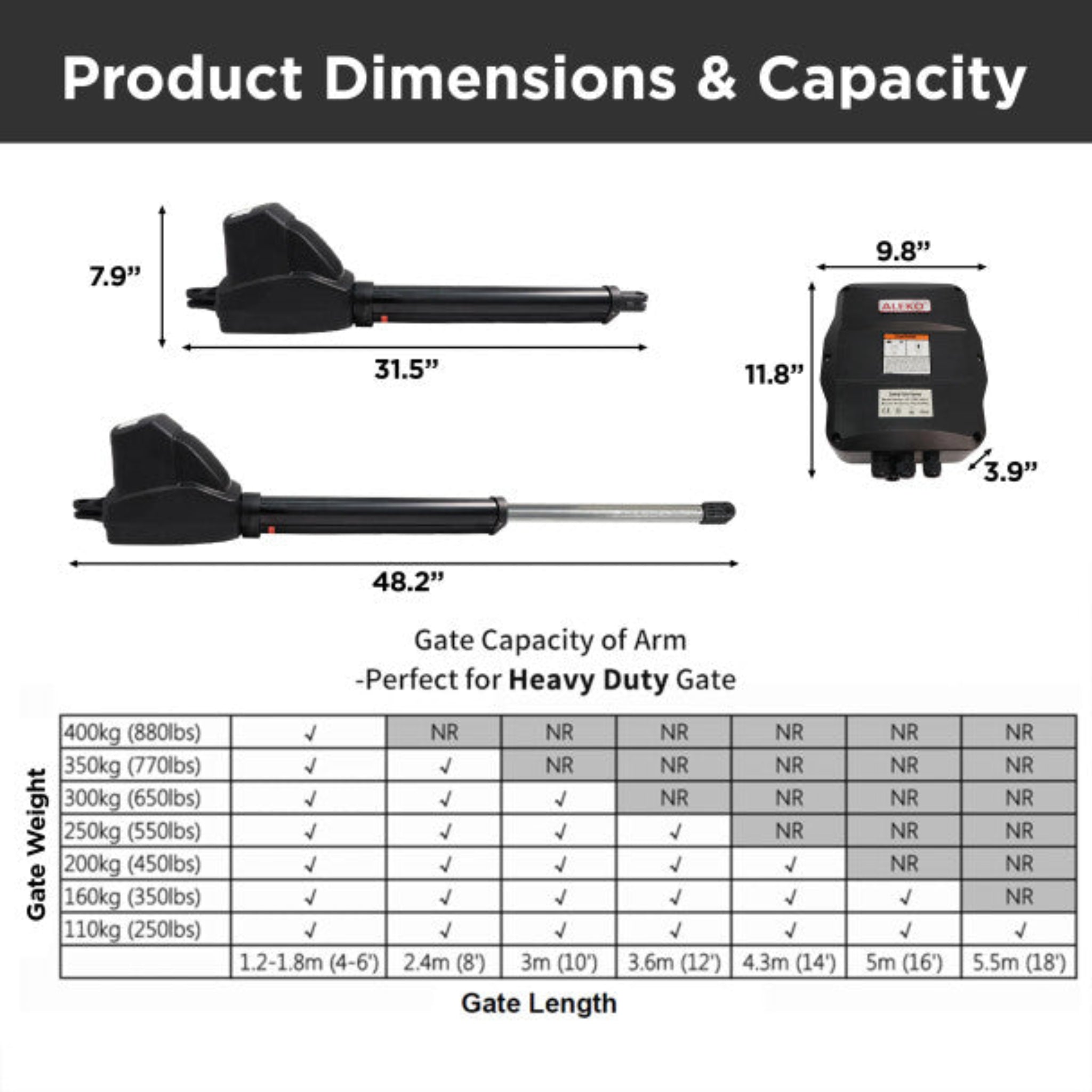

| Gate Capacity | 18 ft. / 880 lbs. |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes — solar panels included |
| Solar Panels | 2 × 30W, 24V |
| Solar Charge Controller | 12V/24V |
| Batteries | 2 × 22 Ah |
| Battery Box | Included |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Feature | Automatic Stop & Reverse |
| Accessory Control | Wired Push Button |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Solar Panel Warranty | 15-Year Limited Warranty |
| Product Warranty | 1-Year Limited Warranty |
