Description
The ALEKO AS600NOR Single Swing Gate Operator Starter Kit is designed to provide convenient and secure automation for residential and commercial single swing gates. The powerful 80W, 24V DC opener supports gates up to 18 ft. in length or 880 lbs., delivering smooth, quiet, and reliable gate operation.
Two remote controls with a 100 ft. range allow convenient operation from your vehicle, while the programmable 0–99 second auto-close function helps improve security and convenience. The operator also features automatic stop-and-reverse functionality when an obstruction is encountered.

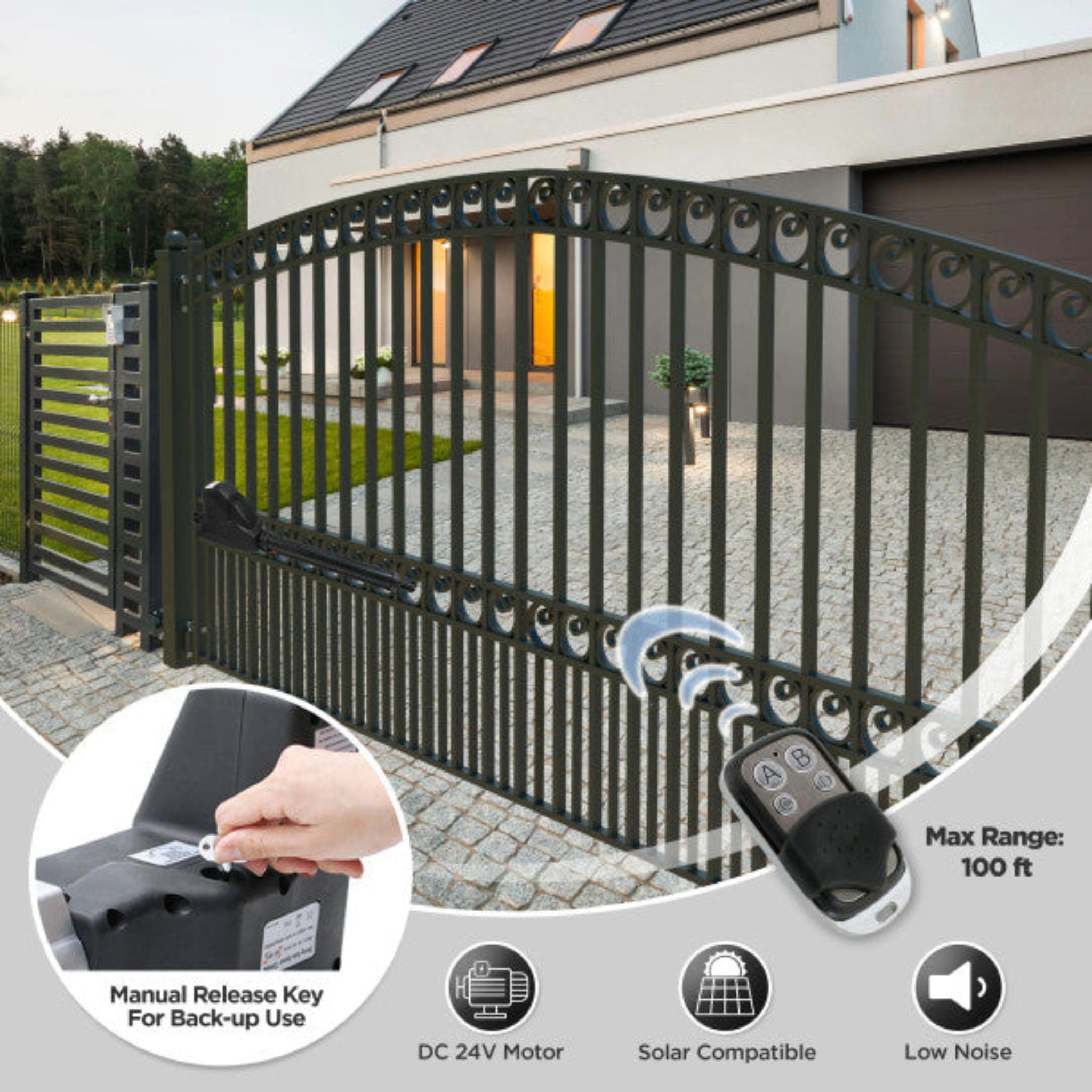

Built with anti-rust, water-resistant materials, the opener is suitable for outdoor installations. Two emergency release keys allow the gate to be operated manually during a power failure. The system is also solar compatible, although solar panels and batteries are not included with this starter kit.

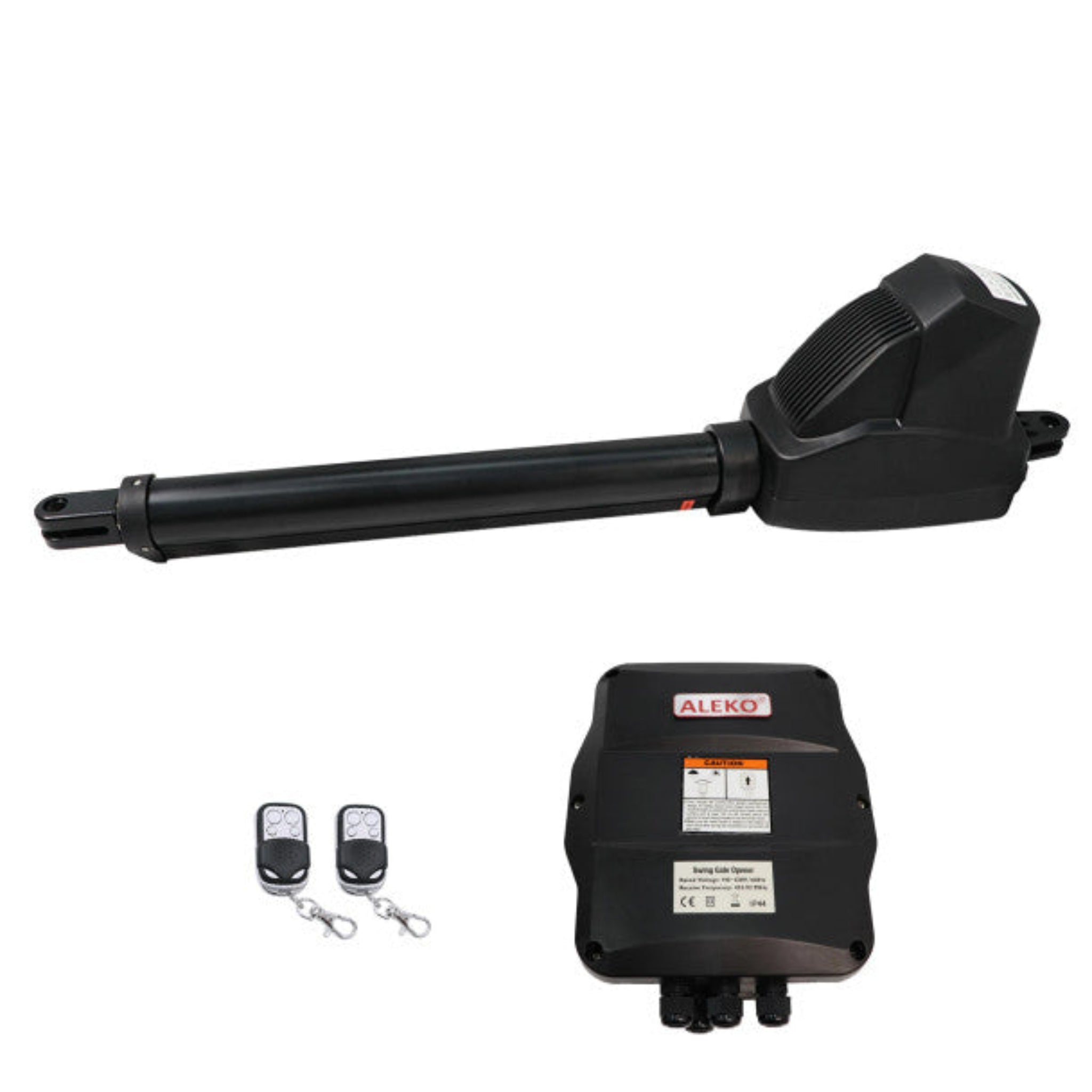

Package Includes

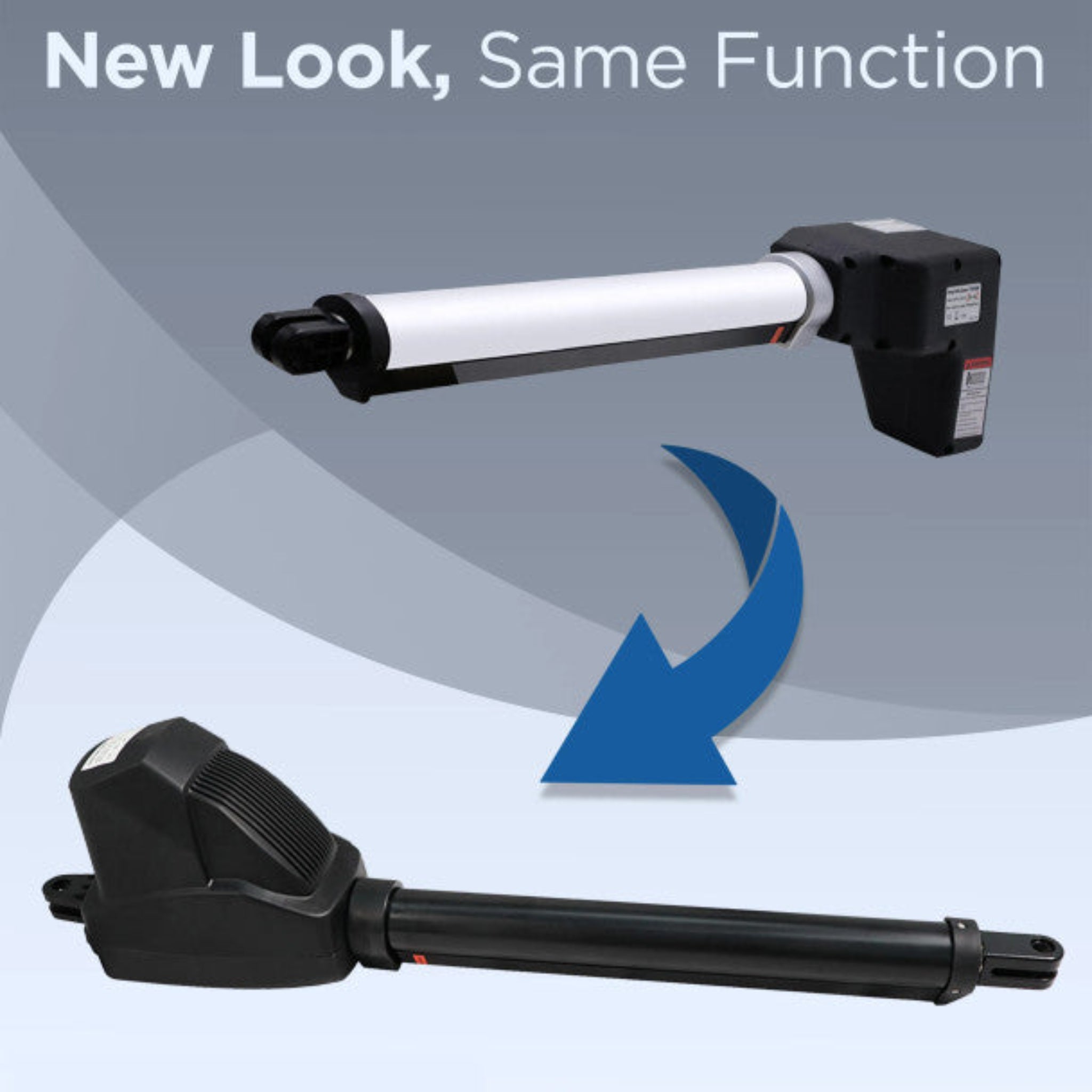

- (1) AS600 Actuator
- (1) Control Box
- (2) 433 MHz Remote Controls
- (2) Emergency Release Keys
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features

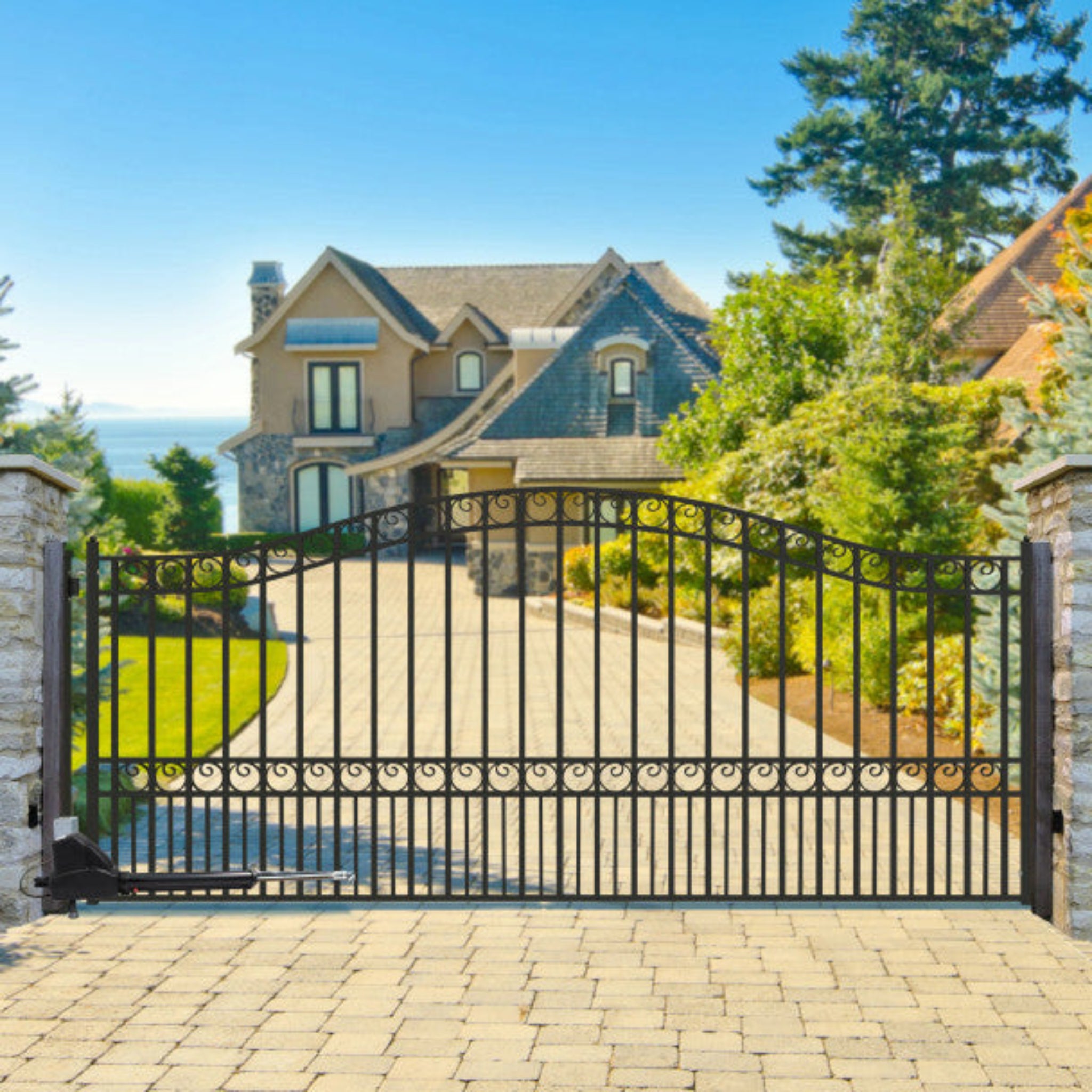

- Designed for single swing gates
- Supports gates up to 18 ft. / 880 lbs.
- Powerful 80W opener
- 24V DC power system
- Smooth swing motion
- Low motor noise
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Automatic stop-and-reverse protection
- Programmable 0–99 second auto-close
- Two emergency release keys
- Anti-rust, water-resistant construction

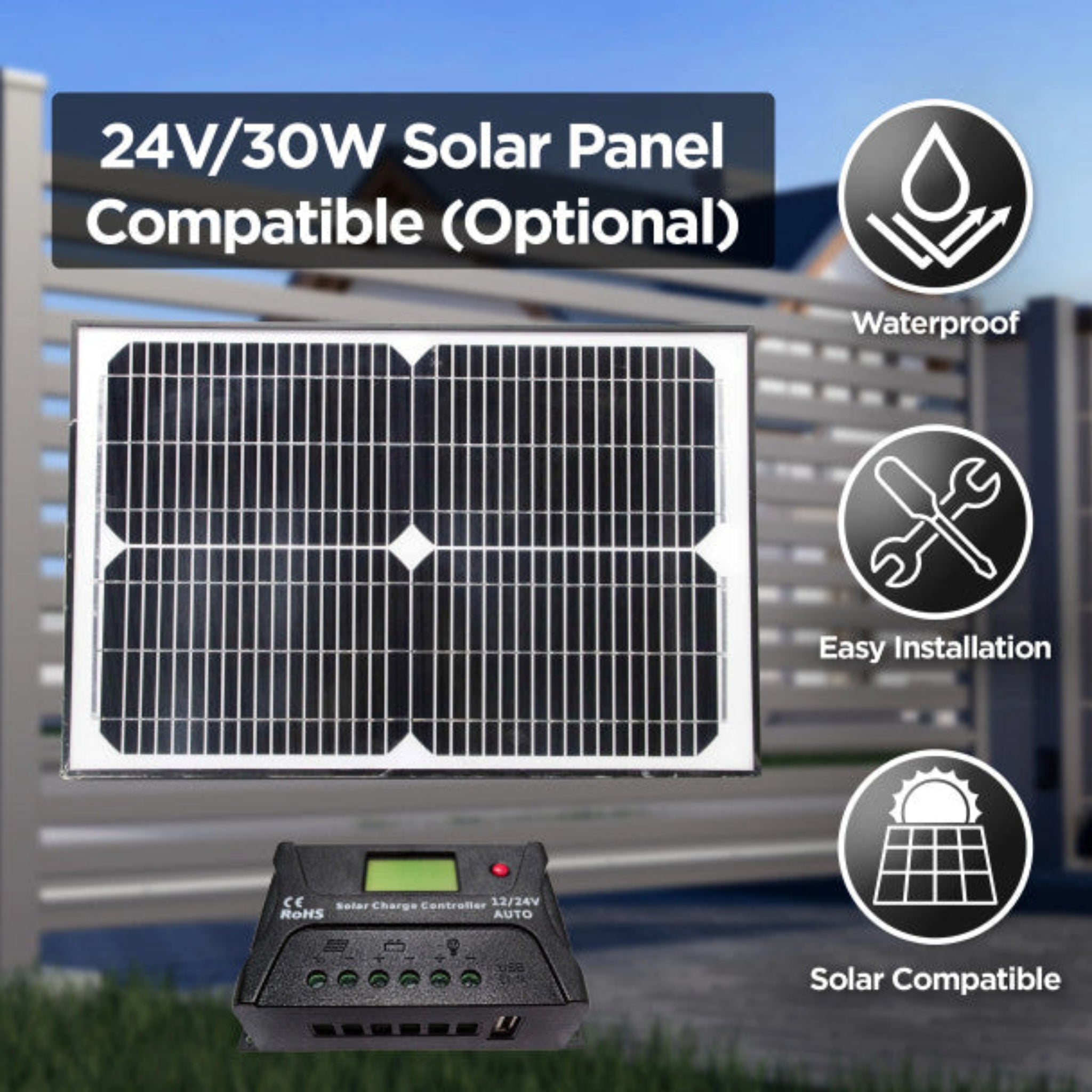

- Solar compatible
- Multiple power configurations supported
- Assembly required
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Starter Kit |
| Model | AS600NOR |
| SKU | AS600NOR-AP |
| MPN | AS600NOR |
| Compatible Gate Type | Single Swing Gates |

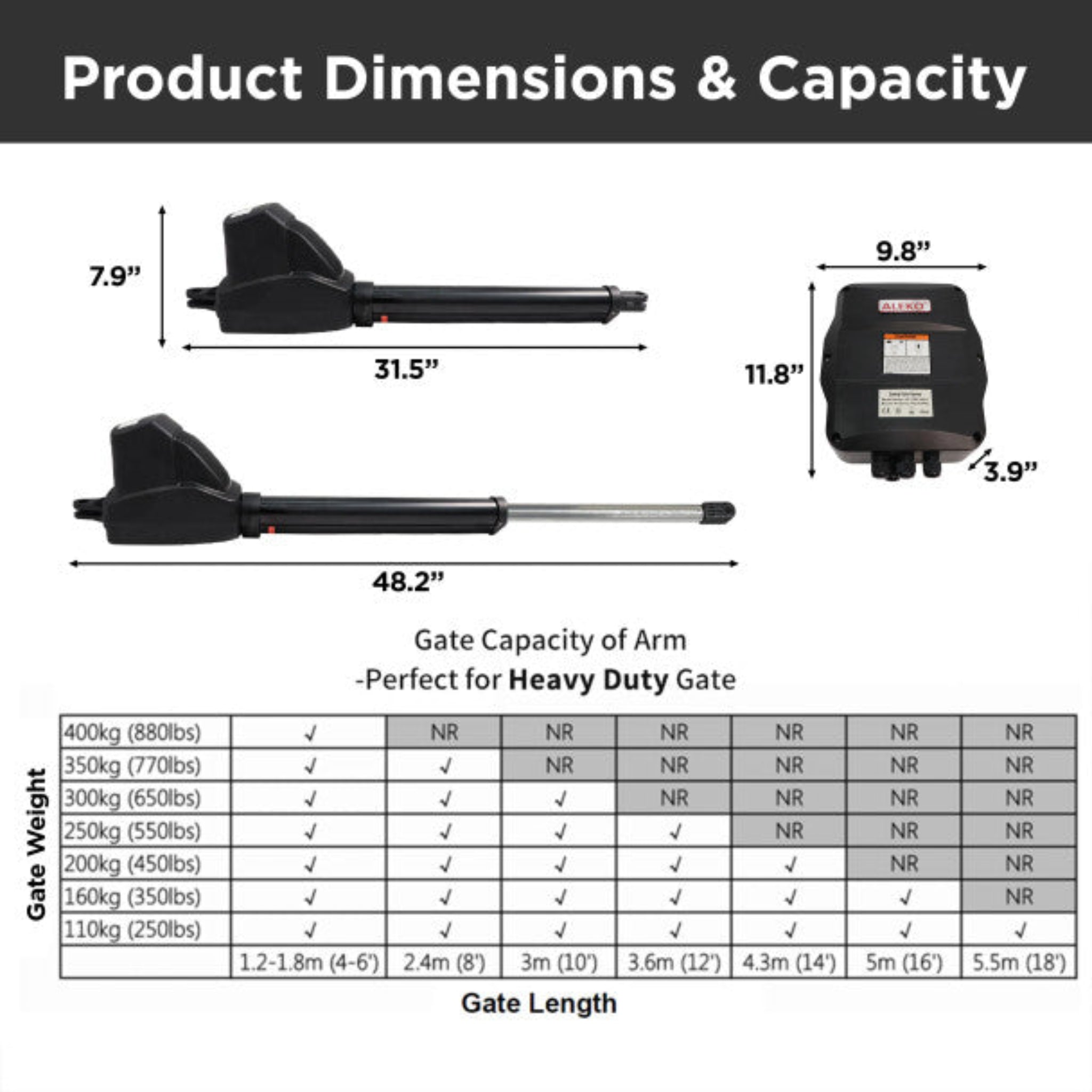

| Gate Capacity | 18 ft. / 880 lbs. |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

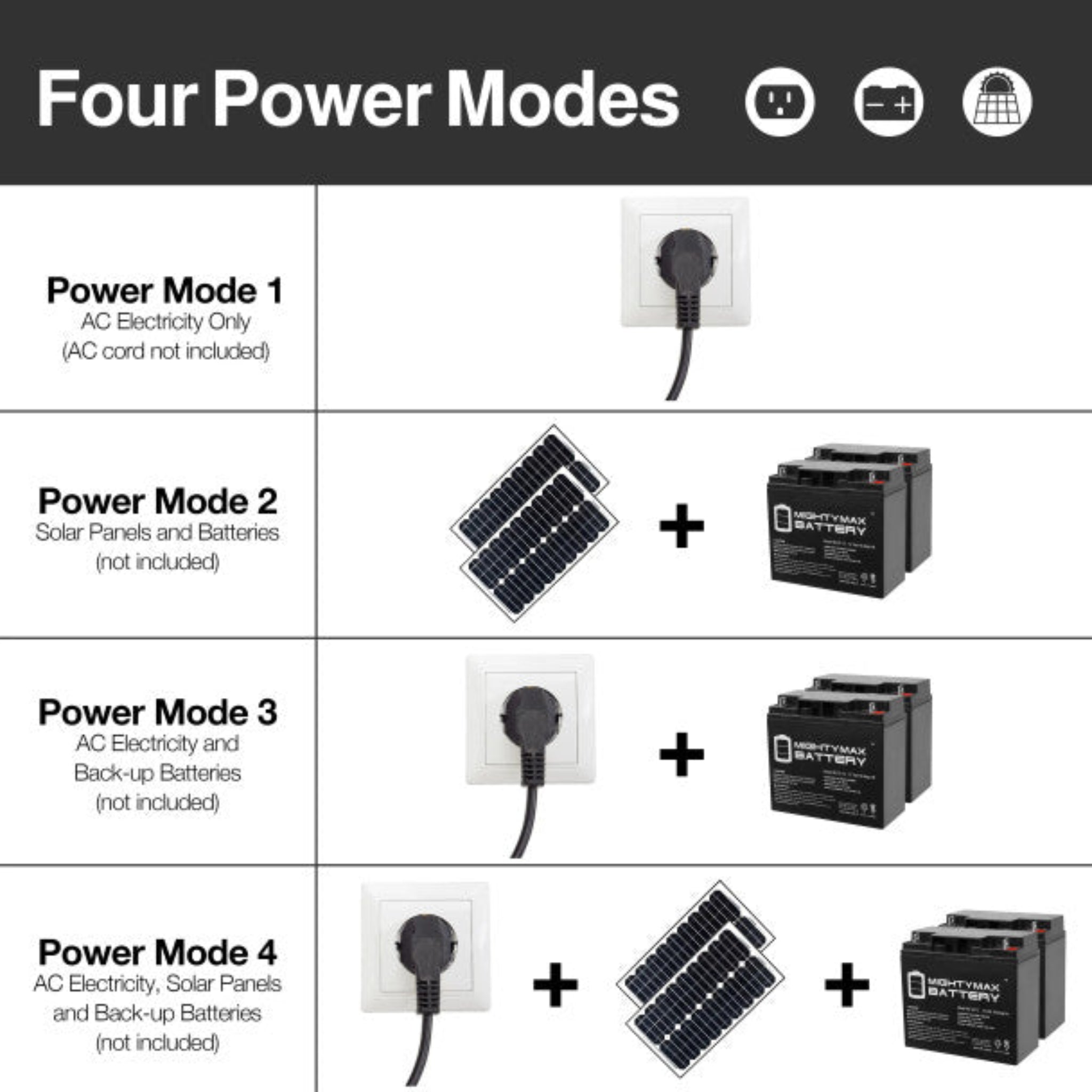

| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not Included |
| Backup Batteries | Not Included |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Safety Feature | Automatic Stop and Reverse |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
