Description

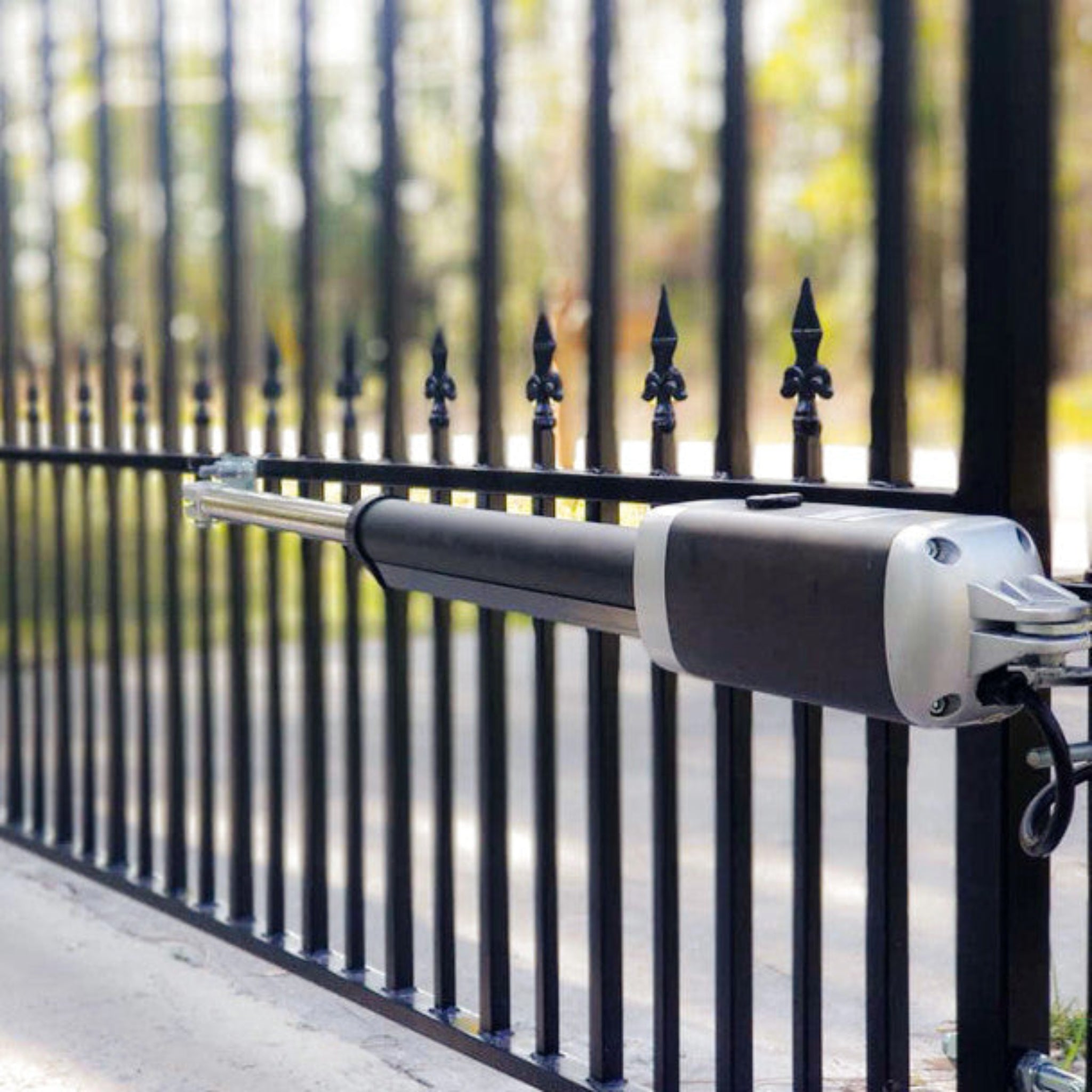

The ALEKO GG850ACC Single Swing Gate Operator Accessory Kit is designed to provide convenient and secure automation for residential and commercial single swing gates. It supports gates up to 20 ft. in length and 1,100 lbs., making it suitable for a wide range of swing gate installations.
The powerful 24V DC, 100W motor provides smooth and quiet operation with controlled starting and stopping. The operator is built with weather-resistant materials to help protect against outdoor conditions, rust, and corrosion.
For convenient access, the kit includes two 433 MHz remote controls, a wireless keypad, and a wired push button. Safety features include a stop/reverse sensor and photocell sensors for obstacle detection. The programmable auto-close function can be adjusted from 0–99 seconds, while an emergency release key allows manual operation in the event of a power failure.

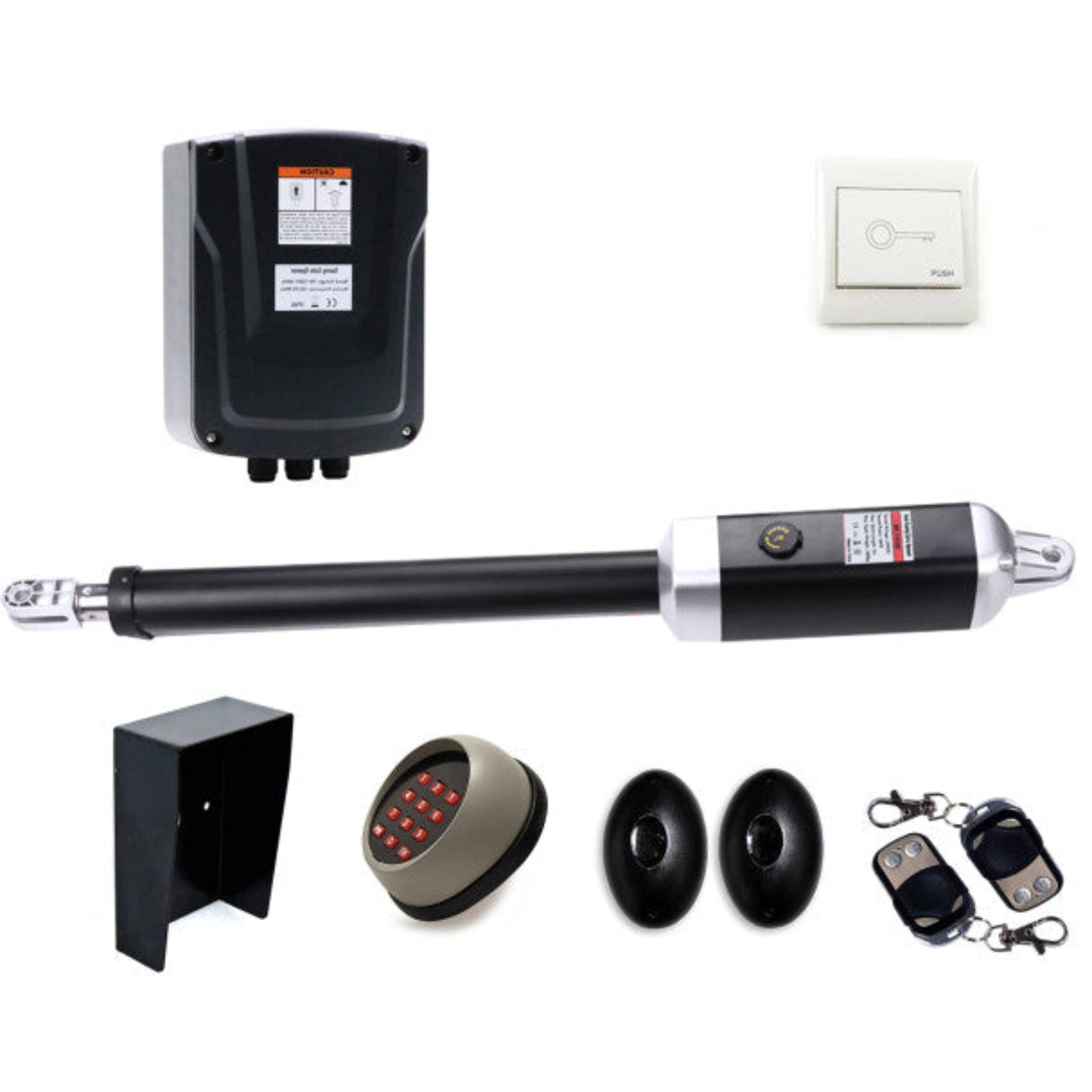

Package Includes
- (1) Actuator
- (1) Control Box
- (2) 433 MHz Remote Controls
- (1) Emergency Release Key
- (2) Photocell Sensors
- (1) Wireless Keypad
- (1) Keypad Metal Cover
- (1) Wired Push Button
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features
- Designed for single swing gates
- Supports gates up to 20 ft. / 1,100 lbs.
- Powerful 24V DC, 100W motor
- Smooth and quiet gate operation
- Two 433 MHz remote controls
- Wireless keypad included
- Wired push button included
- Photocell sensors for obstacle detection
- Stop/reverse safety sensor
- Programmable 0–99 second auto-close

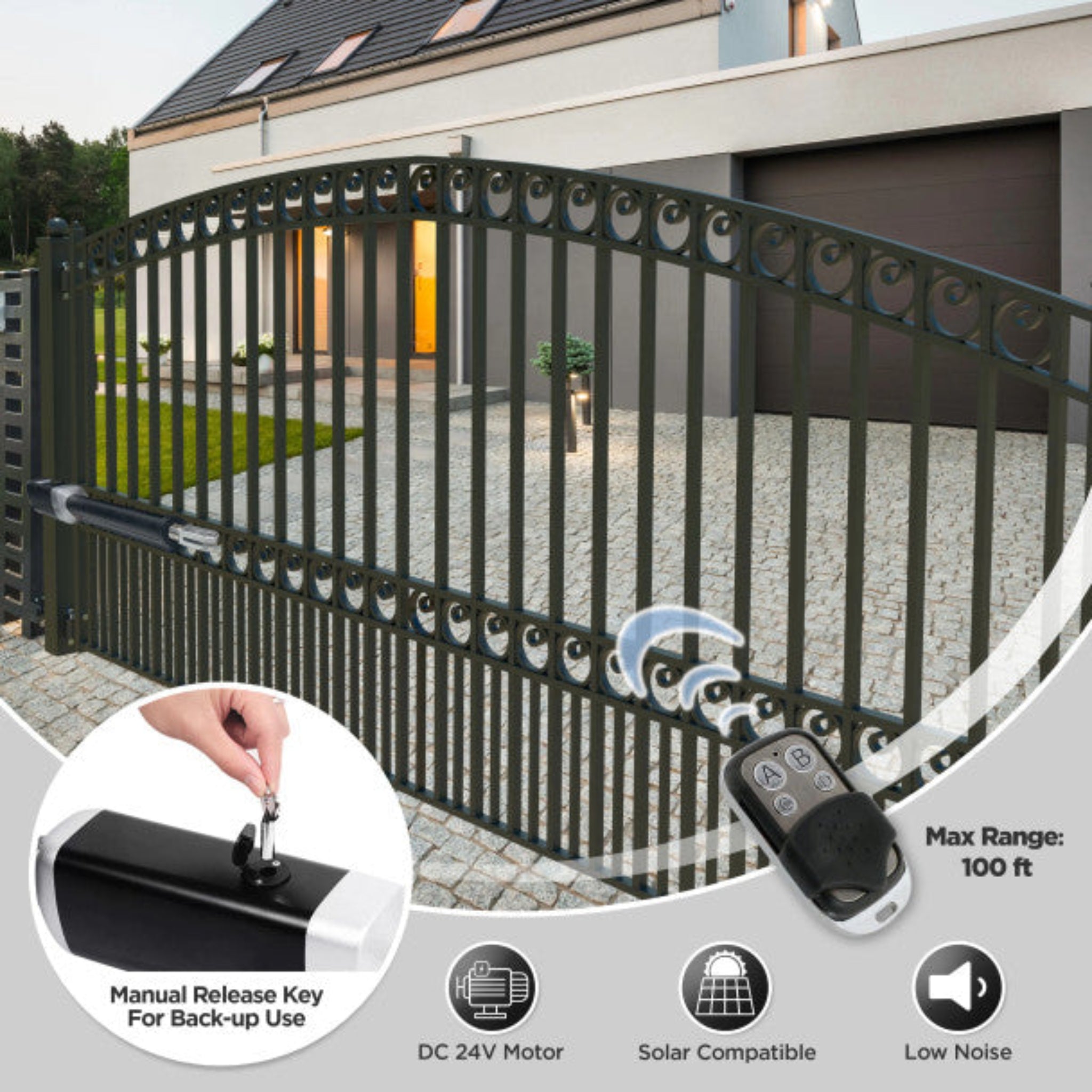

- Emergency release key for power failures
- Water-resistant materials help prevent rust and corrosion

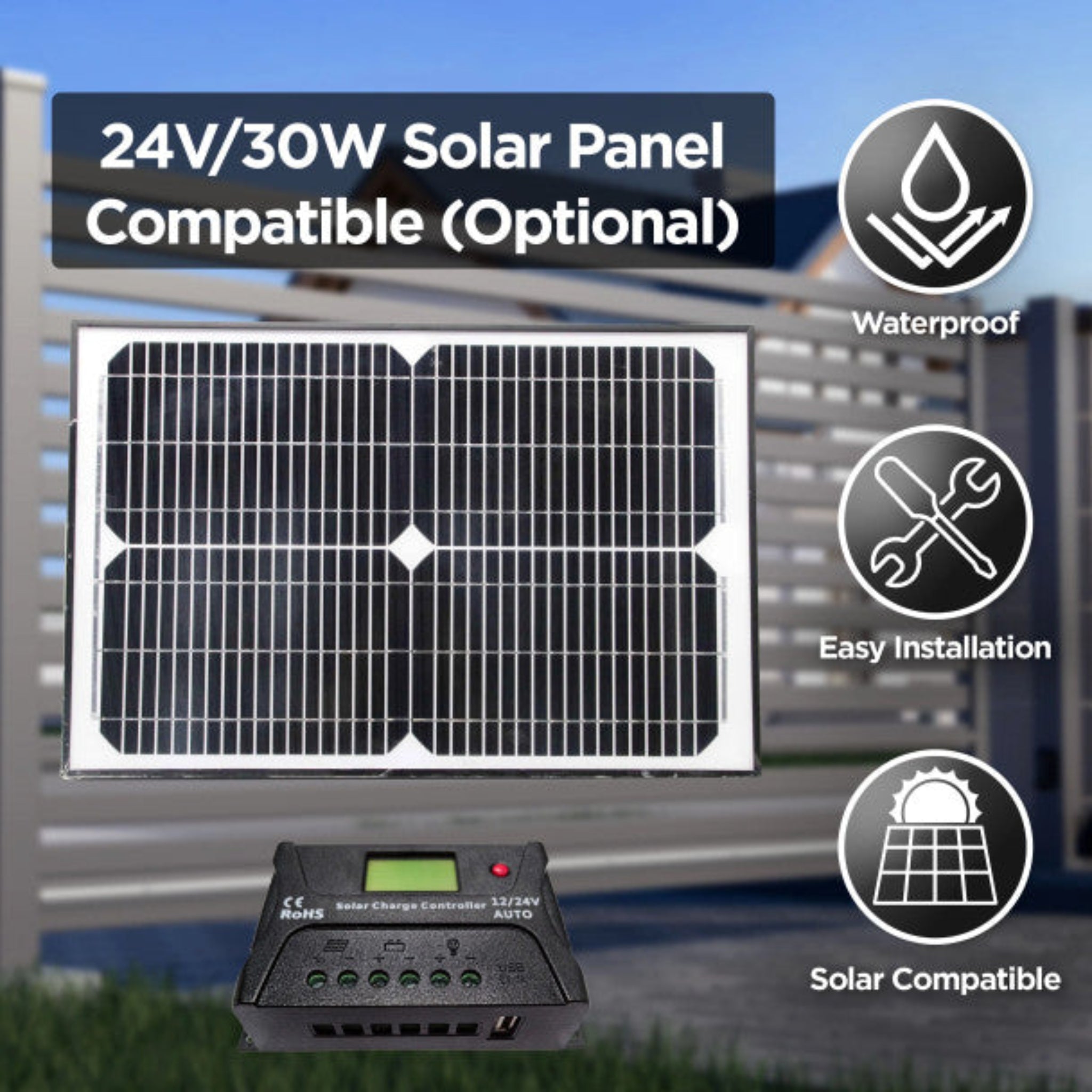

- Compatible with solar panels and backup batteries when purchased separately
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Accessory Kit |
| Model | GG850ACC |
| SKU | GG850ACC-AP |
| MPN | GG850NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |

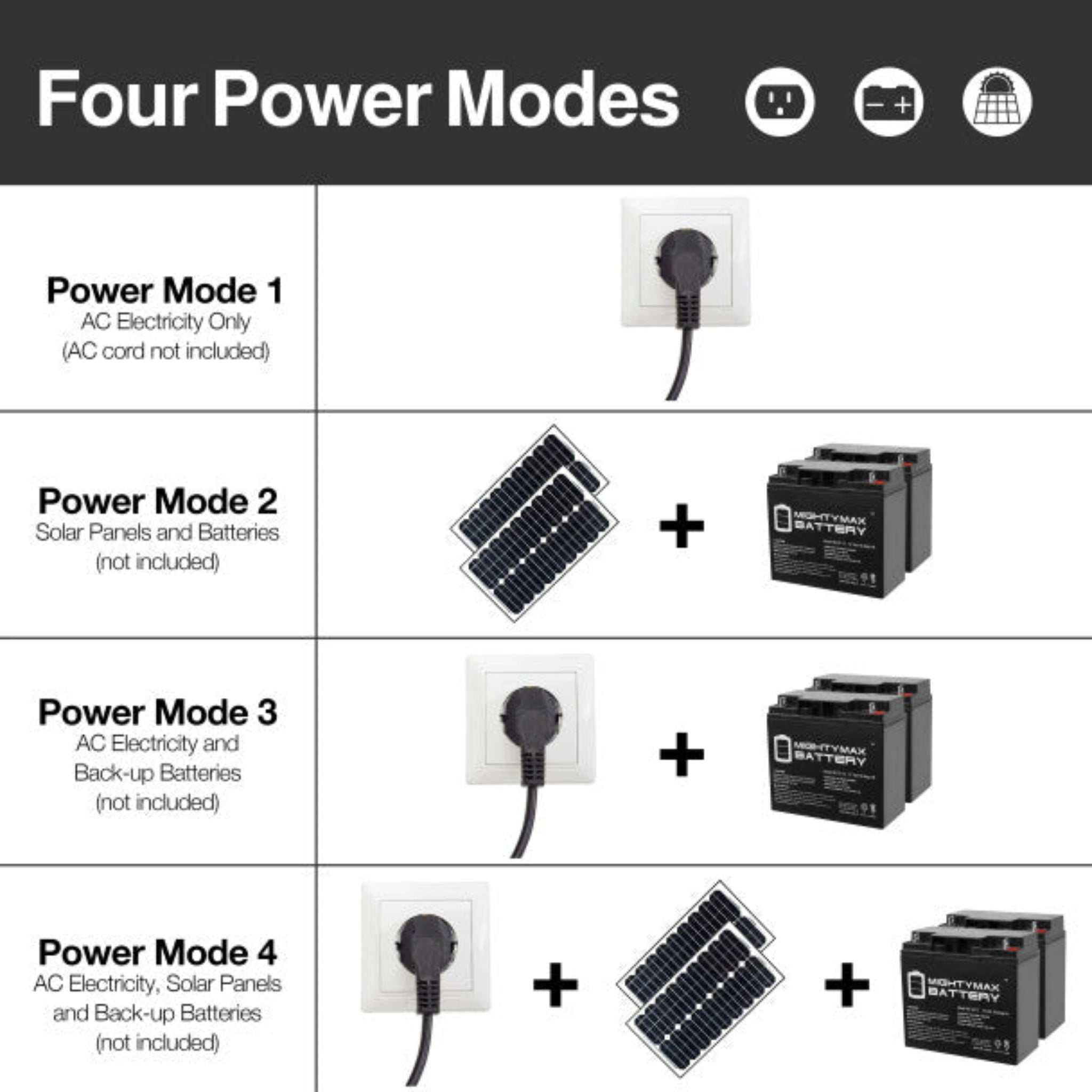

| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not Included |
| Backup Batteries | Not Included |

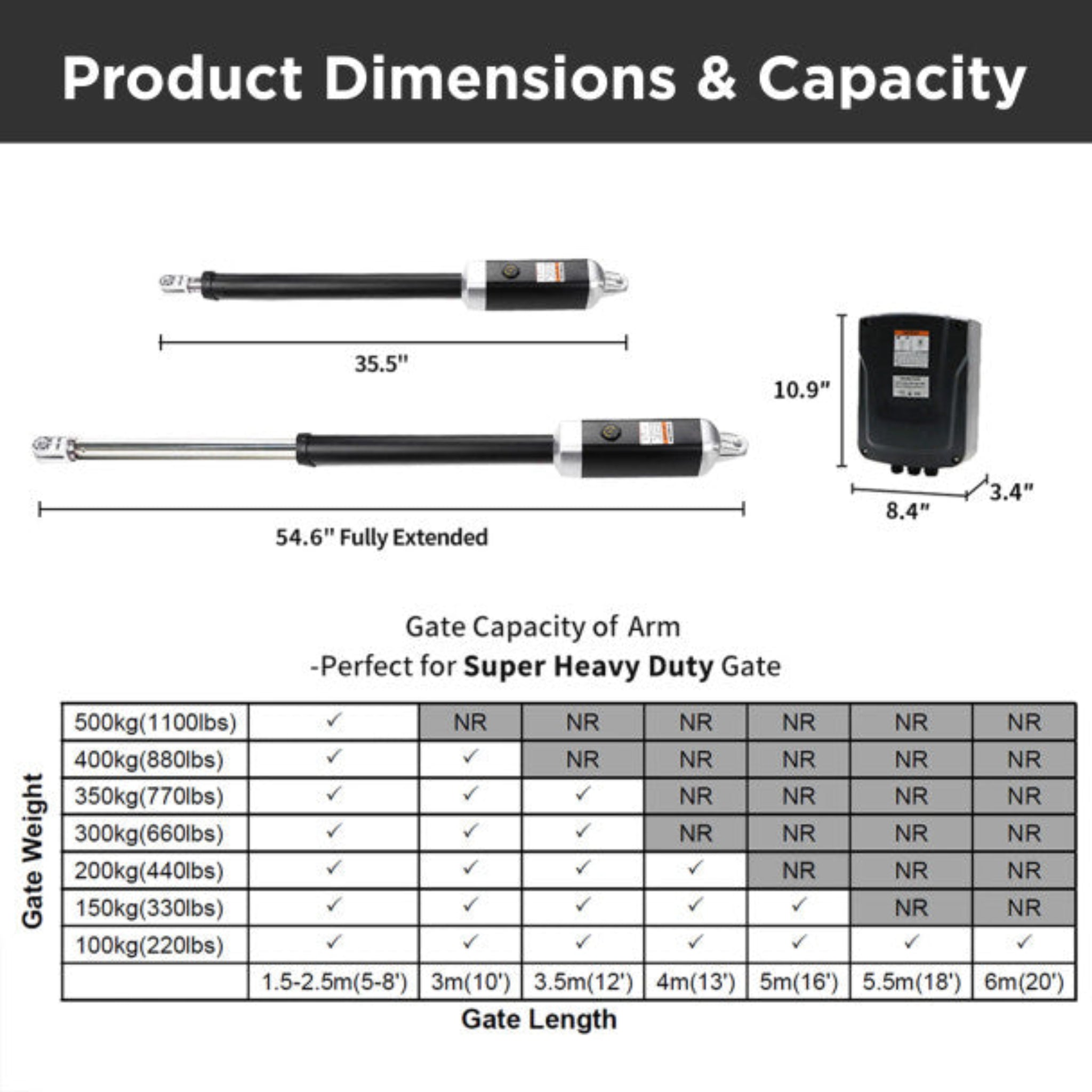

| Maximum Gate Capacity | 20 ft. / 1,100 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Features | Stop/Reverse Sensor, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Materials | Water-Resistant |
| Warranty | 1-Year Limited Warranty |
