Description
The ALEKO GG850BACK Single Swing Gate Operator Back-Up Kit is designed to automate single swing gates for residential and commercial properties. Its powerful 24V DC, 100W motor supports gates up to 20 ft. in length or 1,100 lbs., providing smooth and quiet operation.
Built for outdoor use, the operator features durable, weather-resistant materials that help protect against rust and corrosion. The smooth and soft start/stop function provides controlled gate movement, while the included remote controls allow convenient operation from a vehicle.
The back-up kit includes two 12 Ah batteries and a 24V adapter/battery charger, helping keep the gate operational during a power failure. Additional features include programmable auto-close, adjustable electromagnetic limit switches, an emergency release key, and stop/reverse safety protection when an obstruction is detected.

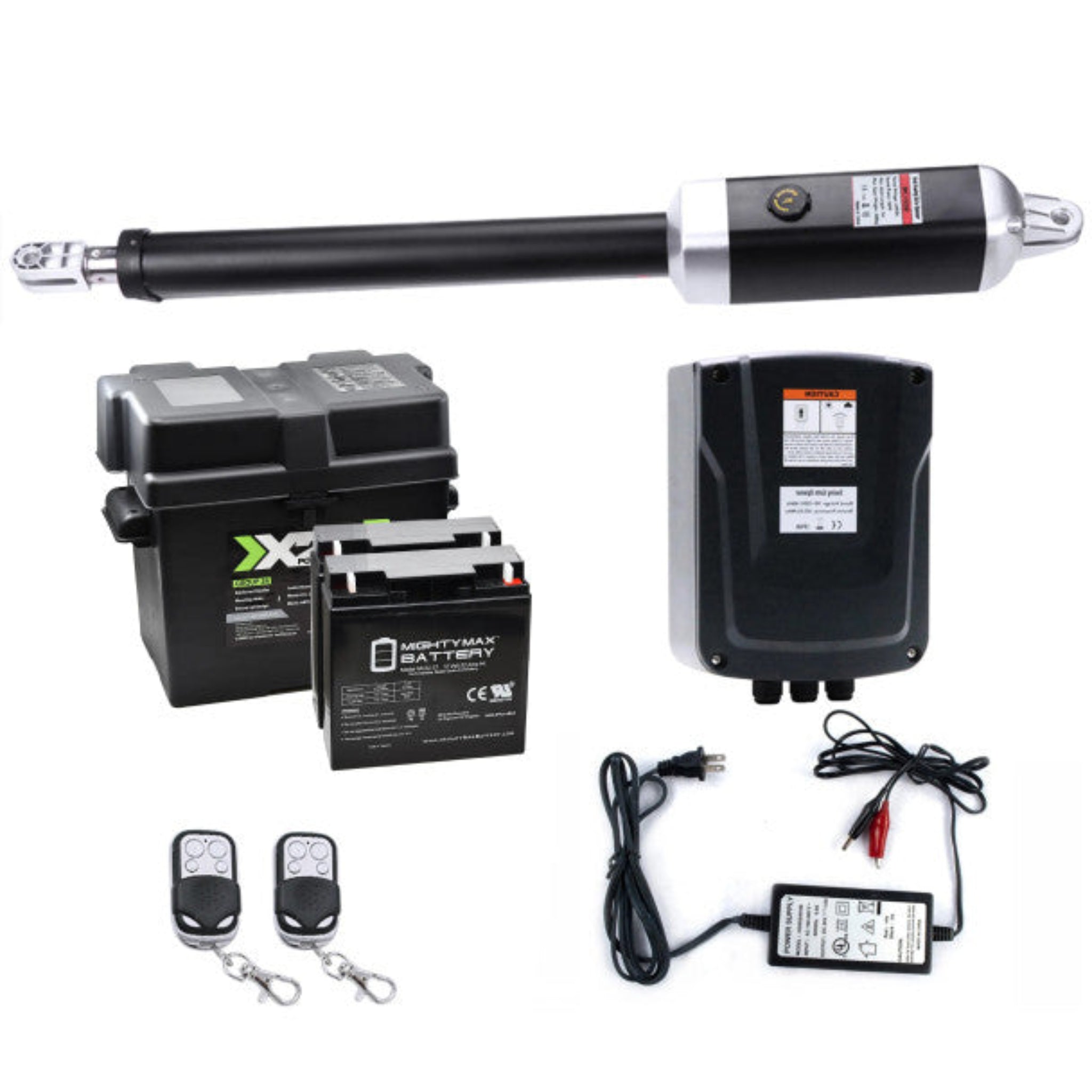

Package Includes
- (1) Gate actuator
- (2) 12 Ah batteries

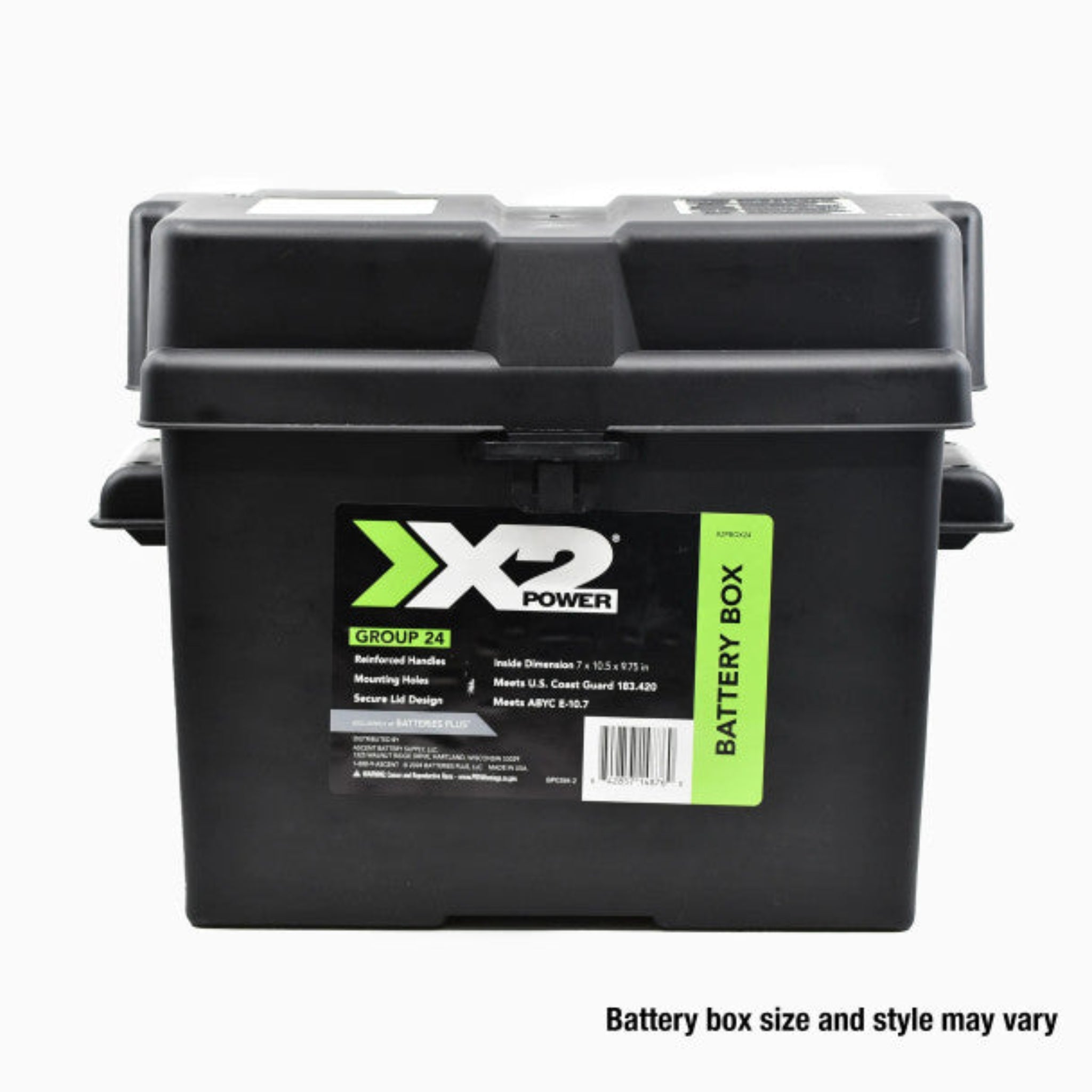

- (1) Battery box
- (1) 24V adapter/battery charger
- (1) Control box
- (2) 433 MHz remote controls
- (1) Emergency release key
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for single swing gates
- Supports gates up to 20 ft. / 1,100 lbs.
- Powerful 24V DC, 100W motor
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 433 MHz remote controls
- Stop/reverse safety sensor for obstruction protection
- Programmable 0–99 second auto-close

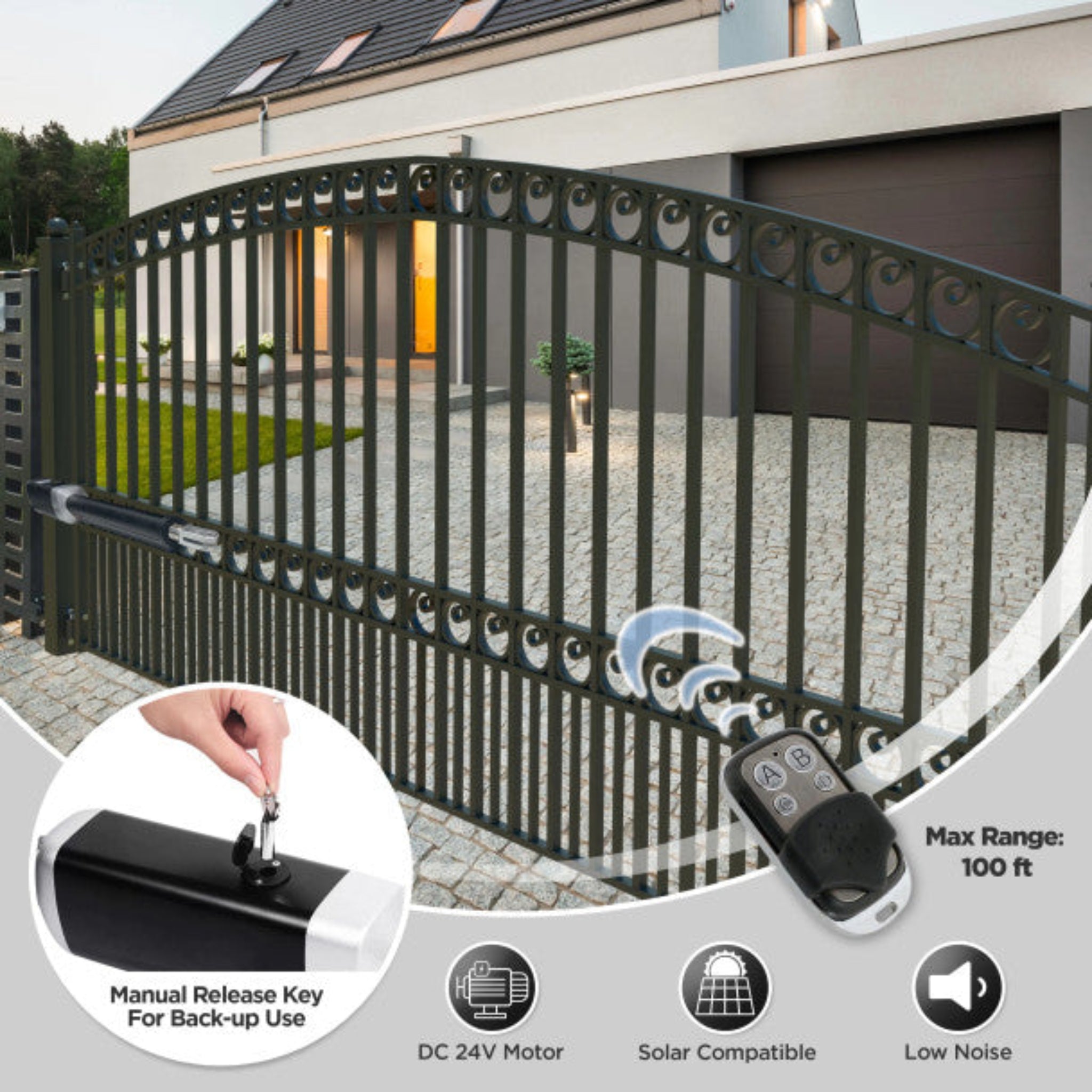

- Emergency release key for power failures
- Two 12 Ah backup batteries
- Battery box and charger included
- Adjustable electromagnetic limit switches
- Weather-resistant materials help prevent rust and corrosion
- Solar-compatible when solar panels are added separately
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Back-Up Kit |
| Model | GG850BACK |
| SKU | GG850BACK-AP |
| MPN | GG850NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | 2 × 12 Ah |
| Battery Charger | 24V Adapter/Battery Charger |
| Battery Box | Included |

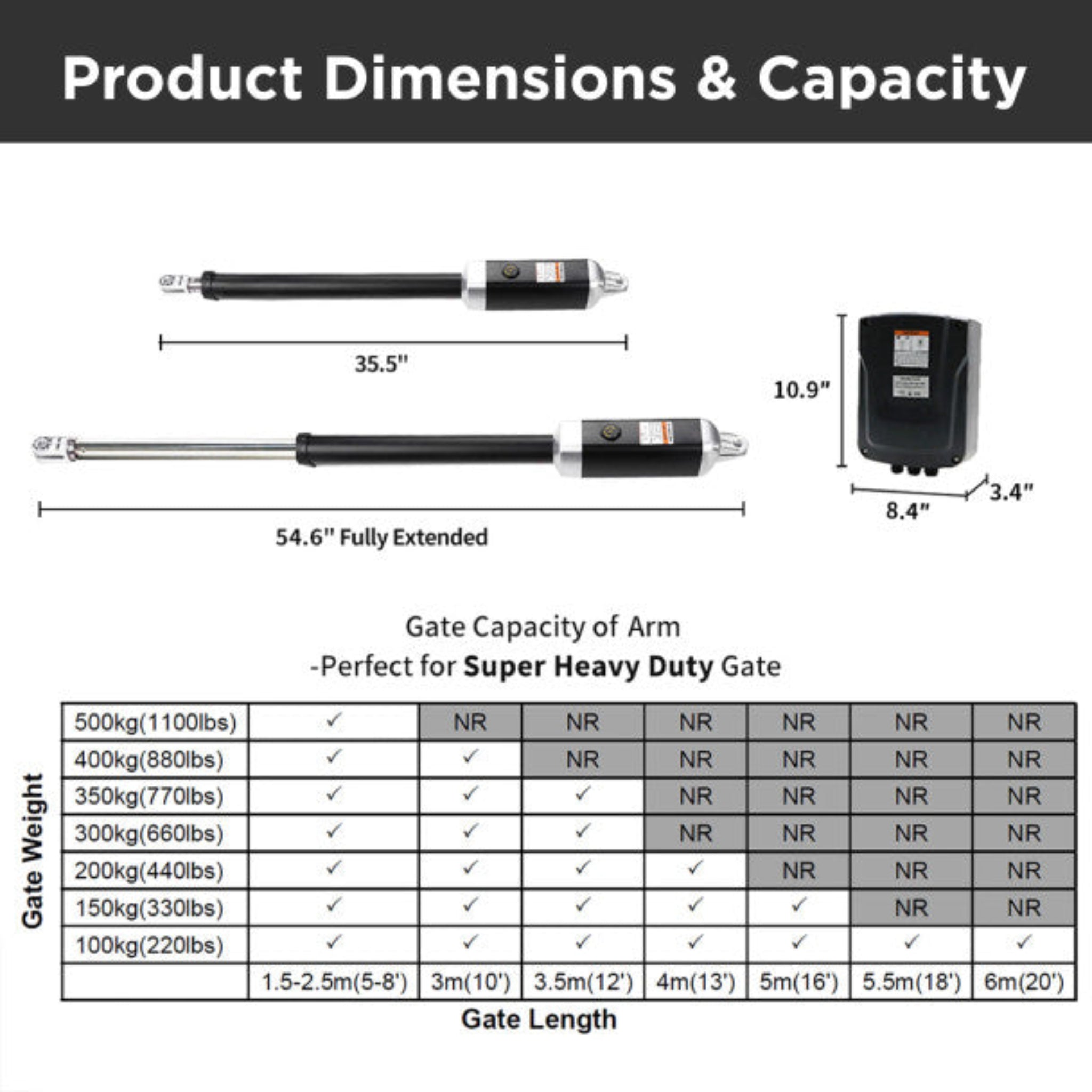

| Maximum Gate Capacity | 20 ft. / 1,100 lbs. |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Operating Temperature | -4°F to 122°F |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Weather-Resistant |
| Warranty | 1-Year Limited Warranty |
