Description
The ALEKO GG850FULL Single Swing Gate Operator 60W Solar Kit is designed to automate single swing gates for residential and commercial properties. Its powerful 24V DC, 100W motor supports gates up to 20 ft. in length or 1,100 lbs. The included 60W solar panel system provides an energy-efficient option for powering the gate opener.
Built for outdoor use, the operator features durable, weather-resistant materials designed to withstand sun, rain, and frost while helping prevent rust and corrosion. The smooth and soft start/stop function provides quiet, controlled gate movement, while remote controls allow convenient operation.
Safety and convenience features include a programmable 0–99 second auto-close, stop/reverse safety protection, photocell sensors for obstacle detection, adjustable electromagnetic limit switches, and an emergency release key for manual operation during a power failure.

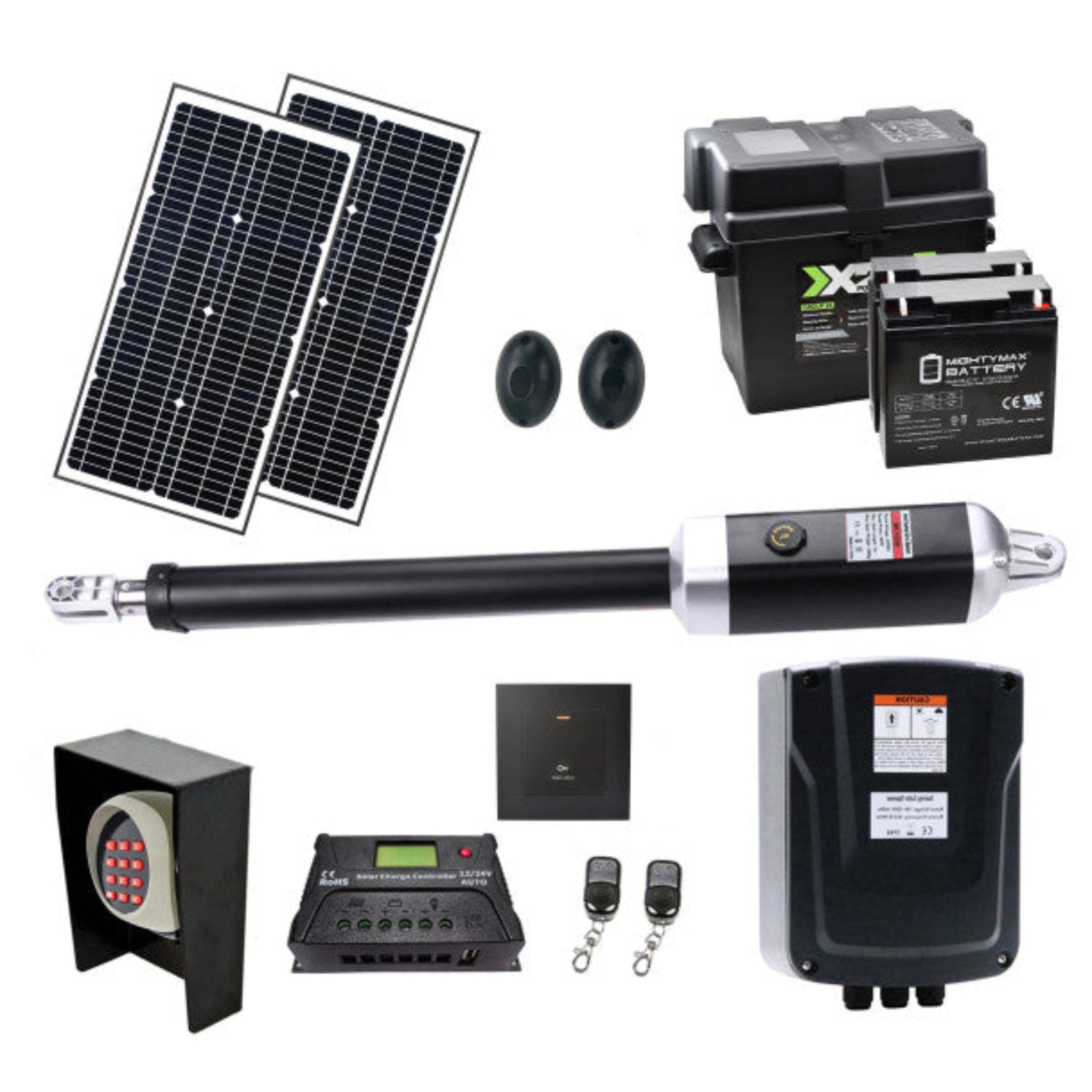

Package Includes
- (1) Gate actuator
- (2) 30W, 24V solar panels
- (1) 12V/24V solar charge controller
- (2) 22 Ah batteries

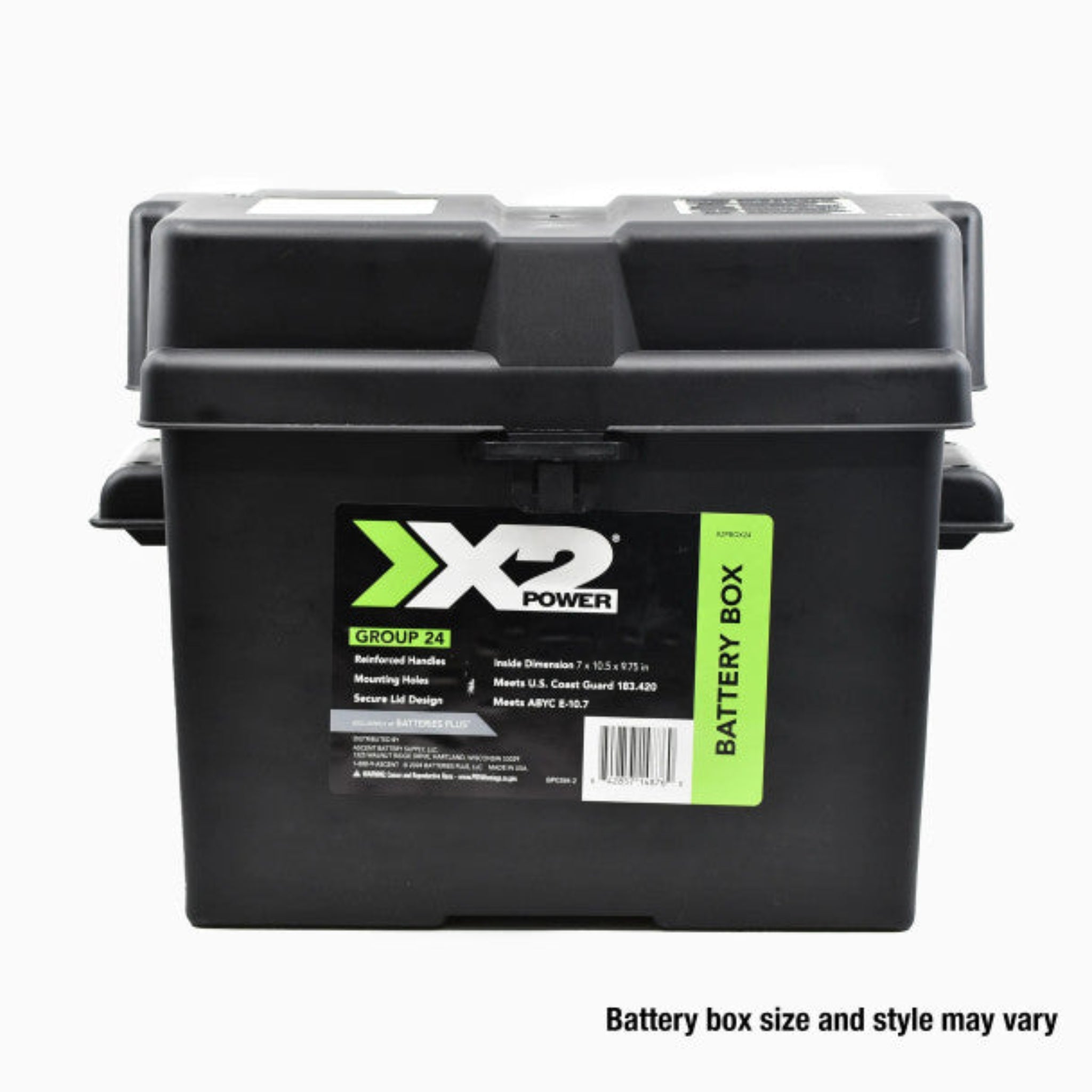

- (1) Battery box
- (1) Control box
- (2) 433 MHz remote controls
- (1) Emergency release key
- (2) Photocell sensors
- (1) Wired push button
- (1) Wireless keypad
- (1) Keypad metal cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware for gate opener
- (1) User manual
Key Features
- Designed for single swing gates
- Supports gates up to 20 ft. / 1,100 lbs.
- Powerful 24V DC, 100W motor
- Includes 60W total solar power
- Two 30W, 24V solar panels
- 12V/24V solar charge controller included
- Two 22 Ah batteries
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 433 MHz remote controls
- Wireless keypad included
- Wired push button included
- Photocell sensors for obstacle detection
- Stop/reverse safety sensor
- Programmable 0–99 second auto-close

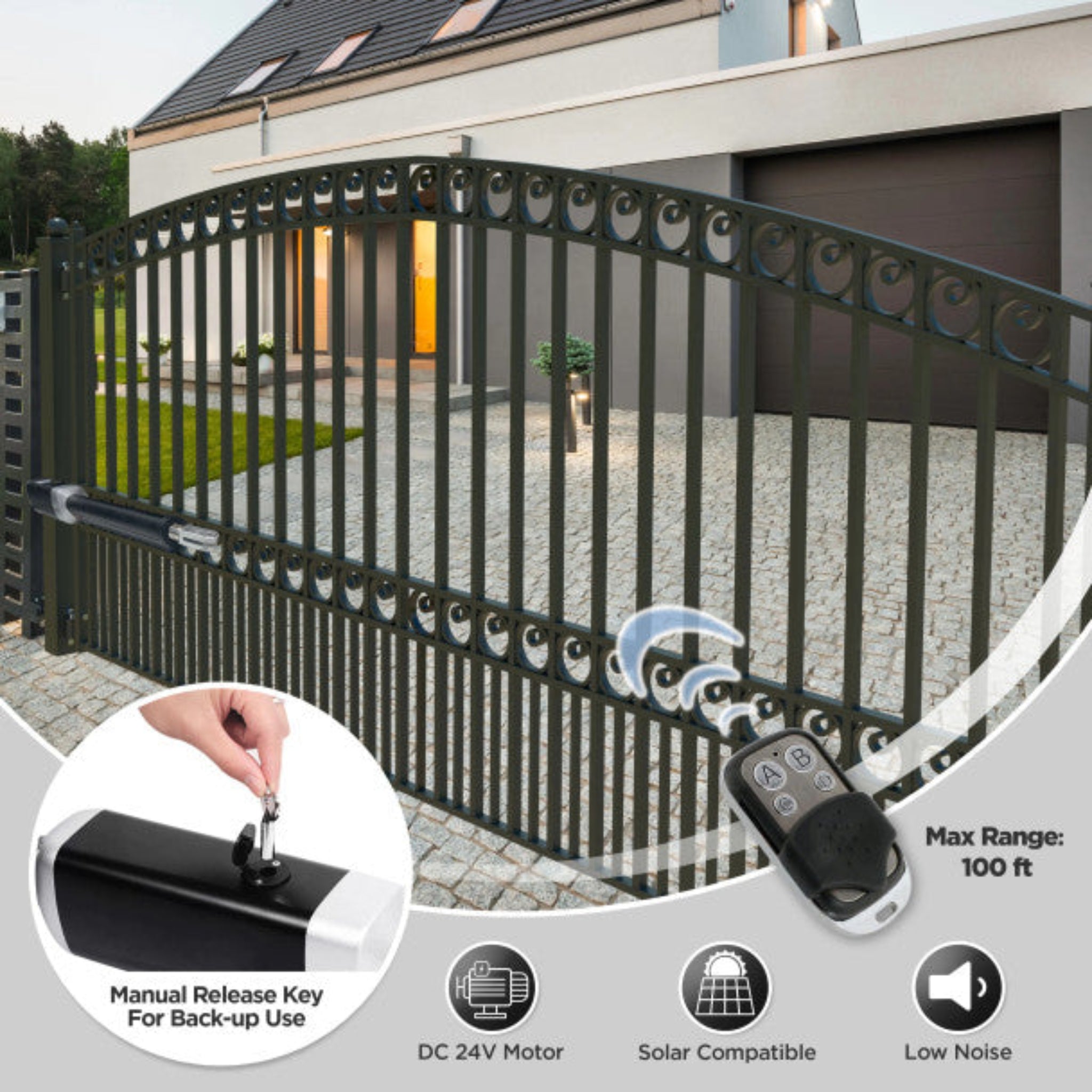

- Emergency release key for power failures
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Solar panels include a 15-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator 60W Solar Kit |
| Model | GG850FULL |
| SKU | GG850FULL-AP |
| MPN | GG850NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |

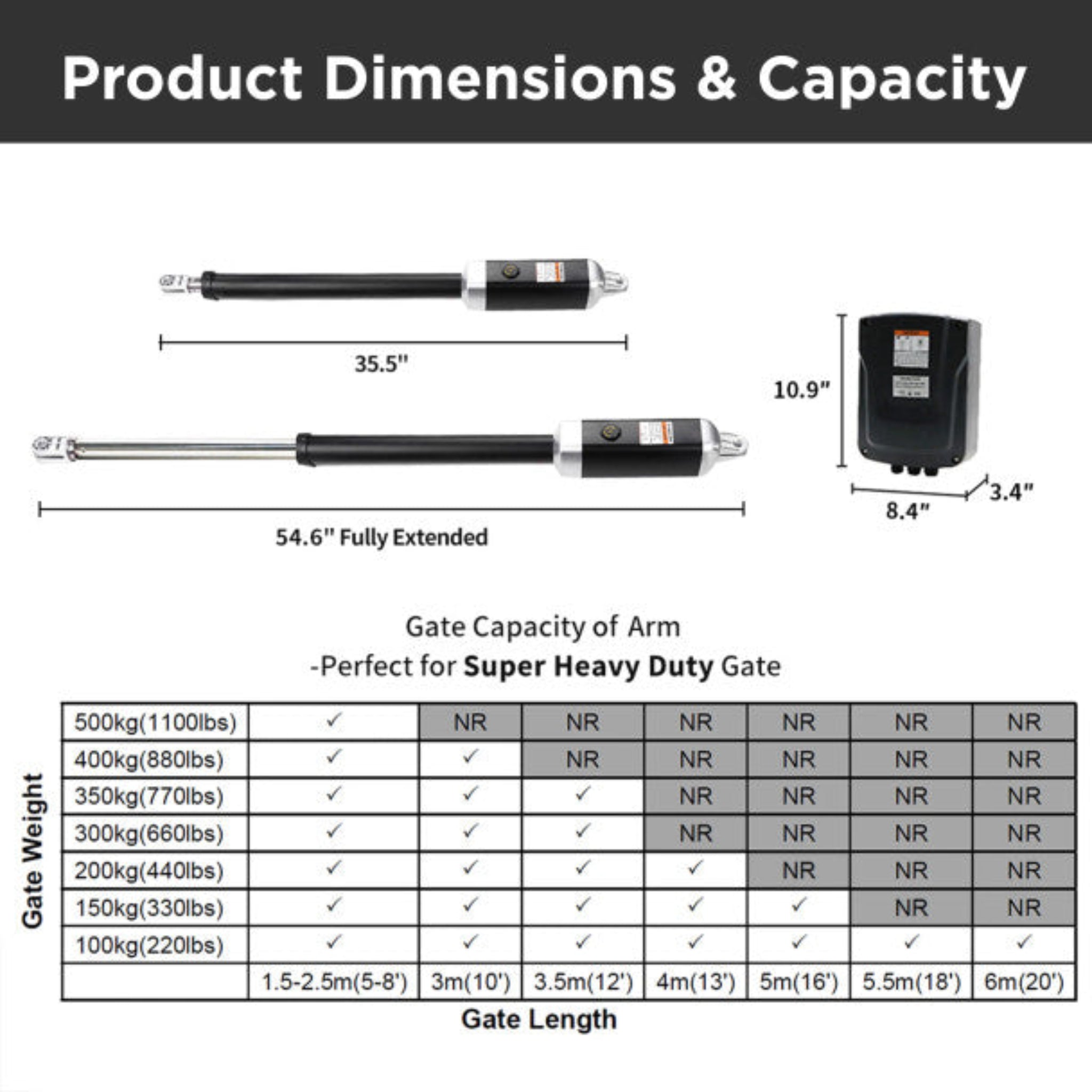

| Maximum Gate Capacity | 20 ft. / 1,100 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |

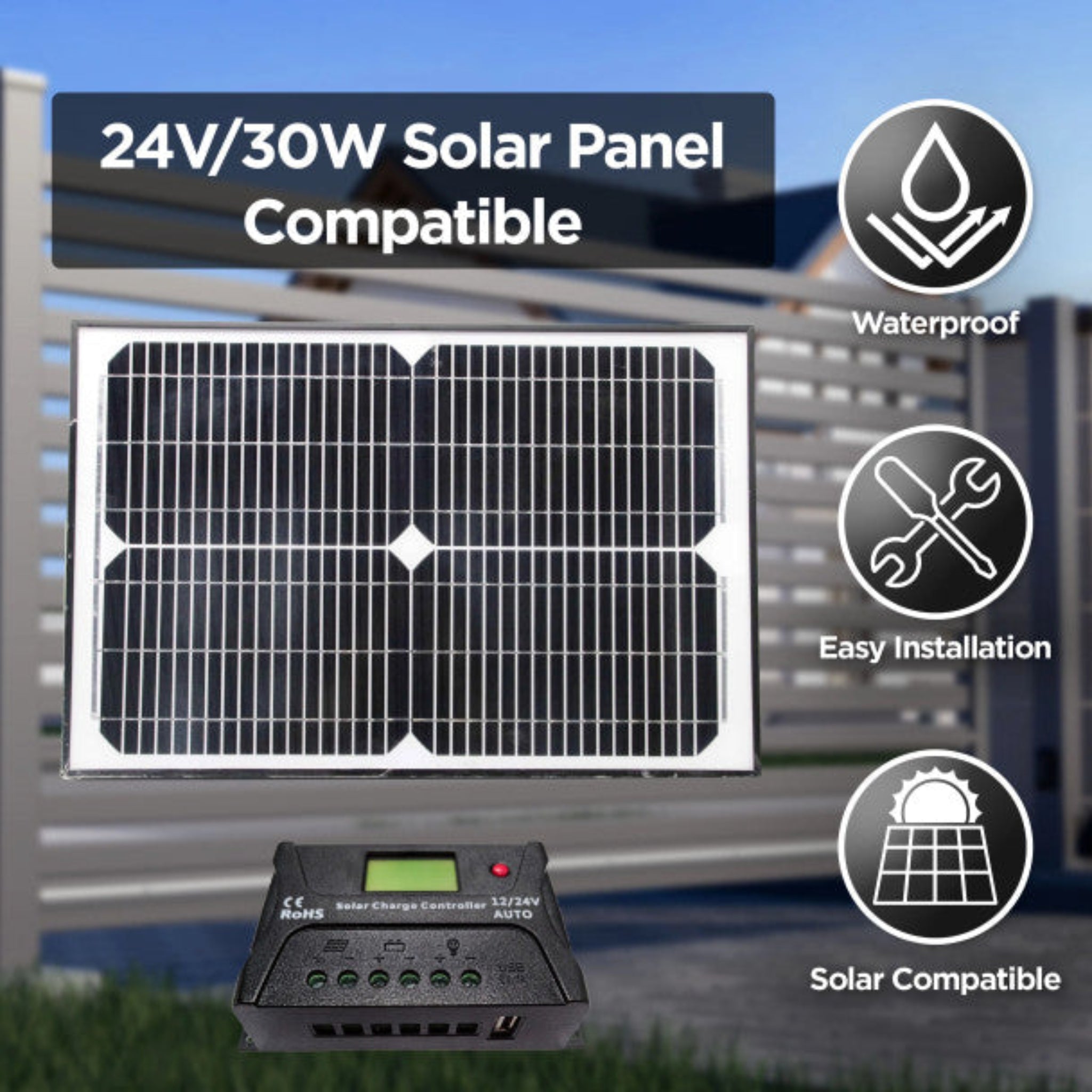

| Solar Panels | 2 × 30W, 24V |
| Solar Charge Controller | 12V/24V |
| Batteries | 2 × 22 Ah |
| Battery Box | Included |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Features | Stop/Reverse Sensor, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Water-Resistant |
| Solar Panel Warranty | 15-Year Limited Warranty |
| Product Warranty | 1-Year Limited Warranty |
