Description

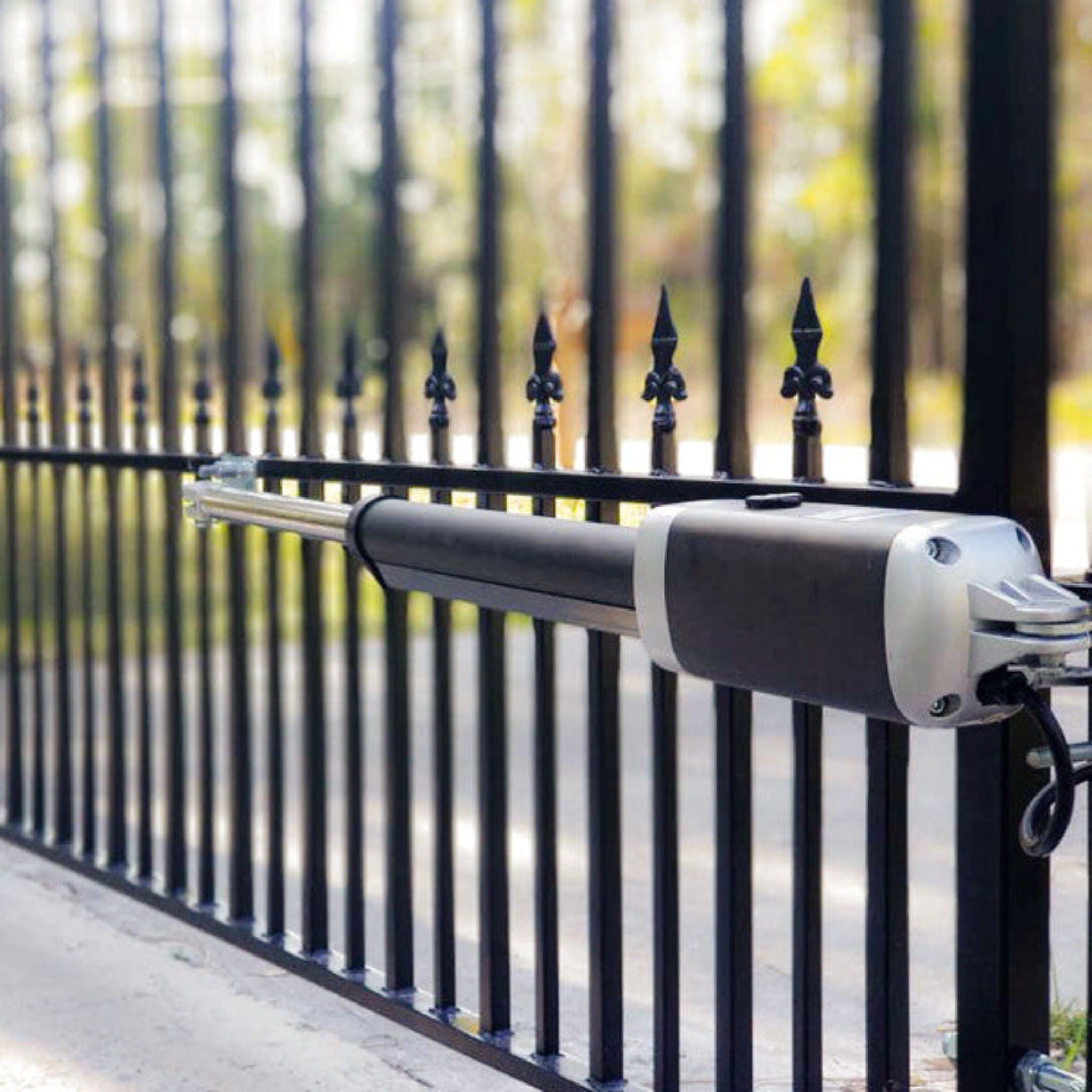

The ALEKO GG850SOL Single Swing Gate Operator 60W Solar Kit is designed for residential and commercial gate automation. The 24V DC, 100W actuator provides strong starting torque with smooth and soft start/stop operation for dependable performance. It can handle gates up to 12 ft. wide and 850 lbs.
The operator can be controlled through a remote control or keypad and supports both single- and dual-gate running modes. It also features programmable motor force, adjustable opening and closing intervals, built-in auto-close, and electromagnetic limit switches for accurate gate positioning.

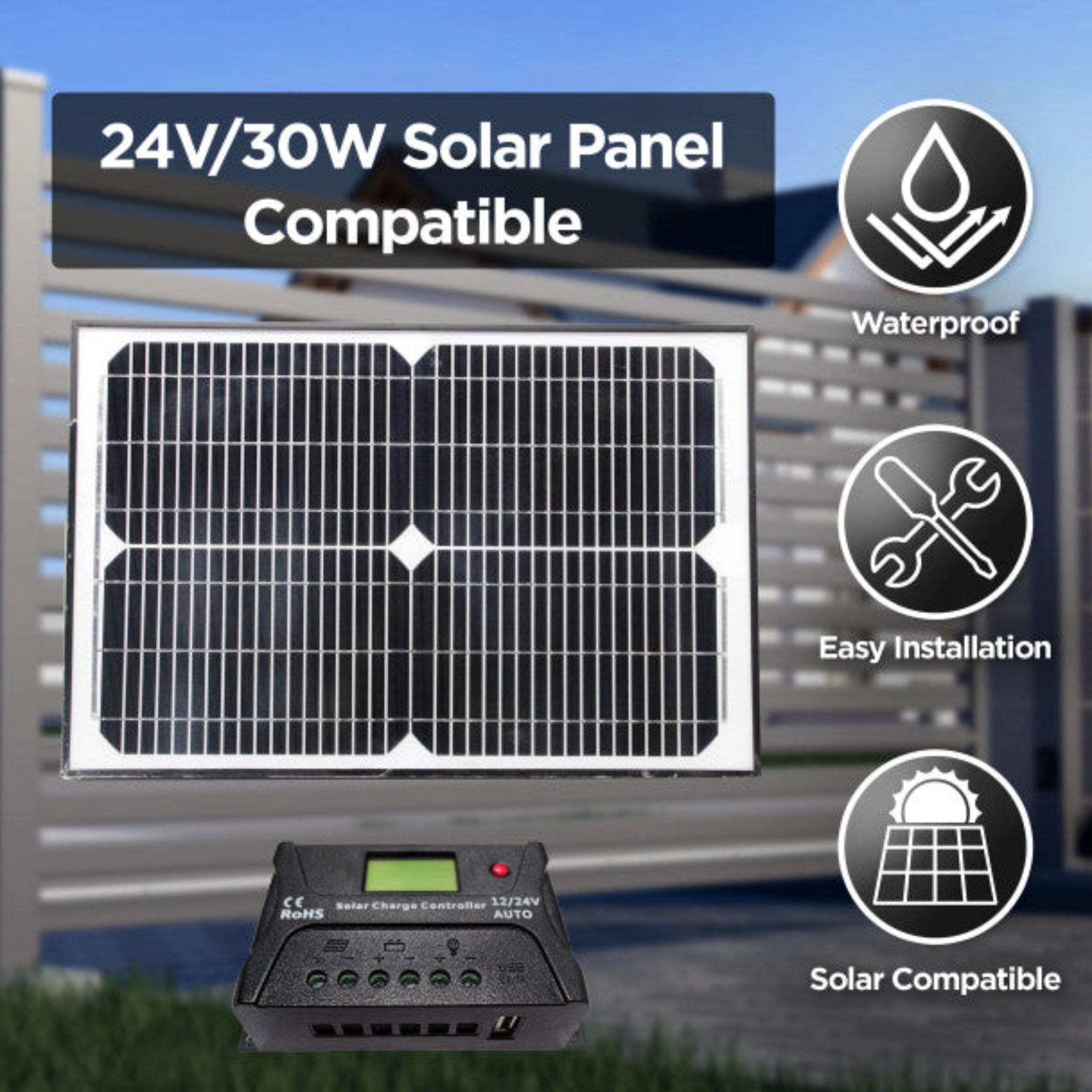

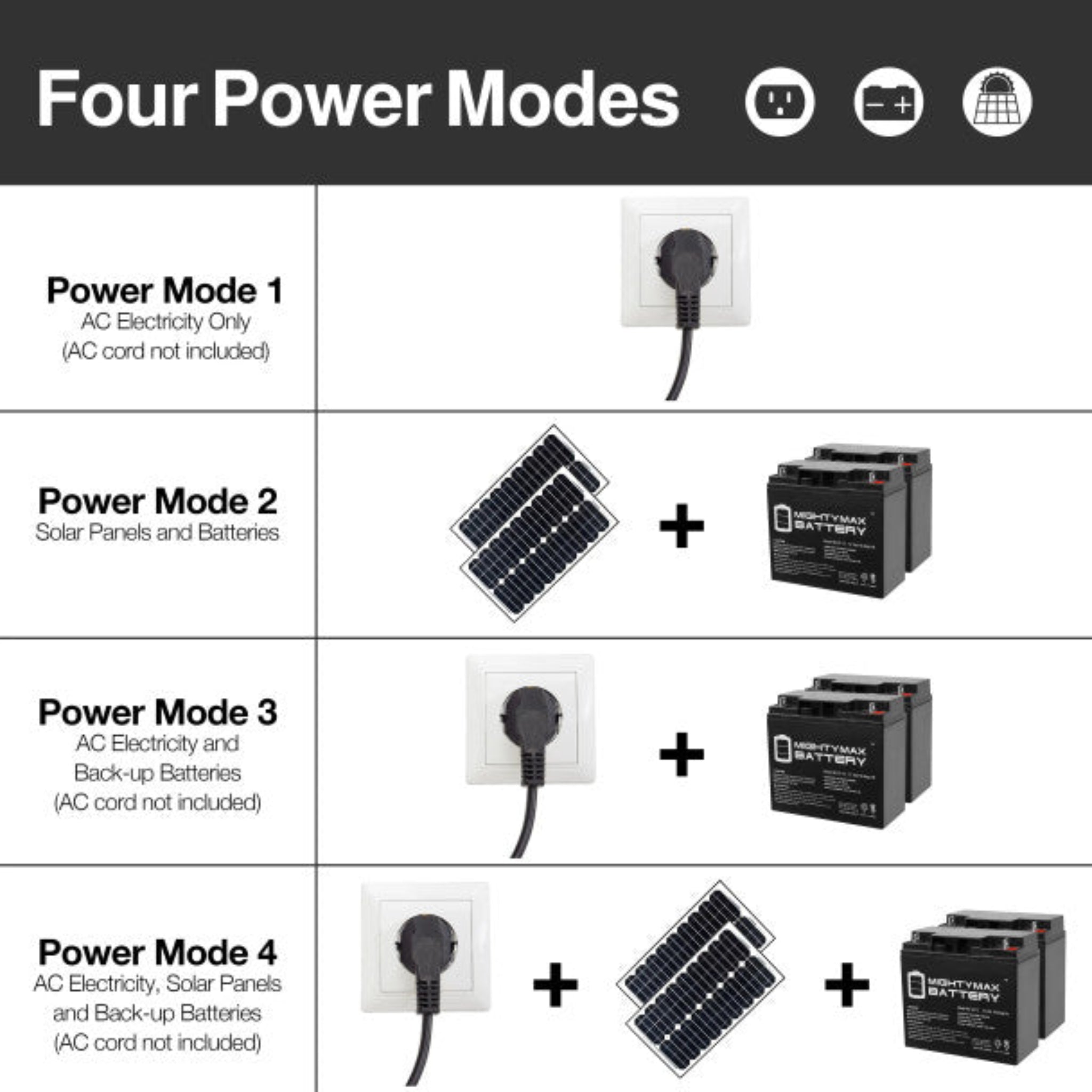

The 60W solar kit provides an alternative power source for installations where conventional wiring may be difficult. The system also includes safety features such as stop/reverse protection when an obstruction is detected and an emergency release key for manual operation during a power failure.

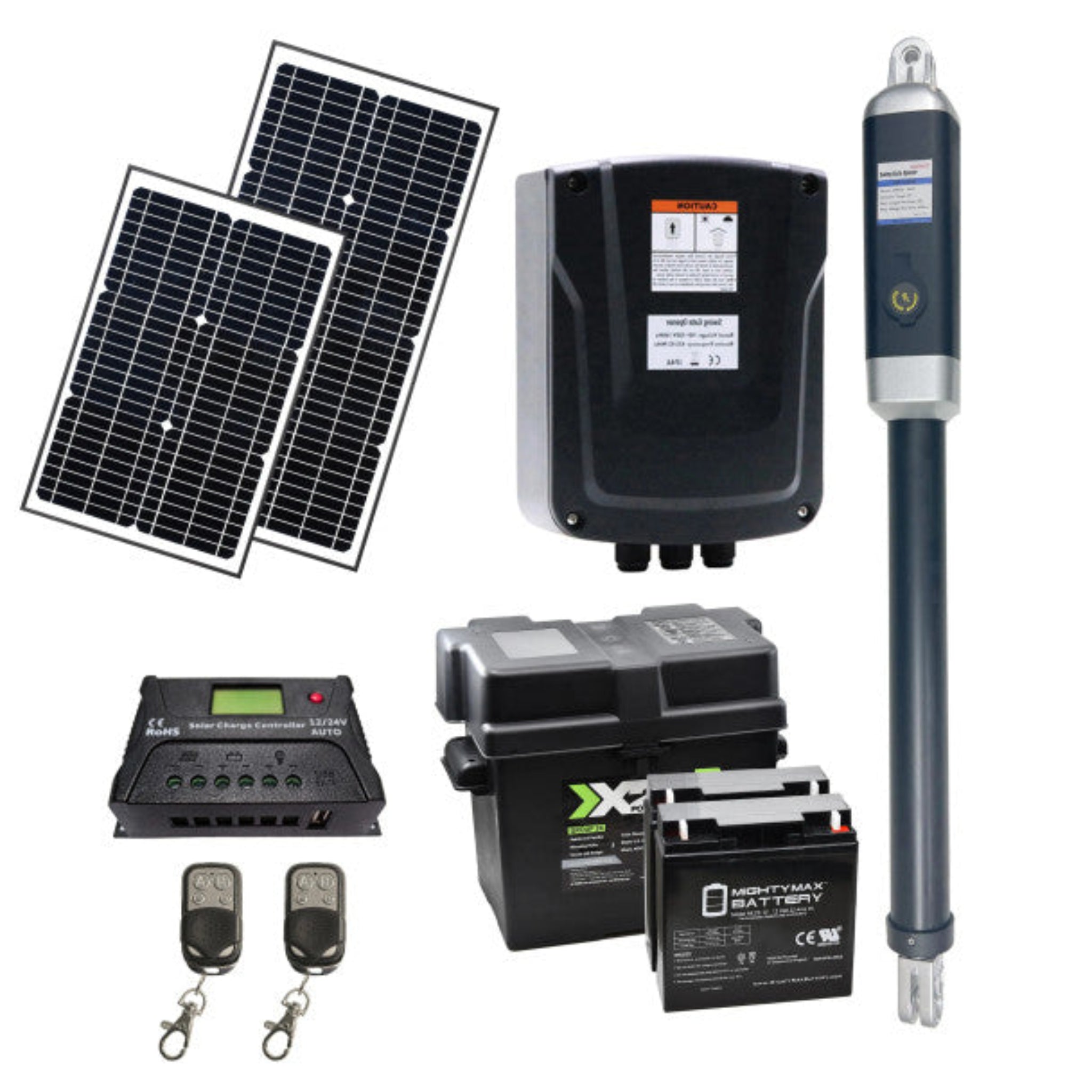

Package Includes
- (1) GG850/AS850 gate actuator
- 60W solar panel system
- Solar charging components

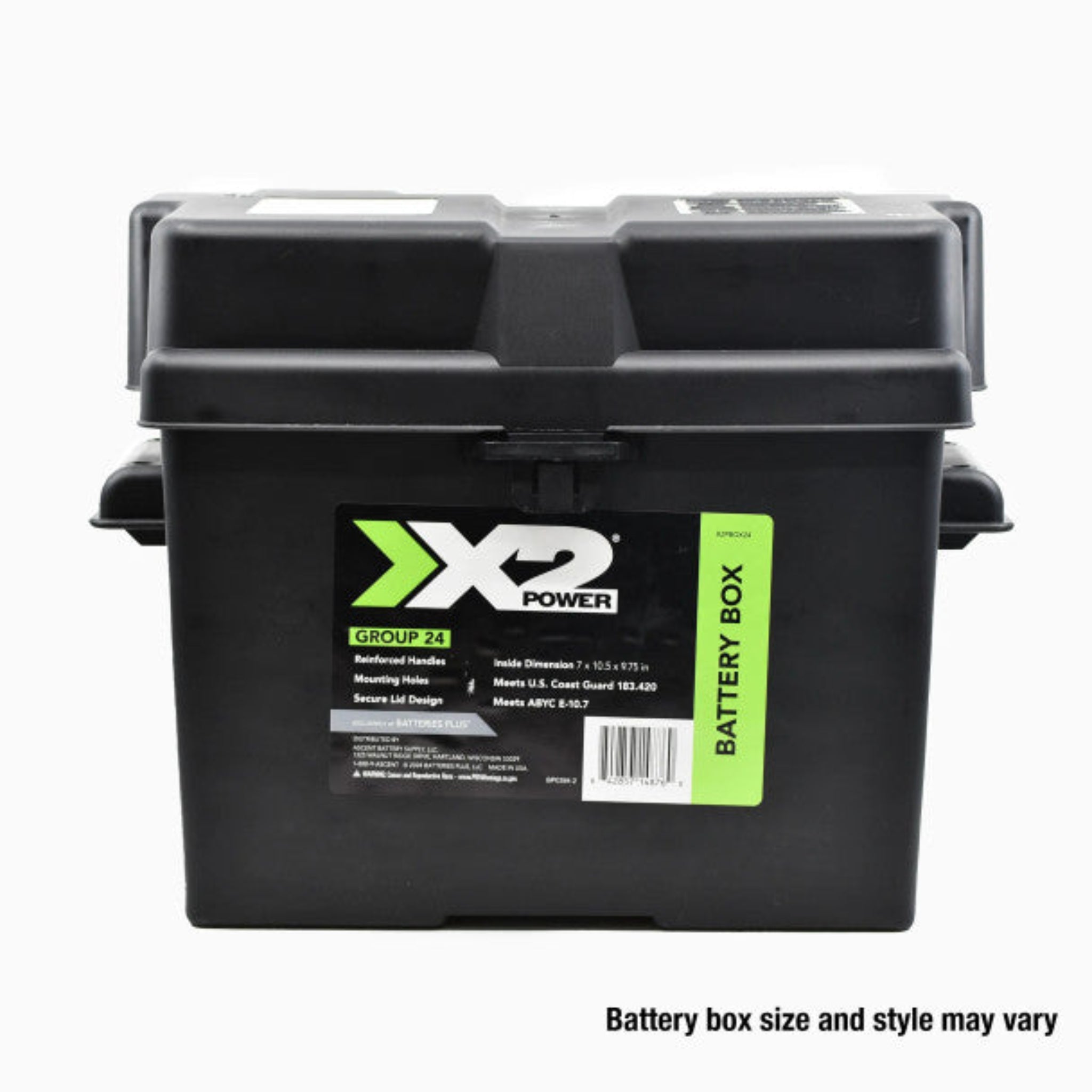

- Backup battery system
- Control box
- Remote controls
- Emergency release key
- Mounting hardware
- User manual
Key Features
- Designed for single swing gate automation
- Suitable for residential and commercial applications
- Supports gates up to 12 ft. / 850 lbs.
- Powerful 24V DC, 100W actuator
- 60W solar power system
- Smooth and soft start/stop operation
- Remote control and keypad access
- Single- or dual-gate running mode
- Optional master/slave gate operation
- Adjustable opening and closing intervals
- Programmable motor force
- Stop/reverse protection when an obstruction is detected
- Programmable 0–99 second auto-close

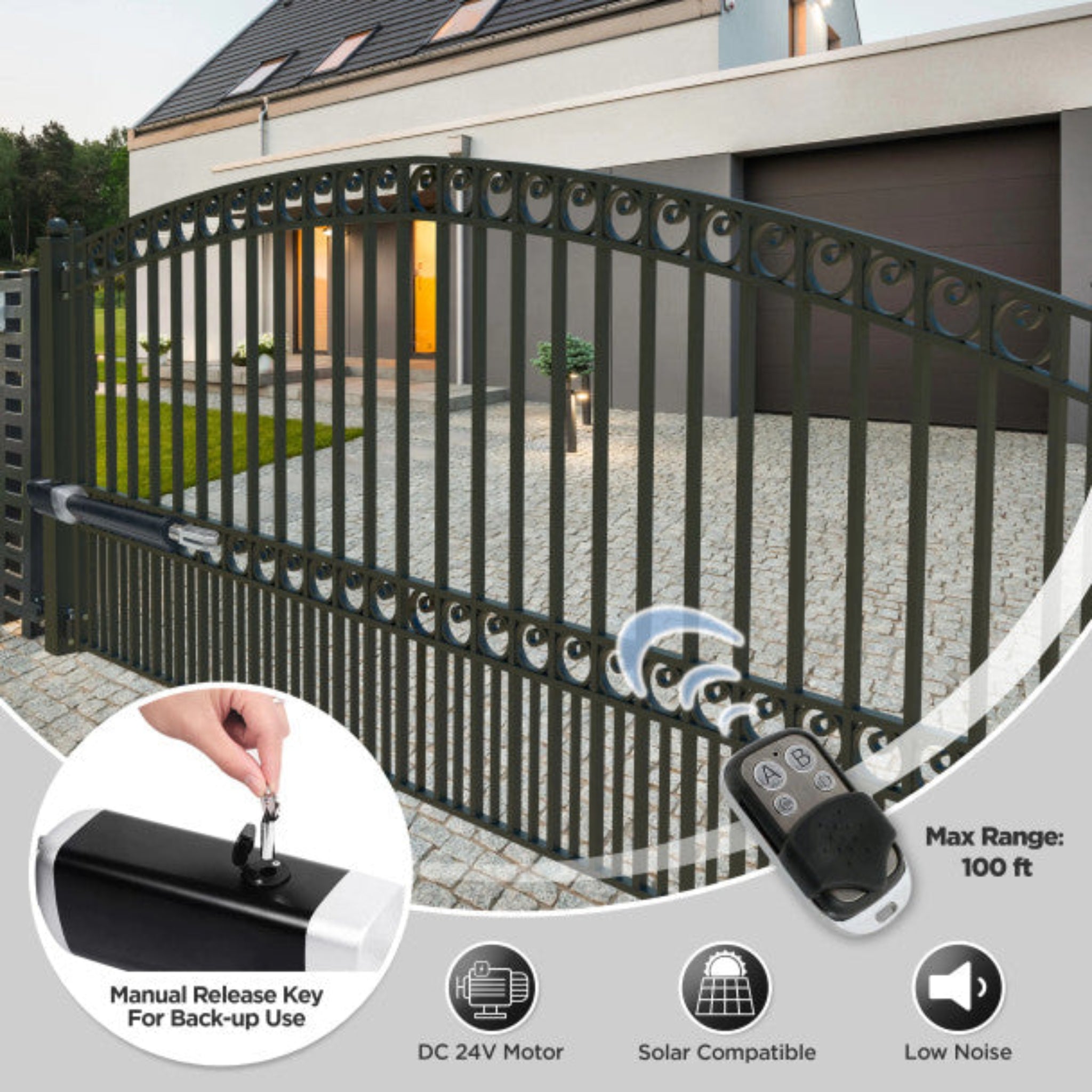

- Emergency release key
- Adjustable electromagnetic limit switches
- Digital display for operating status and settings
- Low-voltage wiring compatible
- Solar-compatible for remote installations
- IP44 protection class
Warranty
- 1-Year Limited Warranty
- Solar panels include a 15-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator 60W Solar Kit |
| Model | GG850SOL |
| SKU | GG850SOL-AP |
| MPN | GG850NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz or 220V/50Hz |

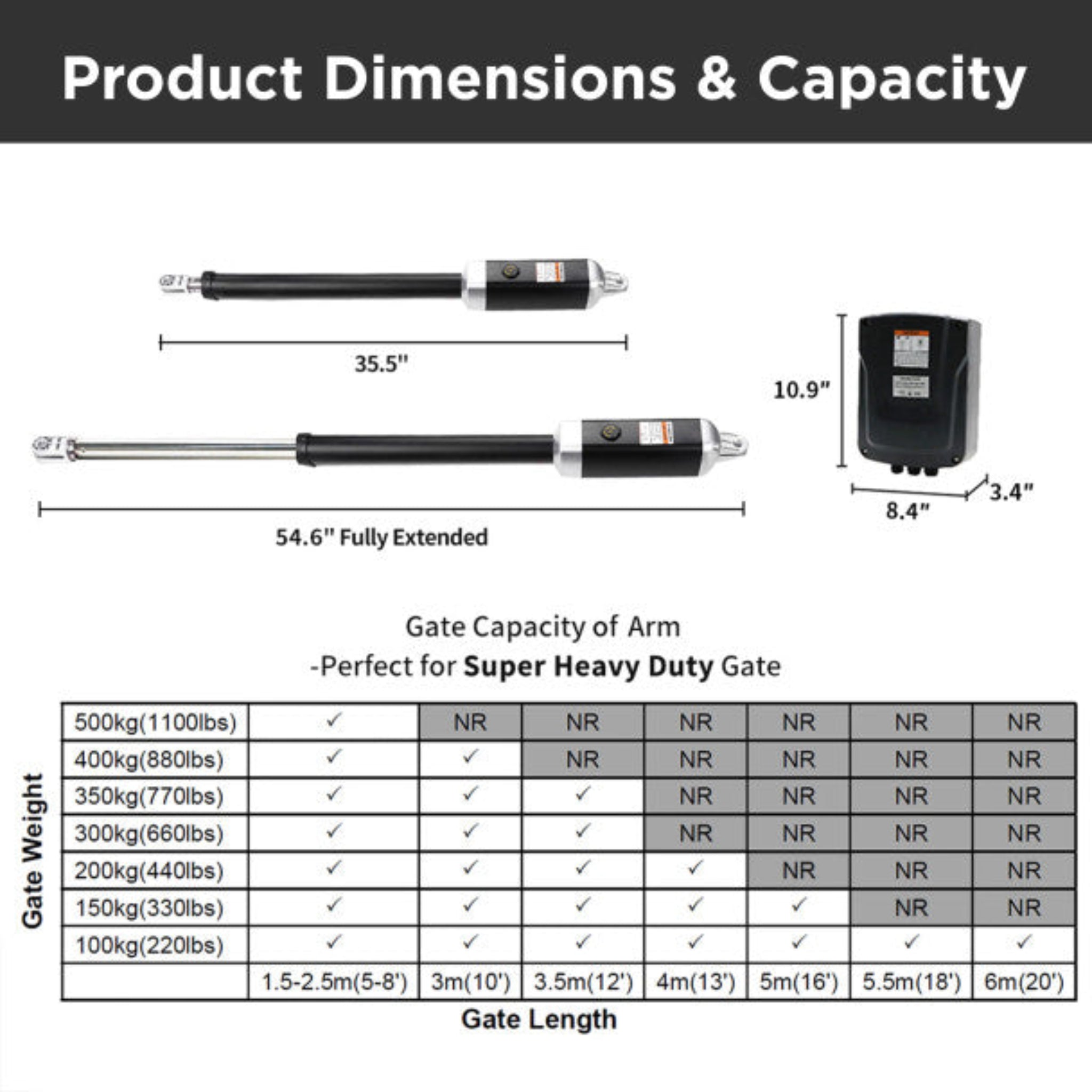

| Maximum Gate Weight | 850 lbs. / 300 kg |
| Maximum Gate Width | 12 ft. / 3.65 m |
| Actuator Speed | 0.63 in./second |
| Actuator Travel | 19 in. |
| Solar Power | 60W |
| H Bracket Dimensions | 15.35 × 9.6 in. |
| L Bracket Dimensions | 5.3 × 1.9 in. |
| Auto-Close | Programmable 0–99 seconds |
| Opening/Closing Time | Programmable 0–99 seconds |
| Safety Feature | Stop/Reverse on Obstruction |
| Limit Switches | Adjustable Electromagnetic |
| Gate Modes | Single / Dual |
| Master/Slave Operation | Optional |
| Photocell Protection | Optional, not included |
| Motor Force | Programmable |
| Protection Class | IP44 |
| Operating Temperature | -22°C to +55°C |
| Solar Panel Warranty | 15 Years |
| Product Warranty | 1-Year Limited Warranty |
