Description
The ALEKO GG850NOR Single Swing Gate Operator Starter Kit is designed to automate single swing gates for residential and commercial properties. Its powerful 24V DC, 100W motor supports gates up to 20 ft. in length or 1,100 lbs., providing smooth and quiet gate operation.
Built for outdoor use, the operator features durable, water-resistant materials that help protect against rust and corrosion. The smooth and soft start/stop function provides controlled gate movement, while the included remote controls allow convenient operation from a vehicle.
The system includes programmable 0–99 second auto-close, a stop/reverse safety sensor for obstruction protection, adjustable electromagnetic limit switches, and an emergency release key for manual operation during a power failure. Solar panels and backup batteries can be added separately for additional power options.

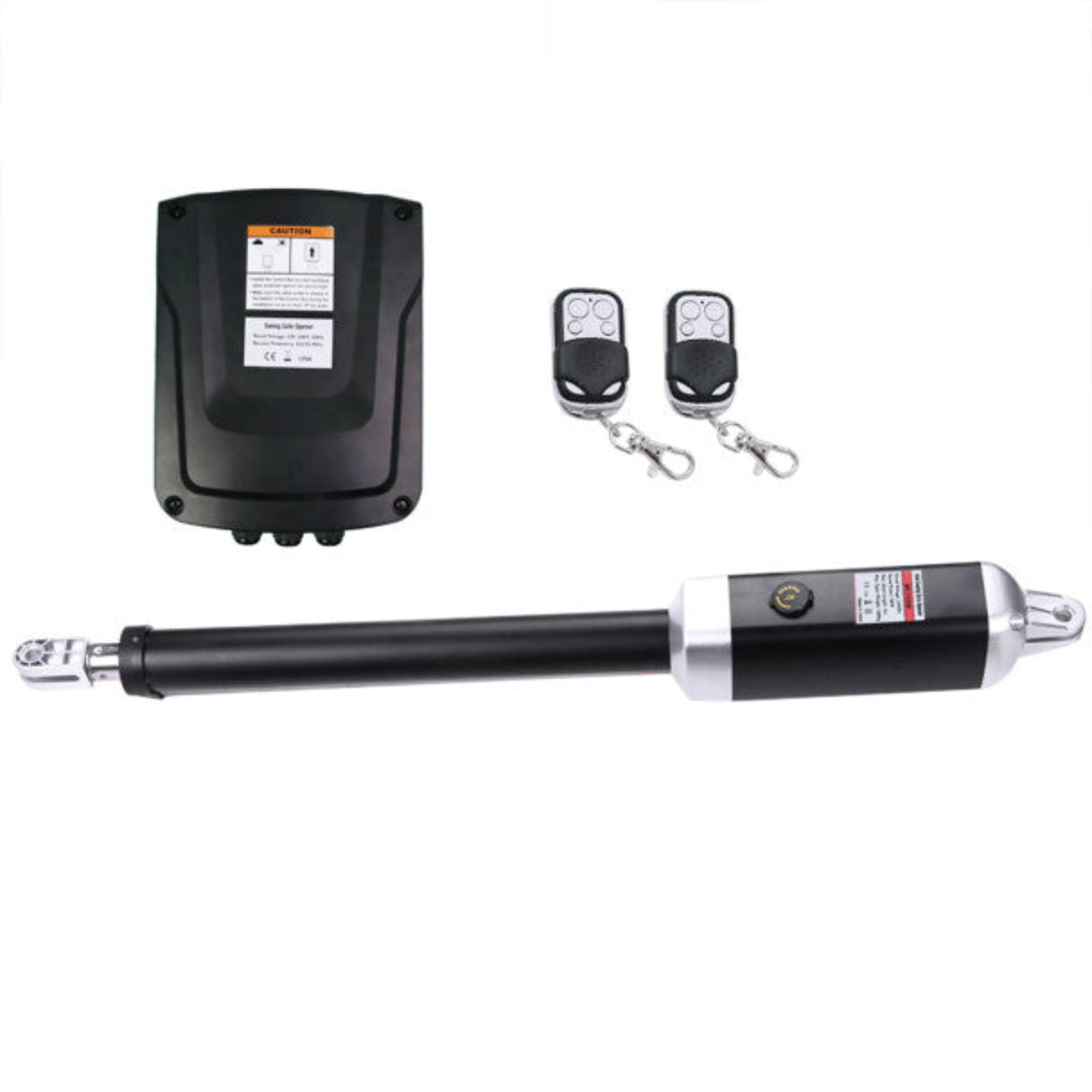

Package Includes
- (1) Actuator
- (1) Control Box
- (2) 433 MHz Remote Controls
- (1) Emergency Release Key
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features
- Designed for single swing gates
- Supports gates up to 20 ft. / 1,100 lbs.
- Powerful 24V DC, 100W motor
- Smooth and soft start/stop operation
- Quiet gate operation
- Two 433 MHz remote controls
- Stop/reverse safety sensor for obstruction protection
- Programmable 0–99 second auto-close
- Emergency release key for power failures
- Adjustable electromagnetic limit switches
- Water-resistant materials help prevent rust and corrosion
- Compatible with solar panels and backup batteries when purchased separately
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Single Swing Gate Operator Starter Kit |
| Model | GG850NOR |
| SKU | GG850NOR-AP |
| MPN | GG850NOR |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 100W |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not Included |
| Backup Batteries | Not Included |

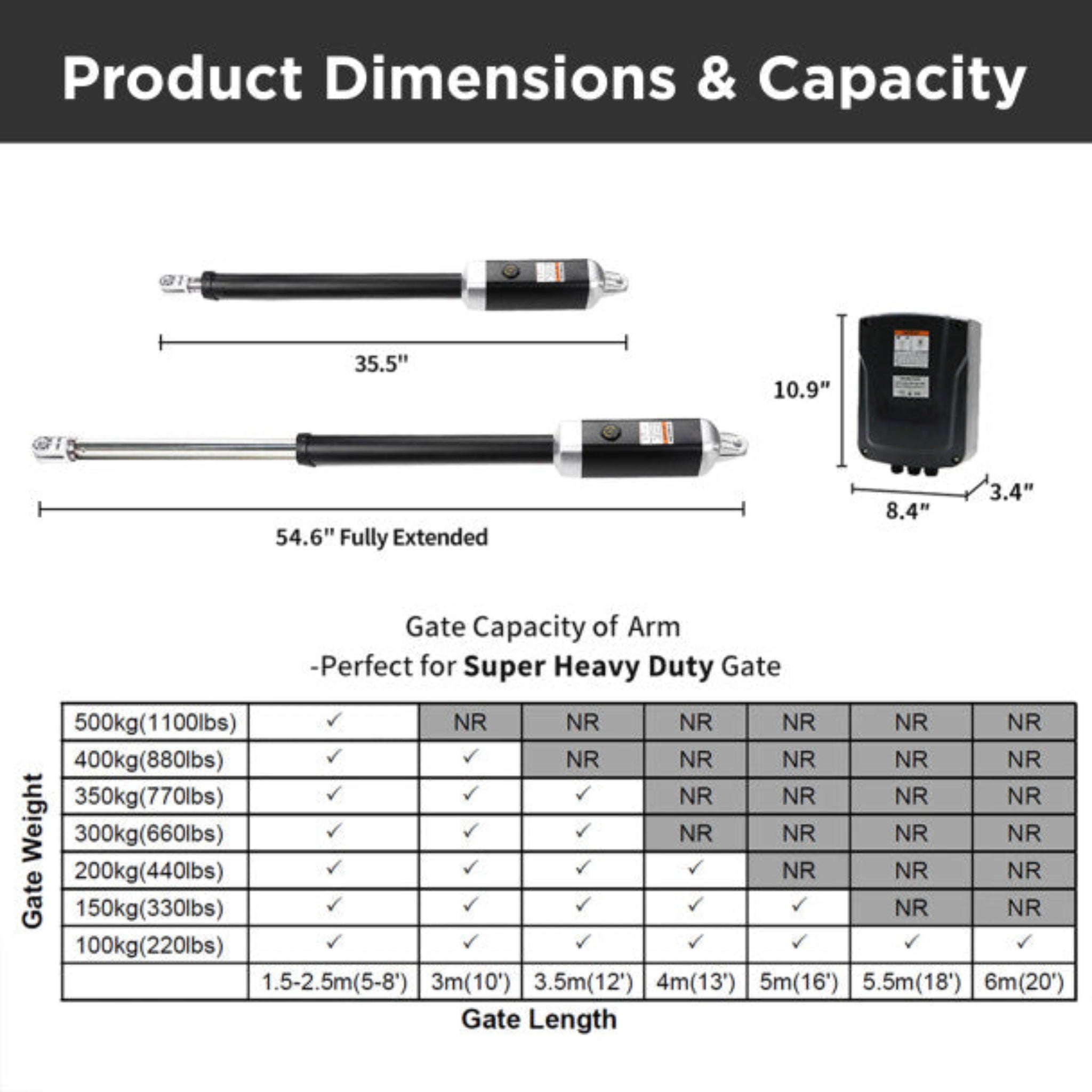

| Maximum Gate Capacity | 20 ft. / 1,100 lbs. |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 19 in. |
| Remote Frequency | 433 MHz |
| Auto-Close | 0–99 seconds |
| Safety Feature | Stop/Reverse Safety Sensor |
| Limit Switches | Adjustable Electromagnetic |
| Materials | Water-Resistant |
| Warranty | 1-Year Limited Warranty |
