Description
The ALEKO AC1400ACC Sliding Gate Opener Accessories Kit is designed to provide convenient and secure access control for sliding gates. The chain-driven opener features a 120V AC, 3/4 HP equivalent single-phase motor with strong starting torque and continuous operation.
The opener can operate sliding gates weighing up to 1,700 lbs. or measuring up to 59 ft. in length. A 20-ft. chain is included, with additional chain available separately for longer gates.
The kit adds convenient access and safety accessories, including a wireless keypad with backlight, wired push button, and photocell sensor. The built-in radio receiver supports two included remotes, while programmable and erasable remote codes provide greater control over access.

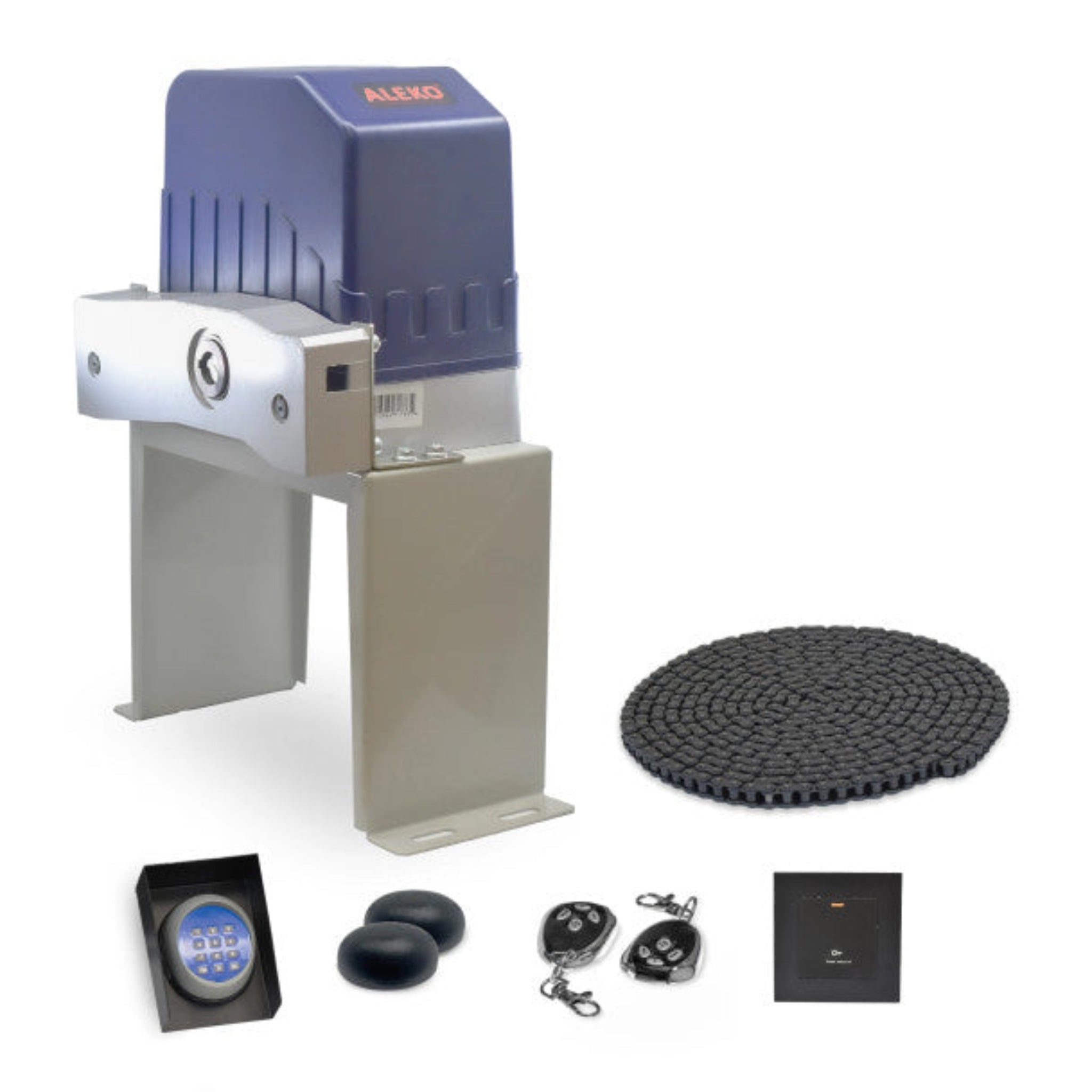

Package Includes
- (1) AC1400 Sliding Gate Opener
- (1) 20-ft. Chain
- (2) Remote Controls
- (1) Photocell Sensor
- (1) Wired Push Button
- (1) Metal Box for Keypad
- (1) Wireless Keypad with Backlight
- Built-in Radio Receiver
Key Features
- Designed for sliding gates
- Supports gates up to 1,700 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply
- 3/4 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation
- Chain-driven design
- 20 ft. chain included
- Built-in radio receiver
- Two remote controls included
- User-programmable and erasable remote codes
- RF hopping-code technology
- Wireless keypad with backlight
- Wired push button

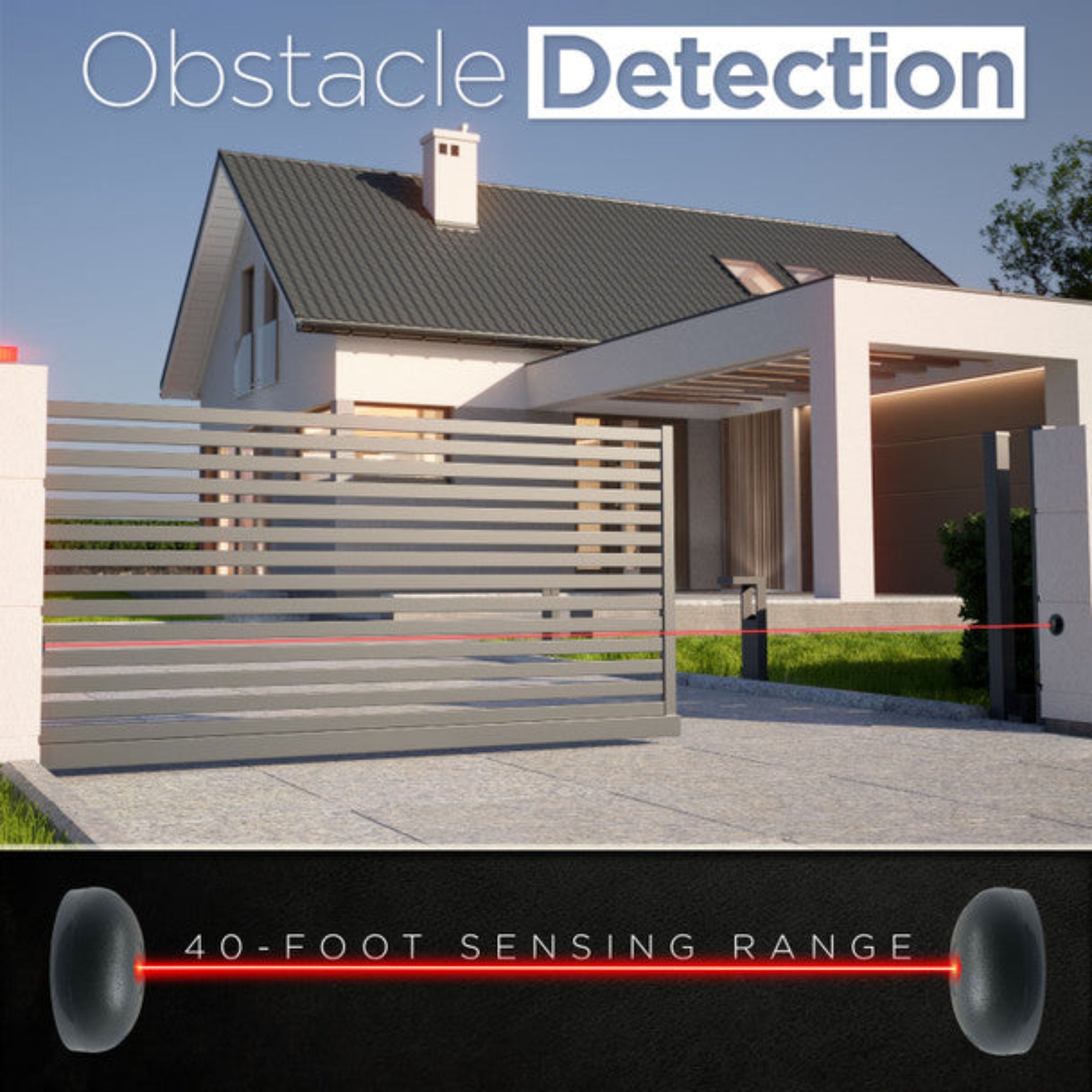

- Photocell sensor
- Auto-close feature
- Pedestrian mode

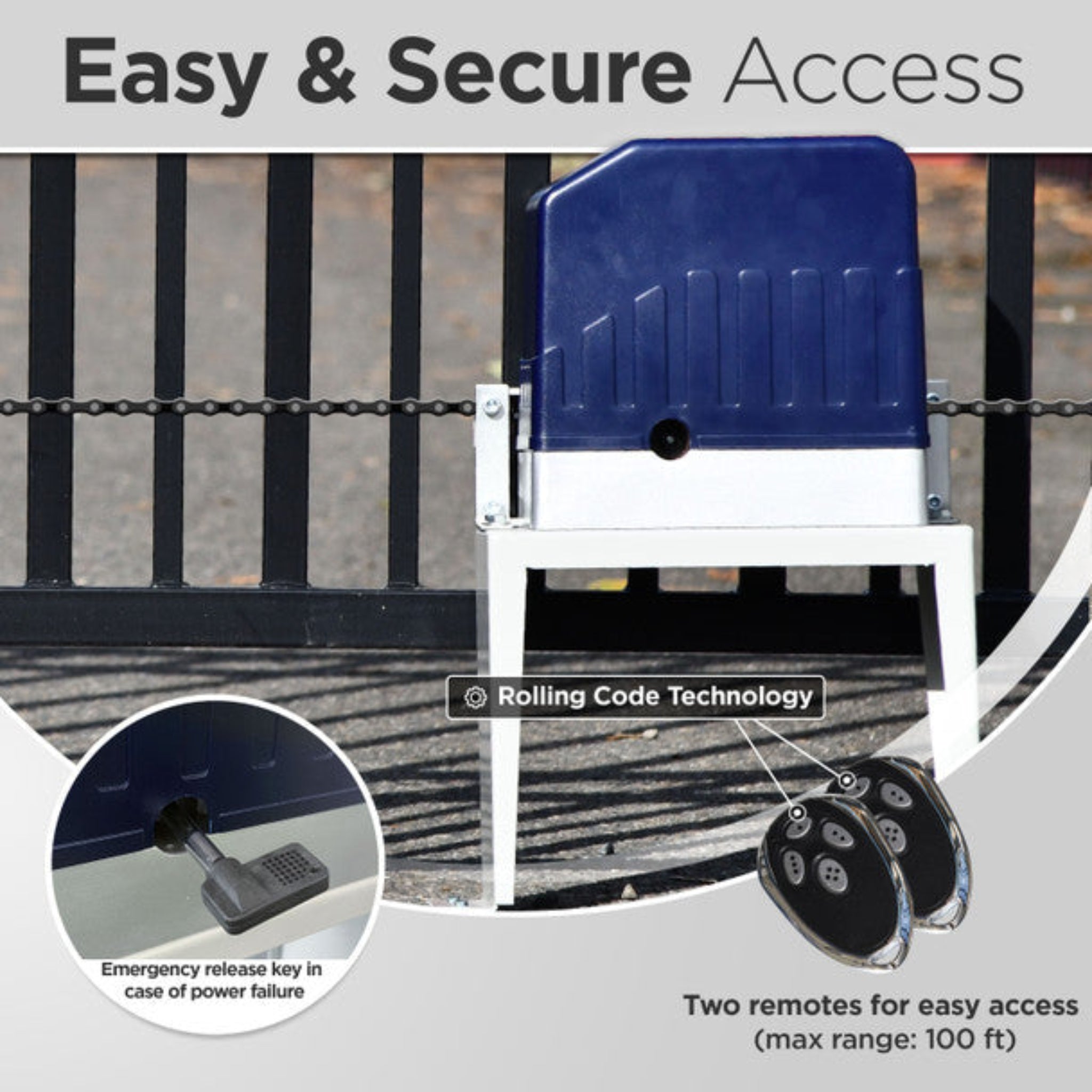

- Manual key release for emergencies
- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Accessories Kit |
| Model | AC1400ACC |
| SKU | AC1400ACC-AP |
| MPN | AC1400NOR |
| UPC | 648236985571 |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 1,700 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor Power | 3/4 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Drive Type | Chain Driven |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Wireless Keypad | Yes, with Backlight |
| Wired Push Button | Yes |
| Photocell Sensor | 1 Included |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Warranty | 1-Year Limited Warranty |
