Description
The ALEKO AC1400NOR Sliding Gate Opener Starter Kit is a chain-driven automatic gate opener designed for residential and commercial sliding gates. Its 120V AC, 3/4 HP equivalent single-phase motor provides strong starting torque and continuous operation.
The opener can operate sliding gates weighing up to 1,700 lbs. or measuring up to 59 ft. in length. A 20 ft. chain is included, with additional chain available for gates longer than 20 ft.

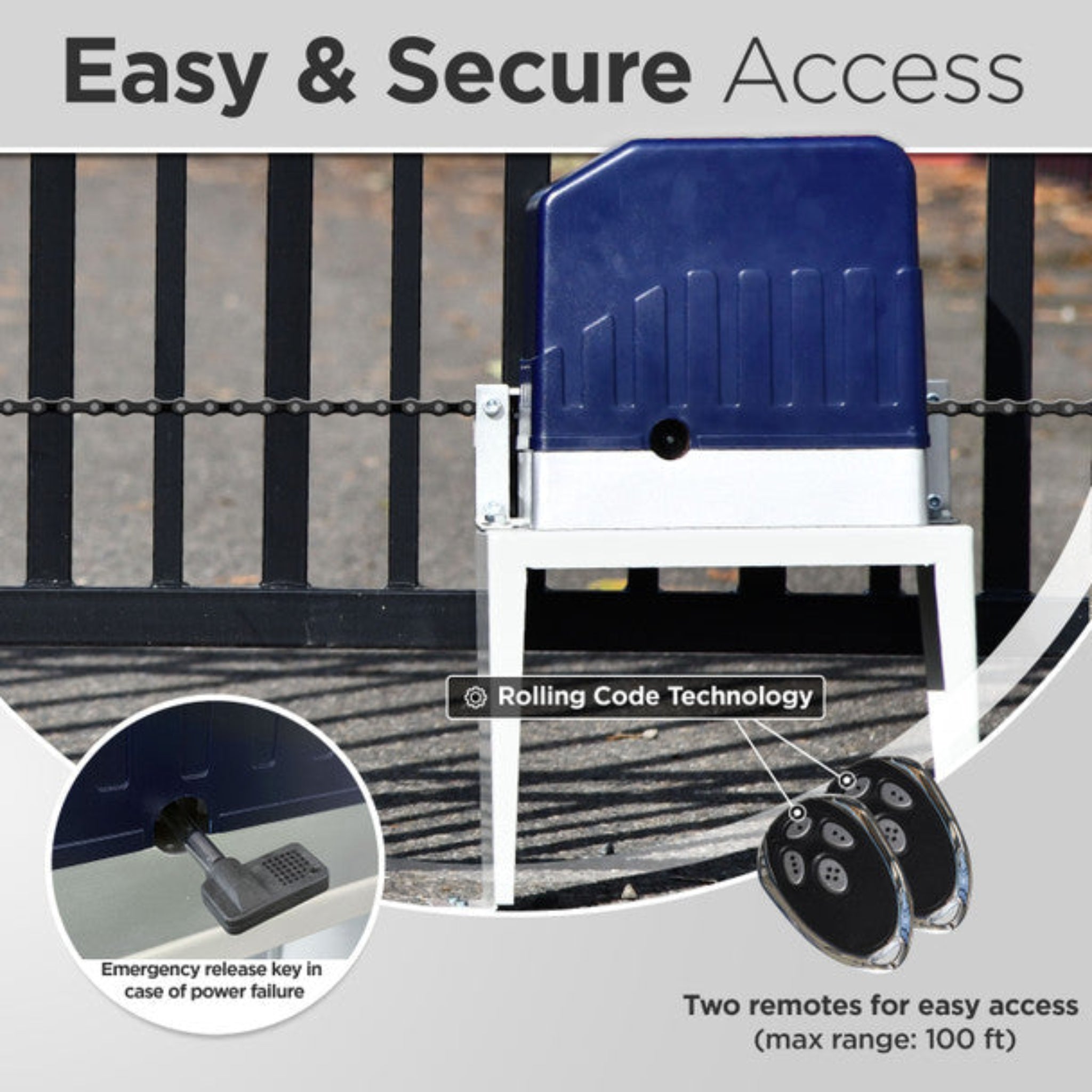

For convenient access, the system includes a built-in radio receiver and two remote controls. User-programmable and erasable remote codes, together with RF hopping-code technology, help protect the remote signal from unauthorized access.
The opener also features an auto-close function, pedestrian mode, manual key release, and obstruction protection. It stops and reverses when an obstruction is detected while closing and stops when an obstruction is detected while opening.

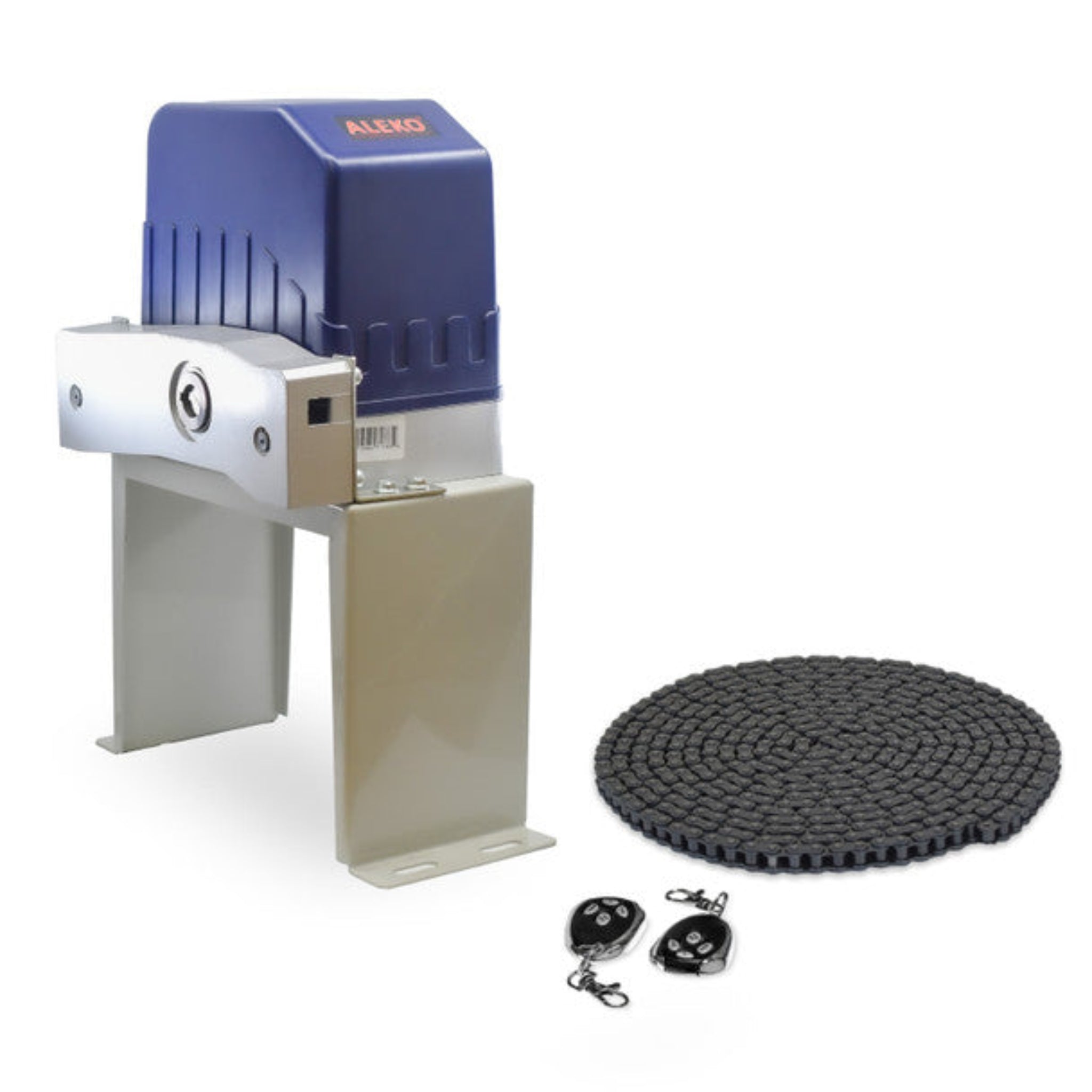

Package Includes
- (1) AC1400 Sliding Gate Opener
- (1) 20-ft. Chain
- (2) Remote Controls
- Built-in Radio Receiver
- Mounting Hardware
- Manual Emergency Release System
Key Features
- Designed for sliding gates
- Supports gates up to 1,700 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply

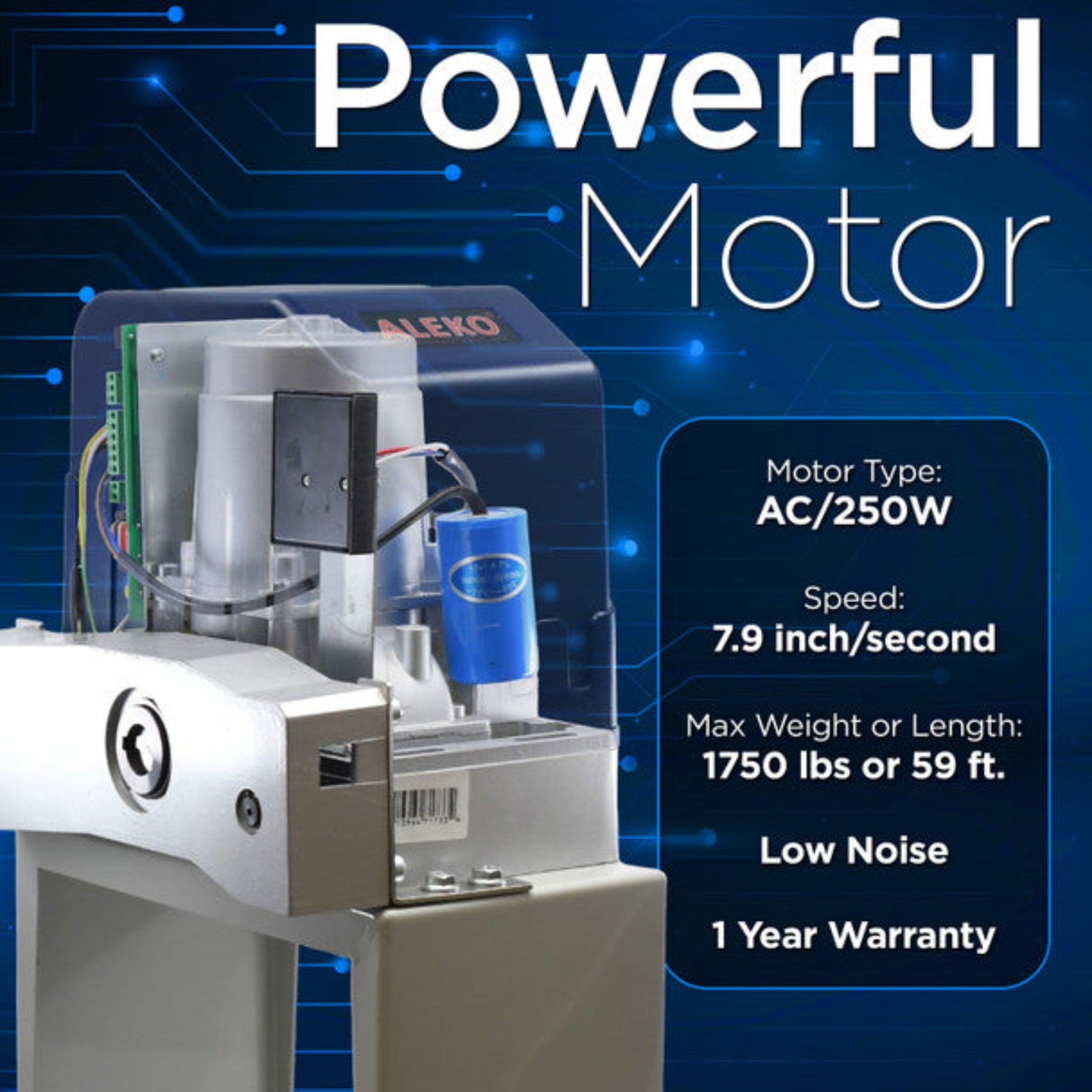

- 3/4 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation
- Chain-driven design
- 20 ft. chain included
- Built-in radio receiver
- Two remote controls included
- User-programmable remote codes
- User-erasable remote codes
- RF hopping-code technology
- Auto-close function
- Pedestrian mode
- Manual key release for emergencies
- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Starter Kit |
| Model | AC1400NOR |
| SKU | AC1400NOR-AP |
| MPN | AC1400NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 1,700 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor Power | 3/4 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Drive Type | Chain Driven |
| Chain Included | Yes |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Warranty | 1-Year Limited Warranty |
