Description

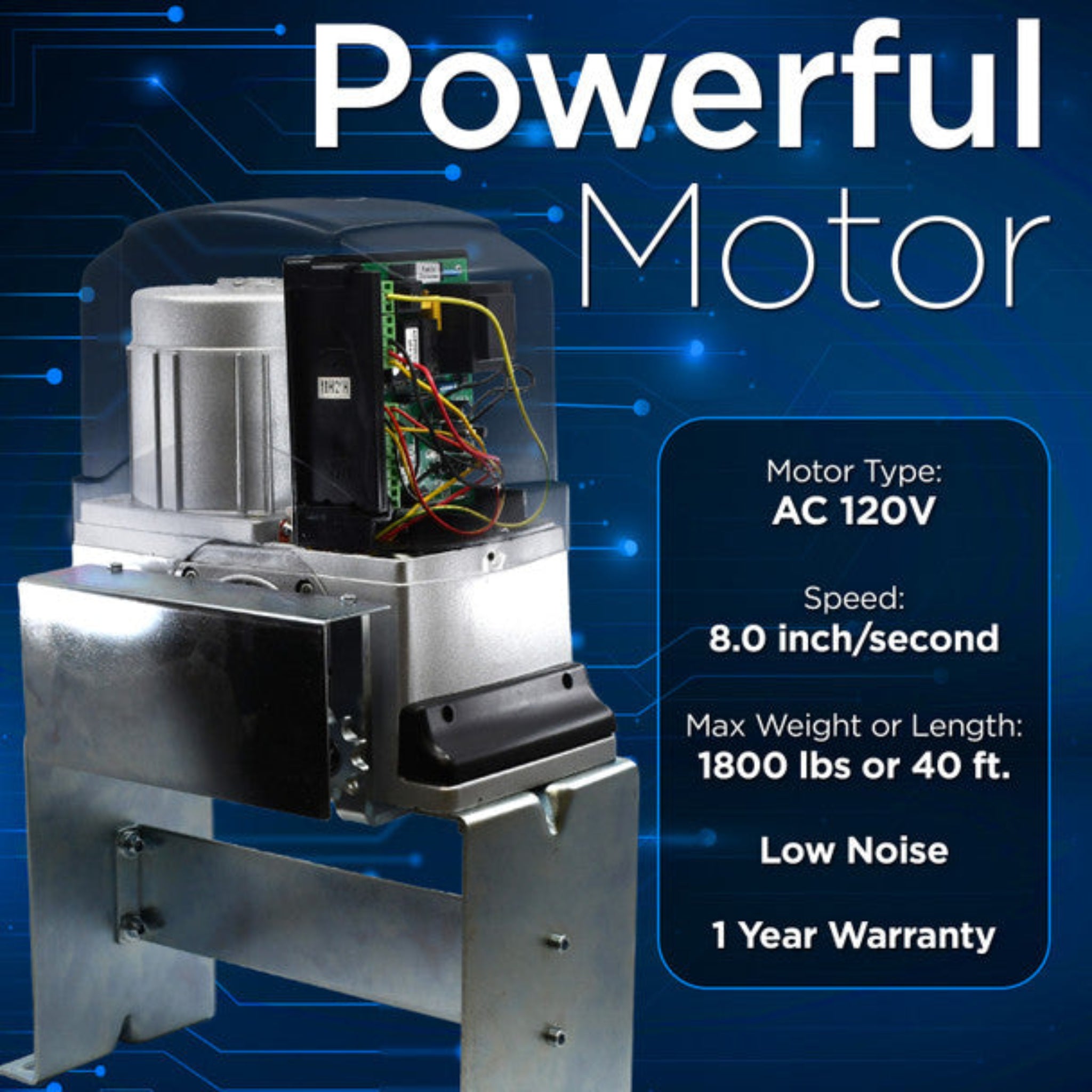

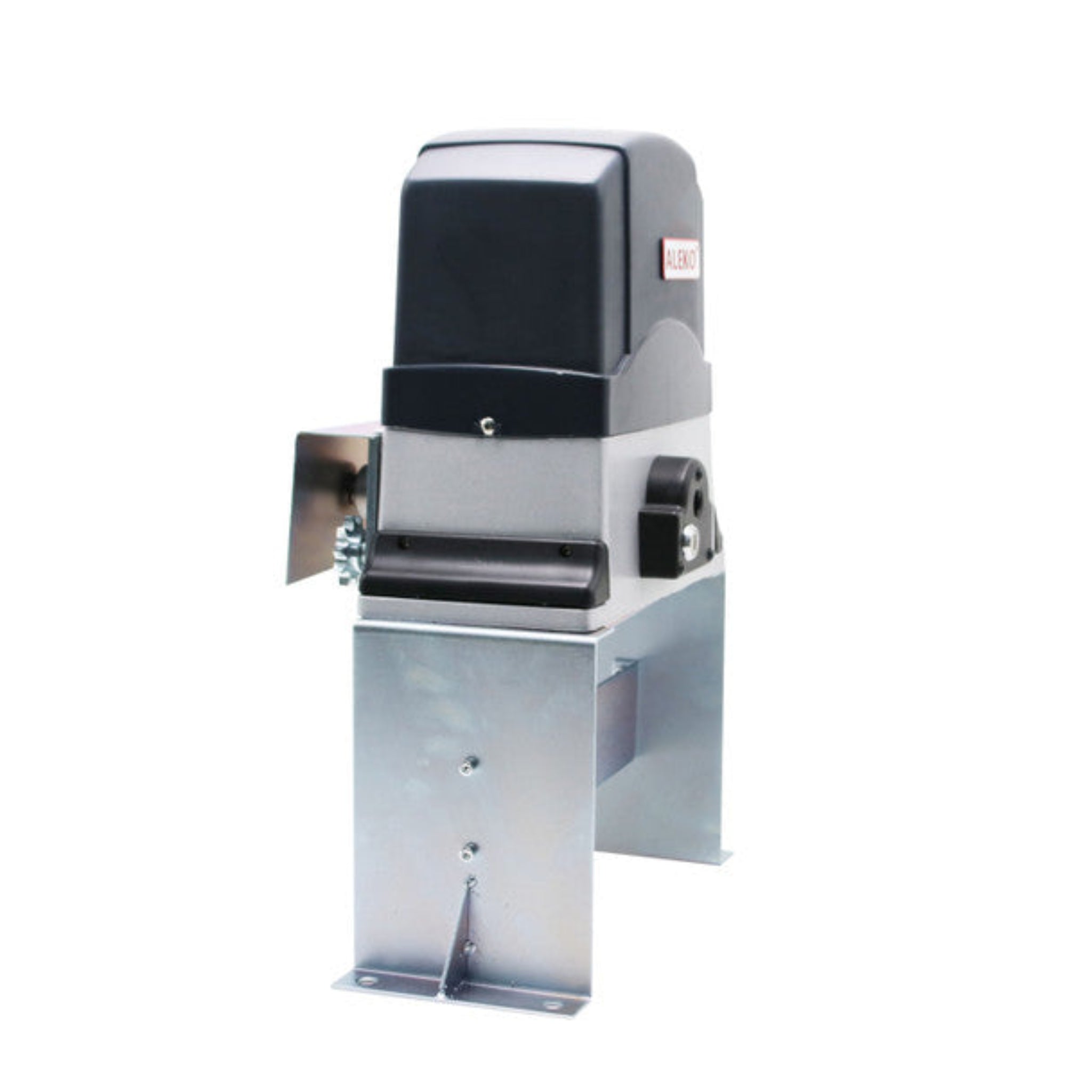

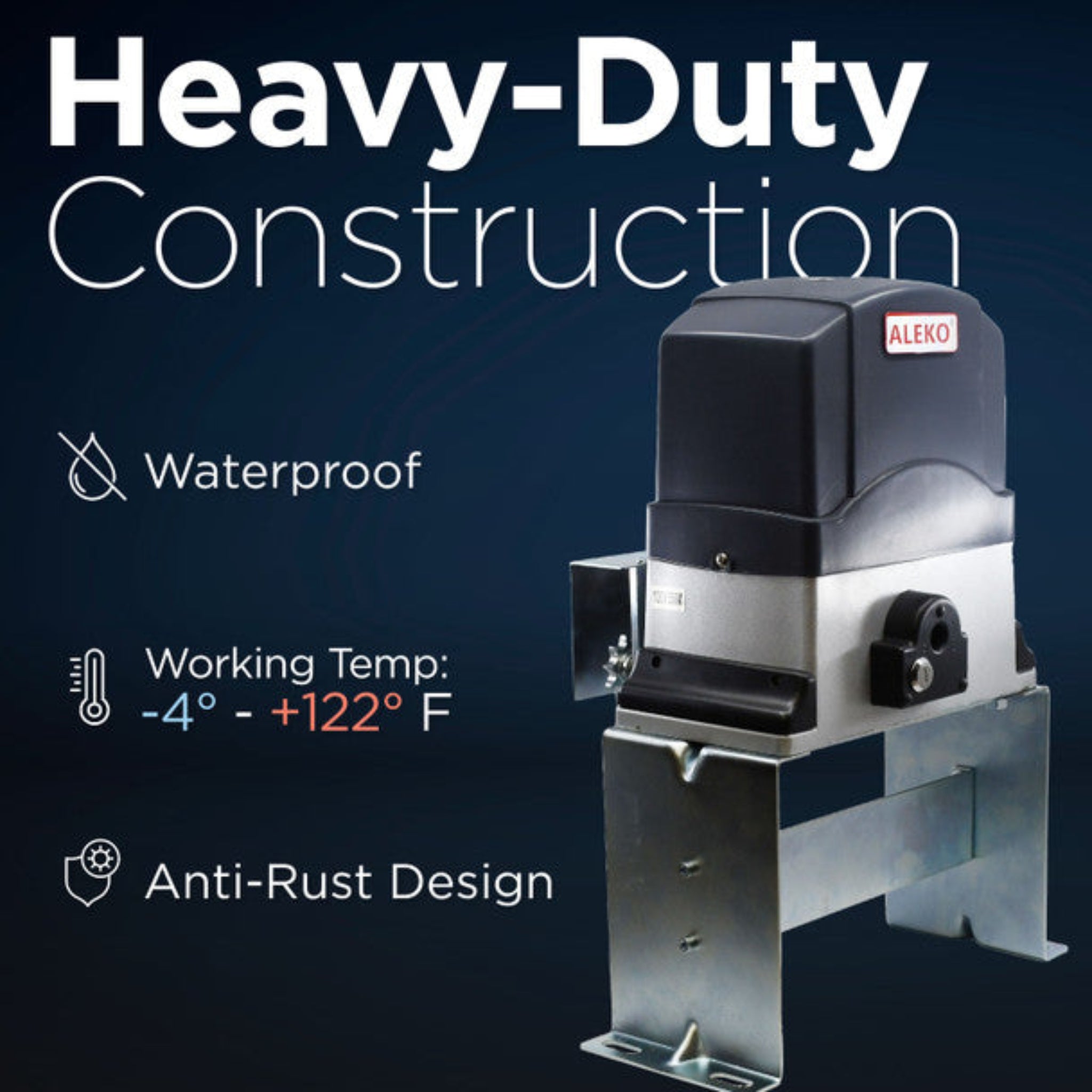

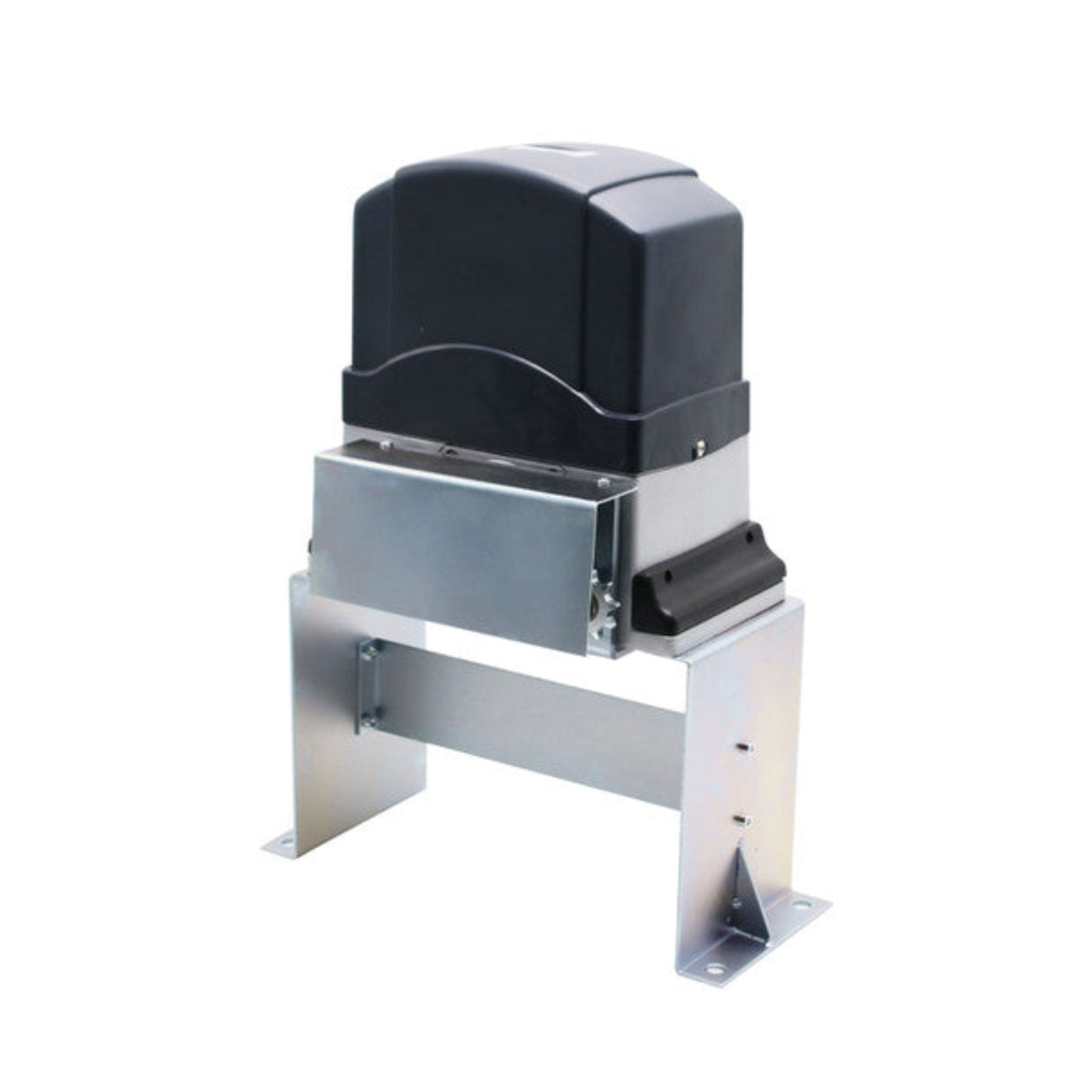

The ALEKO AC1800ACC Sliding Gate Opener Accessory Kit is designed to automate heavy-duty sliding gates for residential and commercial applications. It features a 120V AC, 3/4 HP equivalent single-phase motor that provides strong starting torque and continuous operation.
The chain-driven system supports sliding gates weighing up to 1,800 lbs. or measuring up to 40 ft. in length. The kit includes a 20 ft. chain, making it suitable for many standard sliding gate installations. Additional chain can be added for longer gates.

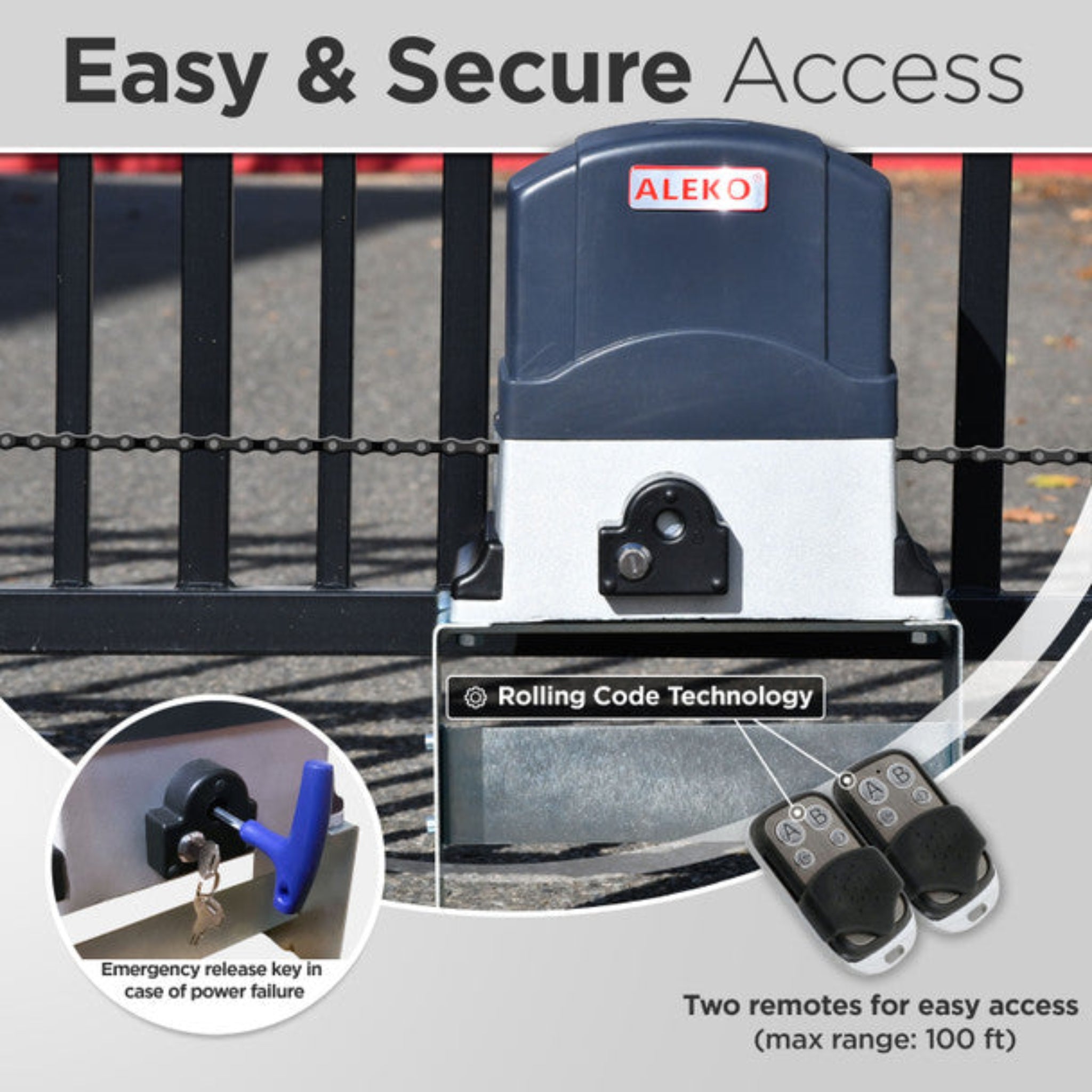

For convenient operation, the opener includes a built-in radio receiver and two remote controls. User-programmable and erasable remote codes, along with RF hopping-code technology, help protect the system from unauthorized remote access.

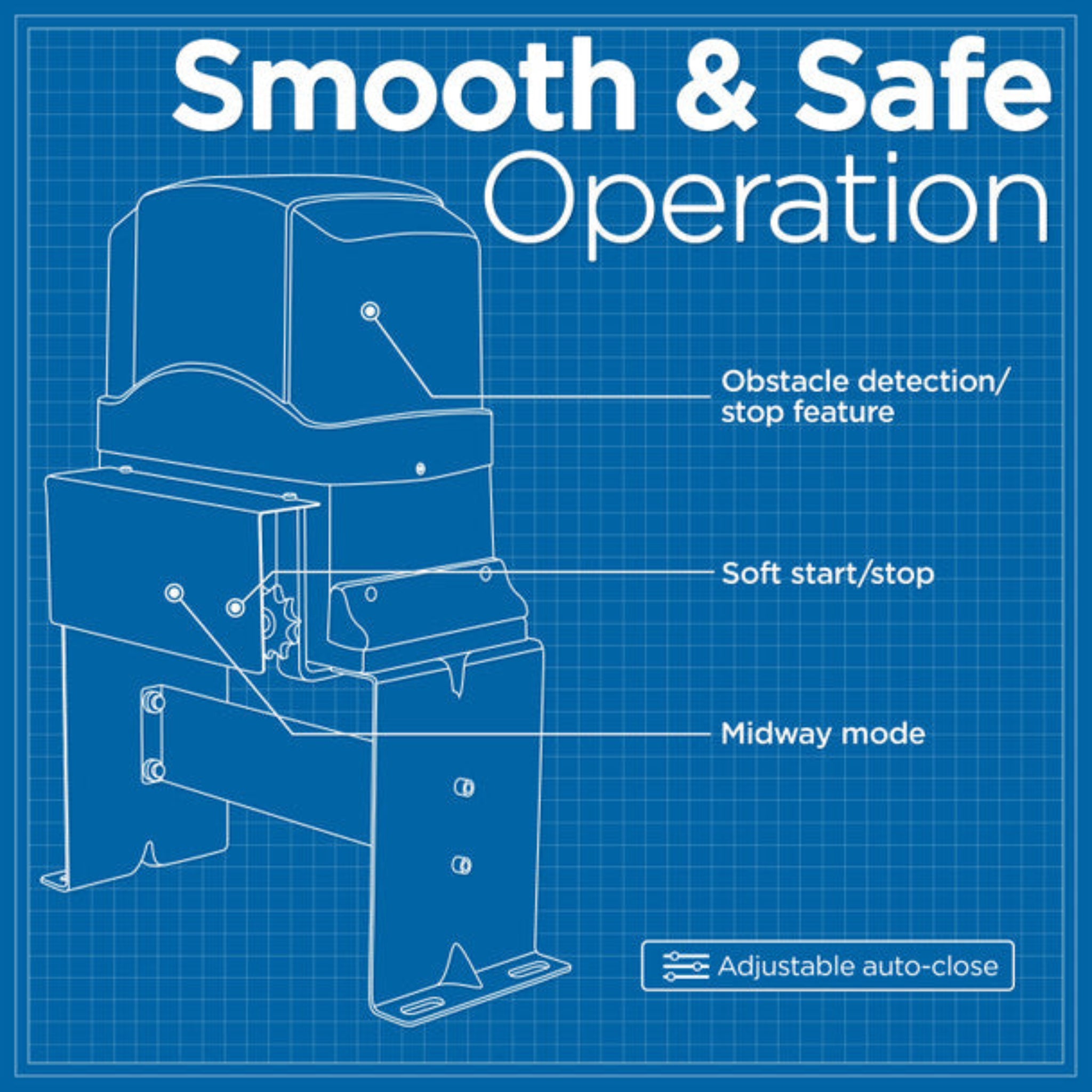

The opener also features adjustable automatic closing, pedestrian mode, manual emergency release, and stop/reverse protection when an obstruction is detected. A built-in 90-second maximum motor running-time limit provides an additional safety measure.

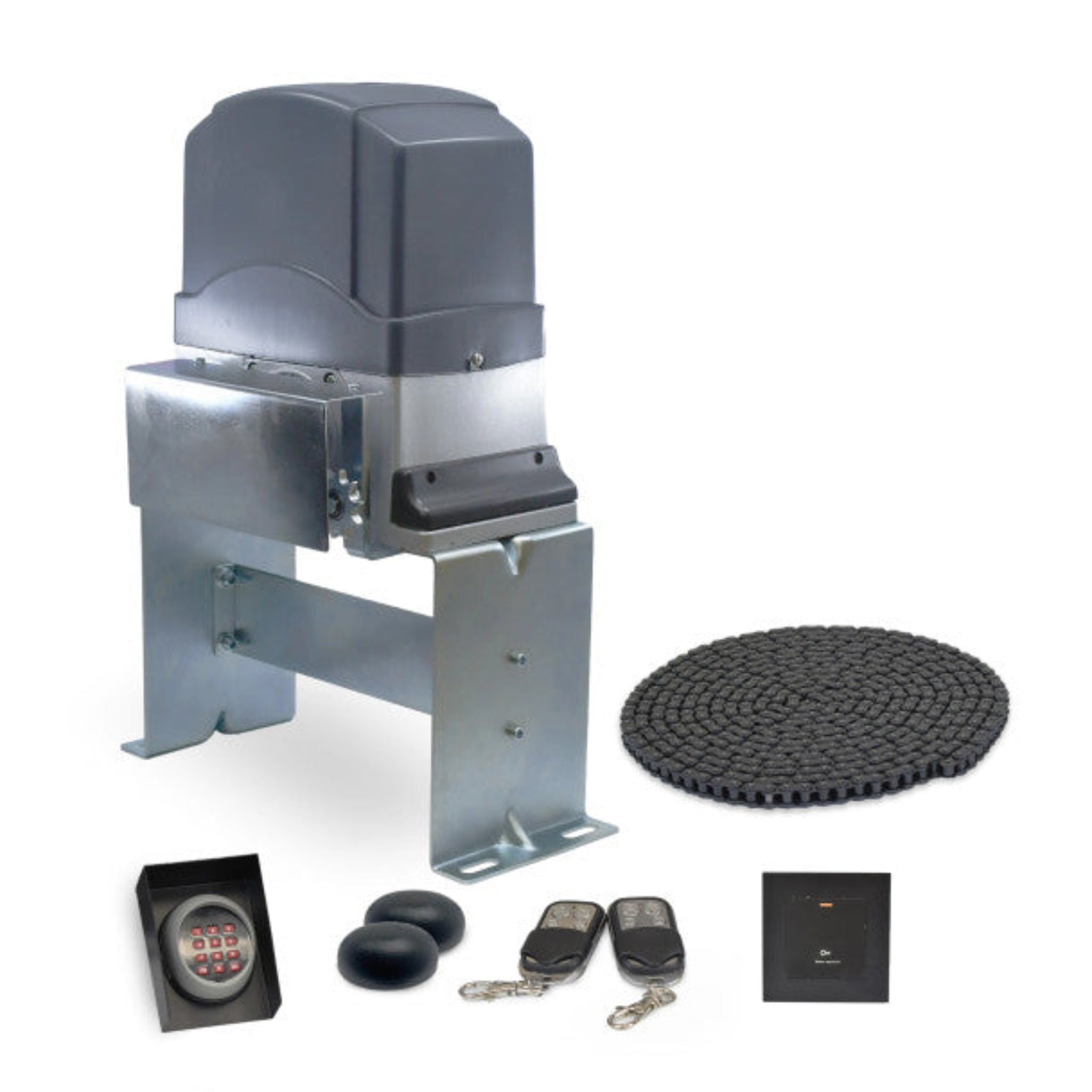

Package Includes
- (1) AC1800 Sliding Gate Opener
- (1) 20-ft. Chain
- (2) Remote Controls
- Built-in Radio Receiver
- Mounting Hardware
Key Features
- Designed for sliding gates
- Supports gates up to 1,800 lbs.
- Supports gates up to 40 ft. in length
- 120V AC power supply
- 3/4 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation
- Chain-driven gate opener
- 20 ft. chain included
- Built-in radio receiver
- Two remote controls included
- User-programmable and erasable remote codes
- RF hopping-code technology
- Adjustable auto-close: 0, 30, 60, or 90 seconds
- Operating time of 0–44 seconds

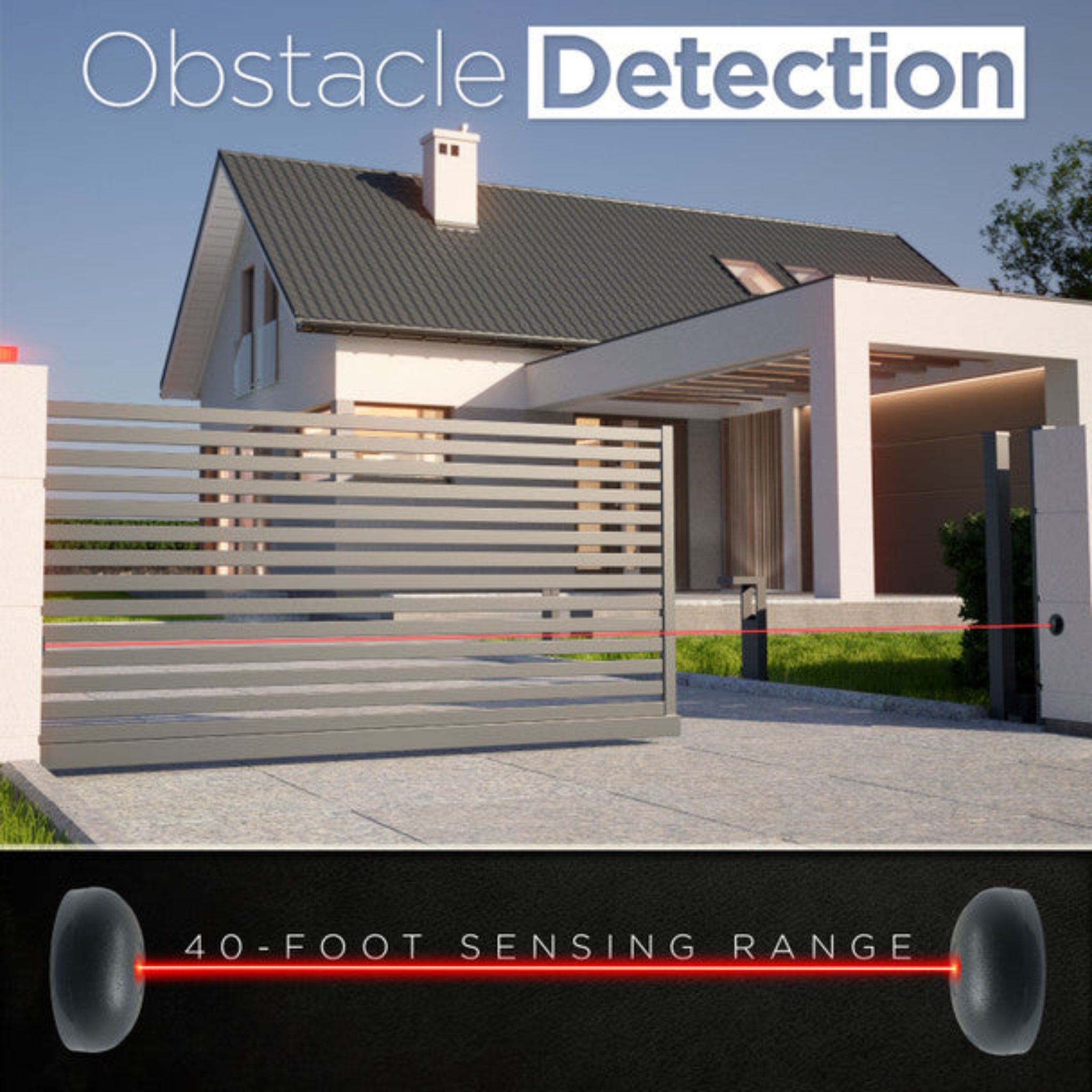

- Stop/reverse protection when an obstruction is detected
- Built-in 90-second maximum motor running time
- Manual key release for emergencies
- Pedestrian mode
- Easy to install
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Accessory Kit |
| Model | AC1800ACC |
| SKU | AC1800ACC-AP |
| MPN | AC1800NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 1,800 lbs. |
| Maximum Gate Length | 40 ft. |
| Motor Power | 3/4 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Maximum Motor Running Time | 90 seconds |
| Drive Type | Chain Driven |
| Chain Included | Yes |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | 0, 30, 60, or 90 seconds |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse |
| Emergency Release | Manual Key Release |
| Installation | Easy Installation |
| Warranty | 1-Year Limited Warranty |
