Description

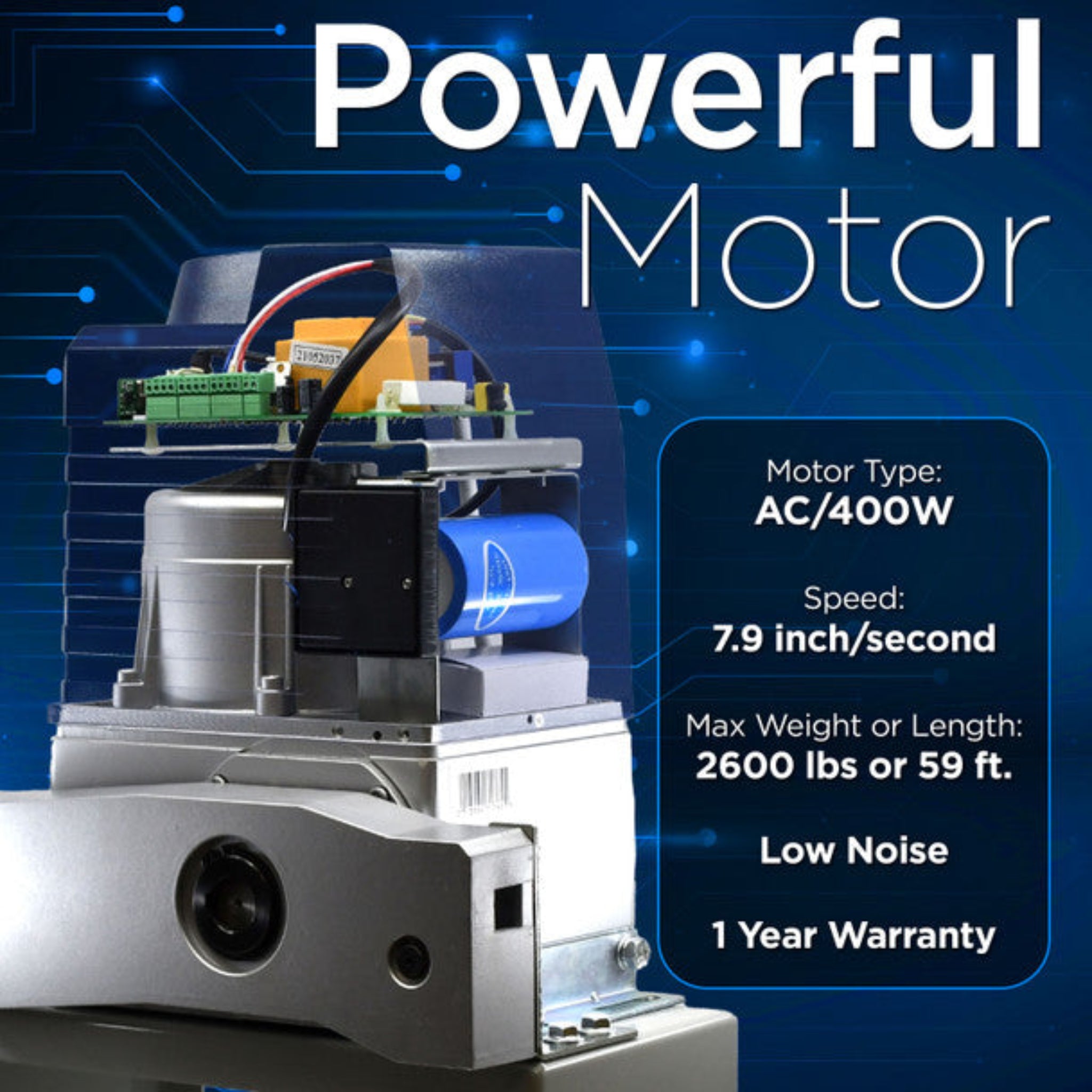

The ALEKO AC2000ACC Sliding Gate Opener Accessory Kit is a heavy-duty chain-driven gate opener designed for residential, commercial, and other sliding gate applications. It features a 120V AC, 2 HP equivalent single-phase motor that provides strong starting torque and continuous operation.

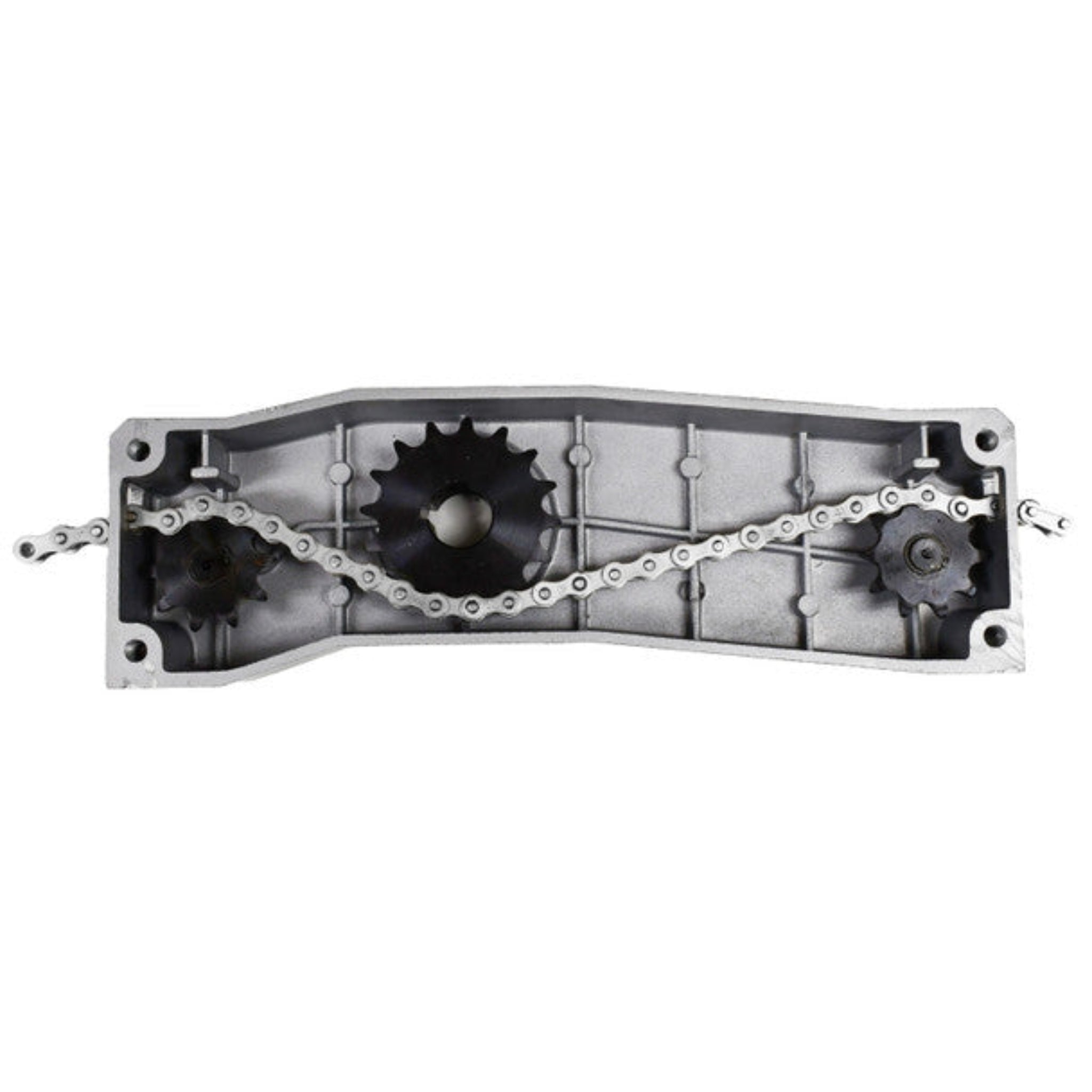

The opener can automate sliding gates weighing up to 2,600 lbs. or measuring up to 59 ft. in length. A 20 ft. chain and chain mounting hardware are included, with additional chain available for gates longer than 20 ft.

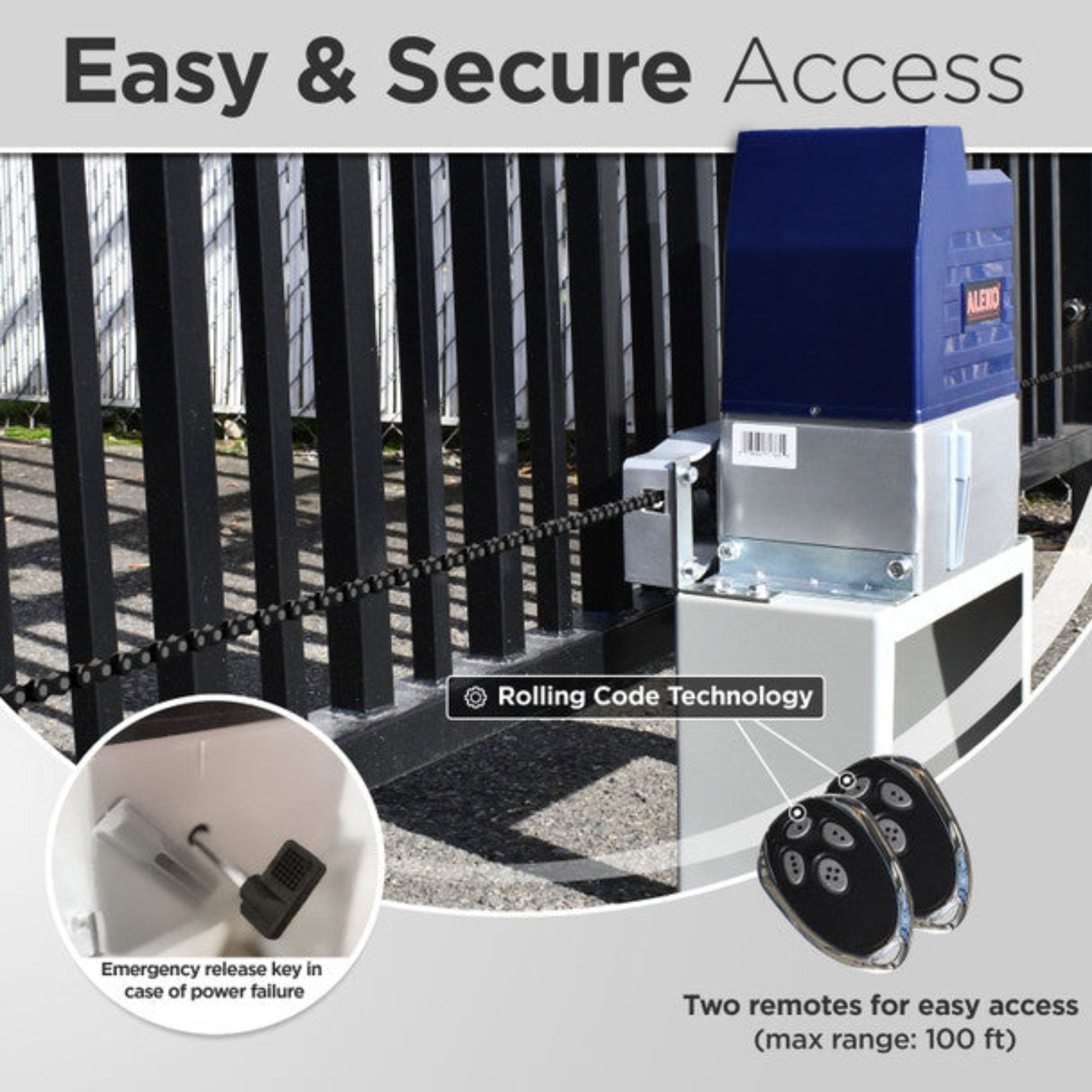

For convenient access, the system includes a built-in radio receiver and two remote controls. User-programmable and erasable remote codes, combined with RF hopping-code technology, help protect the gate from unauthorized remote access.

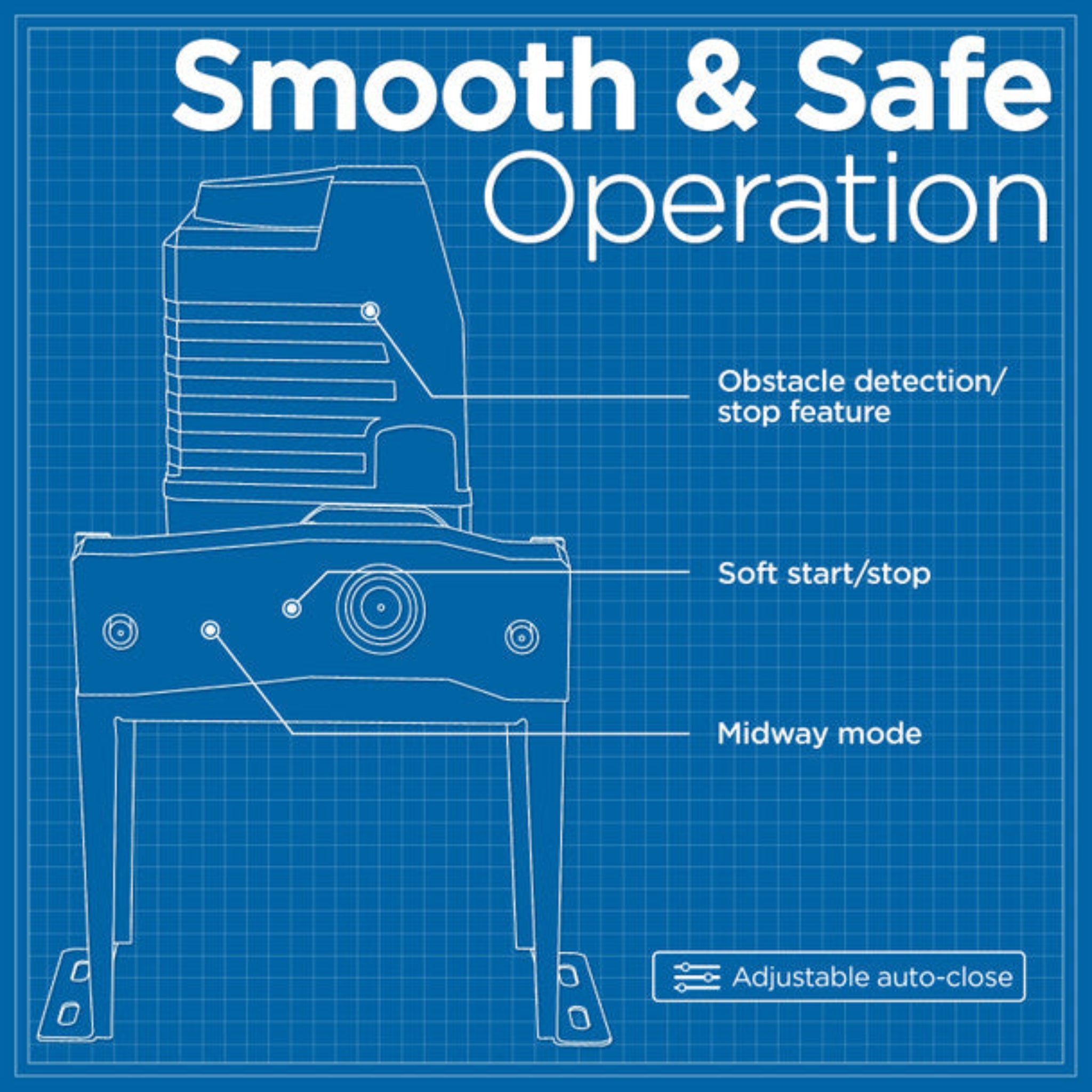

The opener also features automatic closing, pedestrian mode, manual emergency release, and obstruction protection. It stops and reverses when an obstruction is detected while closing and stops when an obstruction is detected while opening. The motor and drive system are immersed in lubricating oil to help reduce noise and extend transmission life.

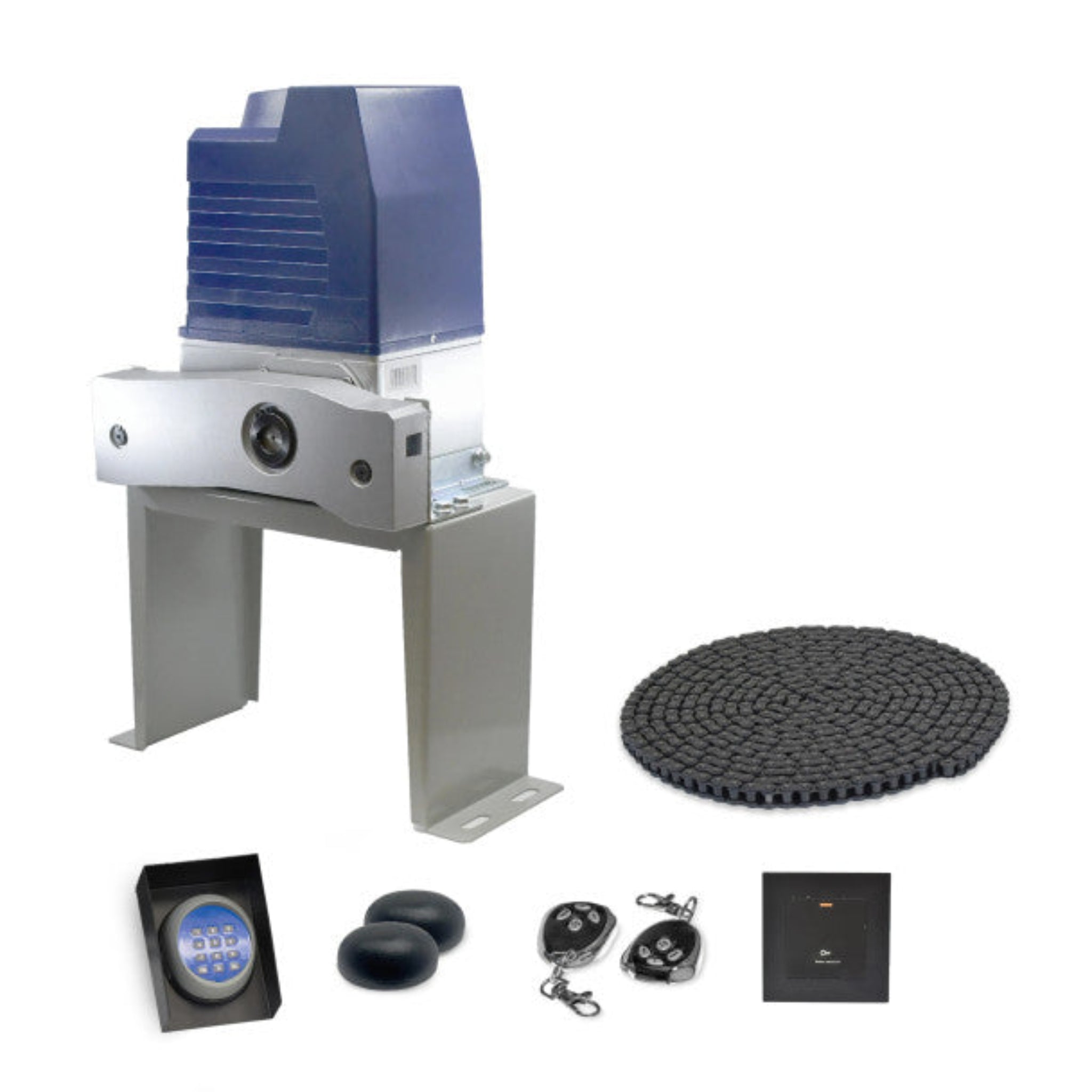

Package Includes
- (1) AC2000 Sliding Gate Opener
- (2) Remote Controls
- (1) 20-ft. Chain
- Chain mounting hardware
- Built-in radio receiver
Key Features
- Designed for sliding gates
- Supports gates up to 2,600 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply
- 2 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation
- Chain-driven design
- 20 ft. chain included
- Built-in radio receiver
- Two remote controls included
- User-programmable and erasable remote codes
- RF hopping-code technology
- Automatic close function
- Pedestrian mode
- Manual key release for emergencies
- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
- Control panel interface for photocells, loop detector, IC card reader, and alarm lamp
- Oil-immersed motor and drive system for reduced noise and improved transmission life
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Accessory Kit |
| Model | AC2000ACC |
| SKU | AC2000ACC-AP |
| MPN | AC2000NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 2,600 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor Power | 2 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–100 seconds |
| Drive Type | Chain Driven |
| Chain Included | Yes |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Control Panel Interfaces | Photocells, Loop Detector, IC Card Reader, Alarm Lamp |
| Drive System | Oil-Immersed |
| Warranty | 1-Year Limited Warranty |
