Description

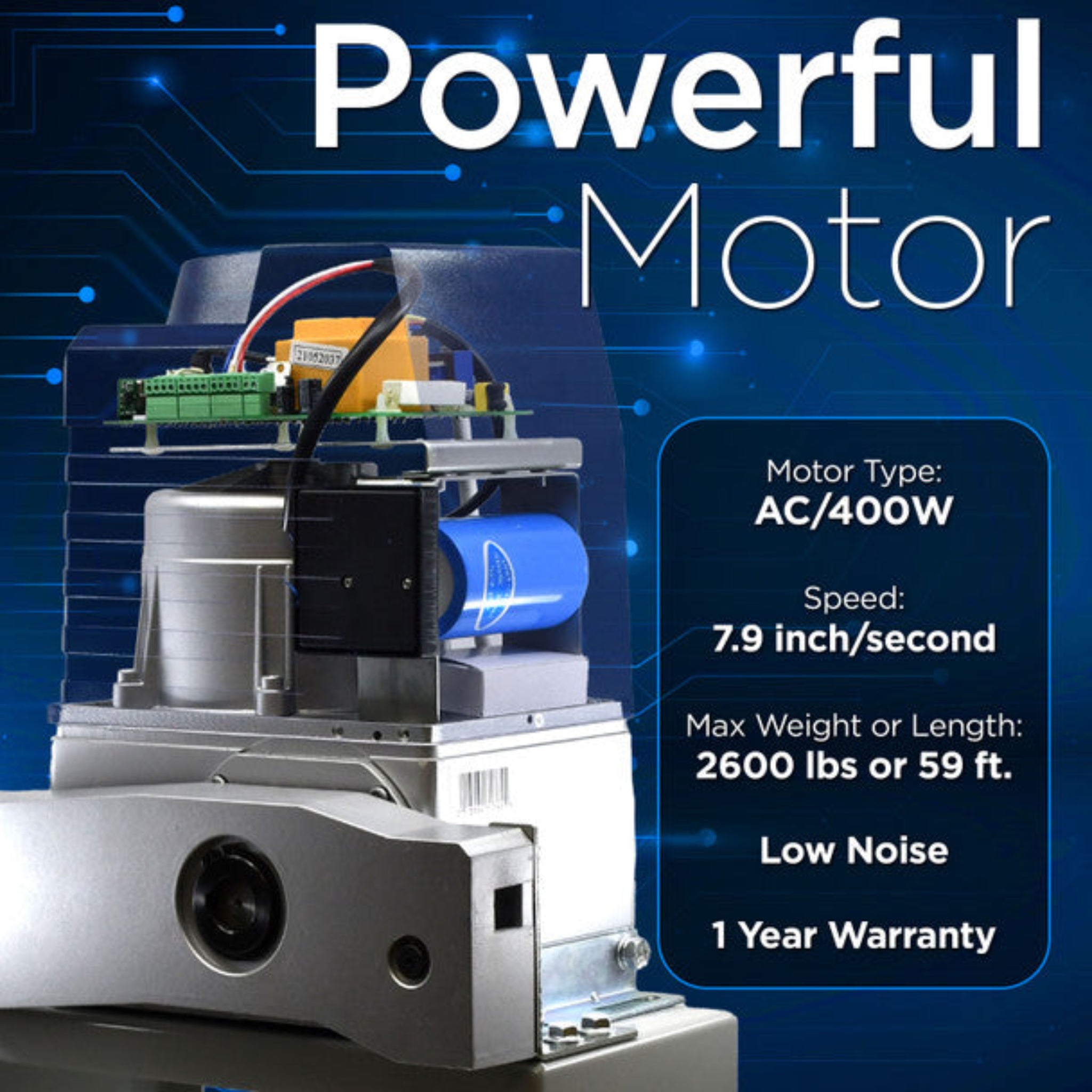

The ALEKO AC2000NOR Sliding Gate Opener Starter Kit is a heavy-duty, chain-driven automatic gate opener designed for residential, commercial, and other sliding gate applications. It features a 120V AC, 2 HP equivalent single-phase motor that provides strong starting torque and continuous operation.
The opener can operate sliding gates weighing up to 2,600 lbs. and measuring up to 59 ft. in length. A 20-ft. chain and chain mounting hardware are included, while additional chain can be added for gates longer than 20 ft.
For convenient access, the system includes a built-in radio receiver and two remote controls. Remote codes can be programmed and erased by the user, while RF hopping-code technology helps prevent unauthorized access to the remote signal.

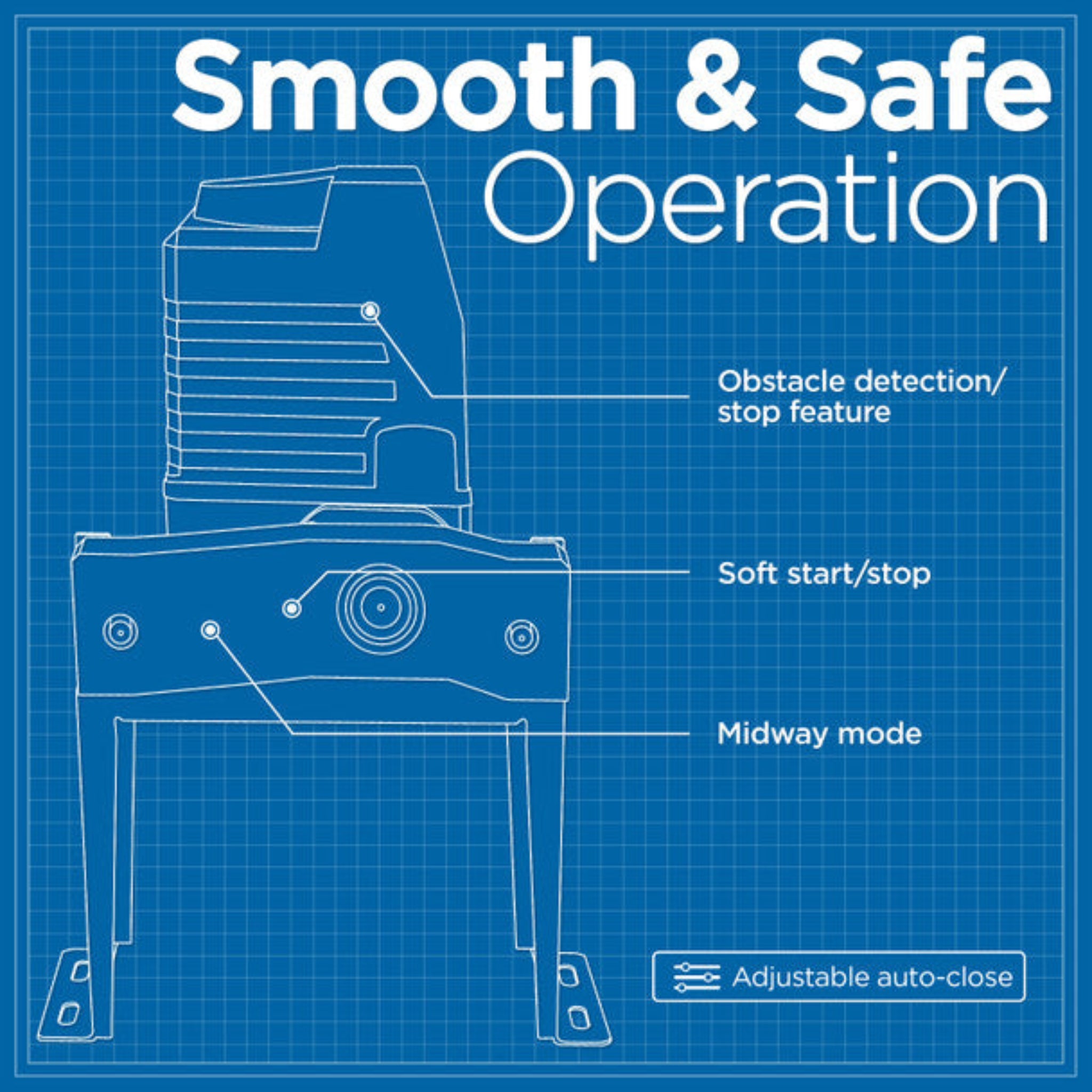

The opener also features an auto-close function, pedestrian mode, manual emergency release, and obstruction protection. It stops and reverses when an obstruction is detected while closing and stops when an obstruction is detected while opening. The motor and drive system are immersed in lubricating oil to help reduce operating noise and extend transmission life.

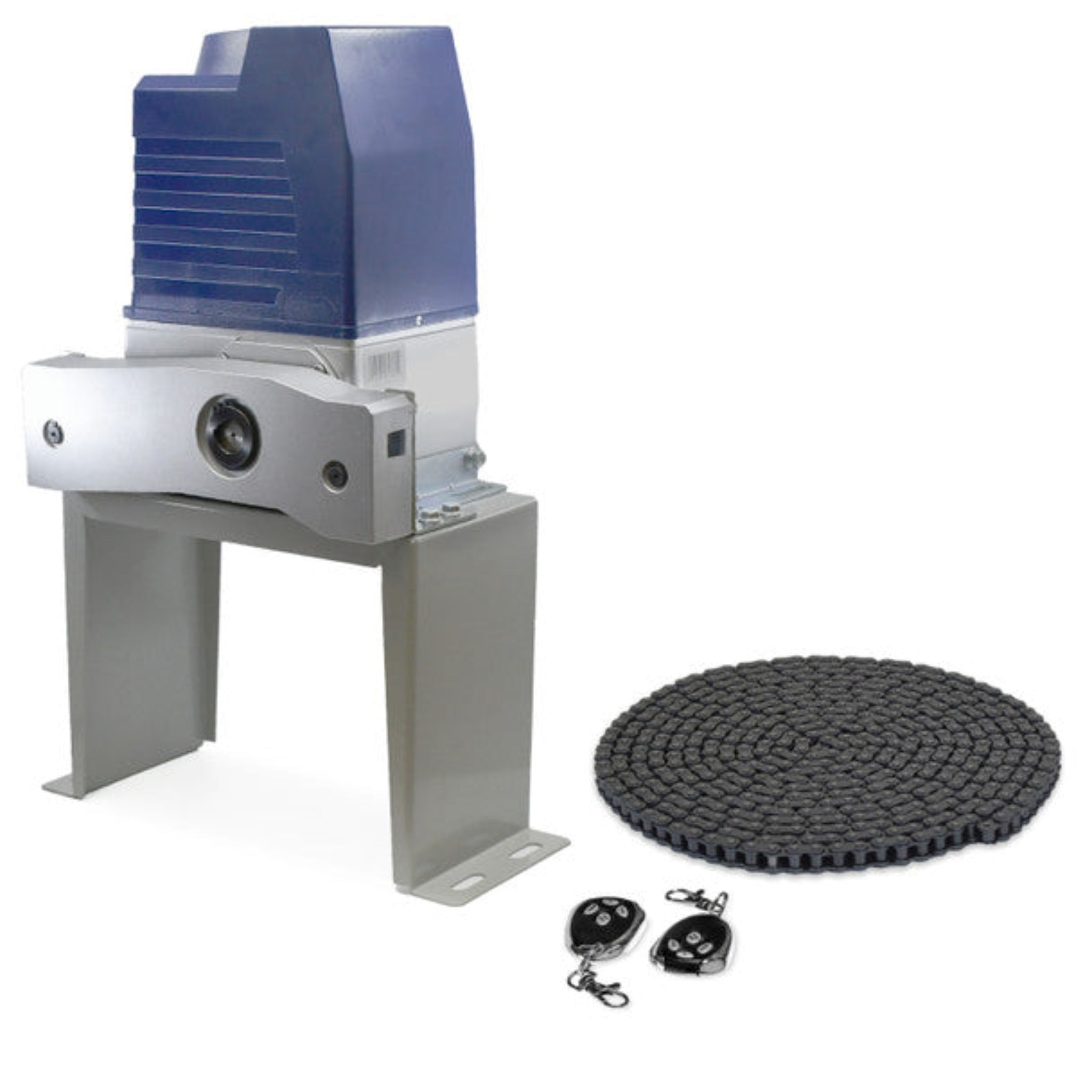

Package Includes
- (1) AC2000 Sliding Gate Opener
- (1) 20-ft. Chain
- Chain mounting hardware
- (2) Remote Controls
- Built-in Radio Receiver
- Manual Emergency Release System
Key Features
- Designed for sliding gates
- Supports gates up to 2,600 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply
- 2 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation

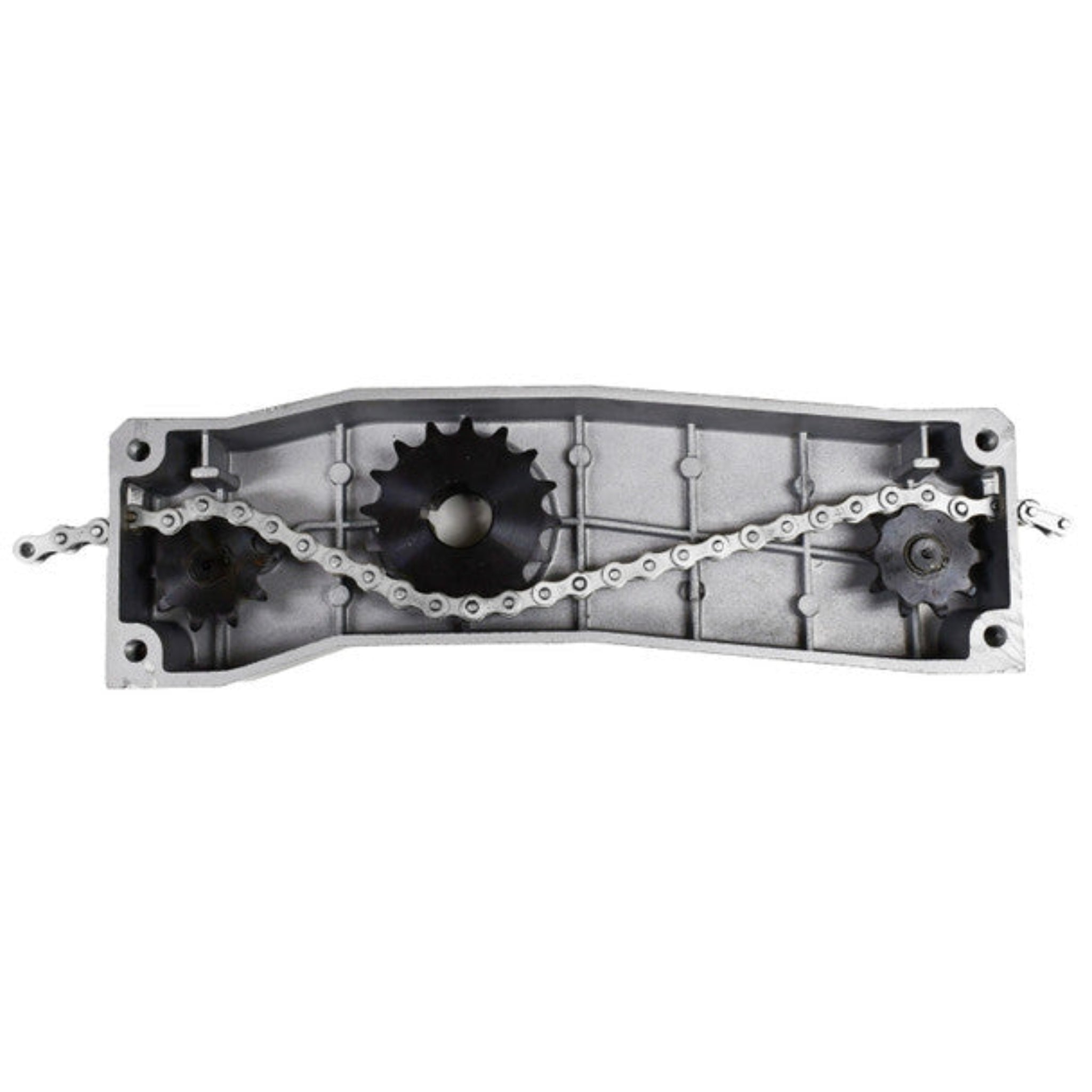

- Chain-driven design
- 20 ft. chain included
- Built-in radio receiver
- Two remote controls included
- User-programmable and erasable remote codes
- RF hopping-code technology
- Auto-close function
- Pedestrian mode
- Manual key release for emergencies
- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
- Control panel interface for photocells, loop detector, IC card reader, and alarm lamp
- Oil-immersed motor and drive system helps reduce noise and extend transmission life
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Starter Kit |
| Model | AC2000NOR |
| SKU | AC2000NOR-AP |
| MPN | AC2000NOR |
| UPC | 013964717655 |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 2,600 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor Power | 2 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–100 seconds |
| Drive Type | Chain Driven |
| Chain Included | Yes |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Control Panel Interfaces | Photocells, Loop Detector, IC Card Reader, Alarm Lamp |
| Drive System | Oil-Immersed |
| Operation | Continuous |
| Warranty | 1-Year Limited Warranty |
