Description
The ALEKO AC2700ACC Sliding Gate Opener Accessory Kit is designed to automate heavy-duty sliding gates for residential, commercial, and other applications. Its powerful 2 HP equivalent, 120V AC single-phase motor supports gates weighing up to 3,400 lbs. or measuring up to 40 ft. in length, providing reliable and convenient gate operation.
The system includes a 20 ft. chain, two 433 MHz remote controls, a wired push button, photocell sensors, and a wireless keypad with backlight. The built-in radio receiver supports programmable and erasable remote codes, while RF hopping-code technology helps prevent unauthorized access.

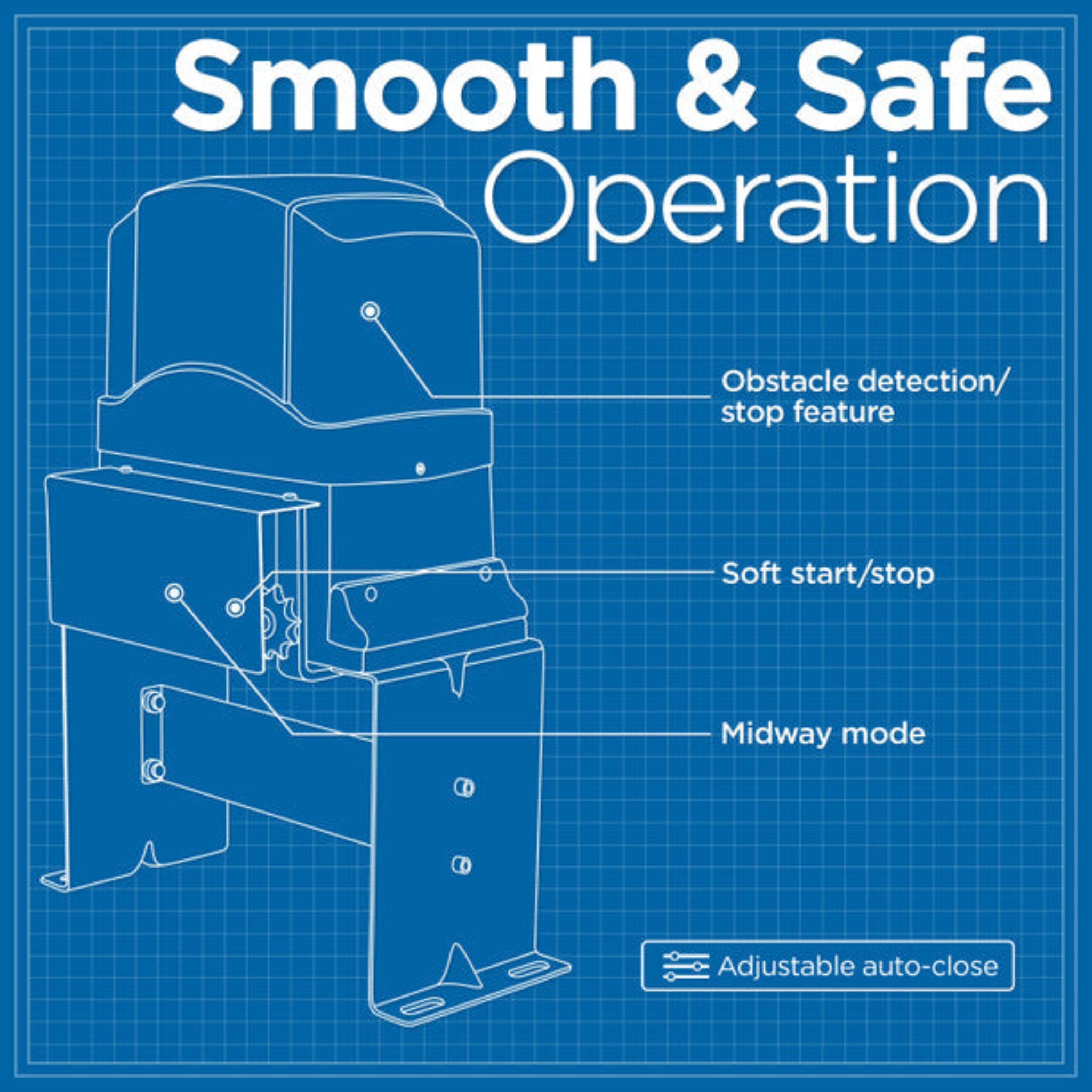

For added convenience and security, the opener features adjustable automatic closing, pedestrian mode, manual emergency release, and stop/reverse protection when an obstruction is detected. A built-in 90-second maximum motor running-time protection provides an additional safety measure.

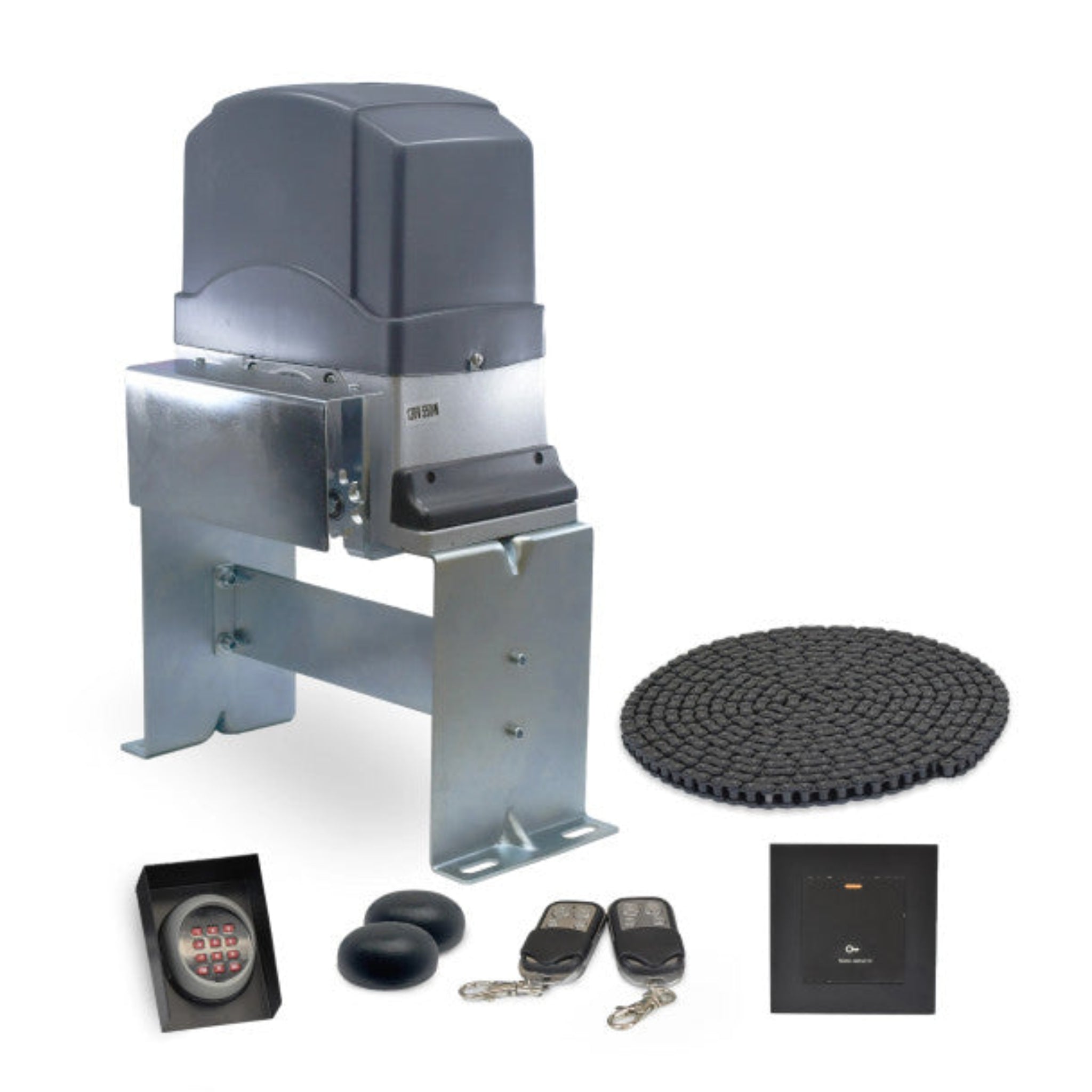

Package Includes
- (1) AC2700NOR Sliding Gate Opener
- (1) 20-ft. Chain
- (2) 433 MHz Remote Controls
- (1) Wired Push Button
- (2) Photocell Sensors
- (1) Wireless Keypad with Backlight
- (1) Metal Keypad Cover
- (2) Emergency Release Keys
- (1) Set of Assembly Hardware
- (2) 8.5 × 11 in. Warning Signs
Key Features
- Designed for sliding gates
- Supports gates up to 3,400 lbs.
- Supports gates up to 40 ft. in length
- Powerful 2 HP equivalent motor
- 120V AC power supply
- Single-phase motor
- Easy installation
- Built-in radio receiver
- Two 433 MHz remote controls
- User-programmable and erasable remote codes
- RF hopping-code technology
- Adjustable auto-close: 0, 30, 60, or 90 seconds
- Operating time of 0–44 seconds
- Stop/reverse protection when an obstruction is detected
- Built-in 90-second maximum motor running time
- Manual key release for emergencies
- Pedestrian mode
- 20 ft. chain included
- Wireless keypad with backlight
- Wired push button
- Photocell safety sensors
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Accessory Kit |
| Model | AC2700ACC |
| SKU | AC2700ACC-AP |
| MPN | AC2700NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 3,400 lbs. |
| Maximum Gate Length | 40 ft. |
| Motor Power | 2 HP Equivalent |
| Motor Type | Single Phase |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Maximum Motor Running Time | 90 seconds |
| Chain Included | Yes |
| Chain Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Frequency | 433 MHz |
| Remote Controls | 2 Included |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | 0, 30, 60, or 90 seconds |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse |
| Emergency Release | Manual Key Release |
| Wireless Keypad | Yes, with Backlight |
| Wired Push Button | Yes |
| Photocell Sensors | 2 Included |
| Warranty | 1-Year Limited Warranty |
