Description

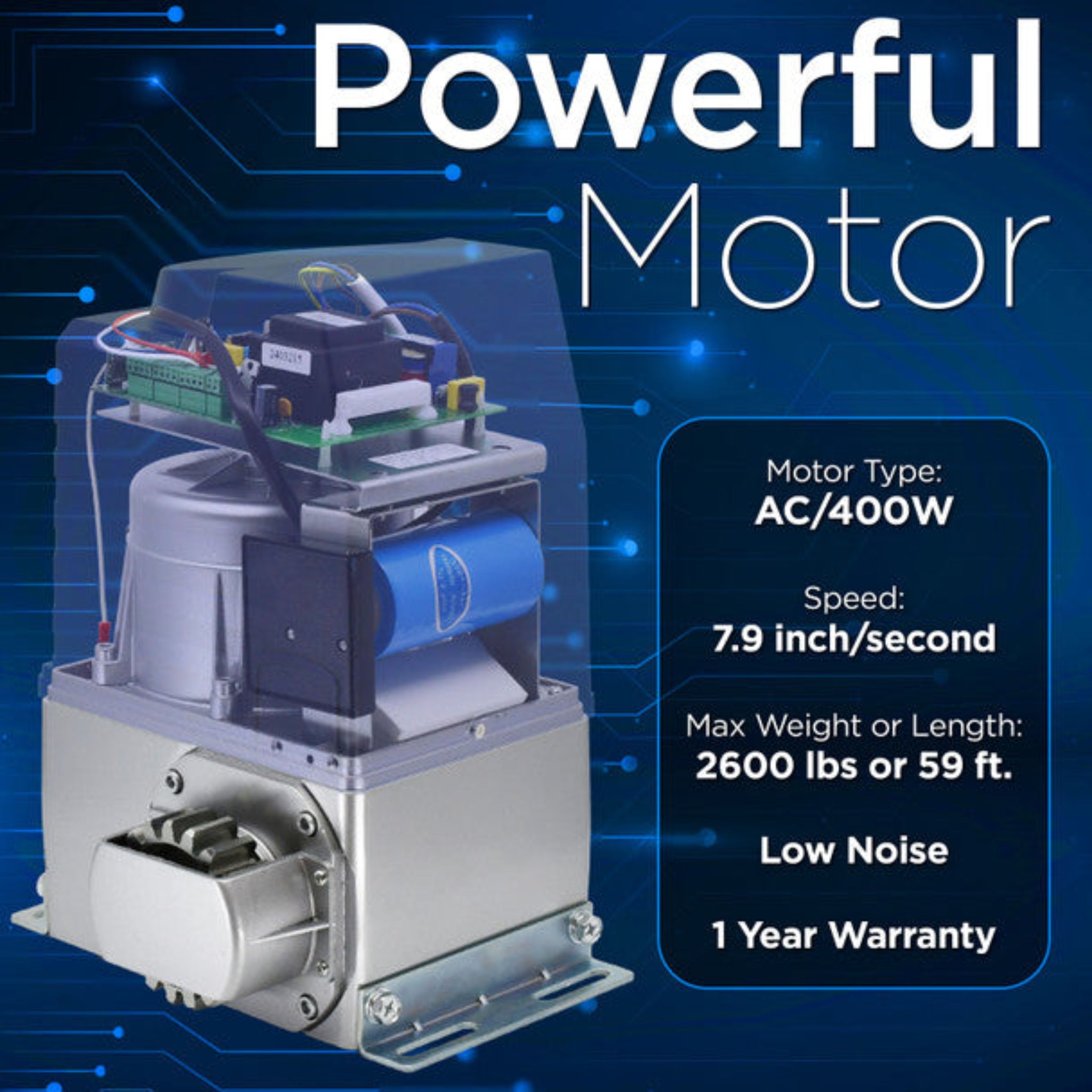

The ALEKO AR2000ACC Sliding Gate Opener Accessory Kit is designed for automating heavy-duty sliding gates in residential, commercial, and industrial applications. The system features a 120V AC, single-phase motor with the equivalent of 2 HP, delivering strong starting torque and continuous operation.
The opener supports sliding gates weighing up to 2,600 lbs. and measuring up to 59 ft. in length. Its aluminum alloy chassis is corrosion-resistant and lightweight enough for installation by one person. The included 20 ft. of gear rack provides the necessary track for many installations.

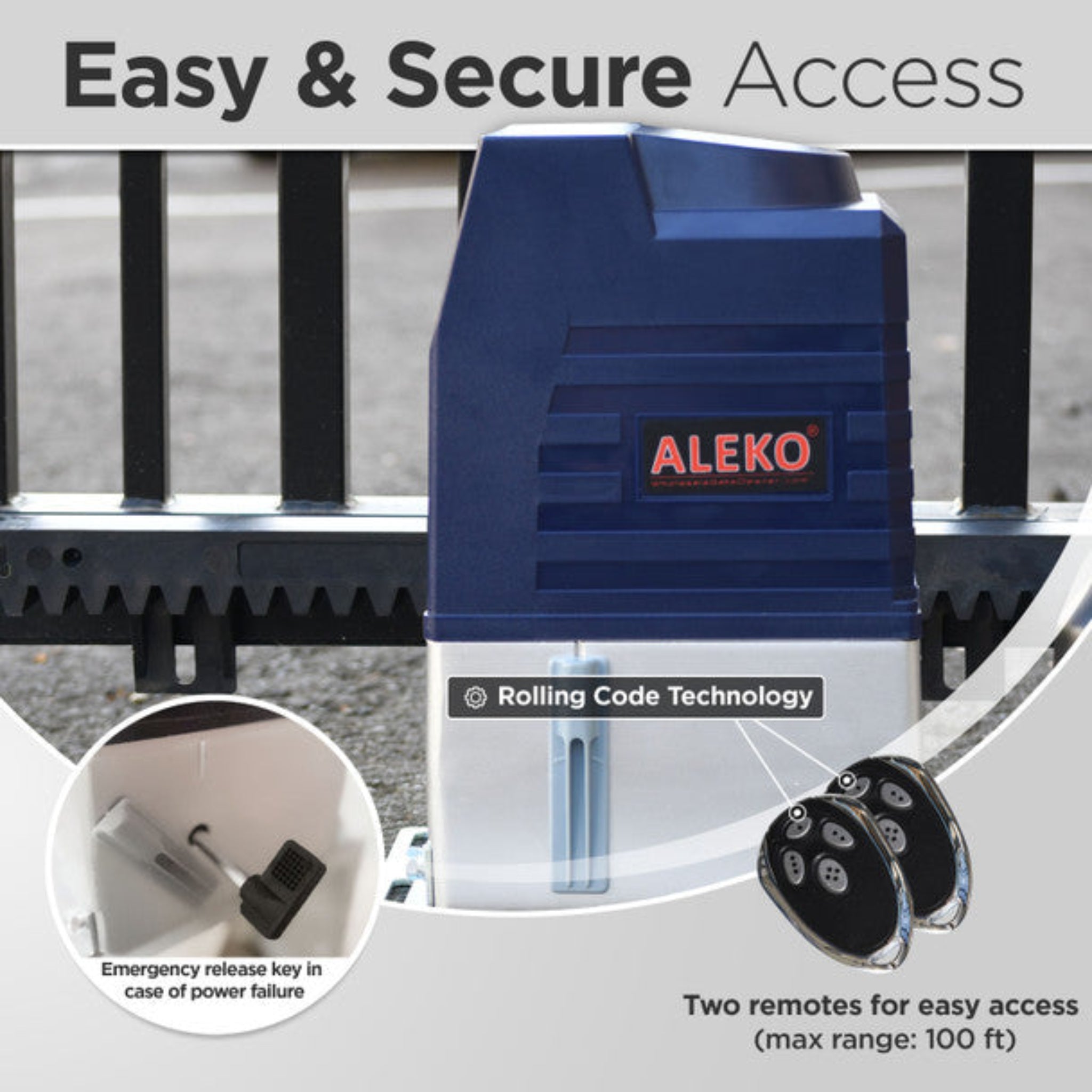

An integrated radio receiver supports up to 100 remote controls, while RF hopping-code technology helps prevent unauthorized access to remote codes. Additional features include automatic closing, pedestrian mode, manual emergency release, and obstruction detection that stops and reverses the gate when an obstacle is encountered while closing.

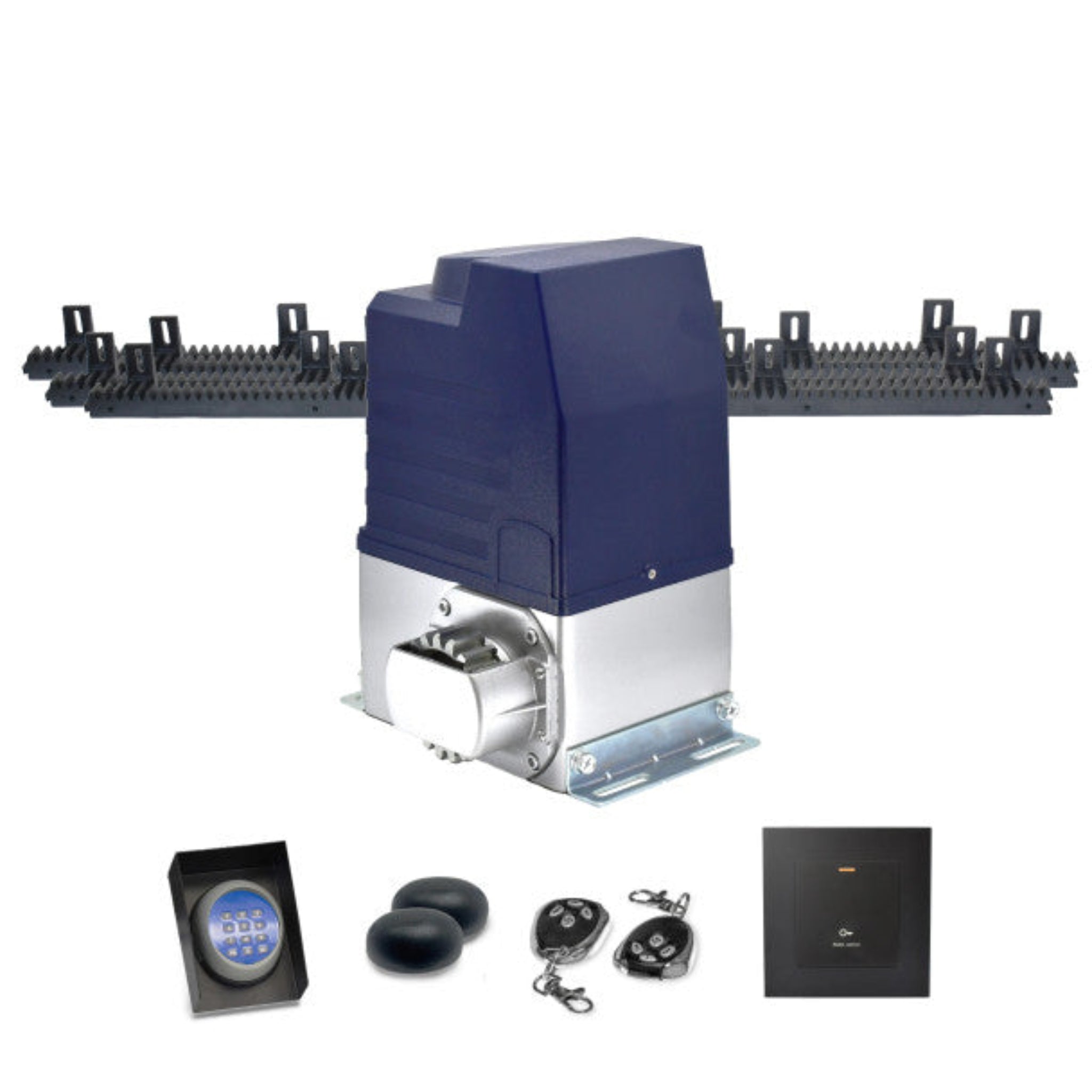

Package Includes
- (1) AR2050 sliding gate opener

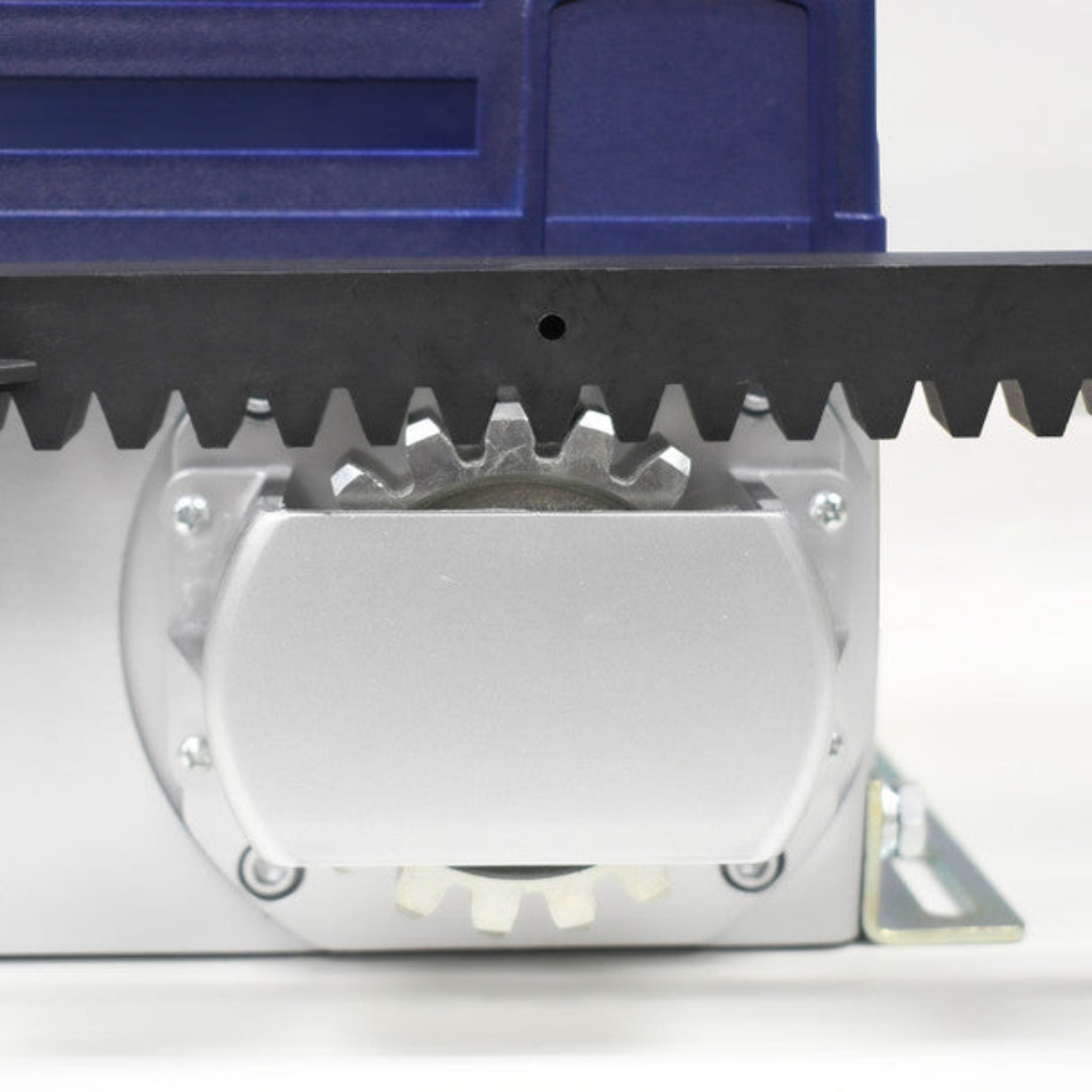

- (6) Gear rack sections
- 3.3 ft. each, totaling 20 ft. of gear rack
- Built-in radio receiver
- Remote controls
- Mounting hardware
Key Features
- Designed for sliding gates
- Supports gates up to 2,600 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply
- 2 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous-duty operation

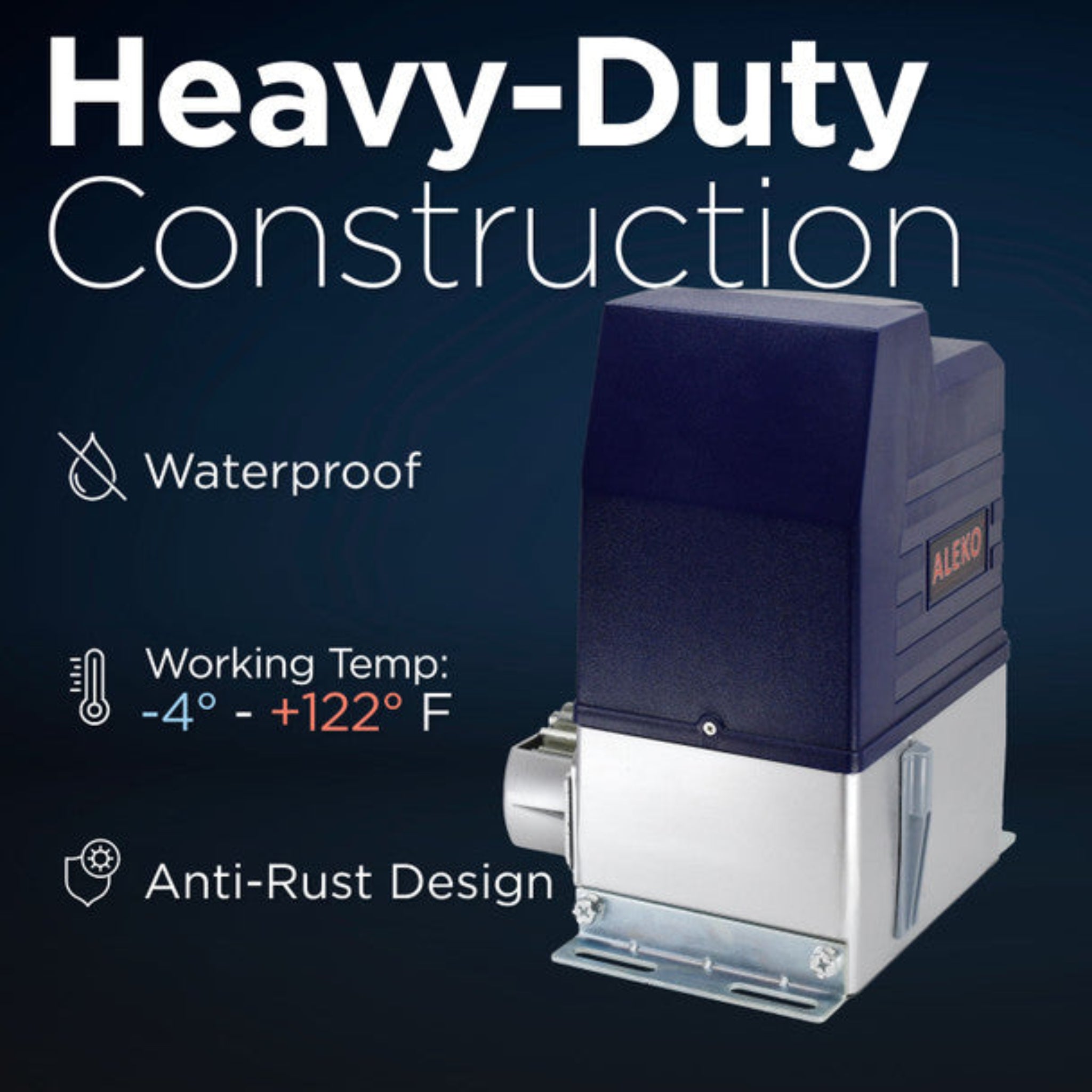

- Aluminum alloy chassis
- Corrosion-resistant construction
- Built-in radio receiver
- Supports up to 100 remotes
- User-programmable and erasable remote codes
- RF hopping-code technology
- Automatic close function
- Pedestrian mode
- Manual key release for emergencies

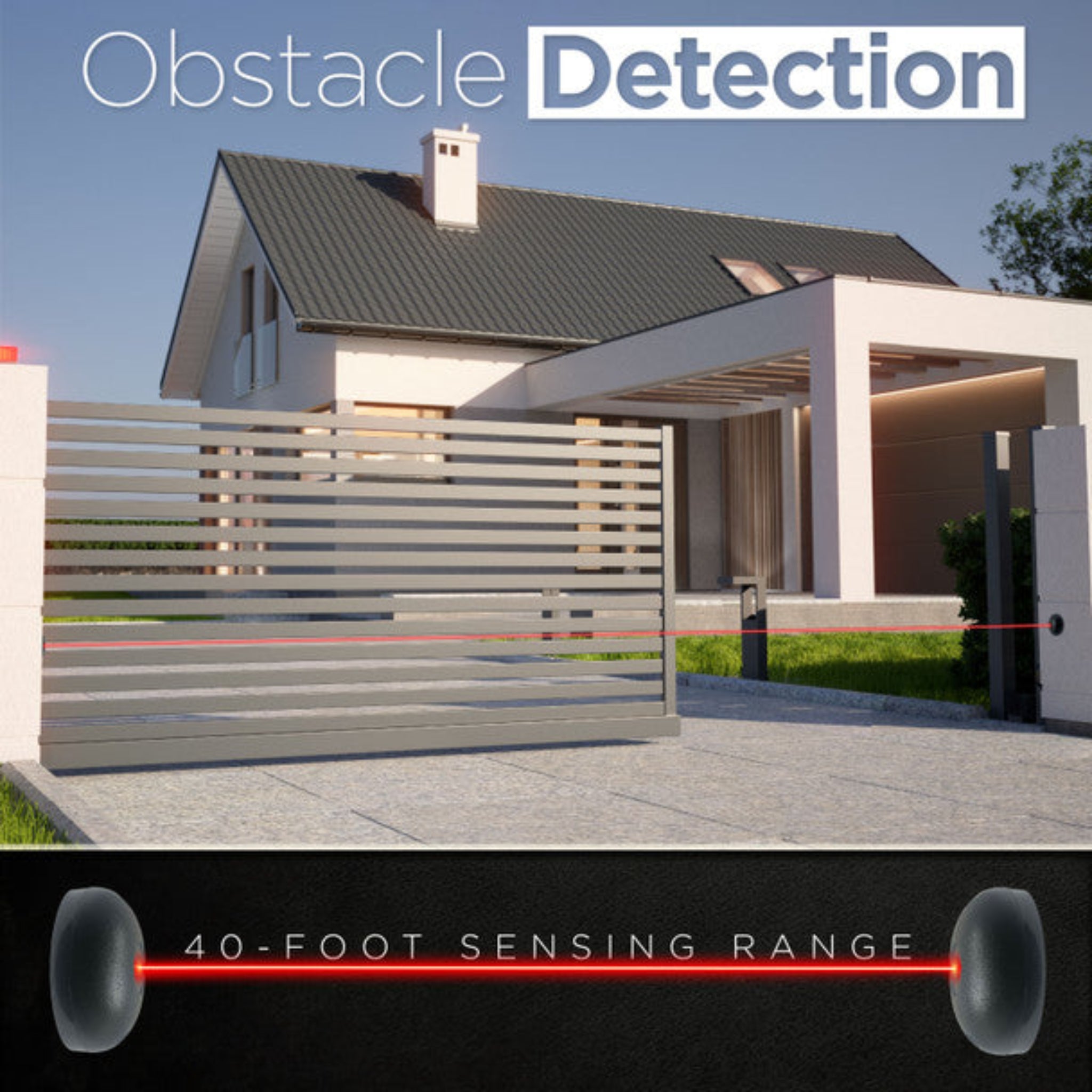

- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
- Oil-immersed motor and drive system for reduced noise and extended transmission life
- Includes 20 ft. of gear rack
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Accessory Kit |
| Model | AR2000ACC |
| SKU | AR2000ACC-AP |
| MPN | AR2000NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 2,600 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor | Single Phase |
| Motor Power | 2 HP Equivalent |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Gear Rack Included | Yes |
| Gear Rack Quantity | 6 sections |
| Gear Rack Length | 3.3 ft. each |
| Total Gear Rack Length | 20 ft. |
| Remote Capacity | Up to 100 remotes |
| Remote Code | User Programmable & Erasable |
| Radio Receiver | Built-In |
| Security Technology | RF Hopping Code |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Chassis Material | Aluminum Alloy |
| Drive System | Oil-Immersed |
| Installation | Suitable for One-Person Installation |
| Warranty | 1-Year Limited Warranty |
