Description

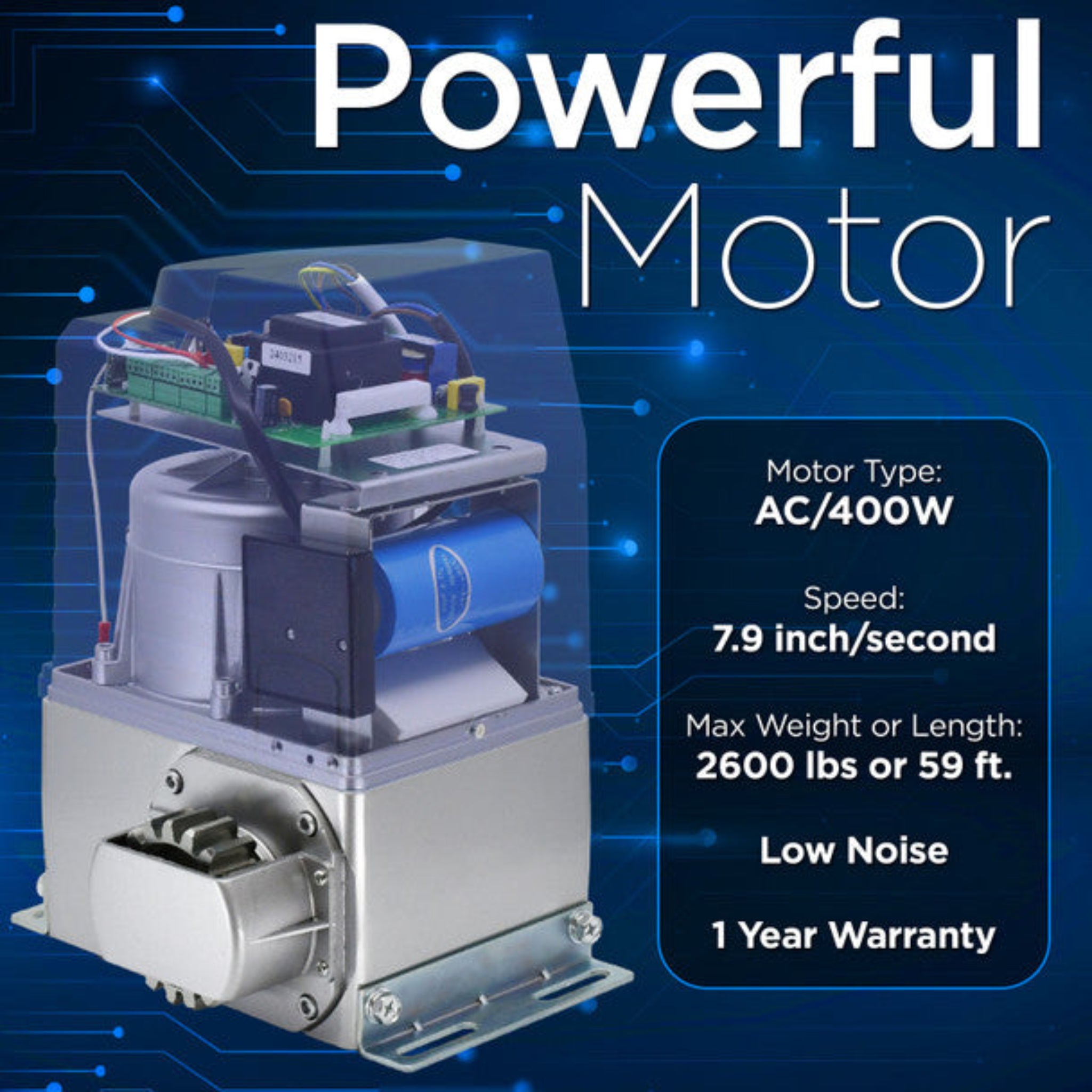

The ALEKO AR2000NOR Sliding Gate Opener Starter Kit is a heavy-duty automatic opener designed for residential, commercial, and other sliding gate applications. It features a 120V AC, single-phase motor with 2 HP equivalent power, providing strong starting torque and continuous operation.
The opener supports sliding gates weighing up to 2,600 lbs. and measuring up to 59 ft. in length. Its corrosion-resistant aluminum alloy chassis keeps the unit durable while remaining lightweight enough for one person to carry and install. The kit includes 20 ft. of gear rack, supplied as six 3.3 ft. sections.

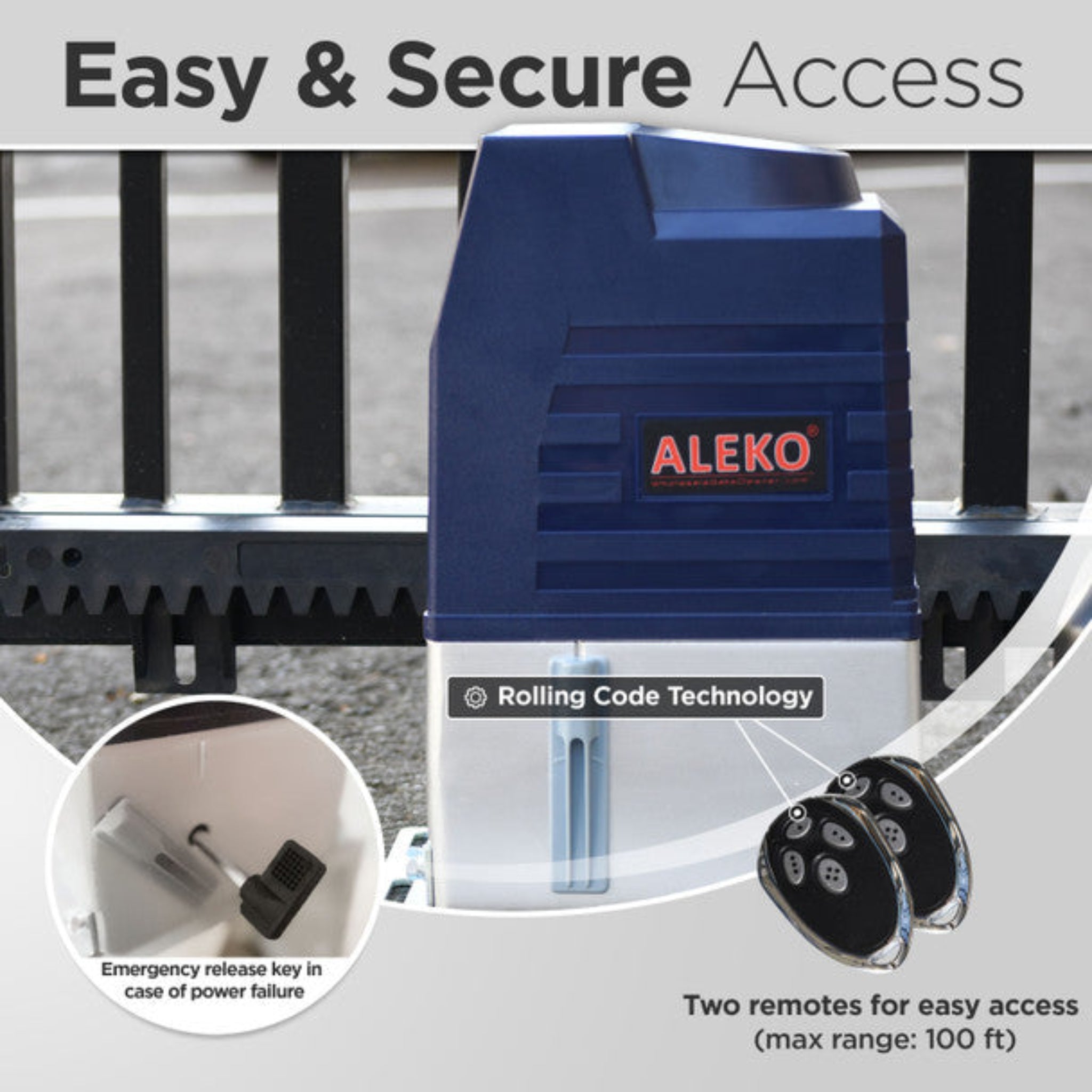

A built-in radio receiver supports up to 100 remotes, with user-programmable and erasable remote codes. RF hopping-code technology helps protect against unauthorized access to remote signals. The system also provides automatic closing, pedestrian mode, manual emergency release, and obstruction protection.
The motor and drive system are immersed in lubricating oil to help reduce operating noise and extend transmission life. The opener operates on 120V AC with an operating time of 0–44 seconds.

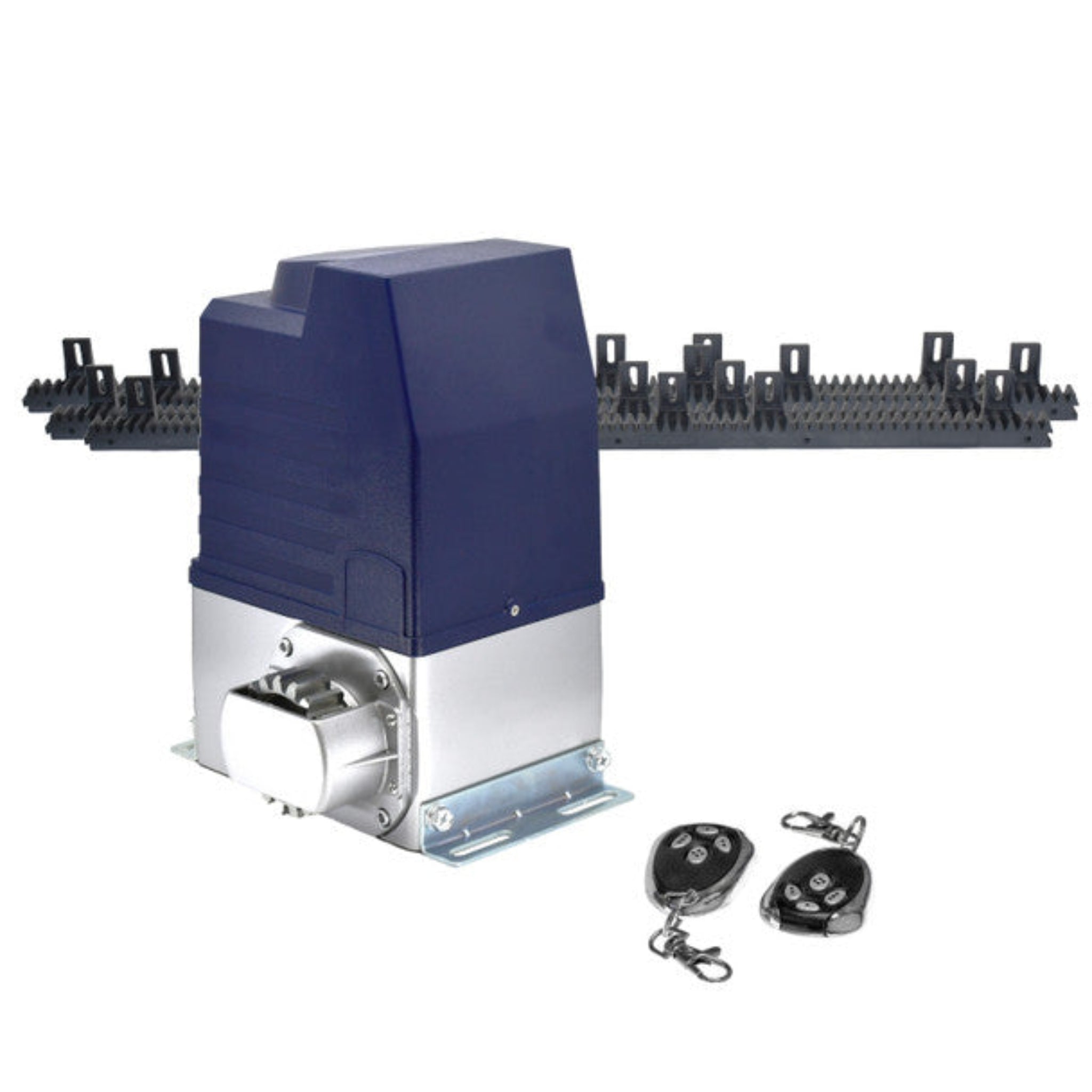

Package Includes
- (1) AR2050 Sliding Gate Opener

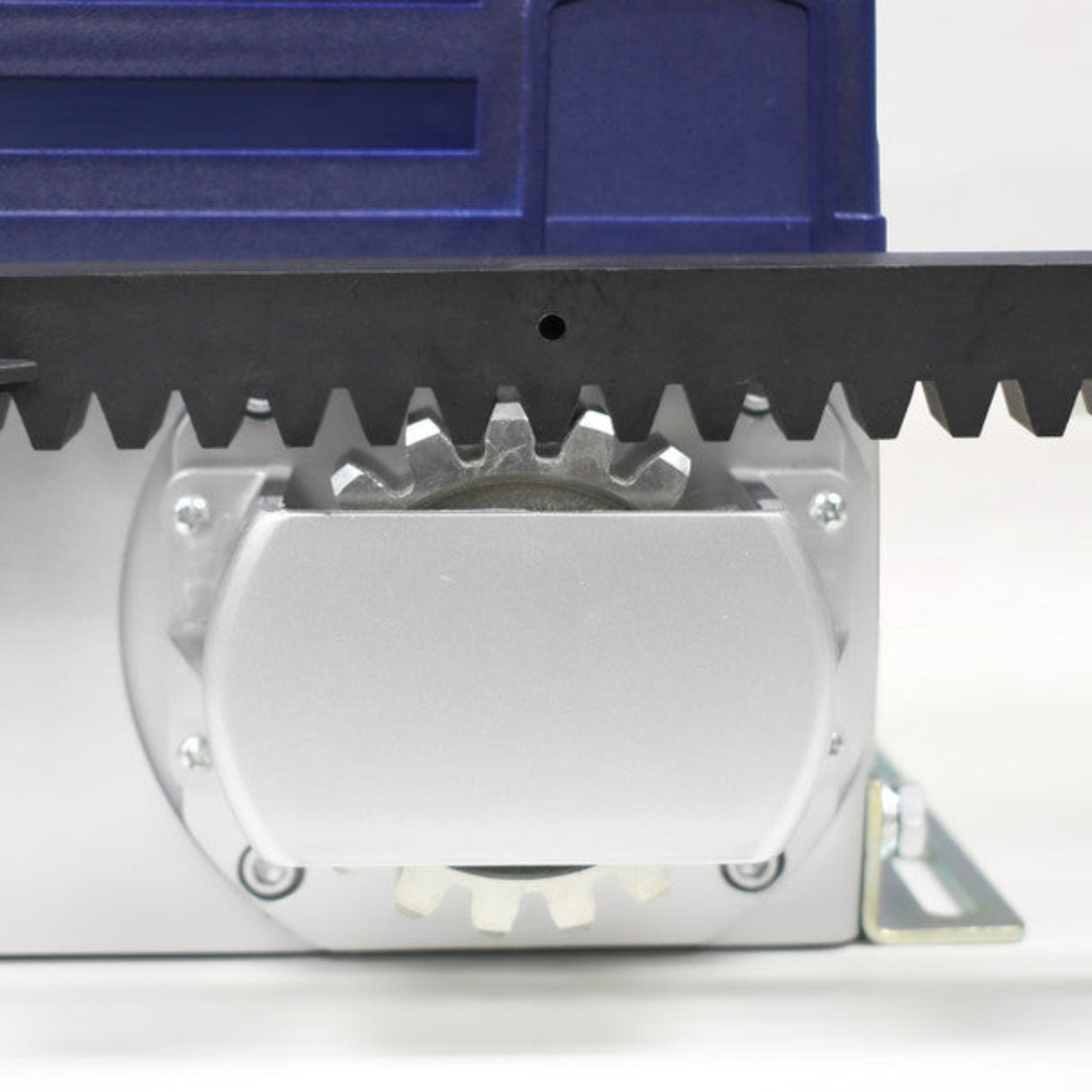

- (6) Gear rack sections
- 3.3 ft. each, totaling 20 ft. of gear rack
- Built-in radio receiver
- Remote controls
- Mounting hardware
Key Features
- Designed for sliding gates
- Supports gates up to 2,600 lbs.
- Supports gates up to 59 ft. in length
- 120V AC power supply
- 2 HP equivalent motor
- Single-phase motor
- Strong starting torque
- Continuous operation

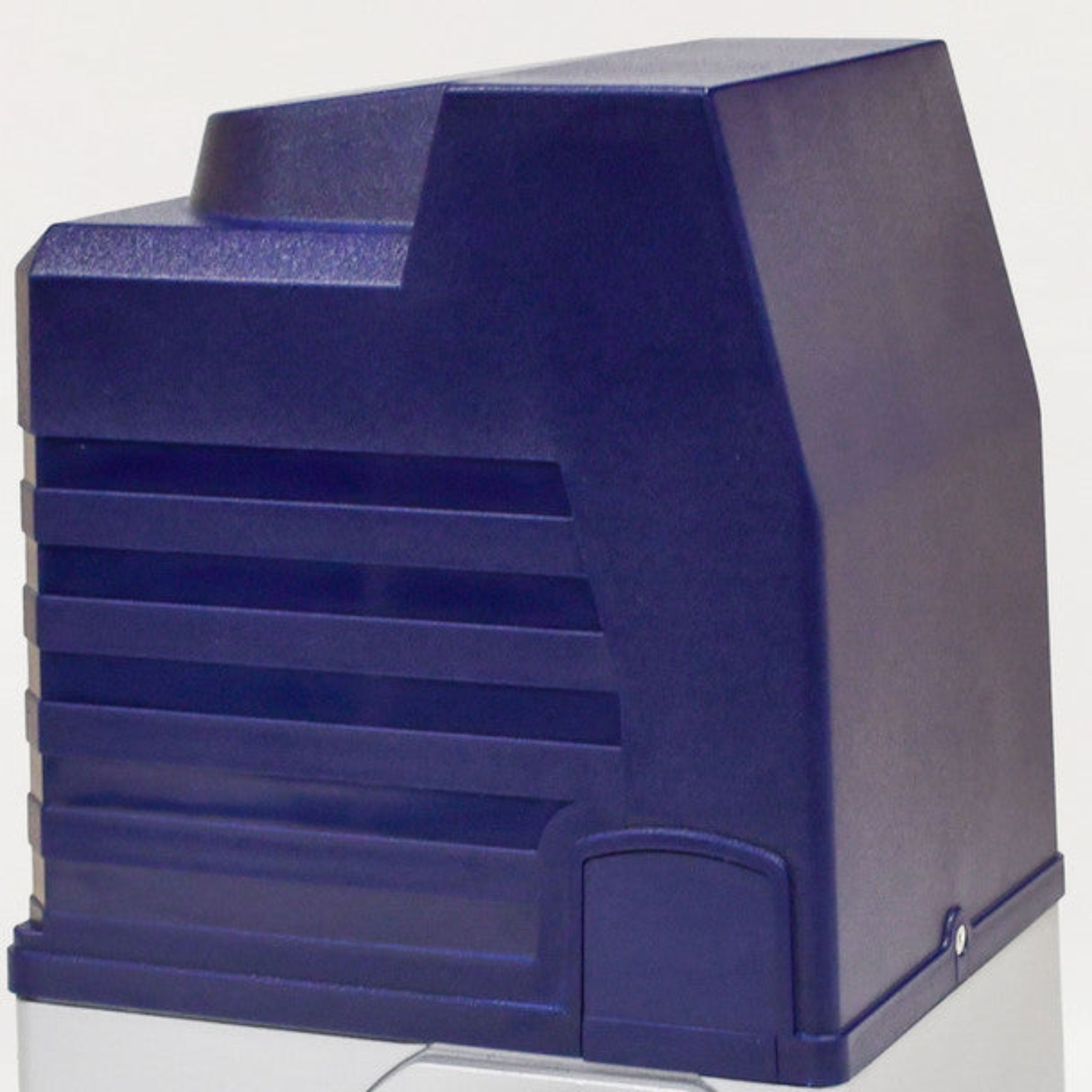

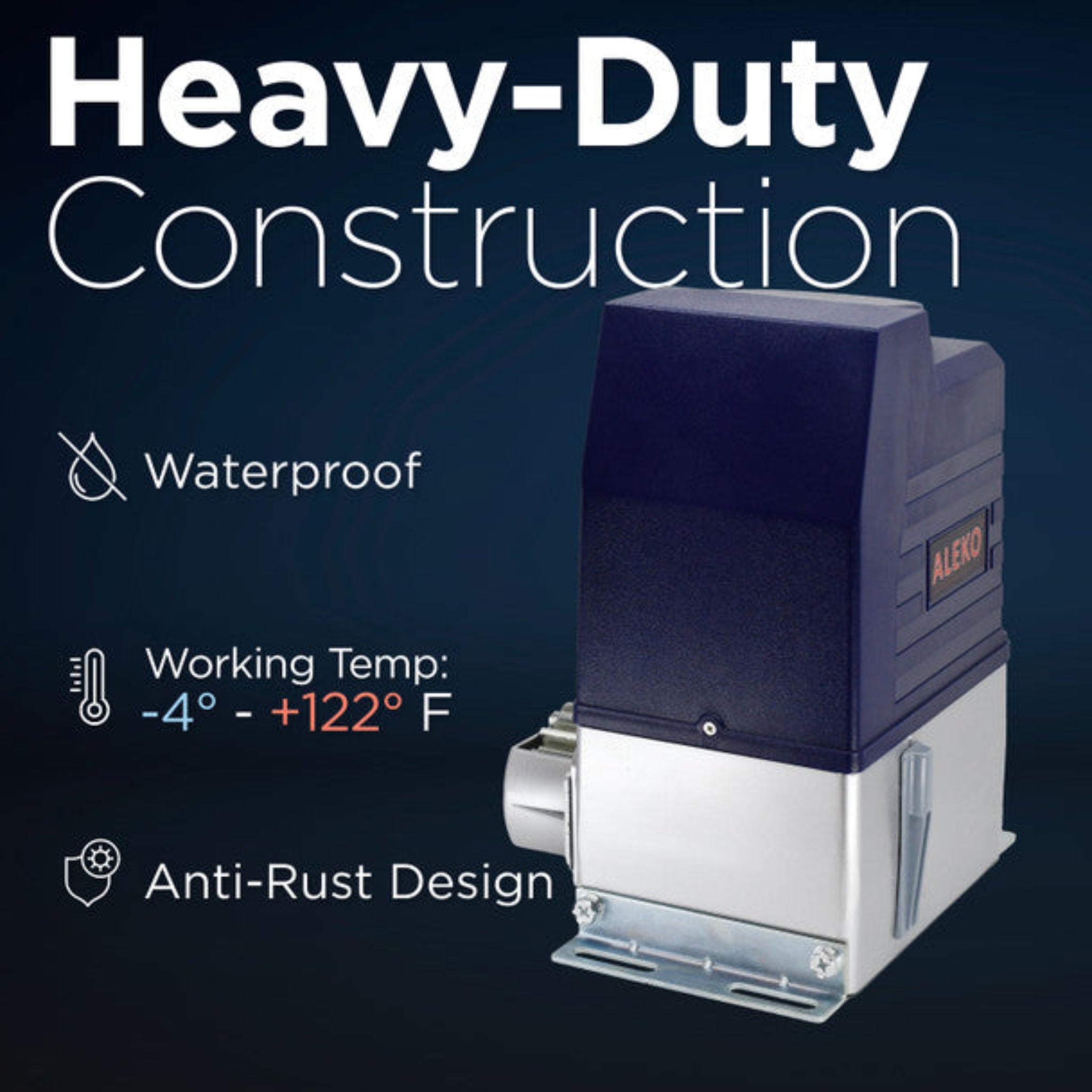

- Corrosion-resistant aluminum alloy chassis
- Lightweight design for easier installation
- Built-in radio receiver
- Supports up to 100 remotes
- User-programmable and erasable remote codes
- RF hopping-code technology
- Automatic close function
- Pedestrian mode
- Manual key release for emergencies
- Stop-and-reverse protection when an obstruction is detected while closing
- Stops when an obstruction is detected while opening
- Oil-immersed motor and drive system
- 20 ft. gear rack included
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Sliding Gate Opener Starter Kit |
| Model | AR2000NOR |
| SKU | AR2000NOR-AP |
| MPN | AR2000NOR |
| Gate Type | Sliding Gate |
| Maximum Gate Weight | 2,600 lbs. |
| Maximum Gate Length | 59 ft. |
| Motor Type | Single Phase |
| Motor Power | 2 HP Equivalent |
| Power Supply | 120V AC |
| Operating Time | 0–44 seconds |
| Gear Rack Included | Yes |
| Gear Rack Quantity | 6 sections |
| Gear Rack Length | 3.3 ft. each |
| Total Gear Rack Length | 20 ft. |
| Radio Receiver | Built-In |
| Remote Capacity | Up to 100 remotes |
| Remote Codes | User Programmable & Erasable |
| Security Technology | RF Hopping Code |
| Auto-Close | Yes |
| Pedestrian Mode | Yes |
| Obstruction Protection | Stop & Reverse on Closing; Stop on Opening |
| Emergency Release | Manual Key Release |
| Chassis Material | Aluminum Alloy |
| Drive System | Oil-Immersed |
| Operation | Continuous |
| Warranty | 1-Year Limited Warranty |
