Description
The ALEKO Smart Dual Swing Gate Operator AS1200 Accessory Kit ACC5 combines automatic gate operation with smart-home connectivity, allowing convenient control from iOS and Android devices. It can also integrate with smart home systems for remote gate management.
Designed for residential and commercial properties, the 160W opener supports dual swing gates up to 36 ft. wide or 1,760 lbs. total, with a maximum of 18 ft. or 880 lbs. per gate panel. The system provides smooth and quiet operation while offering multiple access options through remote controls, a wireless keypad, and smart device control.
Safety features include automatic stop-and-reverse functionality when an obstruction is detected, photocell sensors for obstacle detection, programmable auto-close, and emergency release keys. The unit is also solar compatible, with solar panels and batteries available separately.

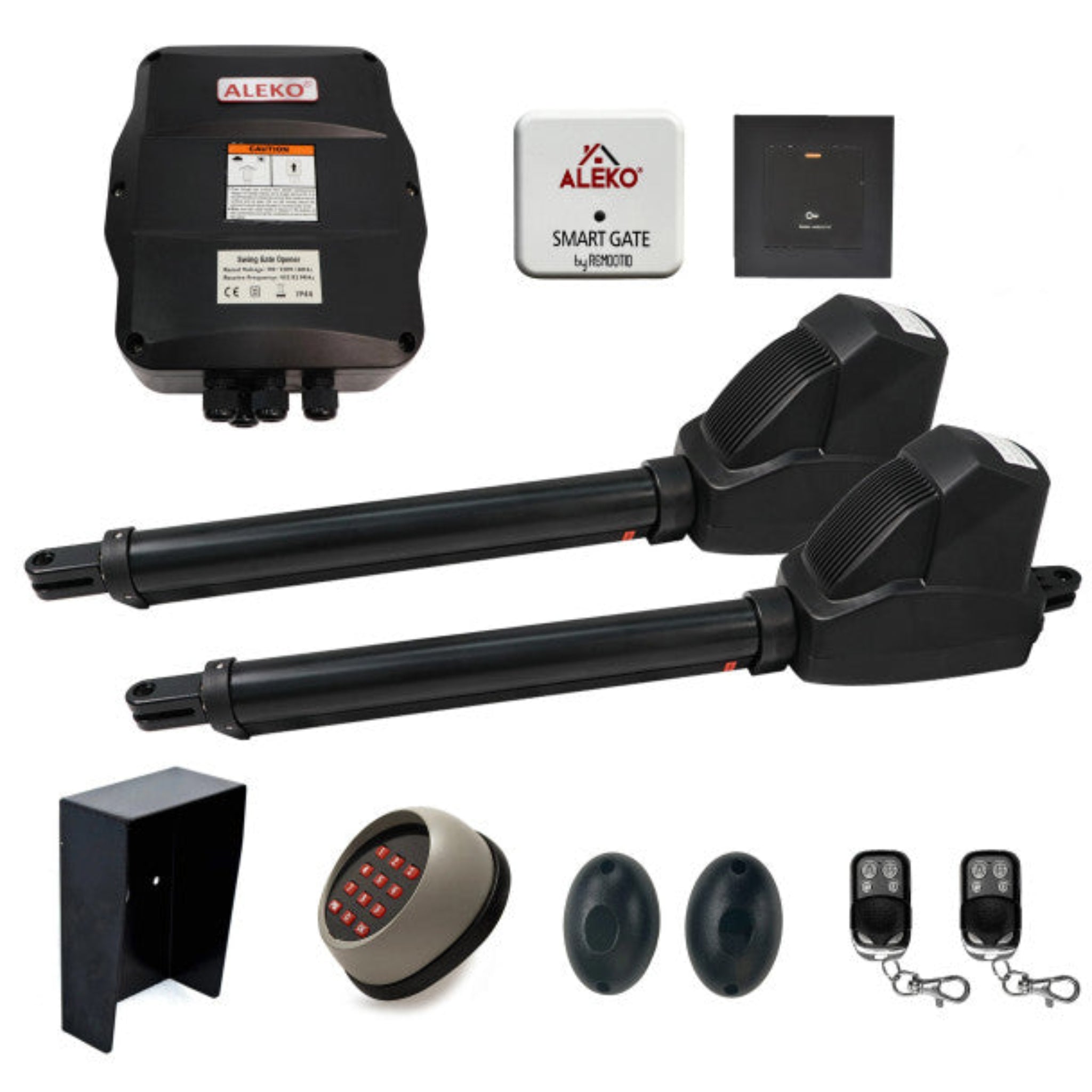

Package Includes

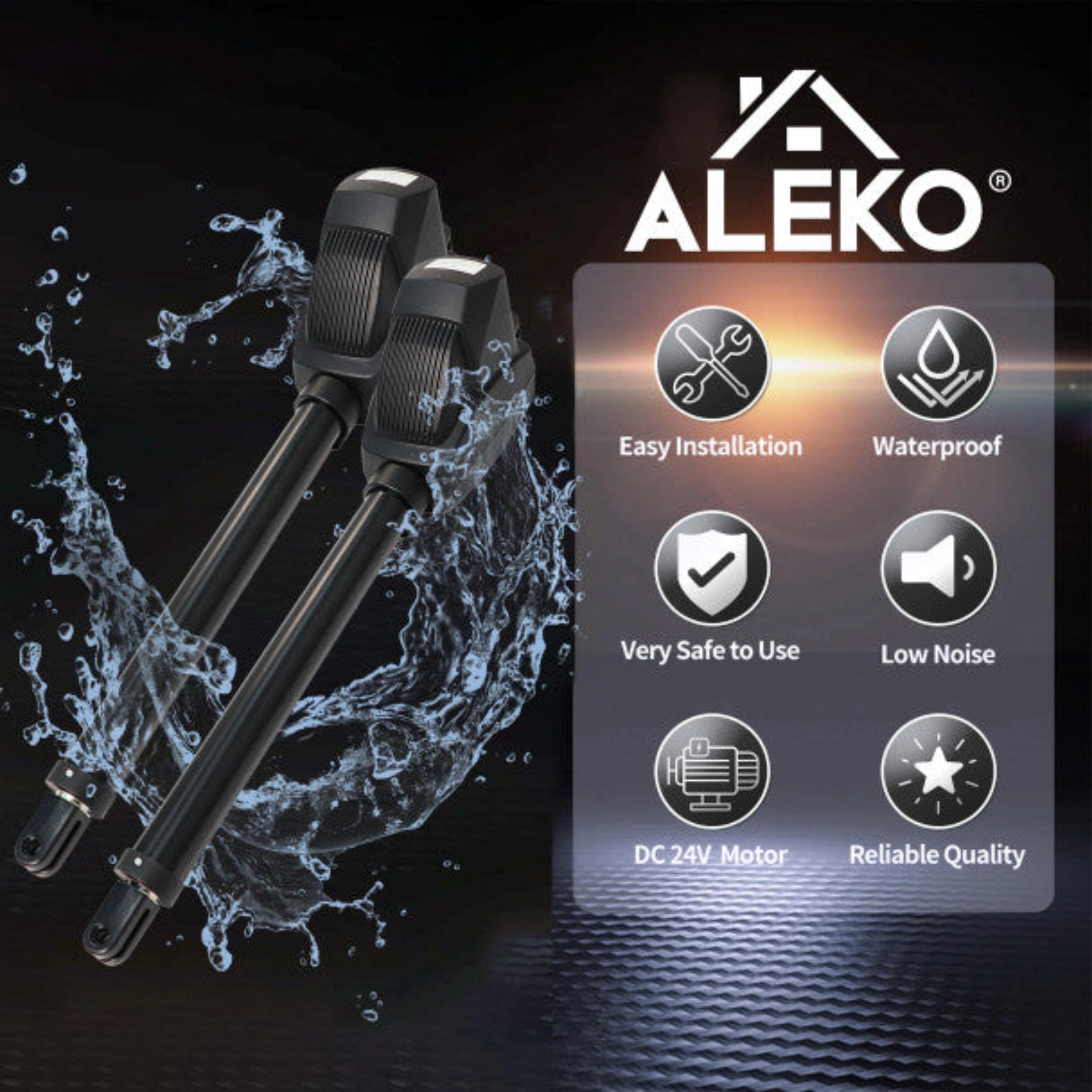

- (2) AS1200 actuators
- (1) Control box
- (1) Wired push button
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (1) Smart Gate Hub
- (2) Photocell sensors
- (1) Wireless keypad with backlight
- (1) Metal keypad cover
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features

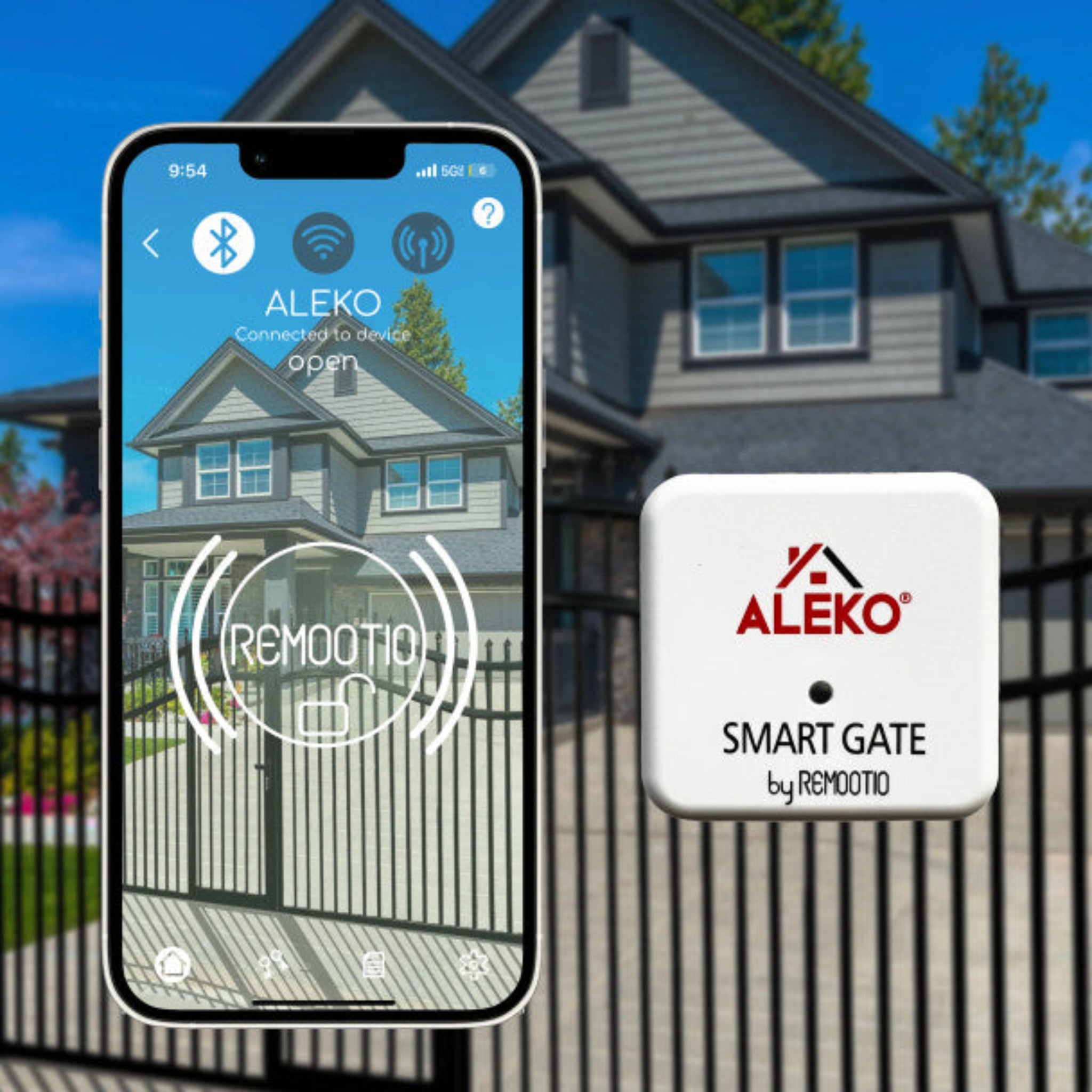

- Smart iOS and Android operation
- Smart home system integration
- 20 virtual keys
- 256-bit authenticated end-to-end encryption
- Powerful 160W opener
- Smooth and quiet swing motion
- Low motor noise

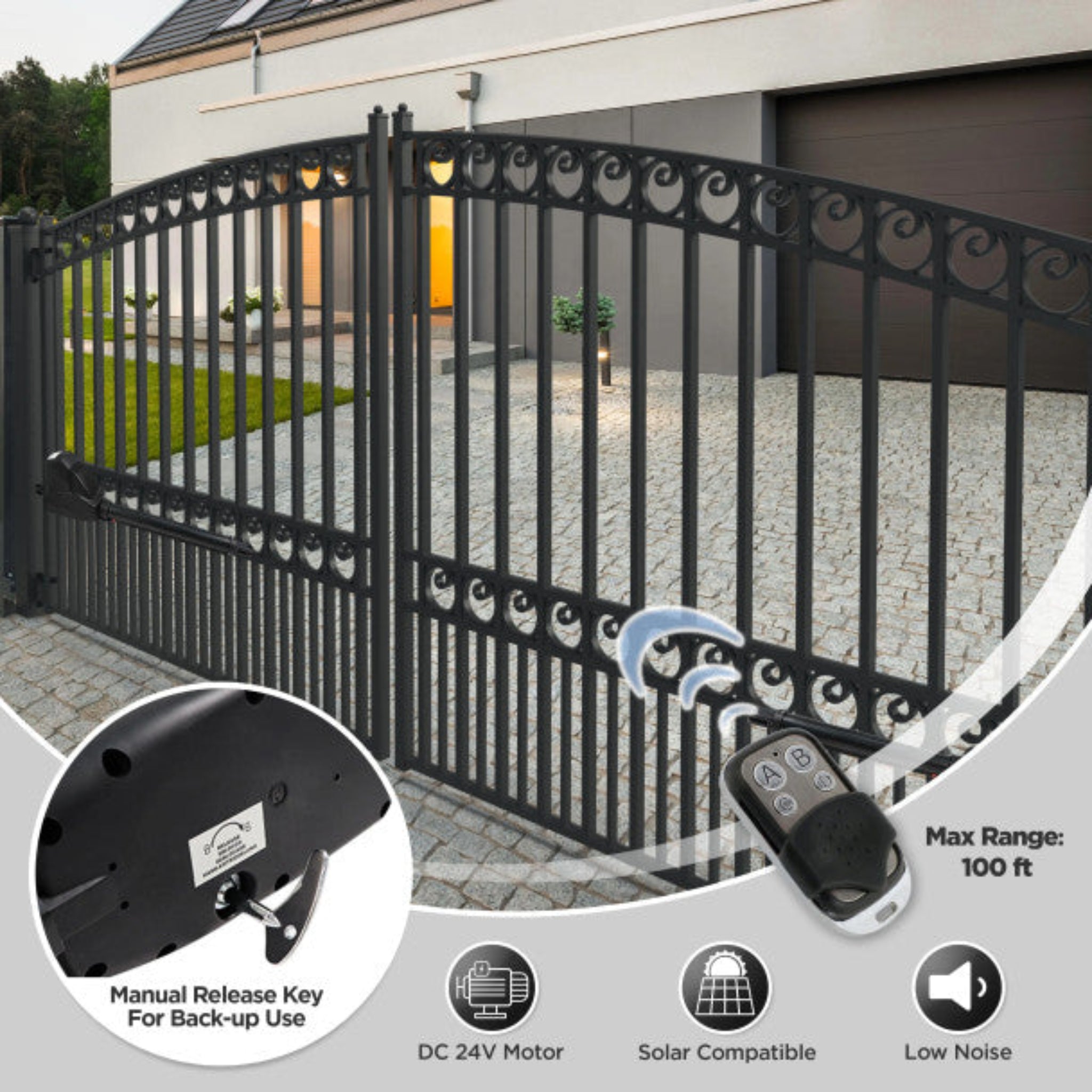

- Two remote controls with up to 100 ft. range
- Wireless keypad with backlight and metal cover
- Automatic stop-and-reverse functionality
- Photocell sensors for obstacle detection
- Anti-rust, water-resistant materials
- Programmable 0–99 second auto-close
- Two emergency release keys

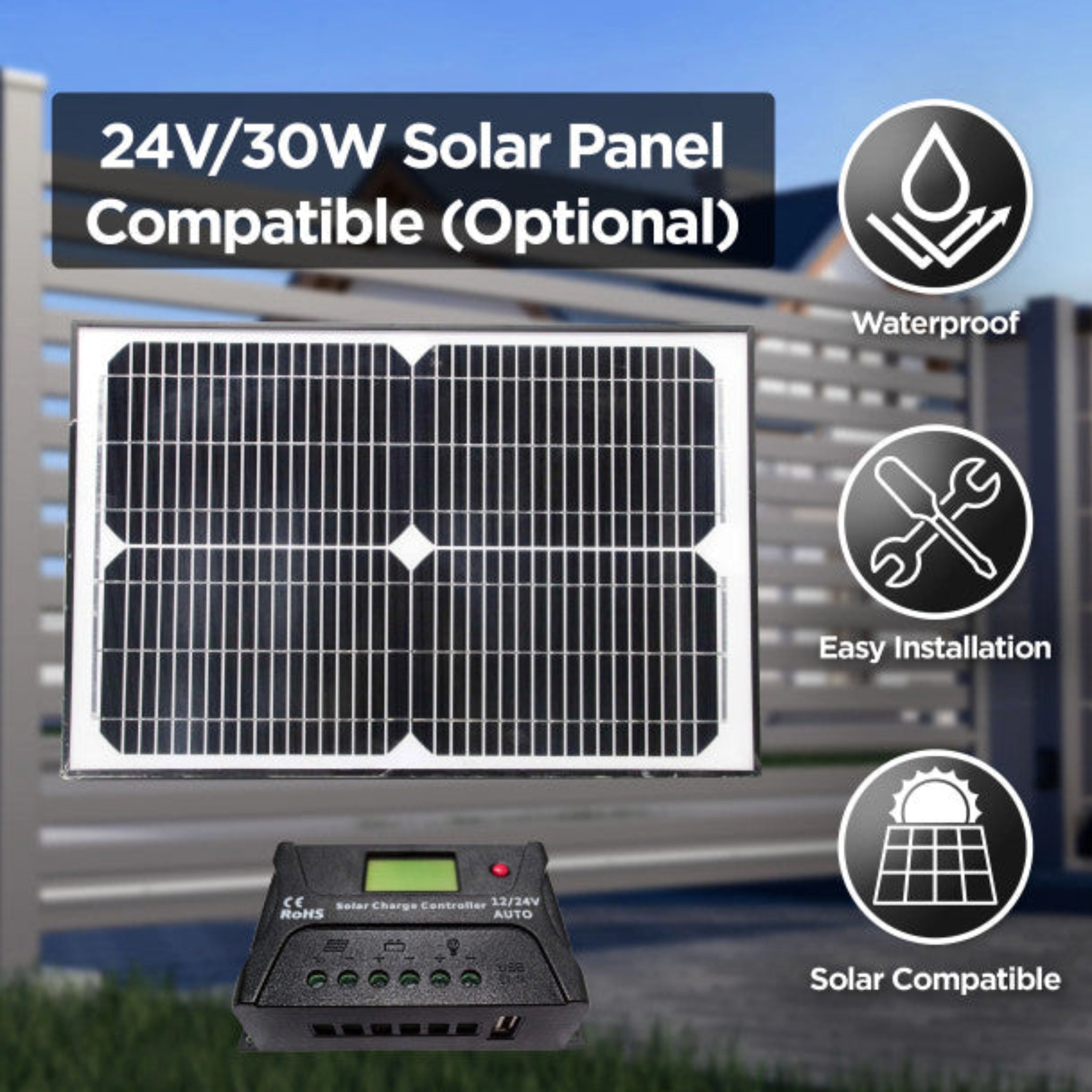

- Solar compatible
- Suitable for residential and commercial applications
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Smart Dual Swing Gate Operator Accessory Kit |
| Model | AS1200ACC5 |
| SKU | AS1200ACC5-AP |
| MPN | AS1200ACC5 |
| Compatible Gate Type | Dual Swing Gates |
| Rated Power | 160W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

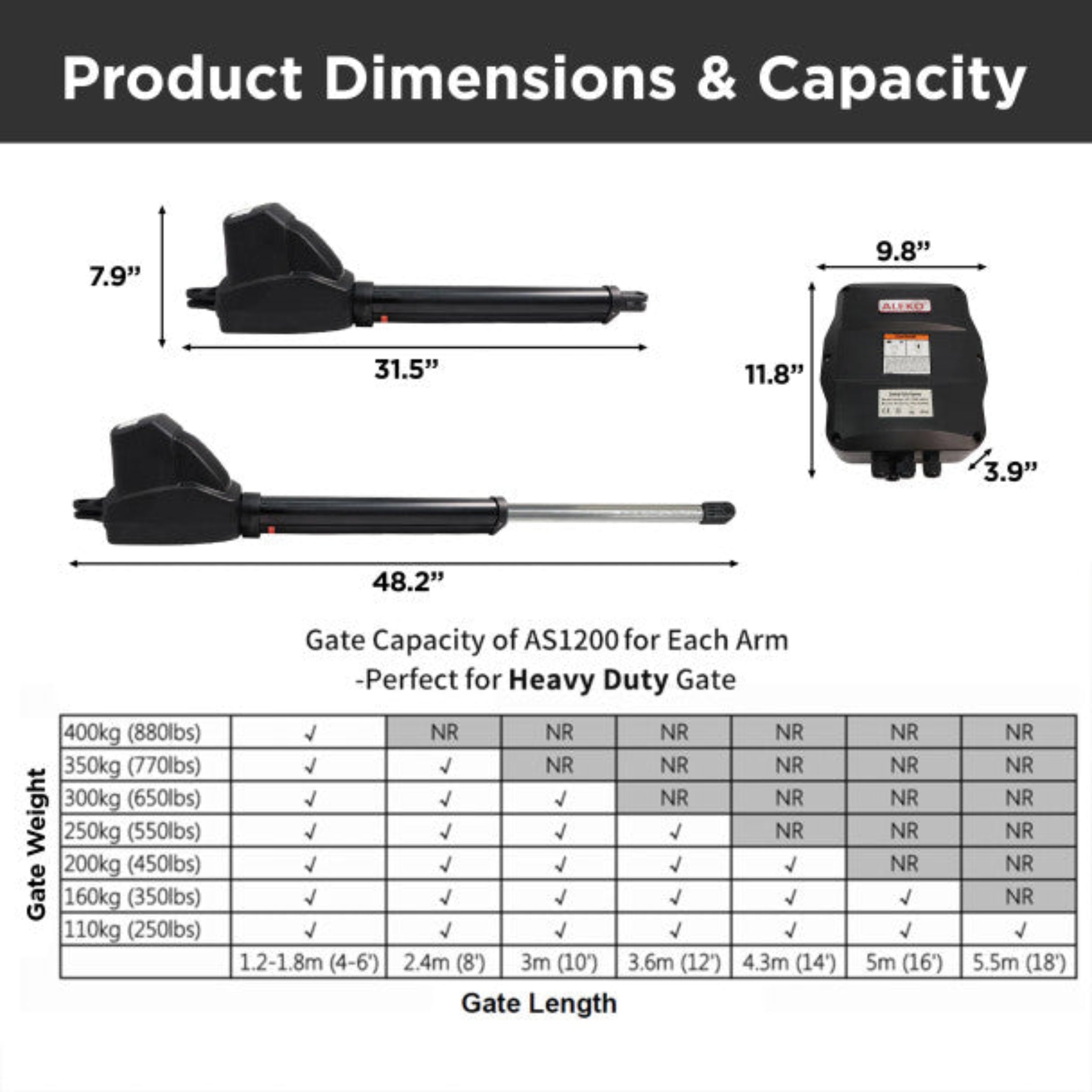

| Maximum Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Power Modes | AC; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Compatible | Yes |
| Solar Panels | Not included |
| Backup Batteries | Not included |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Auto-Close | 0–99 seconds |
| Virtual Keys | 20 |
| Encryption | 256-bit authenticated end-to-end encryption |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Smart Connectivity | iOS, Android, Smart Home Systems |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
