Description
The ALEKO Smart Dual Swing Gate Operator Accessory Kit ACC5 combines automatic gate operation with smart-home connectivity, allowing you to control your dual swing gate using compatible iOS and Android devices. The system can also integrate with smart home systems for convenient remote access and management.
The powerful and quiet 130W, 24V DC gate operator is designed for dual swing gates up to 36 ft. wide or 1,760 lbs. total, supporting up to 18 ft. or 880 lbs. per panel. The water-resistant construction makes it suitable for outdoor use.
Smart access features include 20 virtual keys for multiple users and 256-bit authenticated end-to-end encryption for secure communication. The kit also includes two remote controls, a wireless keypad, photocell sensors, and a wired push button.
Safety features include a stop/reverse sensor that responds to obstructions, photocell sensors for obstacle detection, programmable auto-close, and an emergency release key for manual operation during power failures.

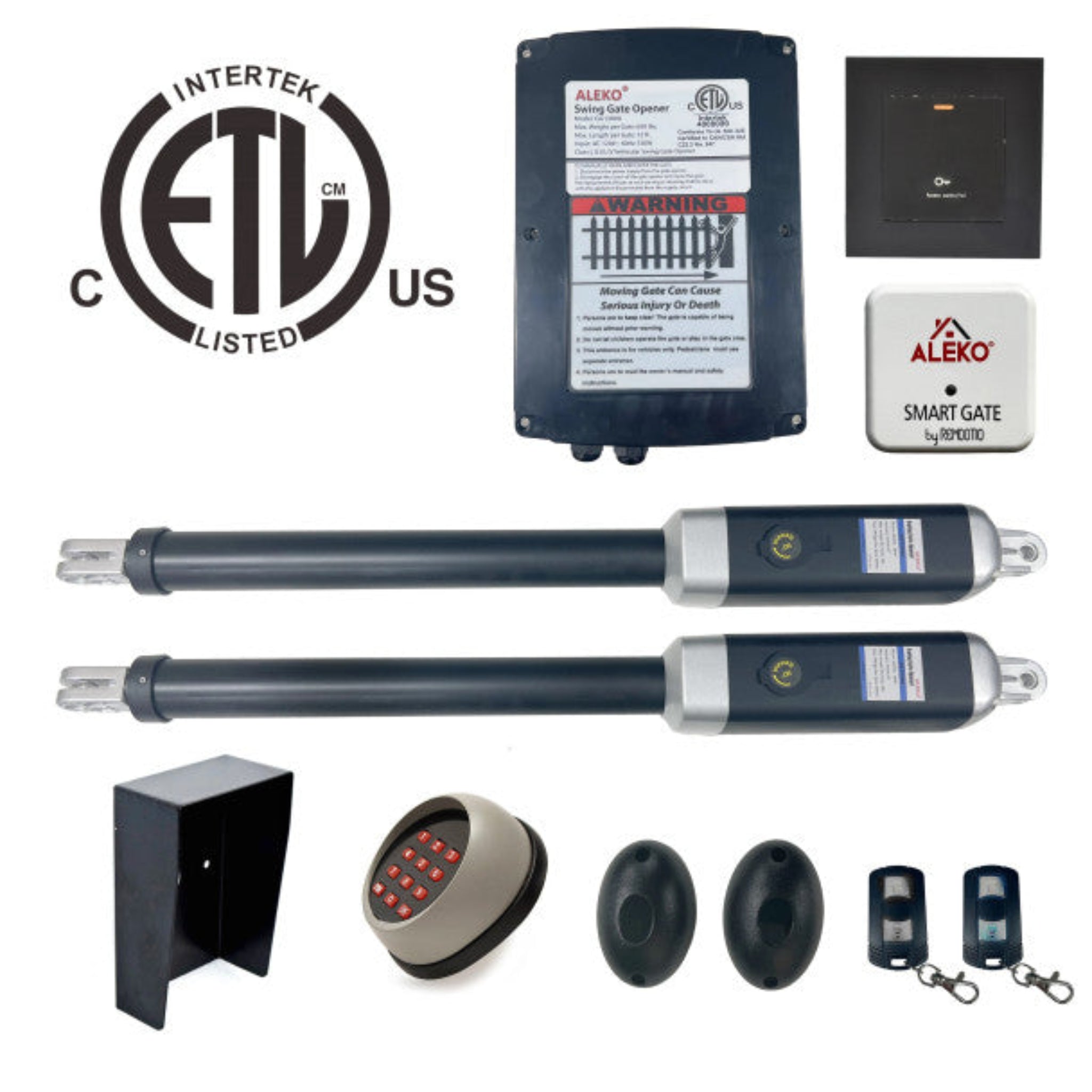

Package Includes
- (2) Gate actuators
- (1) Control box
- (1) Smart Gate Hub
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocell sensors
- (1) Wireless keypad
- (1) Keypad metal cover
- (1) Wired push button
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Smart iOS and Android operation
- Integrates with smart home systems
- Supports up to 20 virtual keys
- 256-bit authenticated end-to-end encryption
- ETL Certified
- Powerful and quiet 130W, 24V DC motor
- Designed for dual swing gates
- Supports gates up to 36 ft. / 1,760 lbs. total
- Supports up to 18 ft. / 880 lbs. per panel
- Two 433 MHz remote controls
- Wireless keypad included
- Wired push button included
- Stop/reverse safety sensor
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close

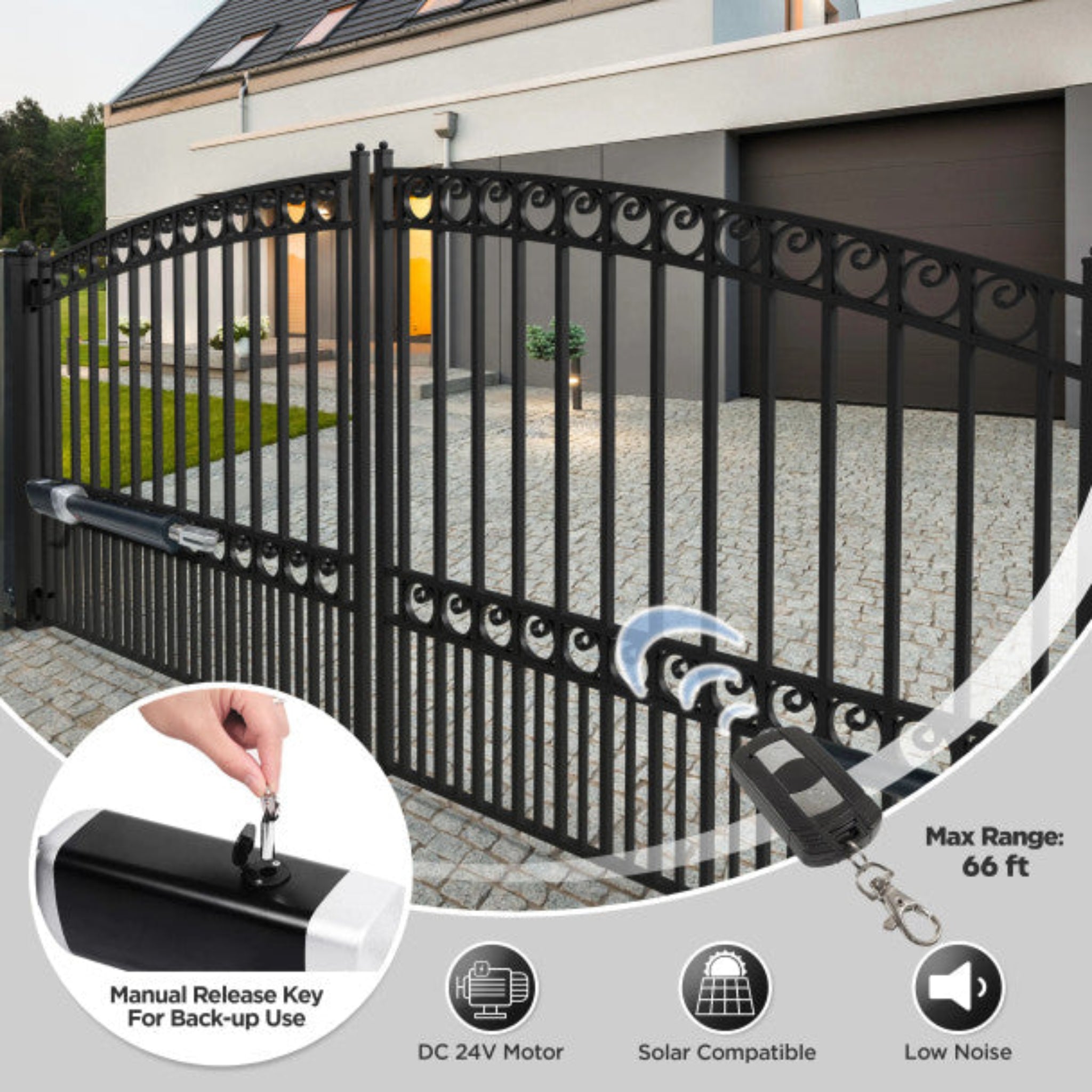

- Emergency release keys for manual operation
- Water-resistant construction

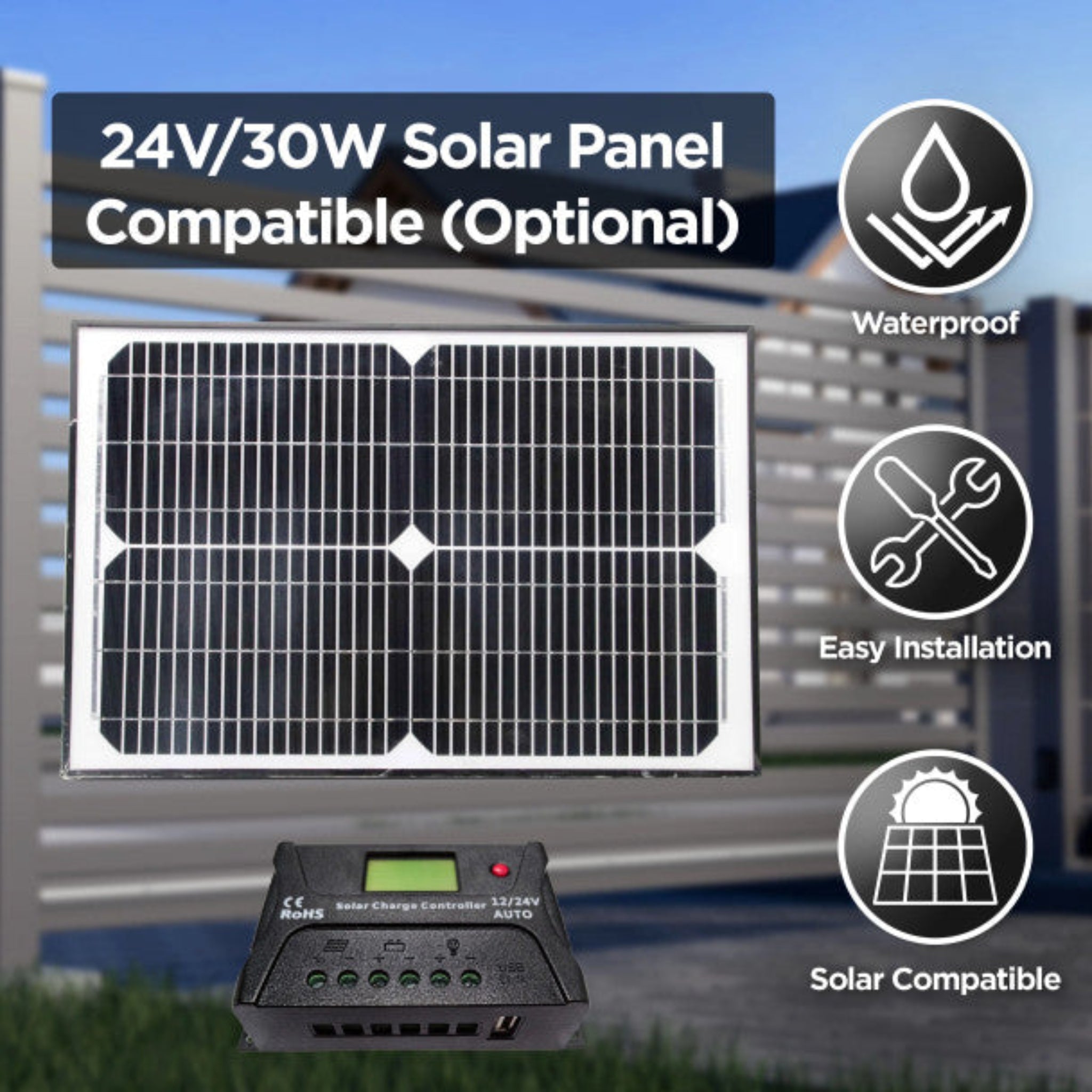

- Solar panels and backup batteries can be added separately
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Smart Dual Swing Gate Operator Accessory Kit |
| Model | GG1300U/AS1300 |
| SKU | GG1300UACC5-AP |
| MPN | GG1300UACC5 |
| Compatible Gate Type | Dual Swing Gates |
| Motor | 24V DC, 130W |
| ETL Certified | Yes |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |
| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not included |
| Backup Batteries | Not included |

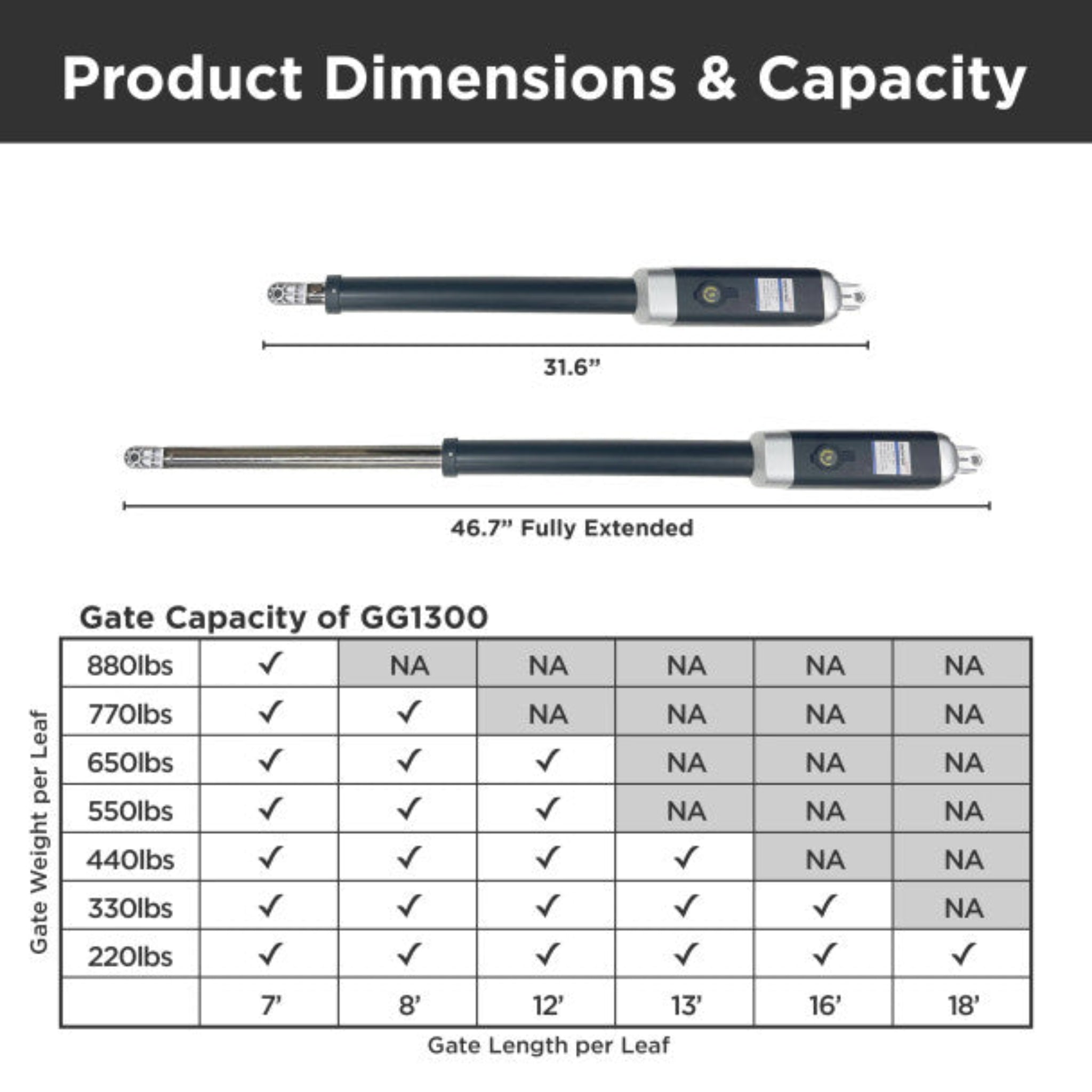

| Gate Capacity | 36 ft. / 1,760 lbs. total |
| Maximum Per Panel | 18 ft. / 880 lbs. |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| Operating Temperature | -4°F to 122°F |
| Auto-Close | 0–99 seconds |
| Remote Frequency | 433 MHz |
| Virtual Keys | 20 |
| Encryption | 256-bit authenticated end-to-end encryption |
| Safety Features | Stop/Reverse Sensor, Photocell Sensors |
| Smart Connectivity | iOS, Android, Smart Home Systems |
| Warranty | 1-Year Limited Warranty |
