Description
The ALEKO AS600ACC5 Smart Single Swing Gate Operator Accessory Kit combines reliable gate automation with smart-home convenience. Designed for single swing gates up to 18 ft. or 880 lbs., the powerful 80W, 24V DC operator provides smooth and quiet gate movement while giving users multiple ways to control access.
With smart operation compatible with iOS and Android devices, the system allows convenient smartphone control and integration with smart-home systems. The kit also includes two remote controls, a wireless backlit keypad, and a wired push button for flexible access options.
Safety features include automatic stop-and-reverse protection when an obstruction is detected, photocell sensors for obstacle detection, programmable auto-close, and emergency release keys for manual operation during a power failure. The system uses anti-rust, water-resistant materials and is also compatible with solar power when solar panels are added separately.

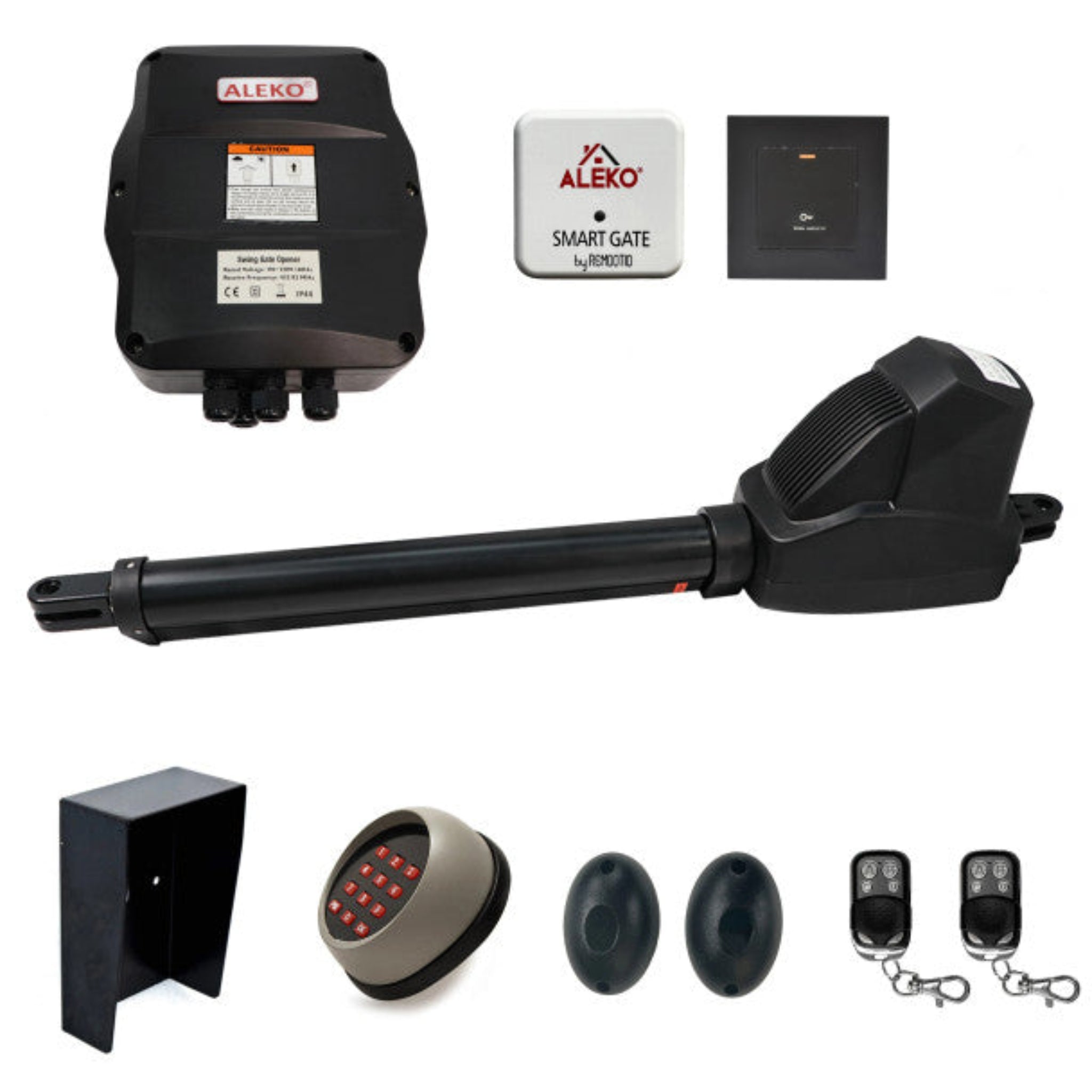

Package Includes
- (1) AS600 Actuator
- (1) Control Box
- (1) Wired Push Button
- (2) 433 MHz Remote Controls
- (2) Emergency Release Keys

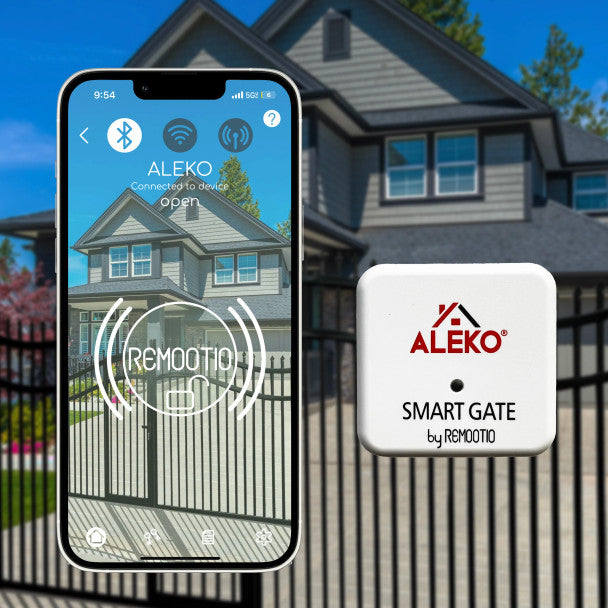

- (1) Smart Gate Hub
- (2) Photocell Sensors
- (1) Wireless Keypad with Backlight
- (1) Metal Keypad Cover
- (3) 8.5 × 11 in. Warning Signs
- (1) Set of Mounting Hardware
- (1) User Manual
Key Features
- Designed for single swing gates
- Supports gates up to 18 ft. / 880 lbs.
- Powerful 80W, 24V DC opener
- Smart operation through iOS and Android devices
- Smart-home system integration
- 20 virtual keys
- 256-bit authenticated end-to-end encryption
- Two 433 MHz remote controls
- Remote range up to 100 ft.
- Wireless keypad with backlight
- Metal keypad cover included
- Wired push button included
- Automatic stop-and-reverse protection
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close

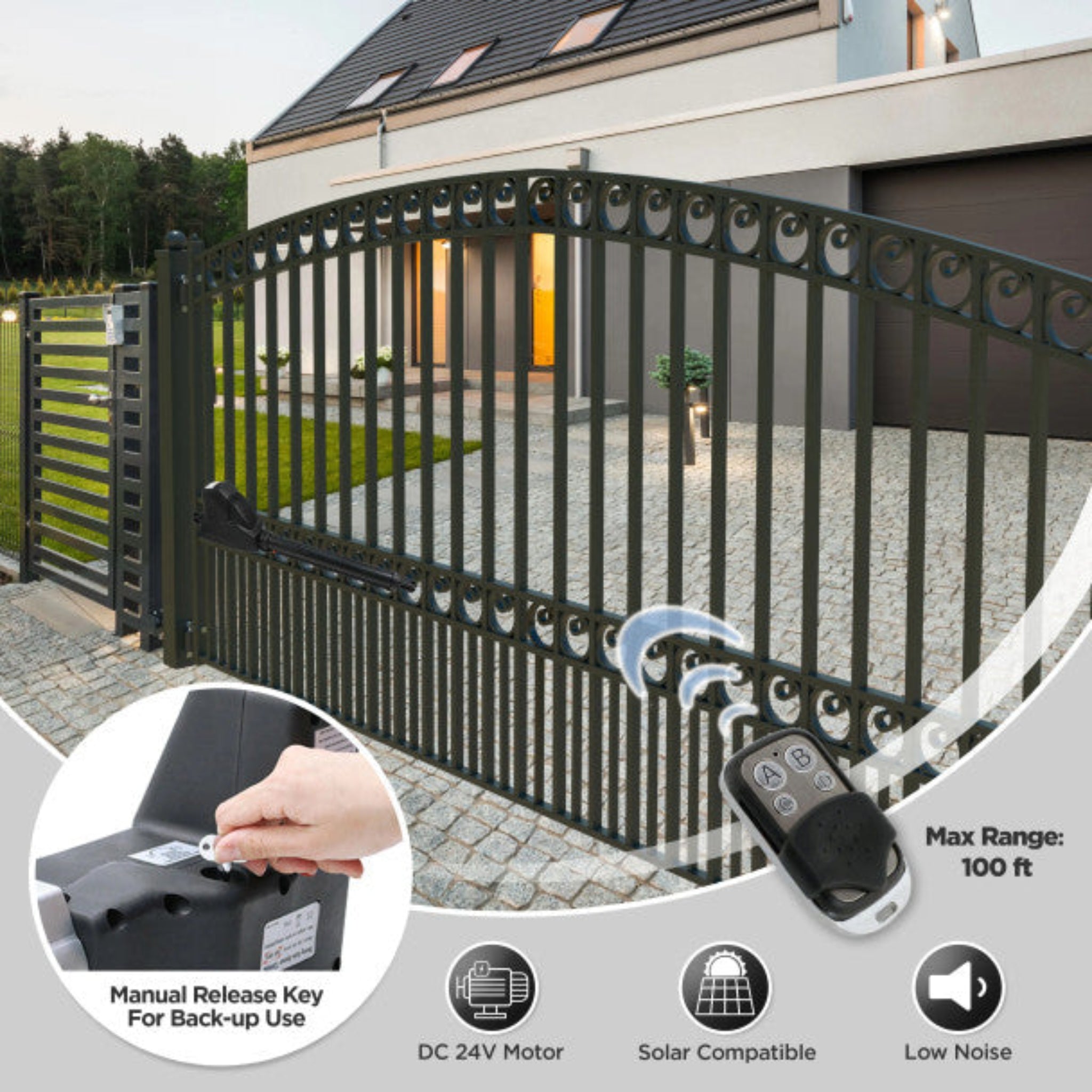

- Two emergency release keys
- Smooth swing motion
- Low motor noise
- Anti-rust, water-resistant materials
- Solar compatible
- Assembly required
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Smart Single Swing Gate Operator Accessory Kit |
| Model | AS600ACC5 |
| SKU | AS600ACC5-AP |
| UPC | 703980265109 |
| Compatible Gate Type | Single Swing Gates |

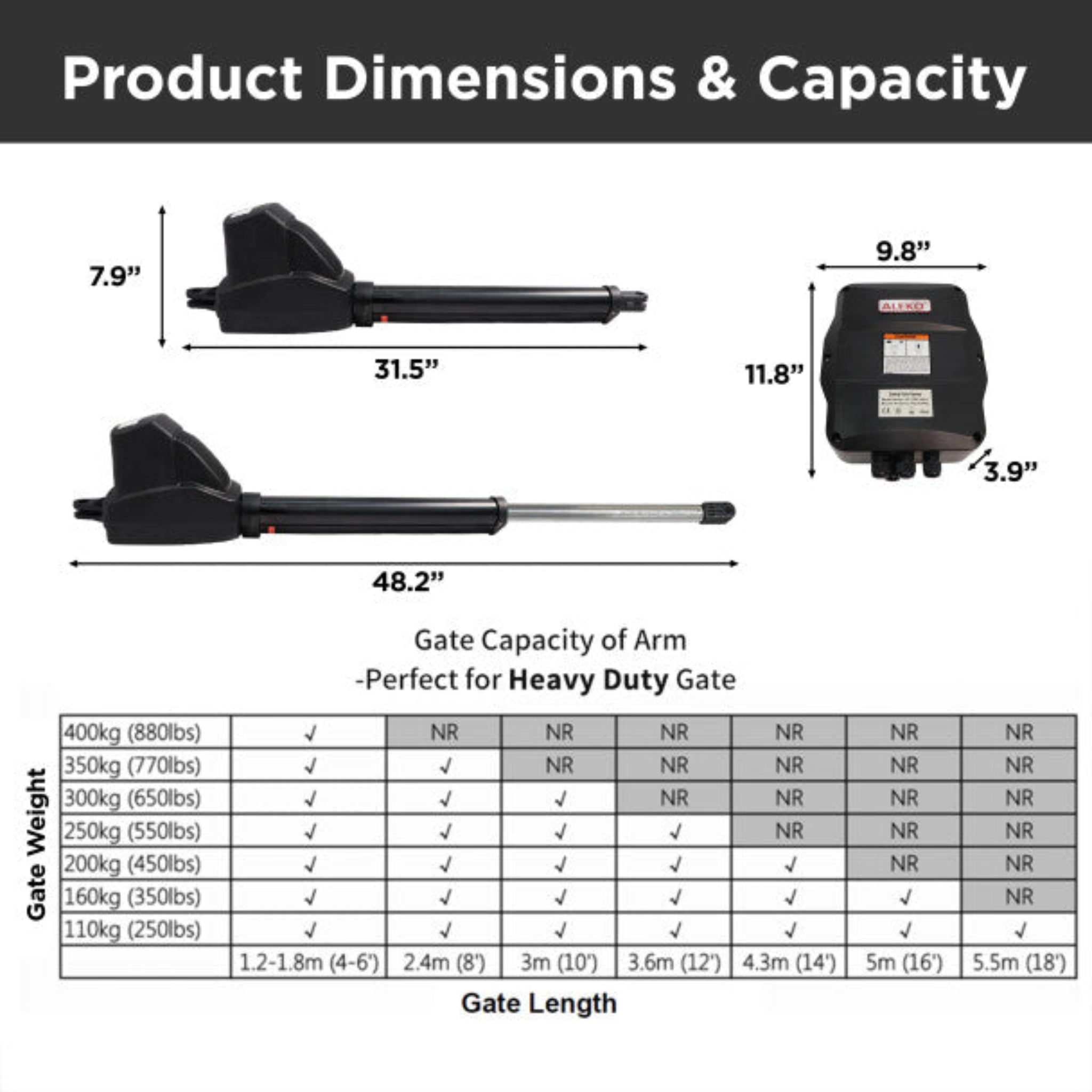

| Gate Capacity | 18 ft. / 880 lbs. |
| Rated Power | 80W |
| Power Voltage | 24V DC |
| Power Input | 110V/60Hz |
| Optional Power Input | 220V/50Hz — not included |

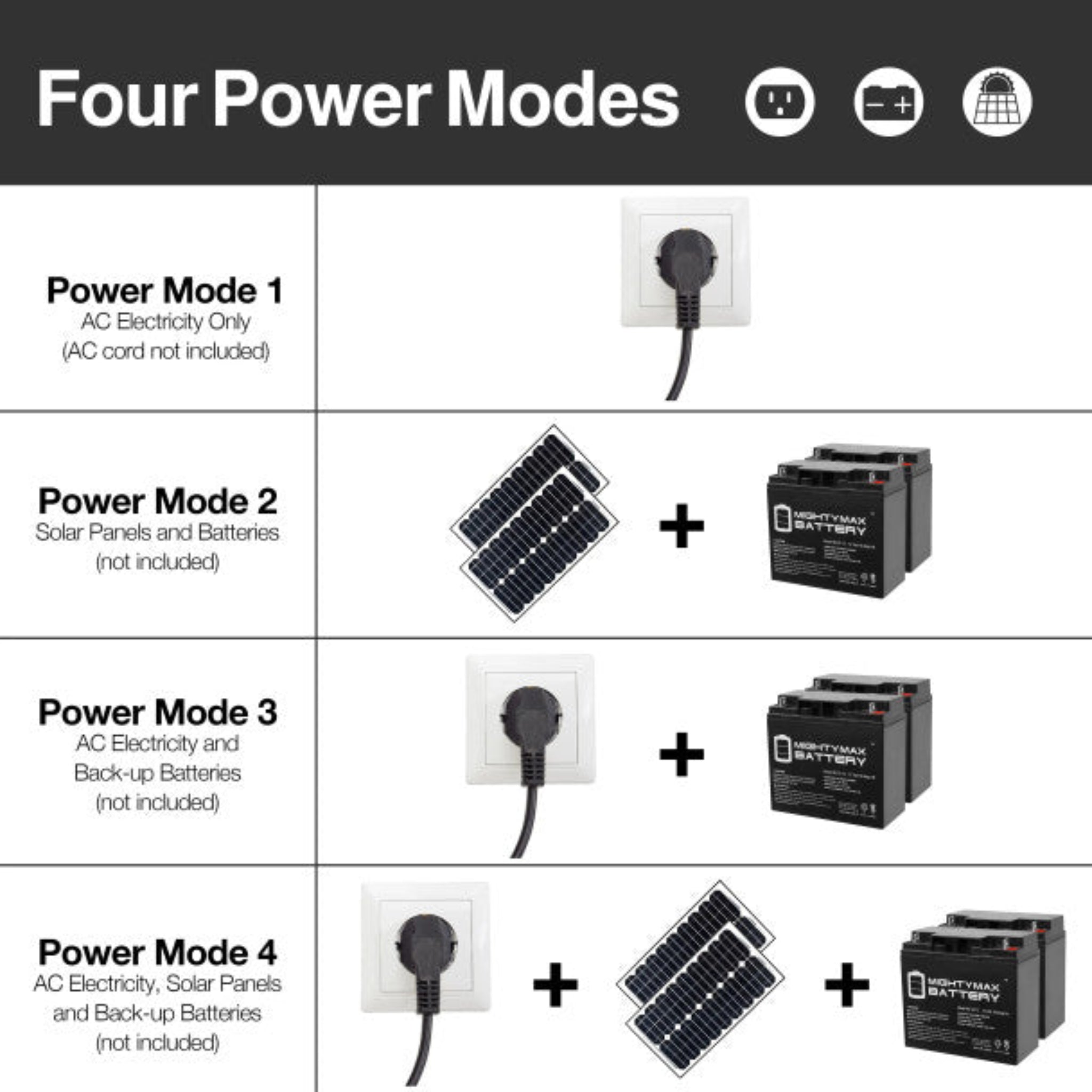

| Power Modes | AC Electricity; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Actuator Speed | 5/8 in./second |
| Actuator Travel | 15-1/8 in. |
| Operating Temperature | -4°F to 122°F |
| Solar Compatible | Yes — solar panels not included |
| Remote Frequency | 433 MHz |
| Remote Range | Up to 100 ft. |
| Smart Connectivity | iOS and Android |
| Virtual Keys | 20 |
| Encryption | 256-bit authenticated end-to-end encryption |
| Auto-Close | 0–99 seconds |
| Safety Features | Automatic Stop & Reverse, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Materials | Anti-Rust, Water-Resistant |
| Assembly Required | Yes |
| Warranty | 1-Year Limited Warranty |
