Description
The ALEKO GG650ACC5 Smart Single Swing Gate Operator Accessory Kit combines smart-home connectivity with reliable gate automation and security. Designed for single swing gates, this system allows convenient control through compatible iOS and Android devices and integrates with smart-home systems.
The kit features 20 virtual keys, allowing multiple users to access and control the gate, while 256-bit authenticated end-to-end encryption helps protect smart gate communications. Its powerful and quiet 24V DC, 80W motor provides smooth operation for residential gate applications.
For convenient access, the kit includes two 433 MHz remote controls, a wireless keypad, and a wired push button. Safety features include stop/reverse protection and photocell sensors that detect obstacles during gate operation.
The water-resistant opener is designed for outdoor use, while the emergency release keys provide manual access during a power failure. Backup batteries and solar panels can be added separately for additional power options.

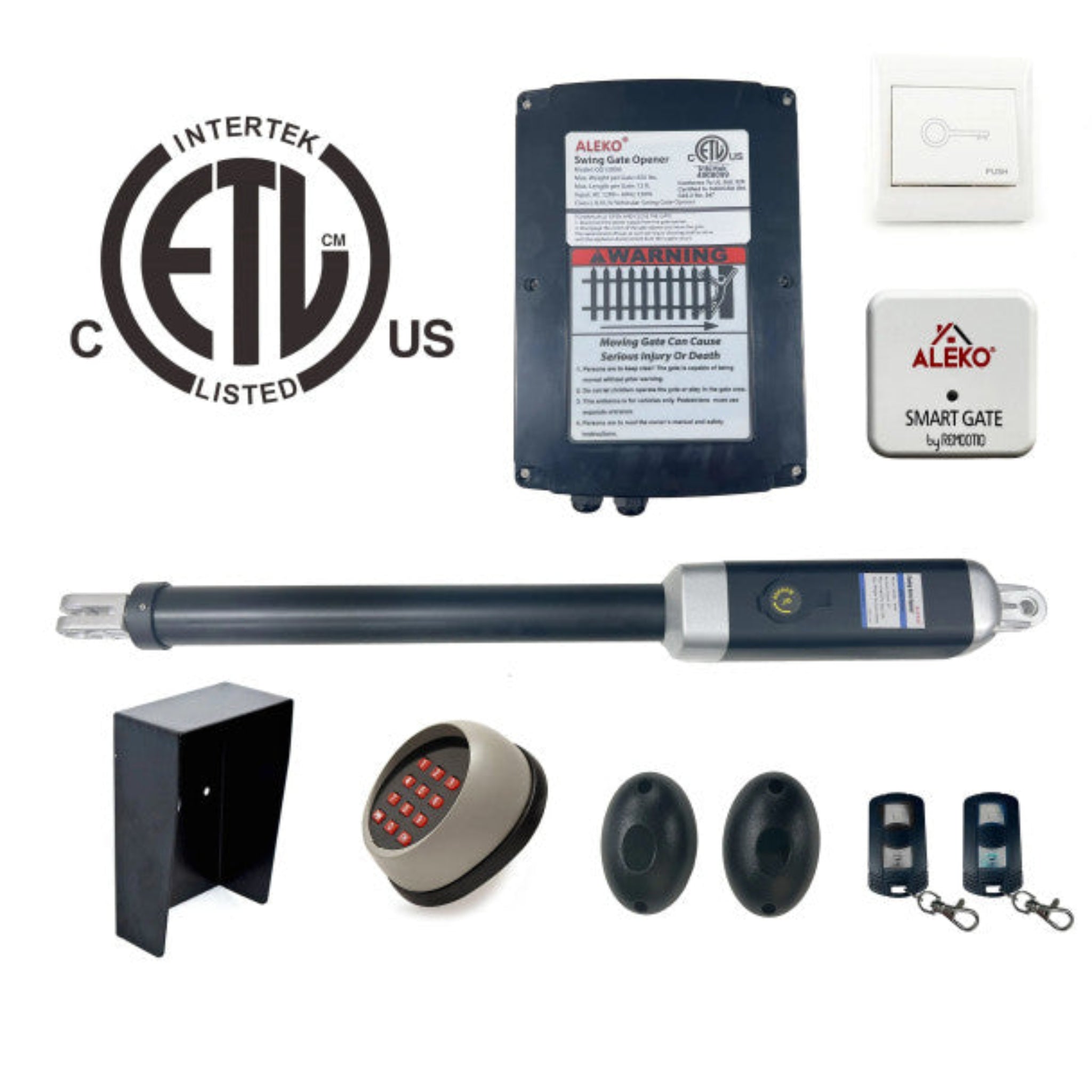

Package Includes
- (1) Gate actuator
- (1) Control box
- (1) Smart Gate Hub
- (2) 433 MHz remote controls
- (2) Emergency release keys
- (2) Photocell sensors
- (1) Wireless keypad
- (1) Keypad metal cover
- (1) Wired push button
- (3) 8.5 × 11 in. warning signs
- (1) Set of mounting hardware
- (1) User manual
Key Features
- Designed for single swing gates
- Supports gates up to 10 ft. / 650 lbs.
- Powerful 24V DC, 80W motor

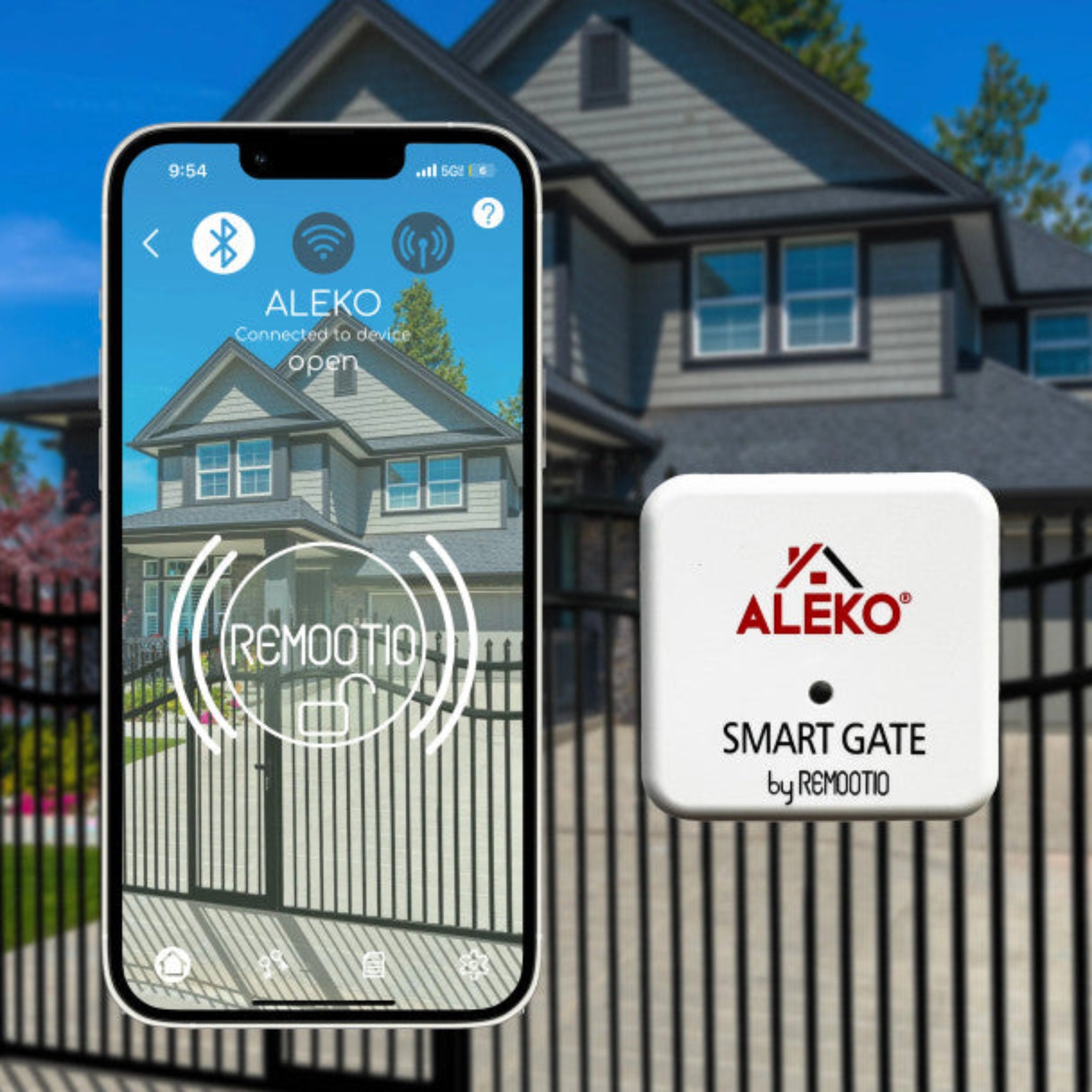

- Smart operation with iOS and Android devices
- Integrates with smart-home systems
- Supports 20 virtual keys
- 256-bit authenticated end-to-end encryption
- ETL Certified
- Quiet motor operation
- Two 433 MHz remote controls
- Wireless keypad included
- Wired push button included
- Stop/reverse safety sensor
- Photocell sensors for obstacle detection
- Programmable 0–99 second auto-close

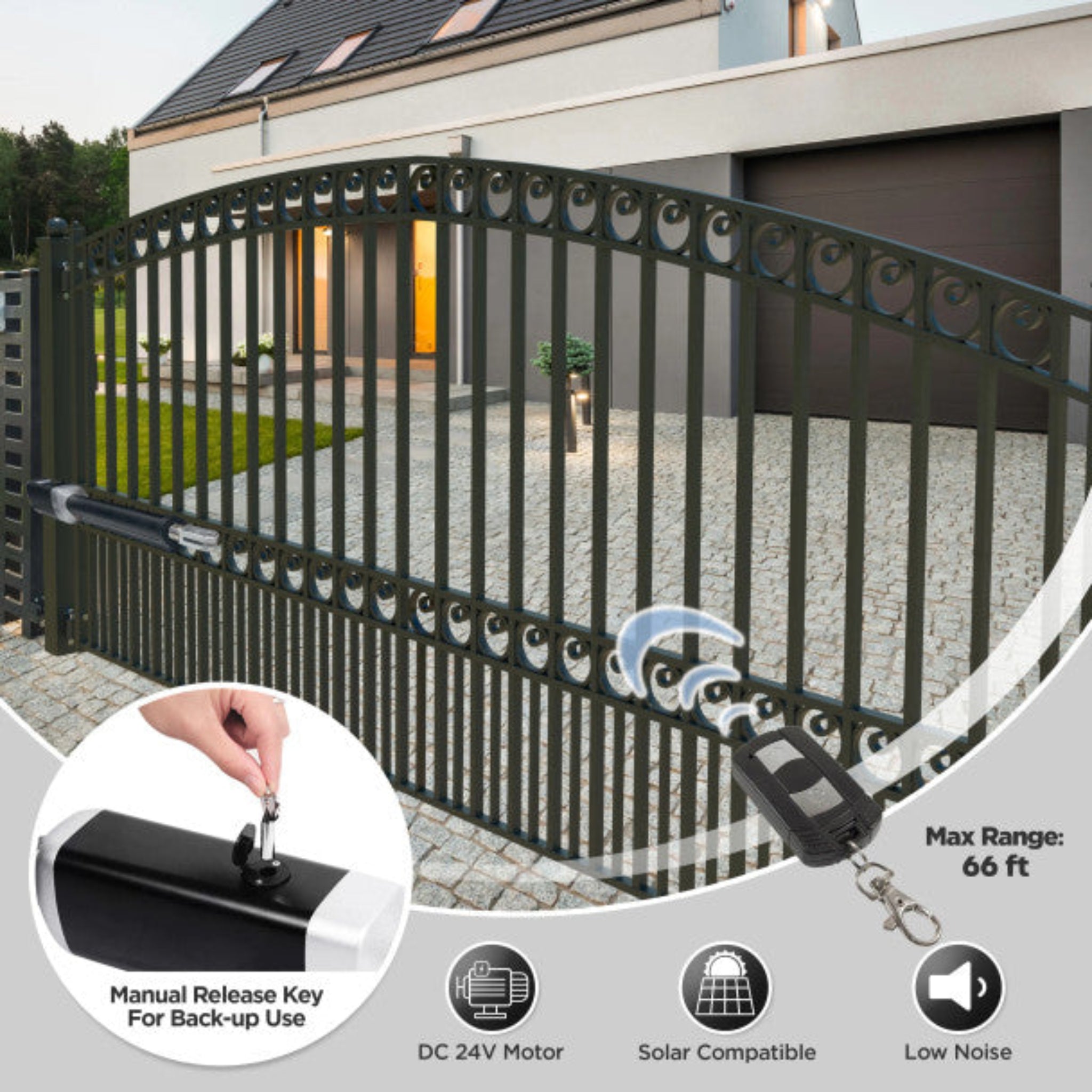

- Emergency release keys for manual operation

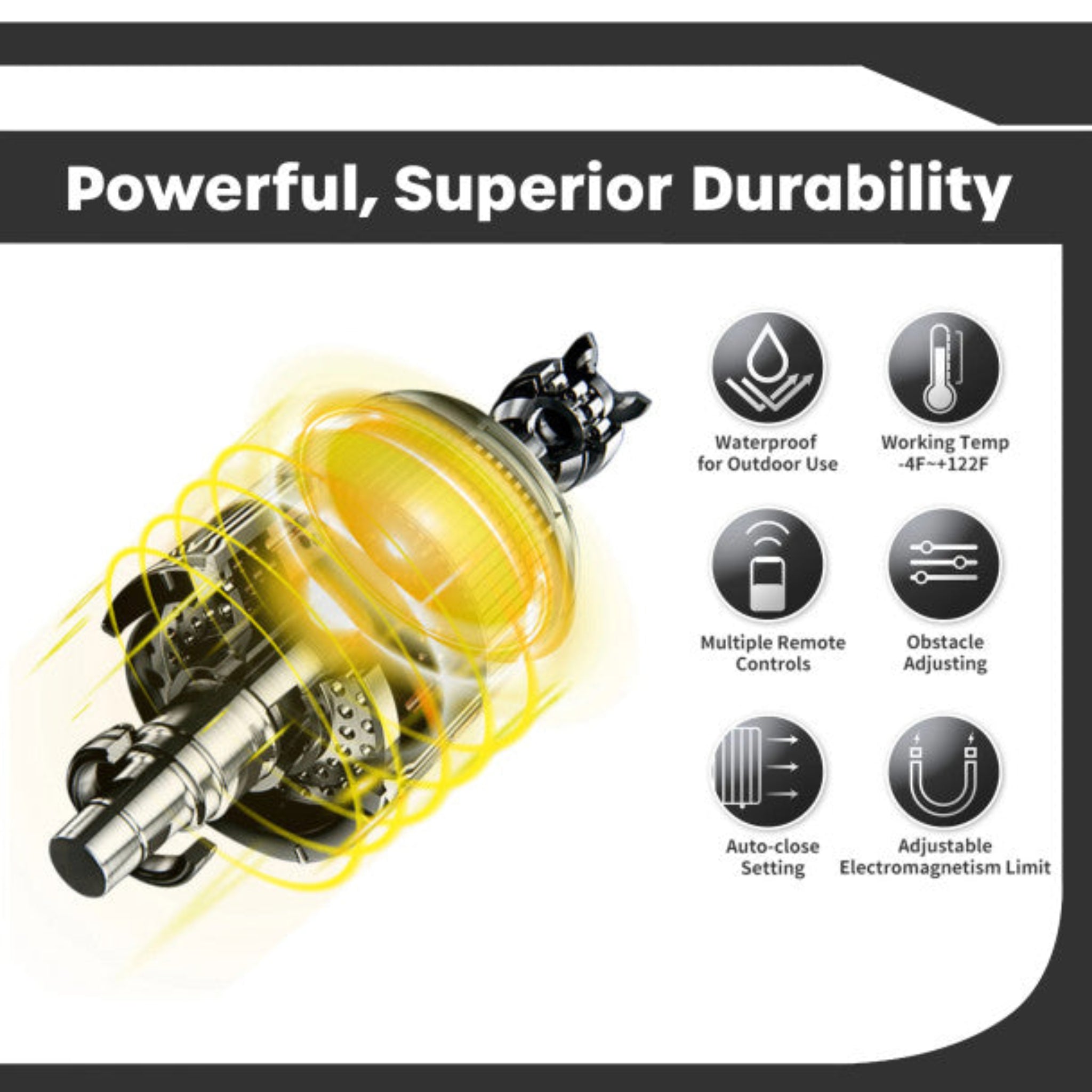

- Water-resistant construction

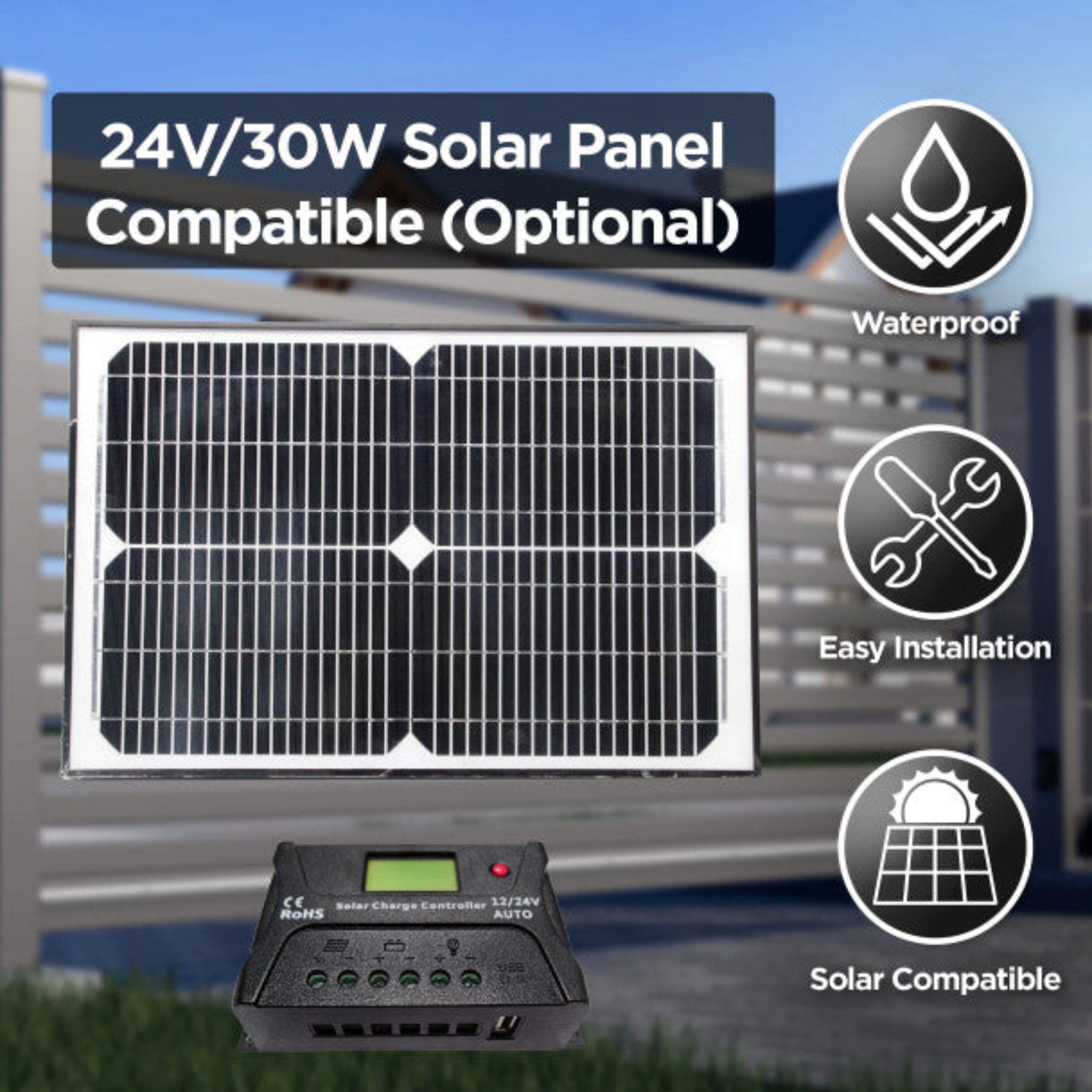

- Compatible with solar panels and backup batteries when purchased separately
Warranty
- 1-Year Limited Warranty
- Proof of purchase is required for warranty claims.
Specifications
| Specification | Details |
|---|---|
| Product | Smart Single Swing Gate Operator Accessory Kit |
| Model | GG650ACC5 |
| SKU | GG650ACC5-AP |
| MPN | GG650ACC5 |
| Compatible Gate Type | Single Swing Gates |
| Motor | 24V DC, 80W |
| ETL Certified | Yes |
| Power Supply | 110V/60Hz |
| Optional Power Supply | 220V/50Hz — not included |

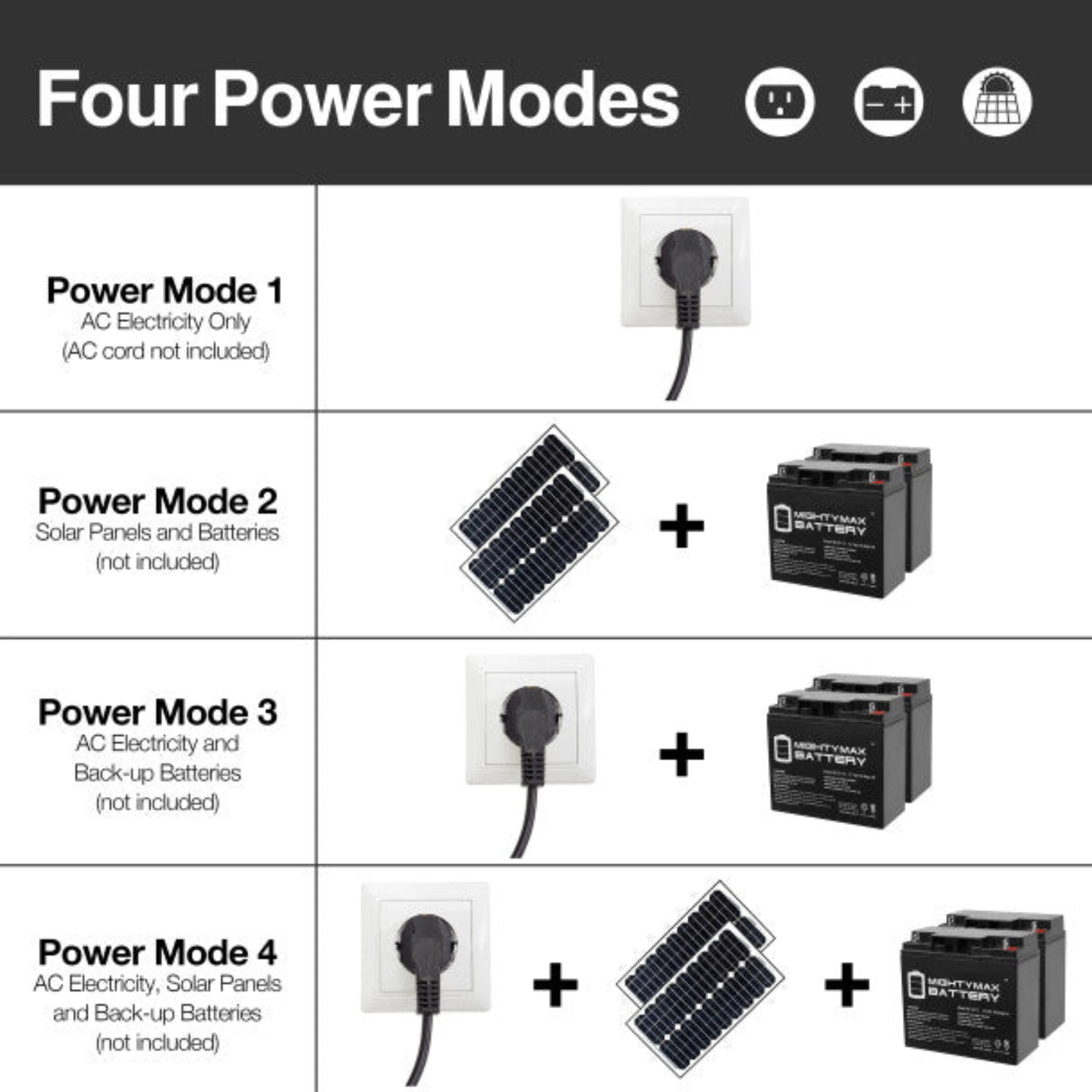

| Power Modes | AC Electricity Only; Solar Panels + Batteries; AC + Backup Batteries; AC + Solar Panels + Backup Batteries |
| Solar Panels | Not Included |
| Backup Batteries | Not Included |

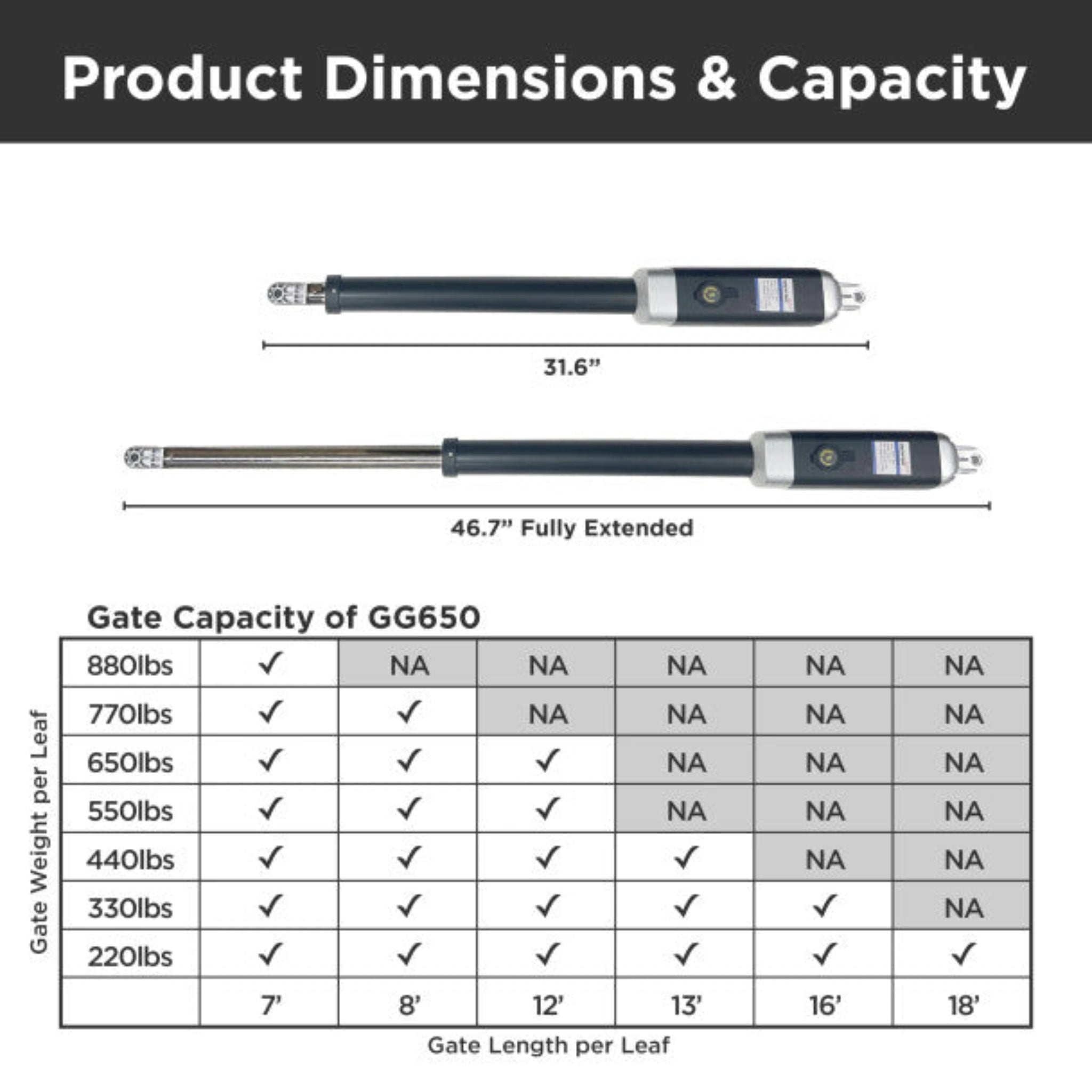

| Maximum Gate Capacity | 10 ft. / 650 lbs. |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| Operating Temperature | -4°F to 122°F |
| Remote Frequency | 433 MHz |
| Smart Connectivity | iOS and Android |
| Virtual Keys | 20 |
| Encryption | 256-bit Authenticated End-to-End Encryption |
| Auto-Close | 0–99 seconds |
| Safety Features | Stop/Reverse Sensor, Photocell Sensors |
| Accessory Controls | Wireless Keypad, Wired Push Button |
| Materials | Water-Resistant |
| Warranty | 1-Year Limited Warranty |
