Description
The ALEKO Barcelona Style 18 × 6 ft. Automated Steel Dual Swing Driveway Gate and Gate Opener Complete Kit combines striking modern design with durable steel construction and convenient automatic operation. The gate is fully welded from hot-dipped galvanized steel, while the powder-coated finish helps protect against rust, cracking, peeling, and chipping. Its Barcelona-style details add curb appeal while providing a durable and secure entrance.

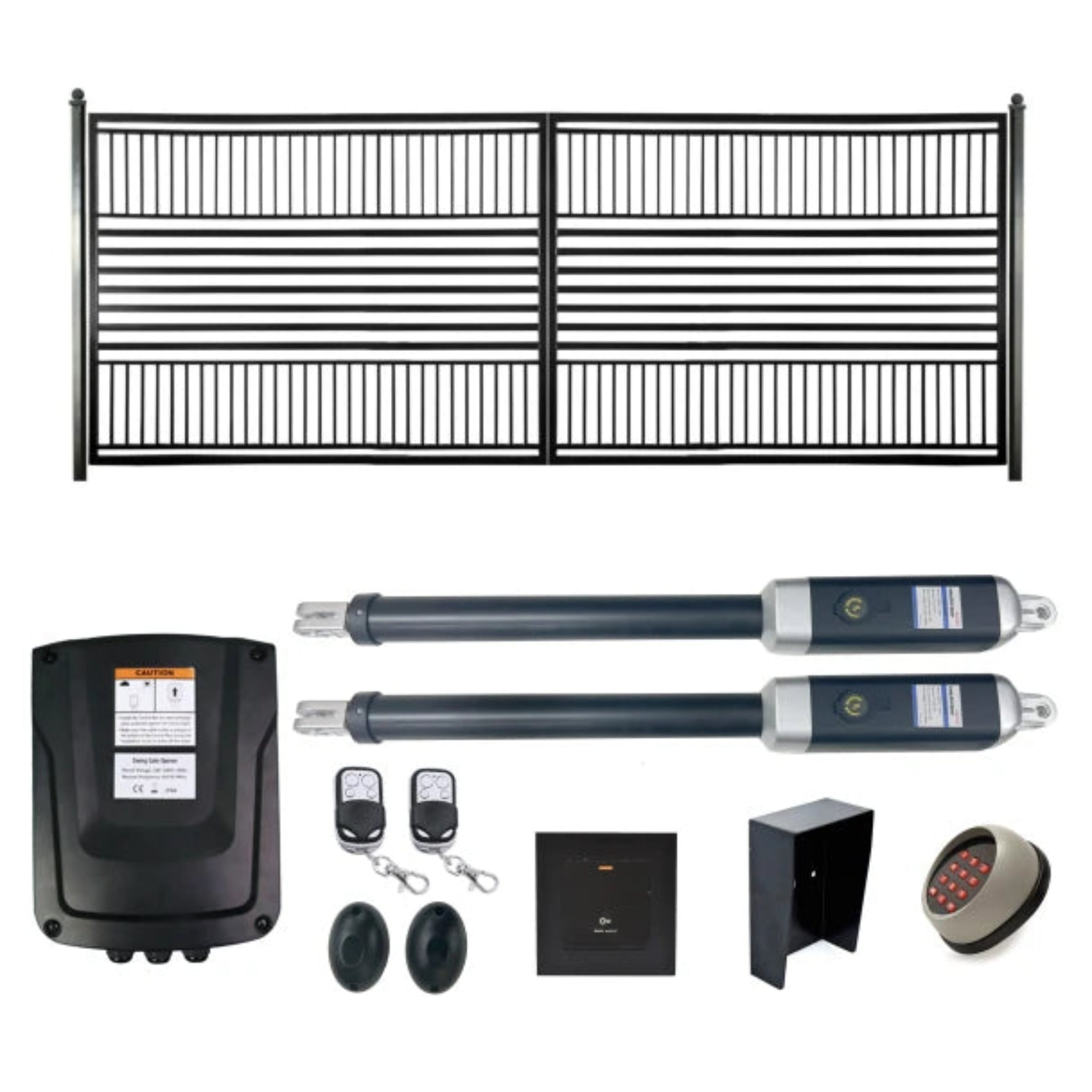

The complete kit includes the dual swing driveway gate, gate posts, hinge hardware, two actuators, control box, remote controls, emergency release keys, photocell sensors, wireless keypad, wired push button, warning signs, mounting hardware, and user manual. The automatic opener provides smooth start/stop operation, remote or keypad access, obstruction protection, emergency release, and programmable automatic closing.
Key Features
- Complete automated dual swing driveway gate kit
- Barcelona-style 18 × 6 ft. driveway gate

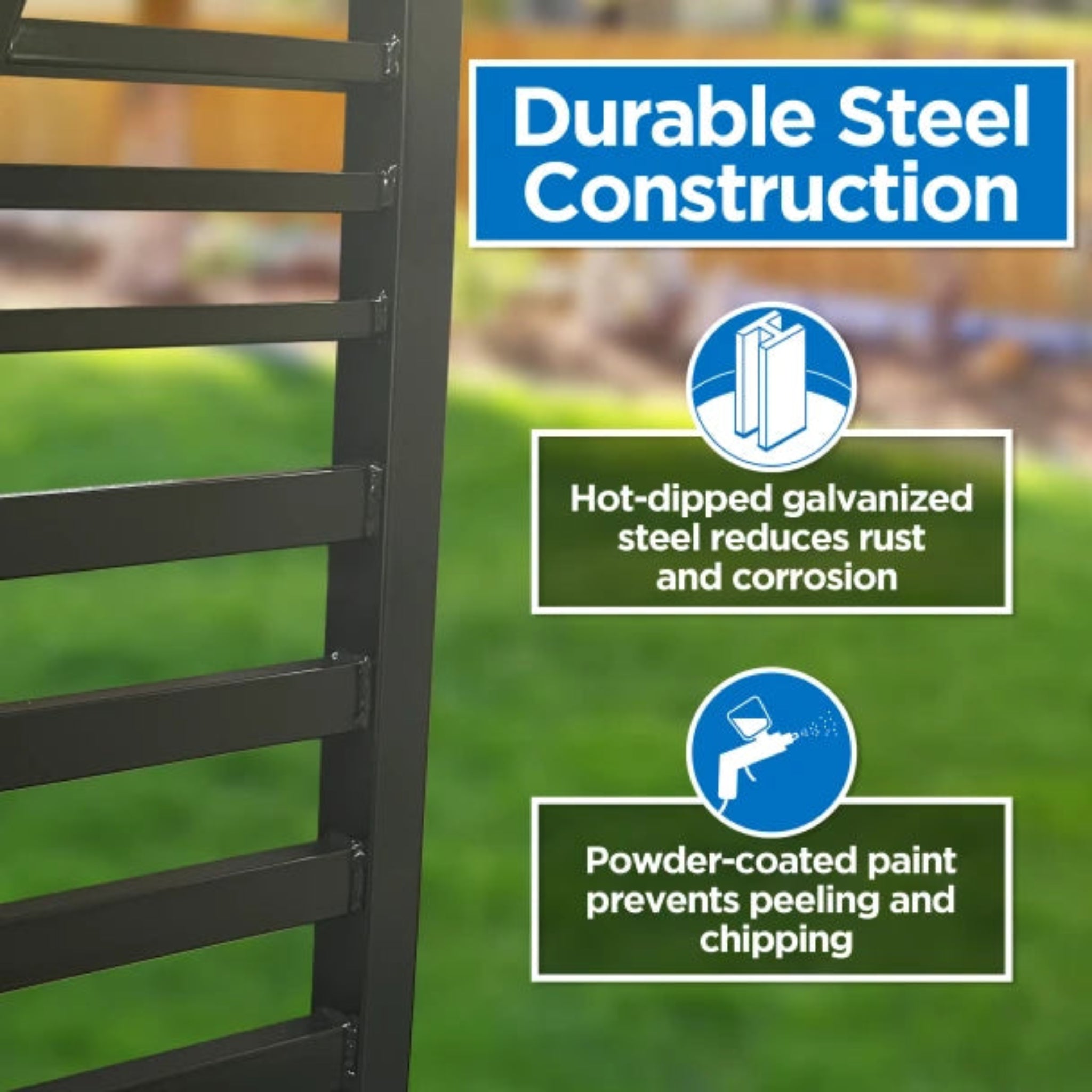

- Fully welded hot-dipped galvanized steel construction
- Durable steel construction for enhanced security
- Powder-coated finish helps prevent rust, cracking, peeling, and chipping
- Striking modern Barcelona-style design
- Remote control or wireless keypad access
- Smooth start/stop functionality

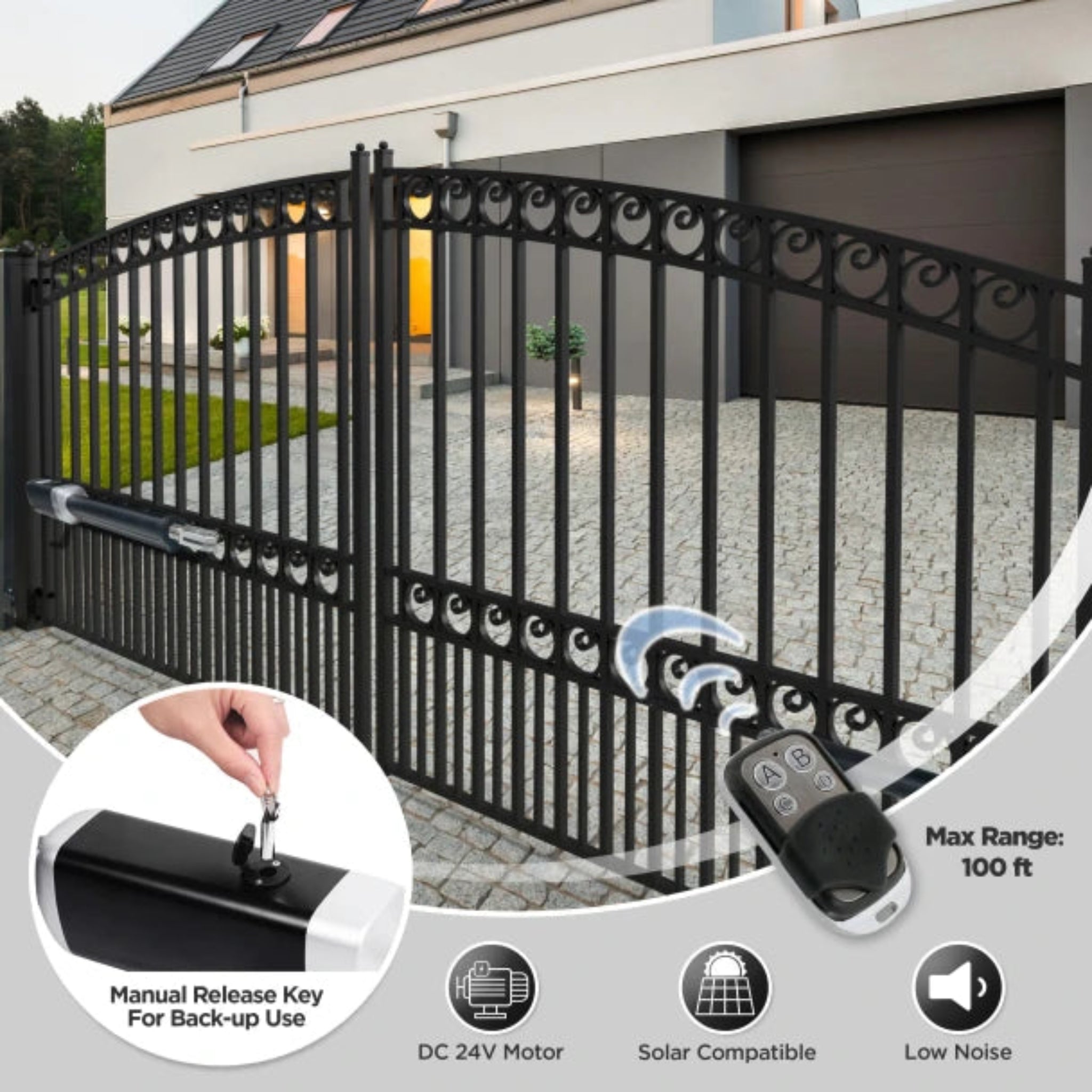

- Emergency release keys for power failures
- Stop/reverse functionality in case of obstruction
- Photocell sensors for obstacle detection
- Programmable motor
- Adjustable automatic closing from 0–99 seconds
- Includes 2 driveway gate panels
- Includes 2 gate posts
- Includes 4 LM114 5/8-inch regular hinge J-bolts

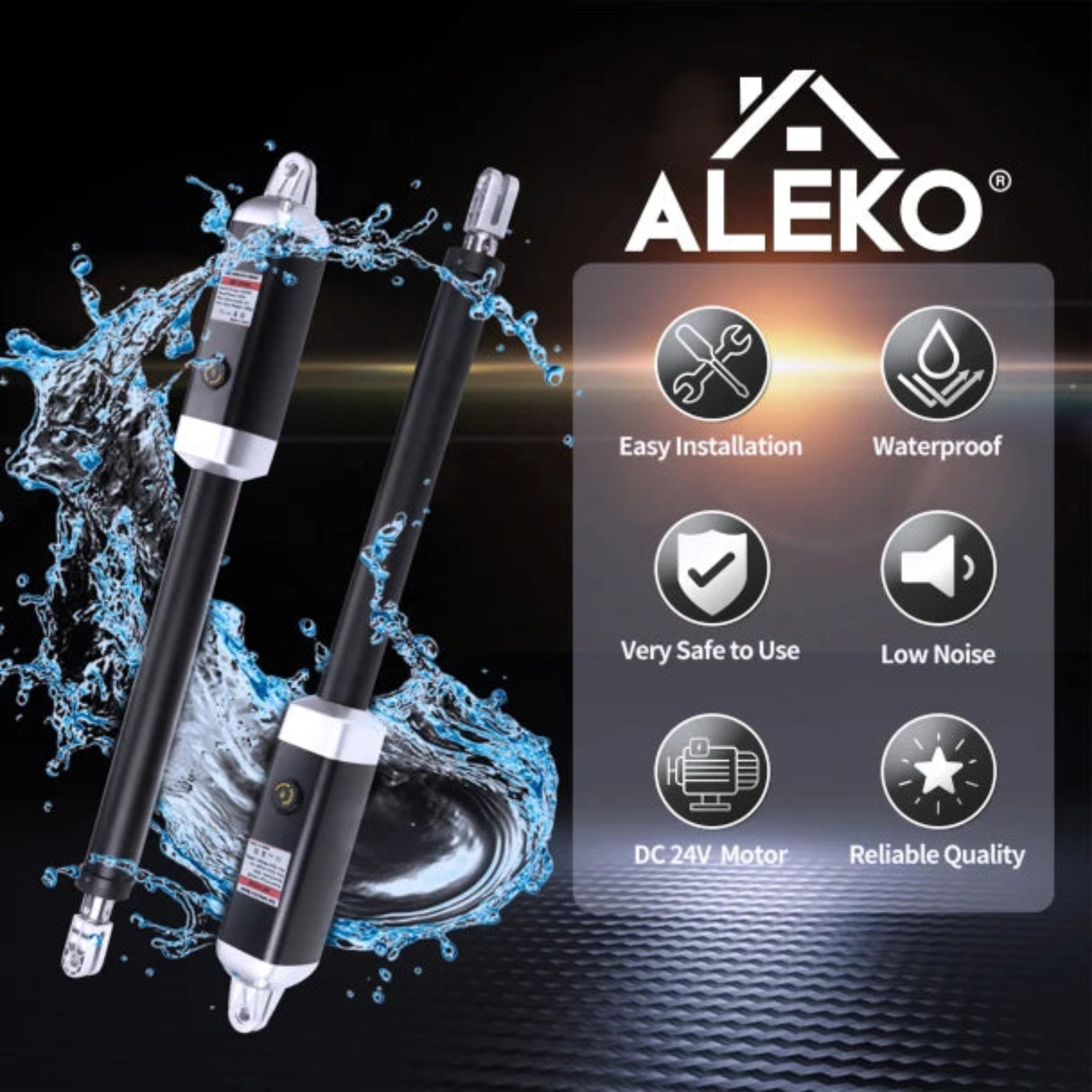

- Includes 2 actuators
- Includes control box
- Includes 2 × 433 MHz remote controls
- Includes 2 emergency release keys
- Includes 2 photocell sensors
- Includes wireless keypad
- Includes metal keypad cover
- Includes wired push button
- Includes 3 warning signs
- Includes mounting hardware
- Includes user manual

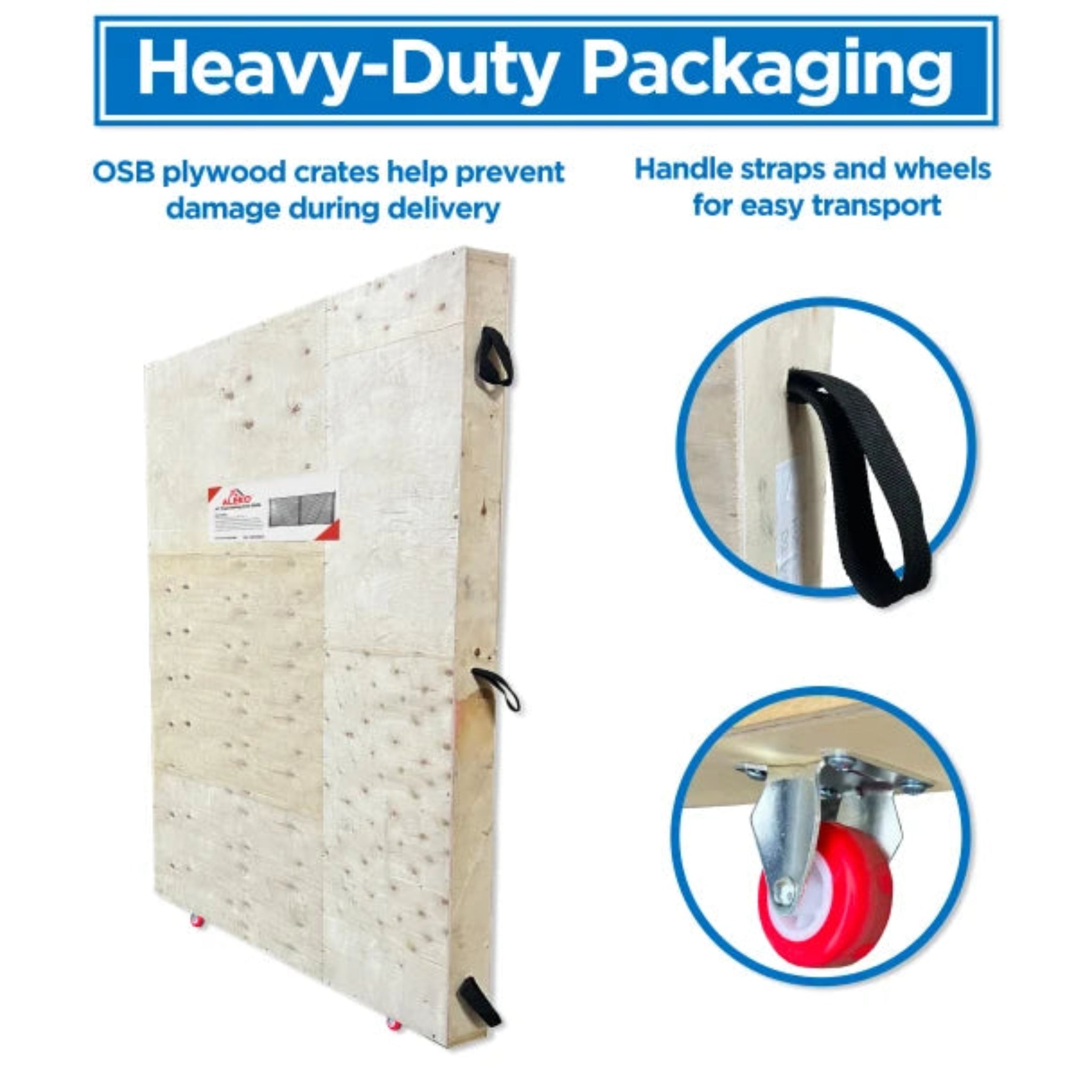

- Heavy-duty OSB plywood crates help protect the gate during delivery
- Crates include handle straps and wheels for easier transport
- Easy and straightforward installation
- 10-year gate warranty
- 1-year gate opener warranty
Specifications
| Specification | Details |
|---|---|
| Product Type | Automated Steel Dual Swing Driveway Gate Kit |
| Style | Barcelona |

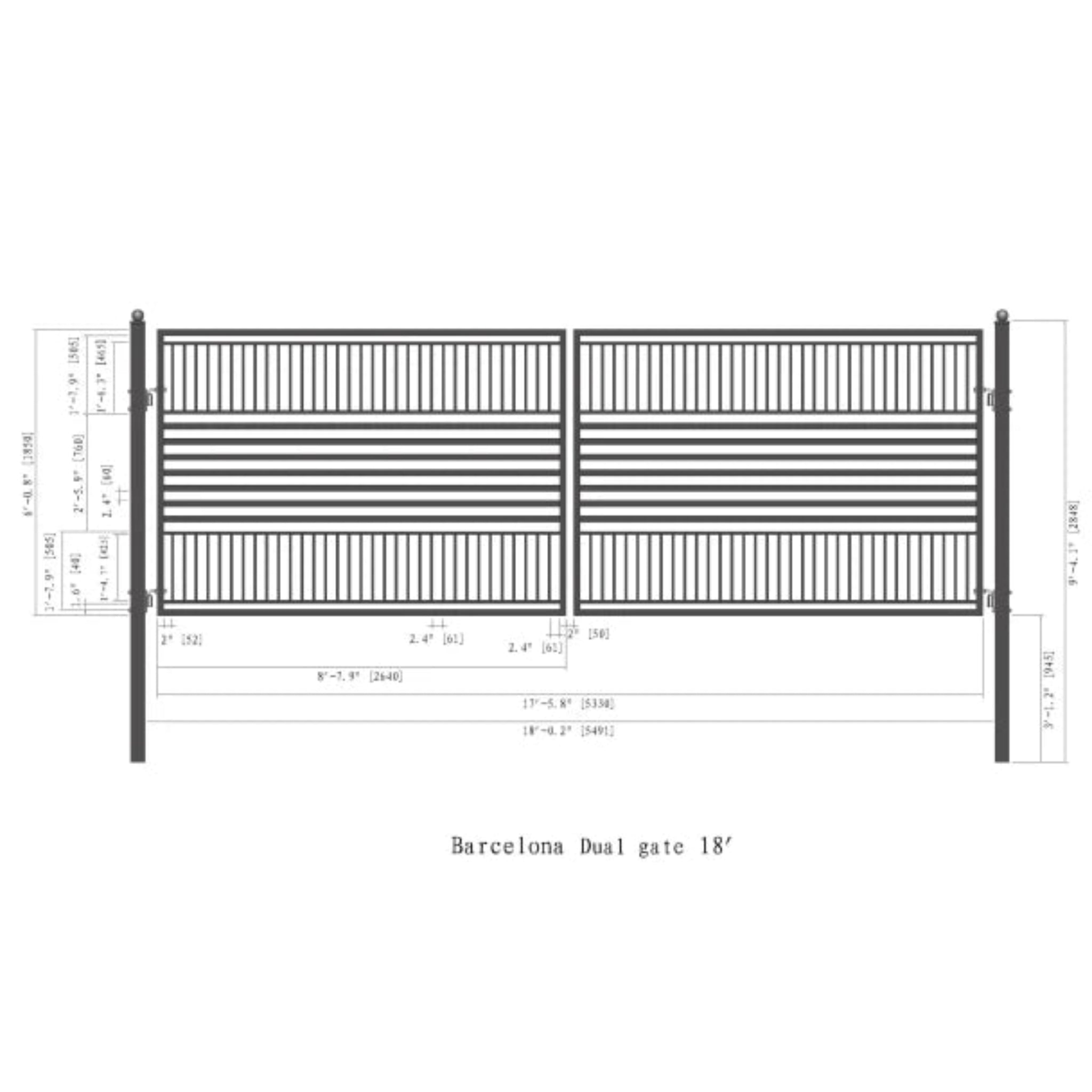

| Gate Dimensions | 18 × 6 ft. |
| Gate Type | Dual Swing |
| Material | Hot-Dipped Galvanized Steel |
| Finish | Powder-Coated |
| Color | Black |
| Gate Panels | 2 |
| Gate Posts | 2 |
| Gate Post Dimensions | 9 L ft. × 3.5 W × 3.5 H in. |
| Hinges Included | 4 × LM114 5/8-in. Regular Hinge J-Bolts |
| Gate Opener Motor | 24V DC, 80W per Actuator |
| Power Supply | 110V / 60Hz |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| Actuators | 2 |
| Control Box | 1 |
| Remote Controls | 2 × 433 MHz |
| Emergency Release Keys | 2 |
| Photocells | 2 |
| Wireless Keypad | 1 |
| Keypad Metal Cover | 1 |
| Wired Push Button | 1 |
| Warning Signs | 3 |
| Mounting Hardware | 1 Set |
| Automatic Close Timer | Programmable 0–99 seconds |
| Safety Features | Emergency Release, Stop/Reverse, Photocell Sensors |
| Gate Warranty | 10 Years |
| Gate Opener Warranty | 1 Year |
| SKU | 18DBARC1700ACC-AP |
| MPN | 18DBARC1700ACC |
| UPC | 703980263624 |
