Description
The ALEKO Barcelona Style 14 × 6 ft. Automated Steel Dual Swing Driveway Gate and Gate Opener Complete Kit combines striking modern design with durable steel construction and convenient automatic operation. The gate is fully welded from hot-dipped galvanized steel, while the powder-coated finish helps protect against rust, cracking, peeling, and chipping.
The complete kit includes the dual swing gate and compatible opener accessories, allowing convenient access by remote control or keypad. Safety and convenience features include smooth start/stop operation, emergency release keys, stop/reverse functionality, photocell sensors, and programmable automatic closing. The gate opener is ETL listed.
Key Features
- Complete automated dual swing driveway gate kit

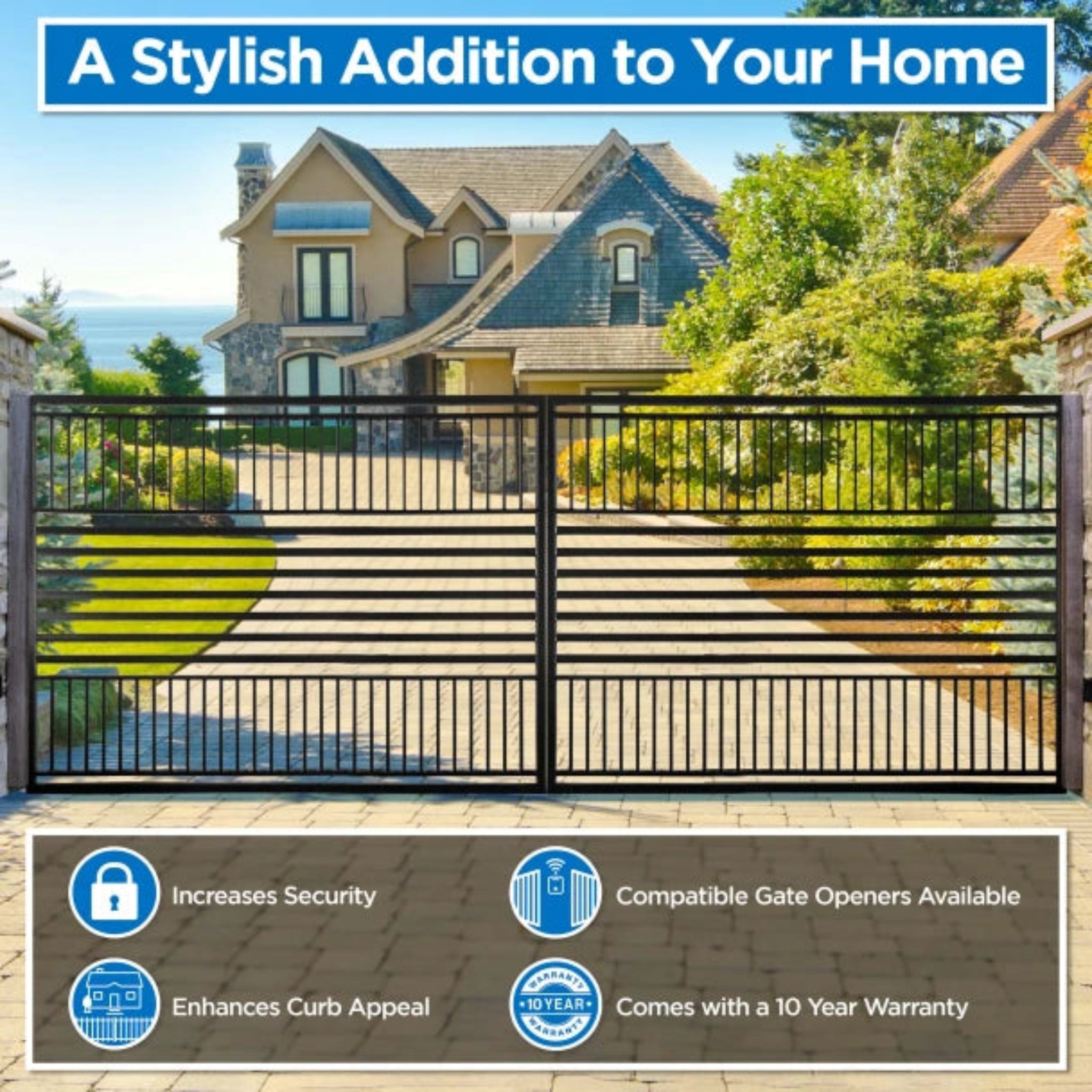

- Barcelona-style 14 × 6 ft. driveway gate

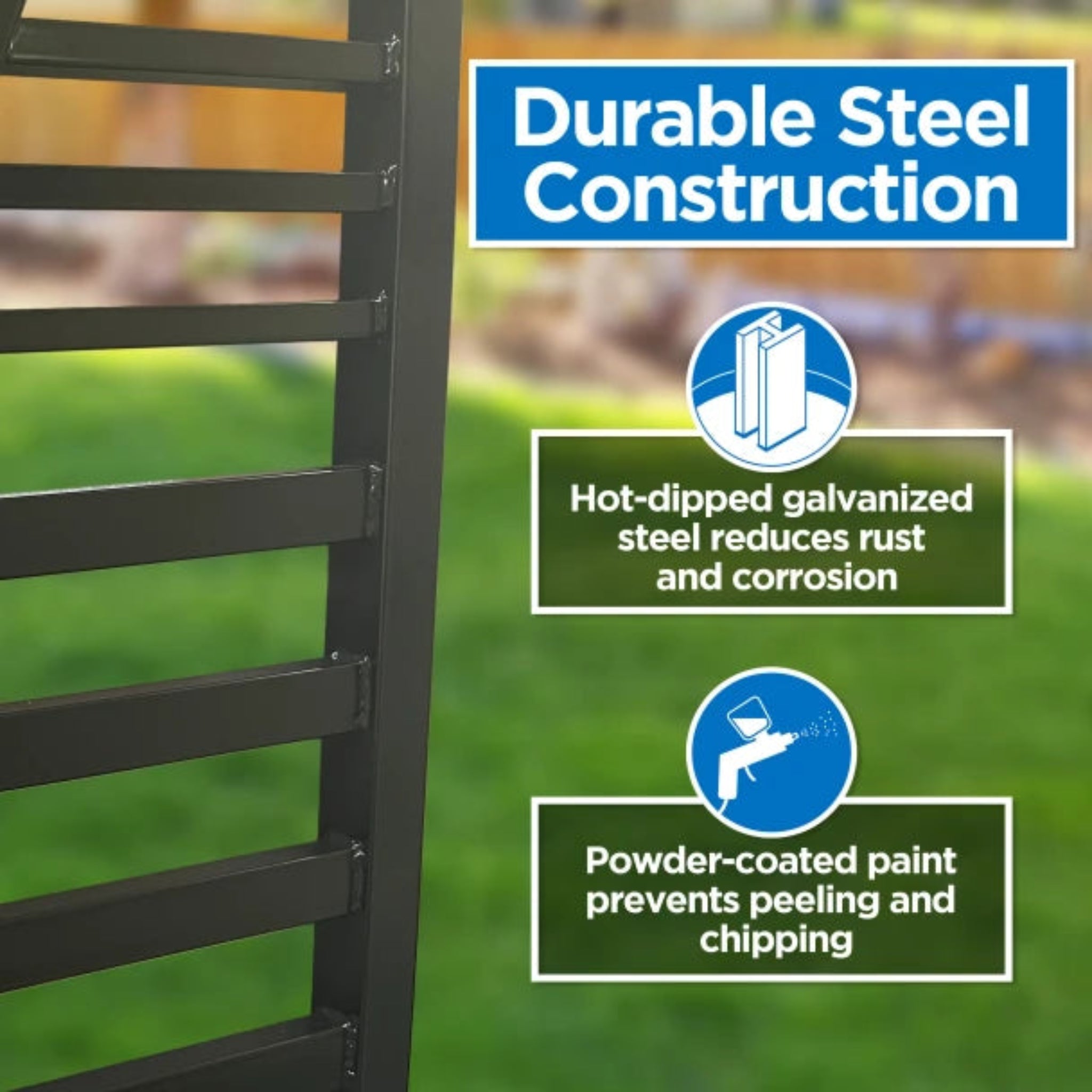

- Fully welded hot-dipped galvanized steel construction
- Powder-coated finish helps prevent rust, cracking, peeling, and chipping
- Striking modern Barcelona-style details
- Designed for durability and enhanced security
- Remote control or wireless keypad access
- Smooth start/stop functionality

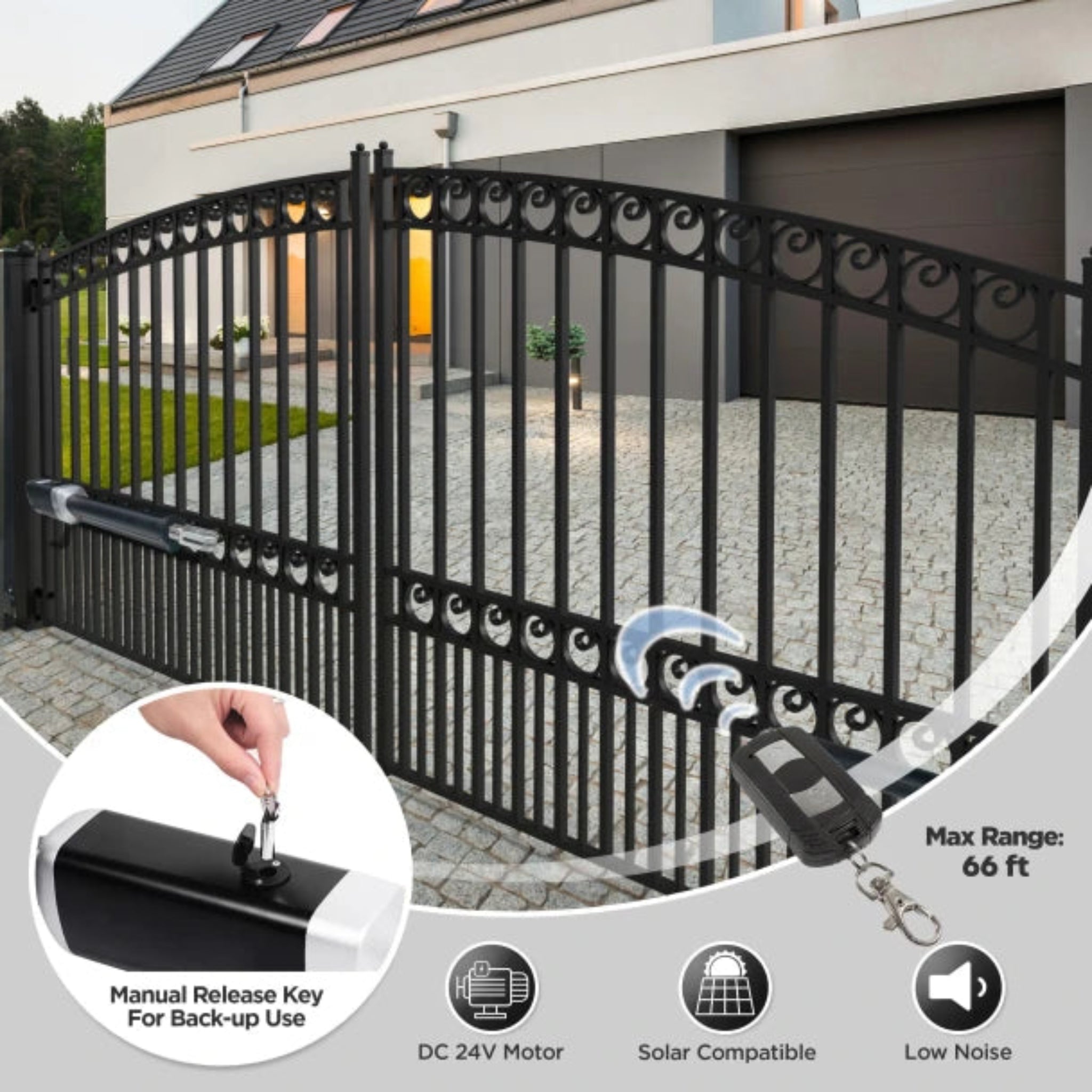

- Emergency release keys for power failures
- Stop/reverse functionality when an obstruction is detected
- Photocell sensors for added safety
- Programmable motor
- Adjustable automatic closing from 0–99 seconds
- ETL-listed gate opener

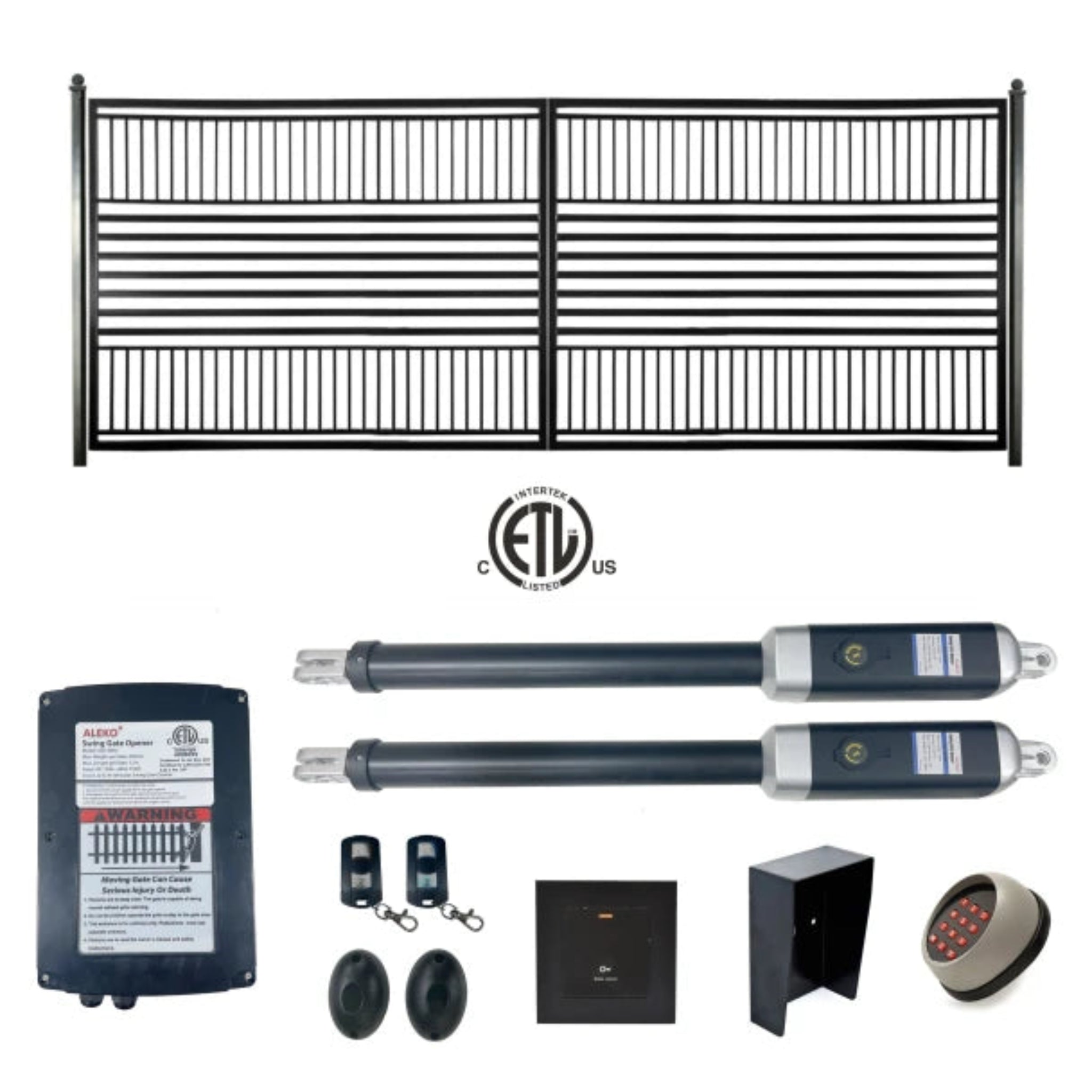

- Includes 2 driveway gate panels
- Includes 2 gate posts
- Includes 4 LM114 5/8-inch regular hinge J-bolts

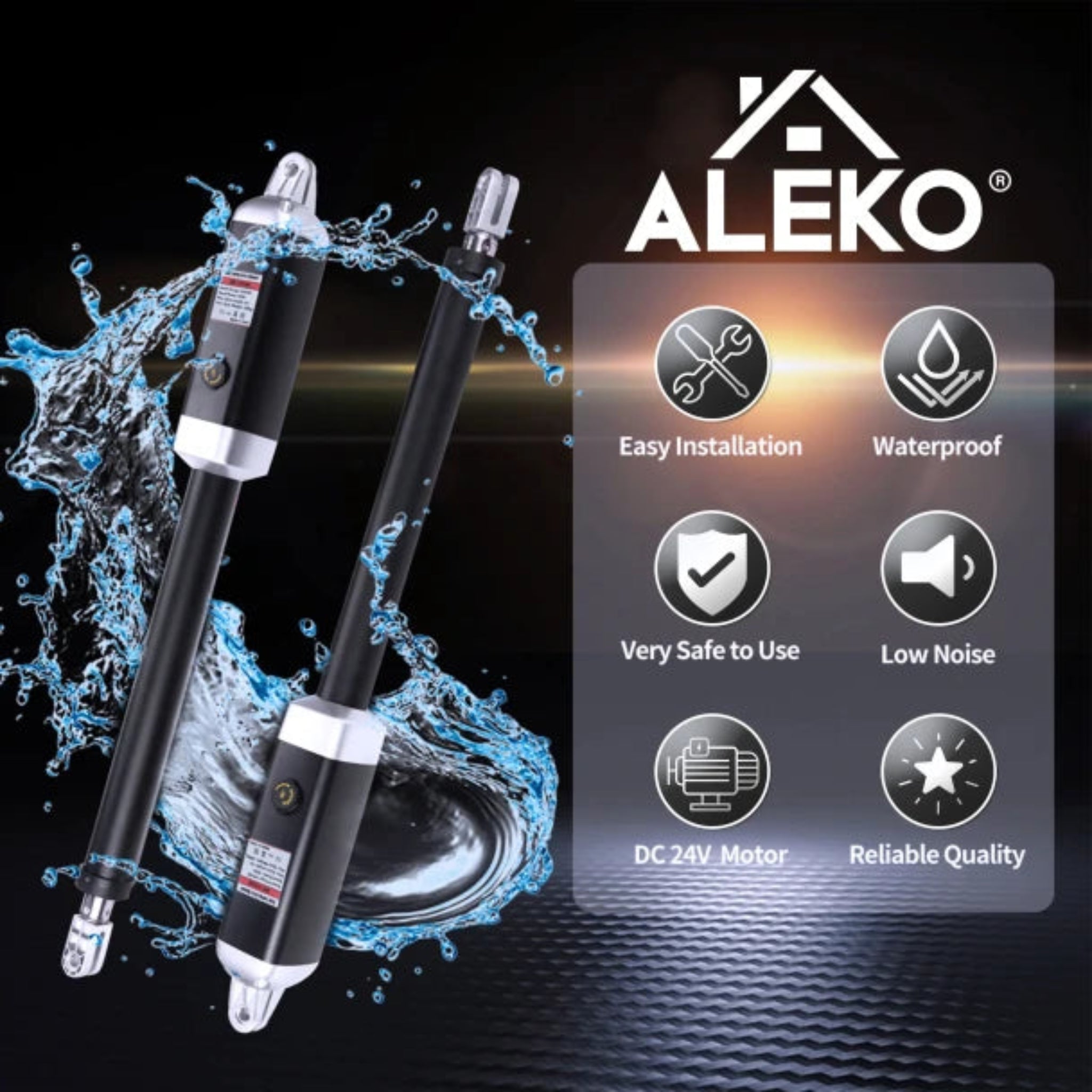

- Includes 2 actuators and control box
- Includes 2 × 433 MHz remote controls
- Includes 2 emergency release keys
- Includes wireless keypad and wired push button
- Includes keypad metal cover
- Includes 3 warning signs
- Includes mounting hardware and user manual
- Heavy-duty OSB plywood crates help protect the gate during delivery
- Crates include handle straps and wheels for easier transportation
- Easy and straightforward installation
- 10-year gate warranty
- 1-year gate opener warranty
Specifications
| Specification | Details |
|---|---|
| Product Type | Automated Steel Dual Swing Driveway Gate Kit |
| Style | Barcelona |

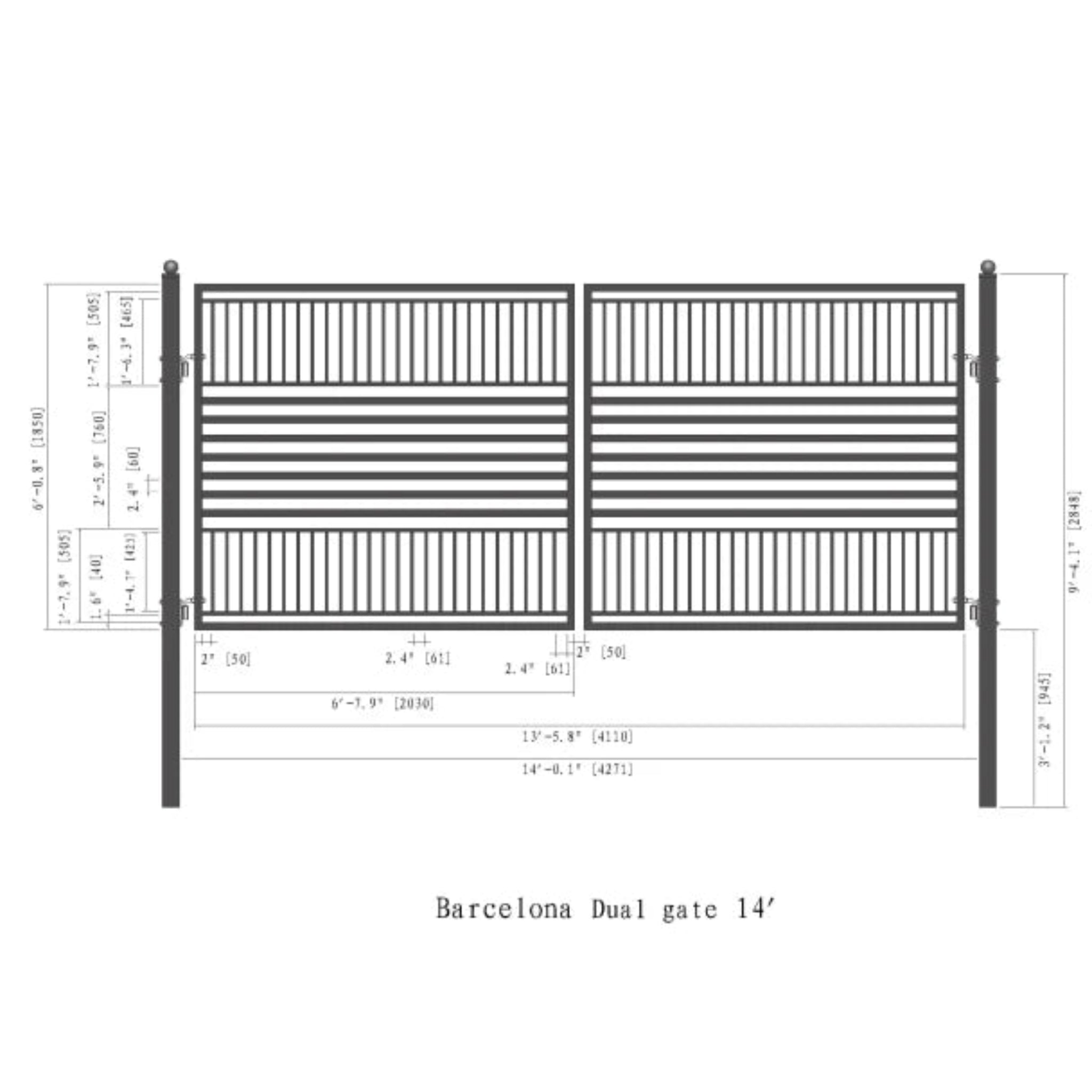

| Gate Dimensions | 14 × 6 ft. |
| Gate Type | Dual Swing |
| Material | Hot-Dipped Galvanized Steel |
| Finish | Powder-Coated |
| Color | Black |
| Gate Panels | 2 |
| Gate Posts | 2 |
| Gate Post Dimensions | 9 L ft. × 3.5 W × 3.5 H in. |
| Hinges Included | 4 × LM114 5/8-in. Regular Hinge J-Bolts |
| Gate Opener Motor | 24V DC, 80W per Actuator |
| Power Supply | 110V / 60Hz |
| Operating Temperature | -4°F to 122°F |
| Actuator Speed | 0.64 in./second |
| Actuator Travel | 15-3/4 in. |
| ETL Listed | Yes |
| Actuators | 2 |
| Control Box | 1 |
| Remote Controls | 2 × 433 MHz |
| Emergency Release Keys | 2 |
| Photocells | 2 |
| Wireless Keypad | 1 |
| Keypad Metal Cover | 1 |
| Wired Push Button | 1 |
| Warning Signs | 3 |
| Mounting Hardware | 1 Set |
| Automatic Close Timer | Programmable 0–99 seconds |
| Gate Warranty | 10 Years |
| Gate Opener Warranty | 1 Year |
| SKU | 14DBARC1300ACC-AP |
| MPN | 14DBARC1300ACC |
| UPC | 703980263600 |
