Description

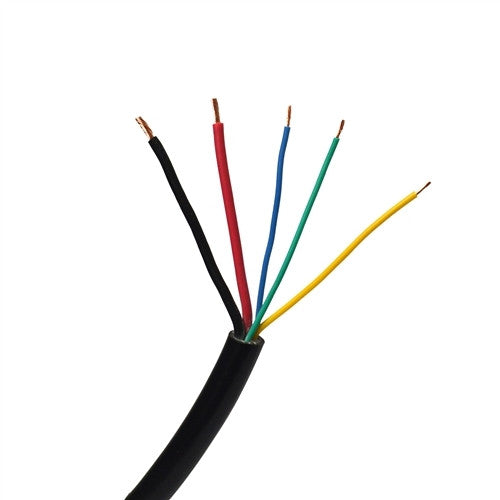

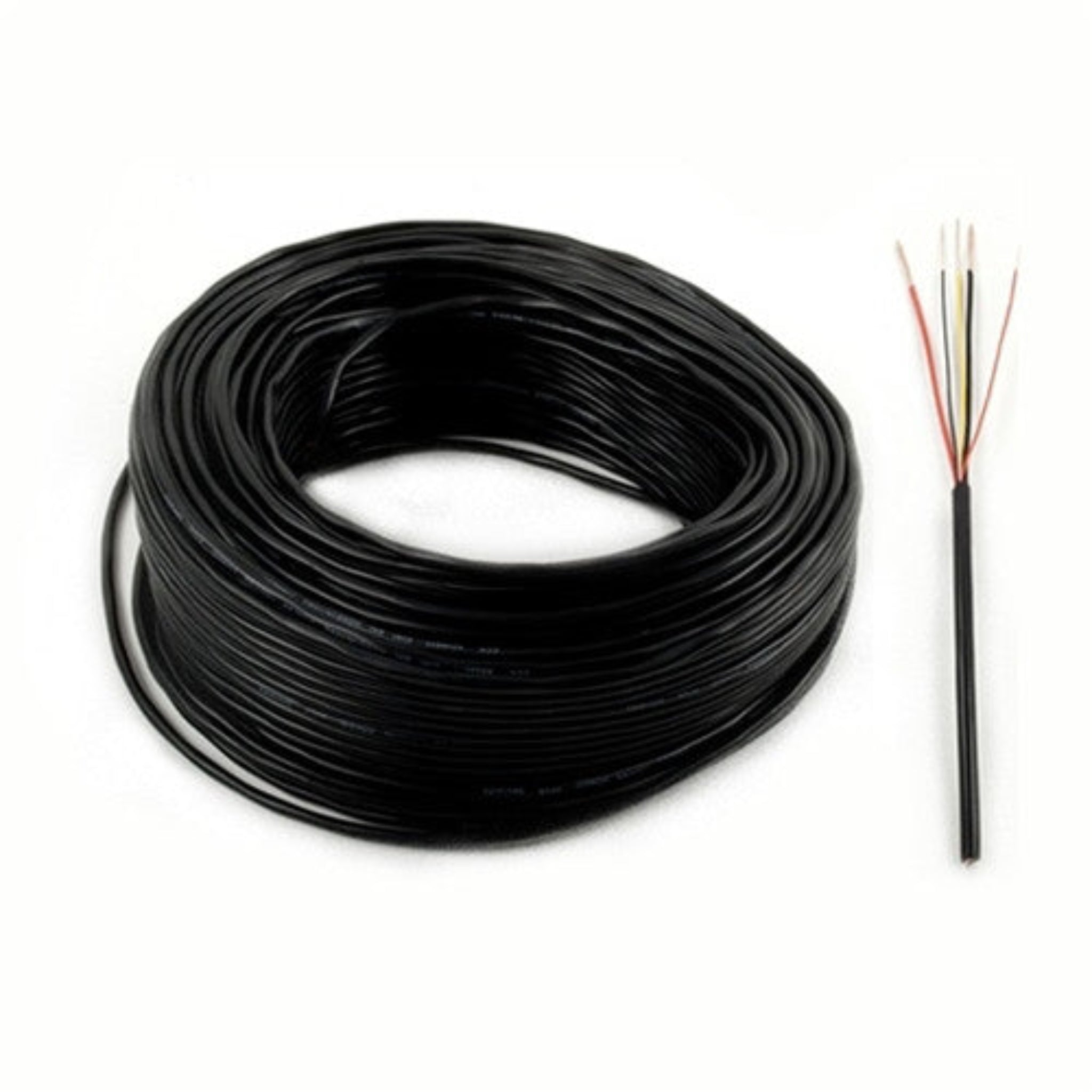

The ALEKO LM150 5-Core Black Stranded Wire is designed for connecting a gate opener actuator to its control box, providing a reliable connection for compatible automated gate systems. The cable features five copper conductors, flame-retardant PVC insulation and jacket, and a maximum voltage rating of 300V. It is supplied in 20-foot increments, allowing you to order additional lengths by increasing the quantity—for example, ordering a quantity of 4 provides 80 feet of cable.
Key Features
- Designed to connect gate opener actuators to control boxes
- 5-core cable with five individual conductors
- Copper conductor material for reliable electrical conductivity
- Rated for up to 300V maximum
- Flame-retardant PVC insulation and outer jacket
- Combination of 2 × 16 AWG and 3 × 18 AWG conductors
- Black outer color for a clean, professional installation
- Sold in 20-foot increments
- Additional cable length can be ordered in 20-foot increments
- Designed for efficient, long-lasting performance
Specifications
| Specification | Details |
|---|---|
| Product Type | Gate Opener Wire Cable |
| Model | LM150 |
| Cable Type | Stranded Wire |
| Number of Conductors | 5 |
| Conductor Material | Copper |
| Conductor Sizes | 2 × 16 AWG + 3 × 18 AWG |
| Voltage Rating | Up to 300V Maximum |
| Insulation / Jacket | Flame-Retardant PVC |
| Outer Color | Black |
| Standard Length | 20 Feet |
| Length Options | Sold in 20-Foot Increments |
| Application | Connecting Gate Opener Actuator to Control Box |
| Brand | ALEKO |
| SKU | LM15020F-AP |
| MPN | LM15020F |
| UPC | 013964851205 |
