Forest SM MTB

Description

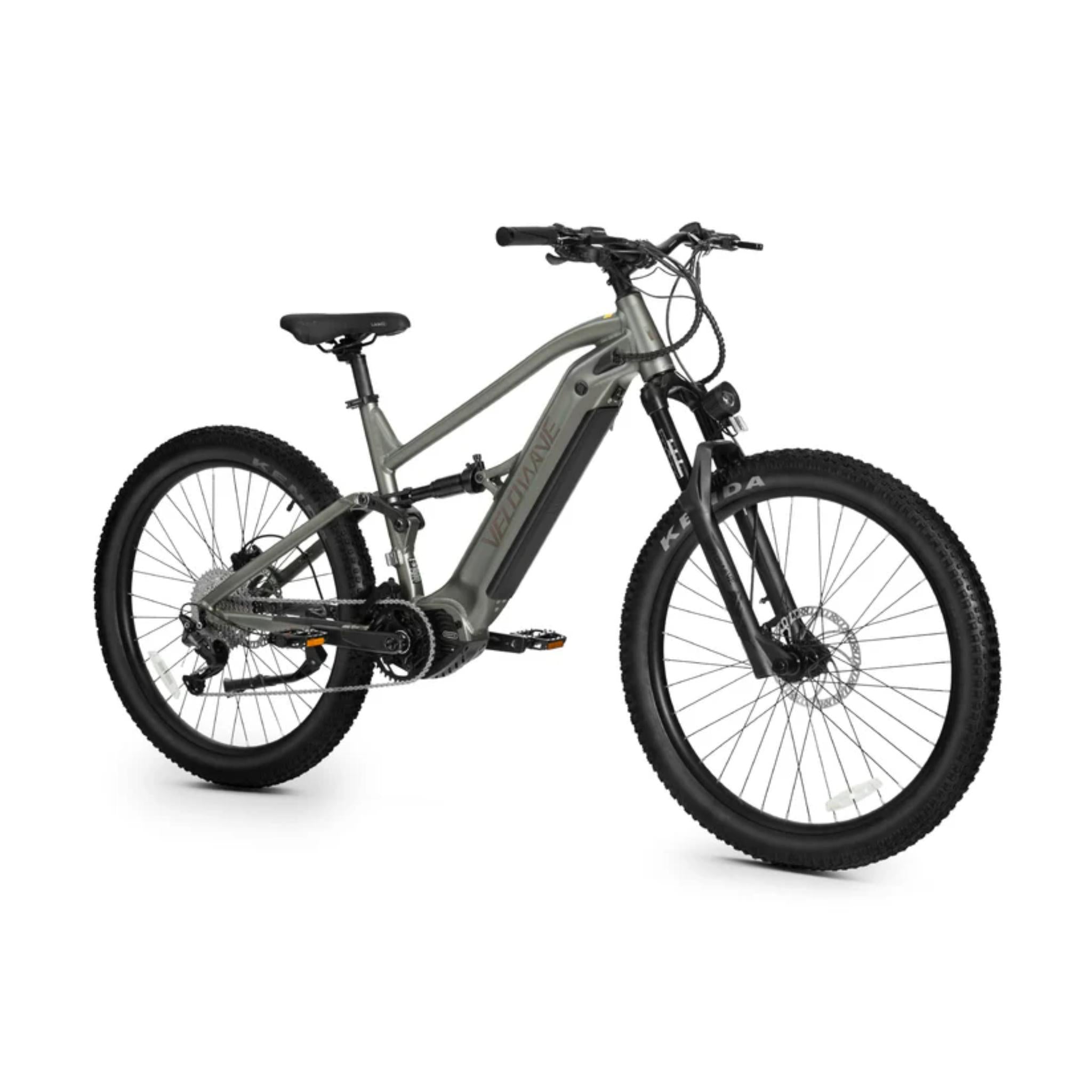

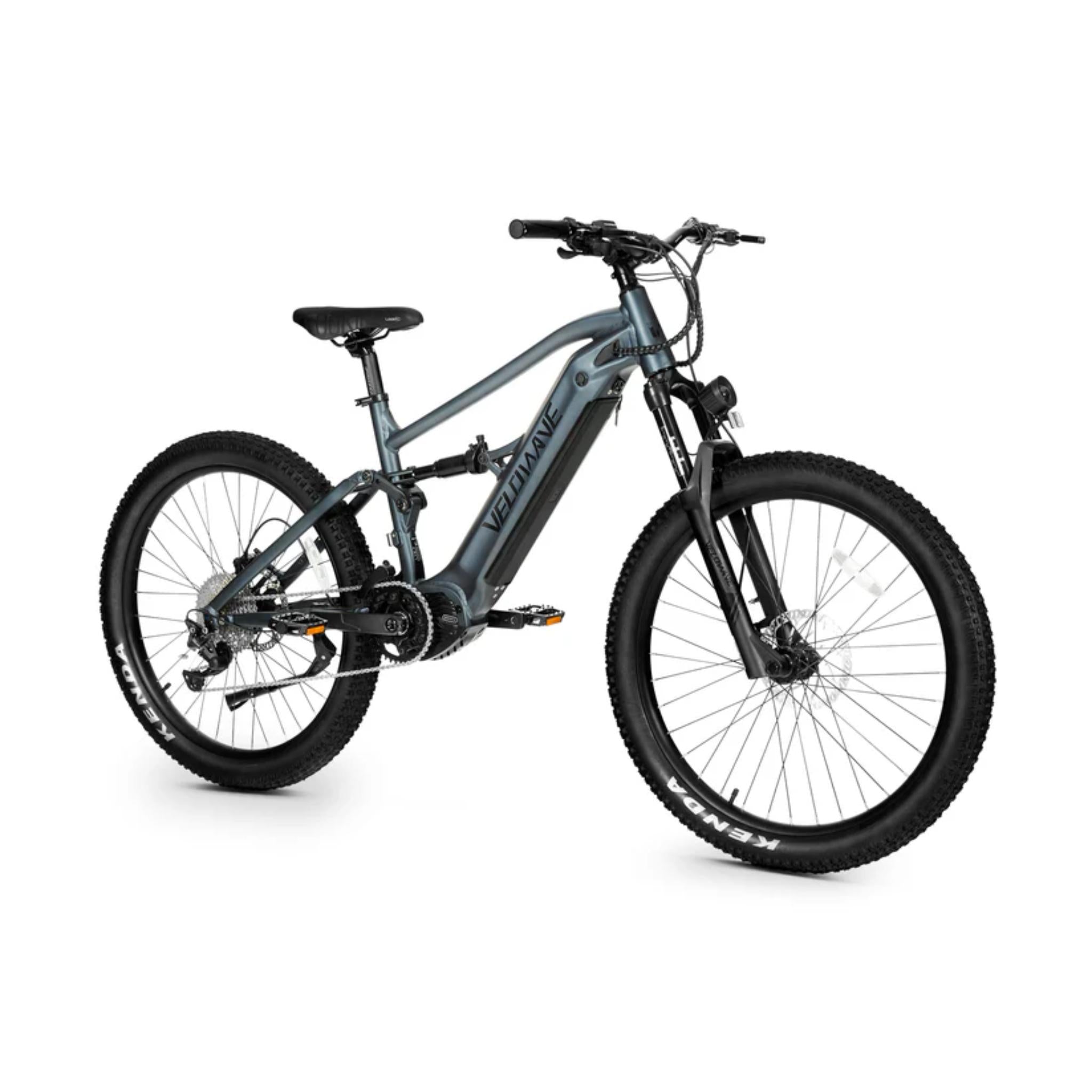

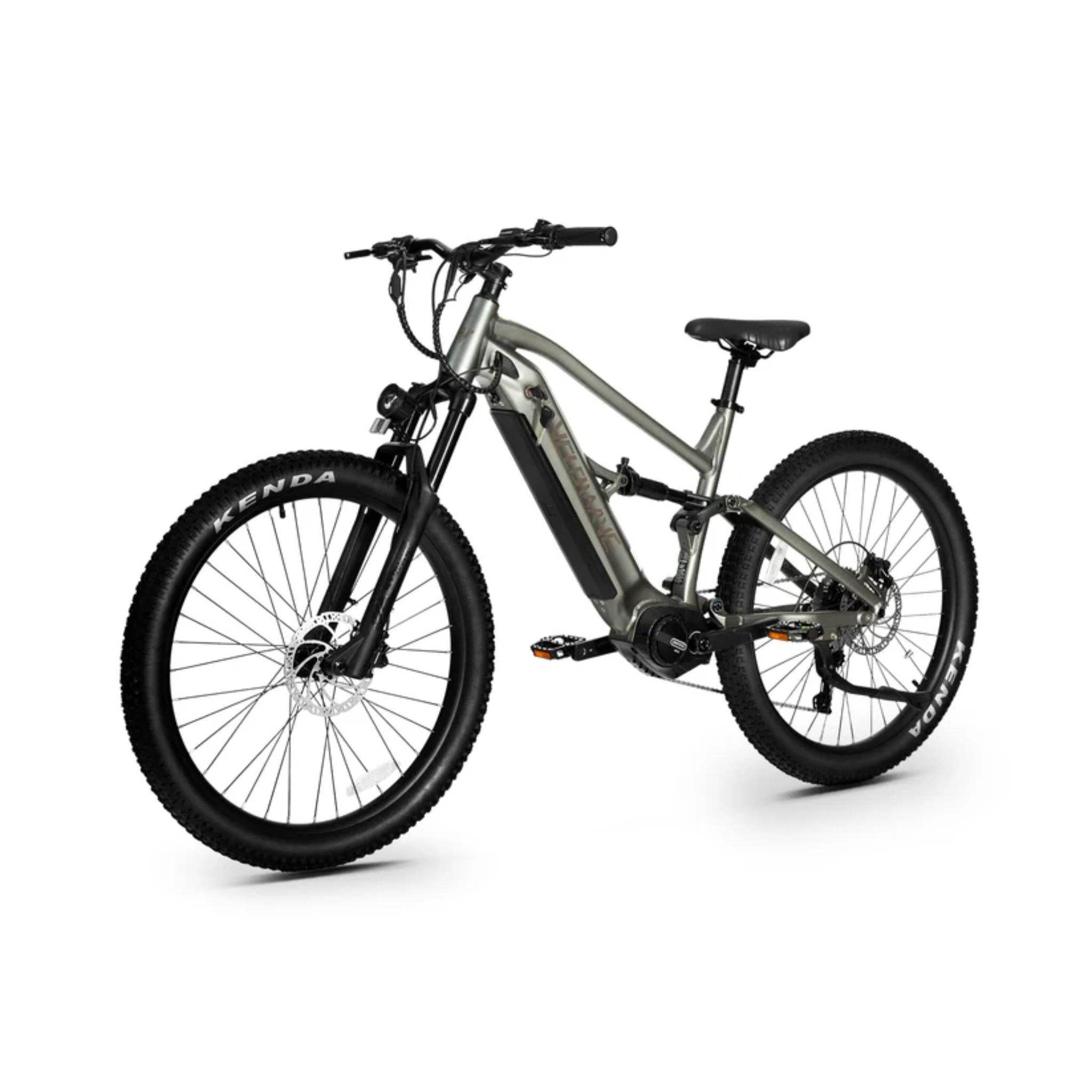

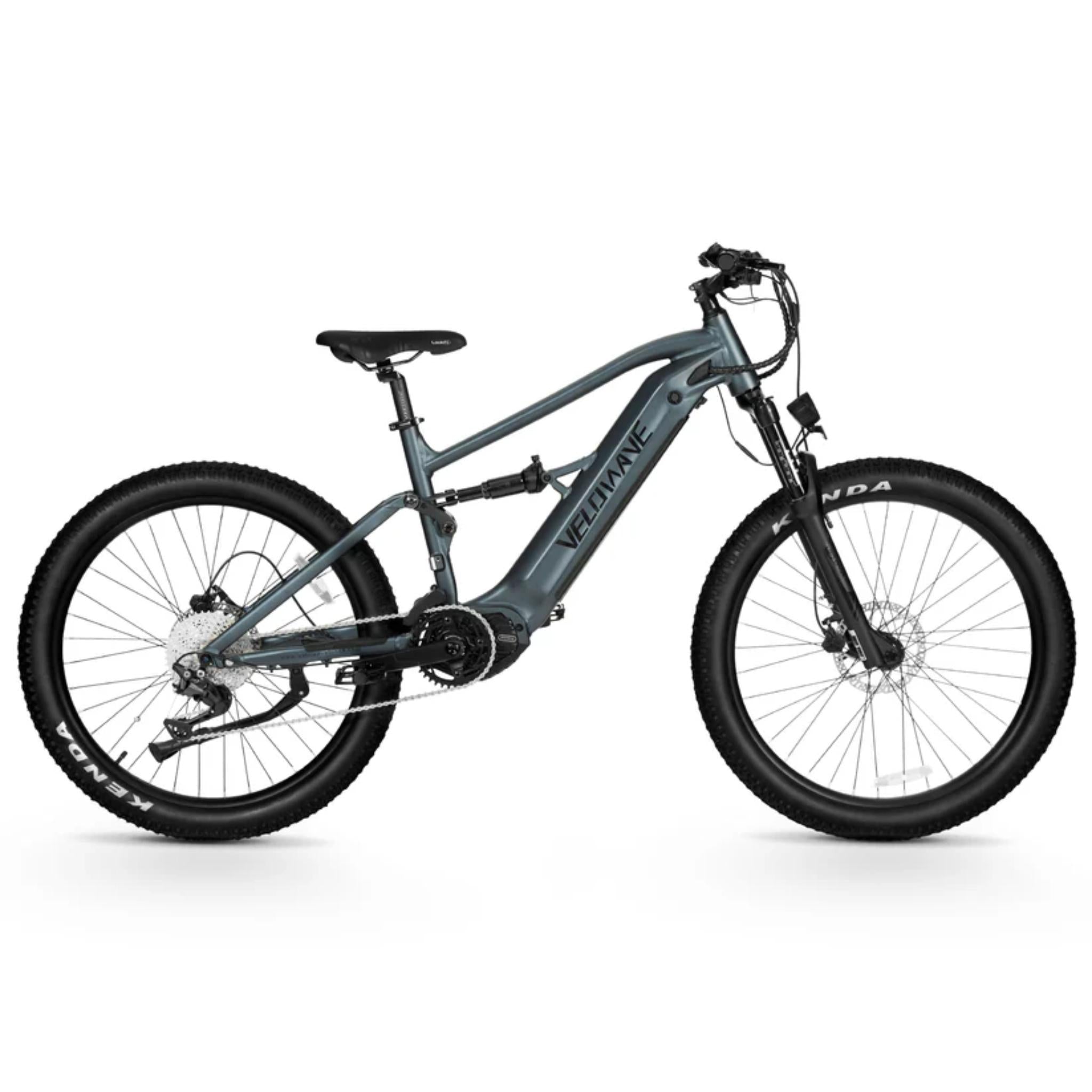

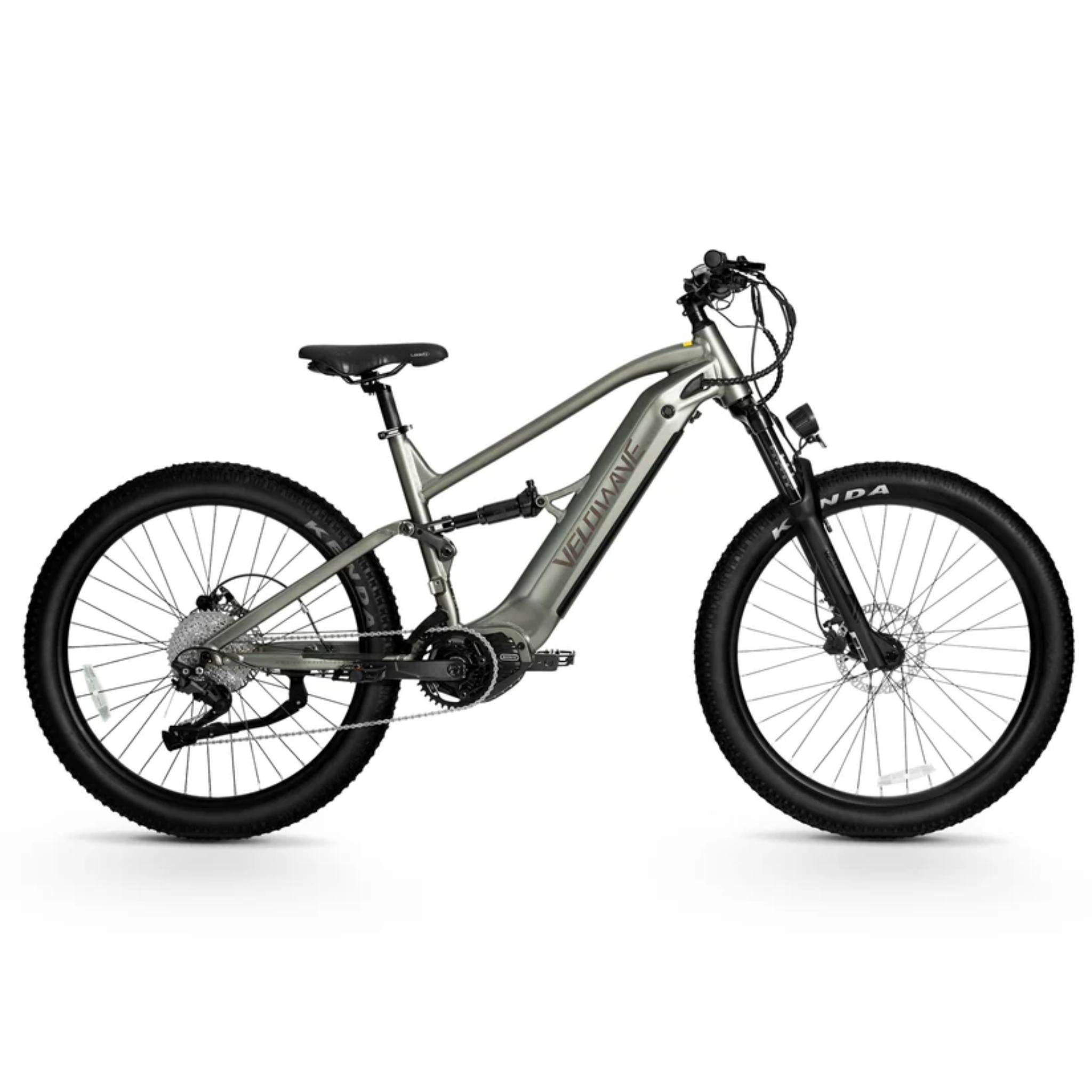

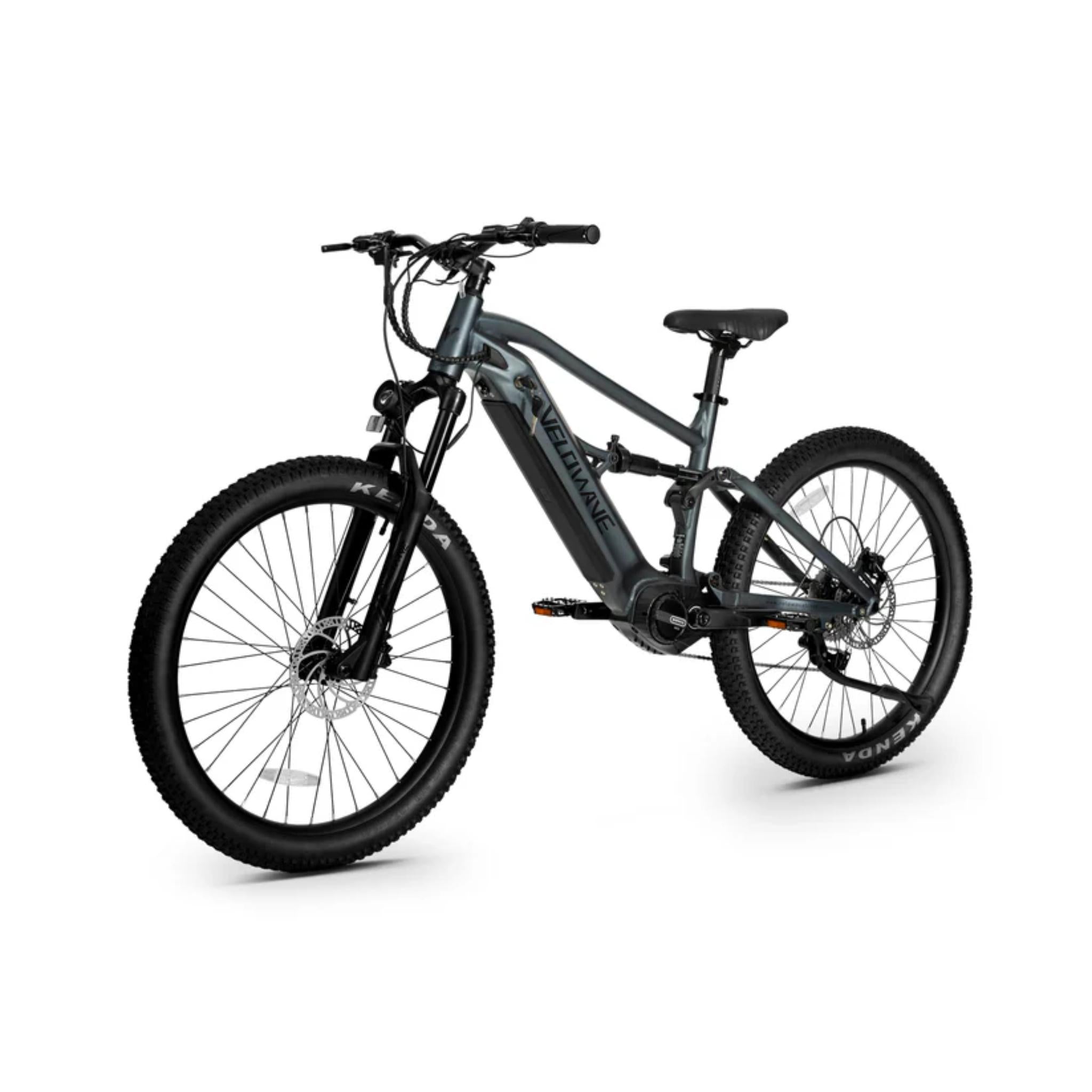

The Velowave Forest SM Electric Mountain Bike is a high-performance full-suspension Class 3 eMTB designed for riders seeking a perfect balance of power, agility, and trail-ready capability. Equipped with a 500W rear hub motor delivering 760W peak power and 130 Nm of torque, it provides smooth acceleration, confident climbing, and speeds of up to 28 MPH with pedal assist. The removable 48V 15Ah (720Wh) LG lithium-ion battery offers an average range of 60 miles, with up to 70 miles on PAS Level 1. Built with a lightweight 6061 aluminum alloy full-suspension frame, 140 mm air suspension fork, adjustable rear air shock, Shimano Deore 10-speed drivetrain, and 27.5" × 2.8" Kenda tires, the Forest SM is ready for technical trails, gravel paths, and everyday adventures.

Package Includes

Velowave Forest SM Electric Mountain Bike
48V 15Ah (720Wh) Removable LG Lithium-Ion Battery
48V 3A Smart Charger
Front LED Headlight & Reflector Combo
Rear Blinking LED Light
Alloy Platform Pedals
Allen Wrench
2 × Spare Spokes
Tool Kit
User Manual
Assembly Accessories

Key Features

500W rear hub motor with 760W peak power
Delivers 130 Nm of torque for powerful hill climbing
Class 3 e-bike with speeds up to 28 MPH (Pedal Assist) and 20 MPH (Throttle)
Removable 48V 15Ah (720Wh) LG lithium-ion battery
Average range of 60 miles, with up to 70 miles on PAS Level 1
Responsive torque sensor for smooth and natural pedal assistance
Lightweight 6061 aluminum alloy full-suspension frame

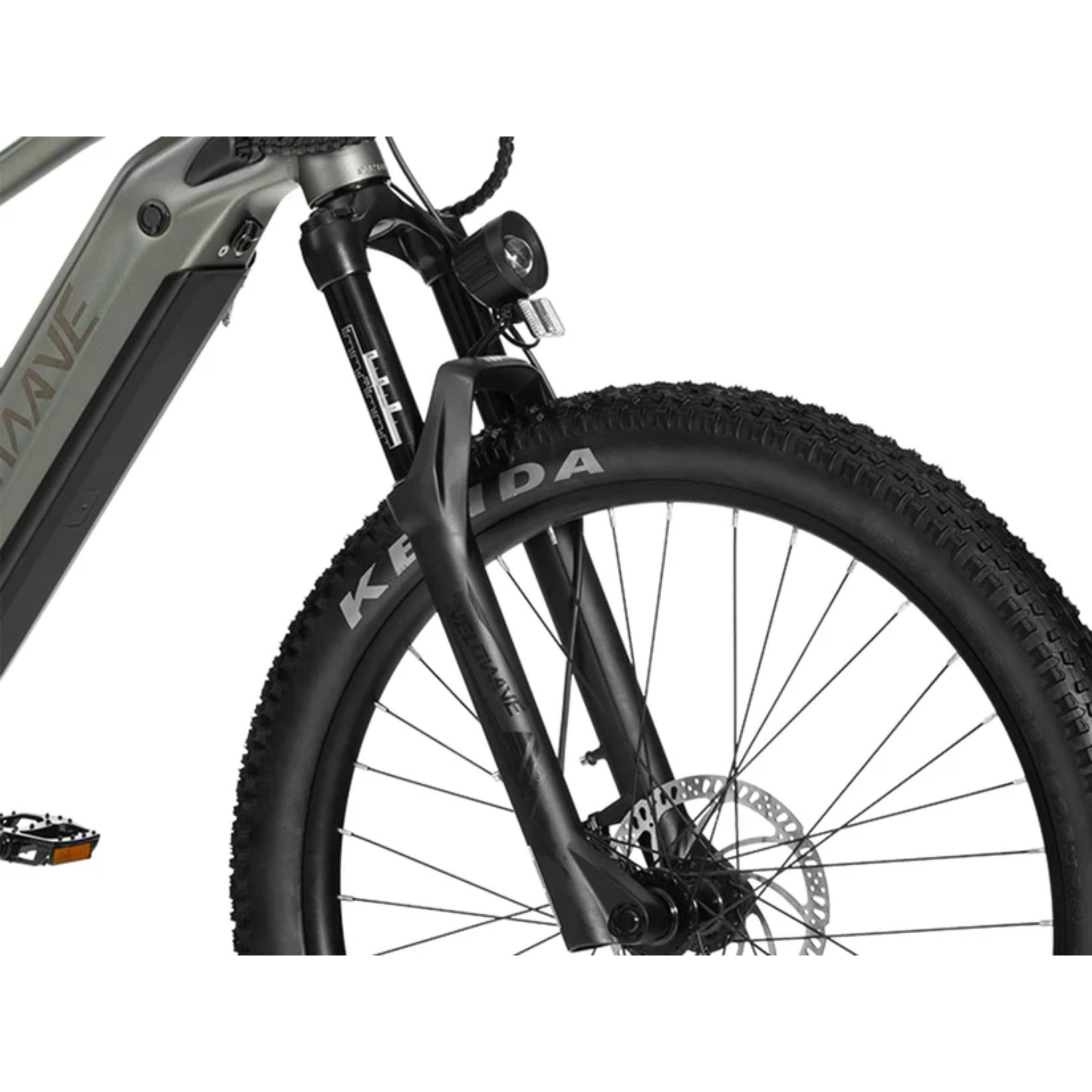

140 mm air suspension fork with lockout
Adjustable 185 × 45 mm rear air suspension with rebound adjustment
Shimano Deore 10-speed drivetrain for precise shifting
Tektro hydraulic disc brakes with 180 mm rotors and motor cut-off
27.5" × 2.8" Kenda all-terrain tires for excellent grip and stability
Full-color TFT Smart Display with backlight
Bright 80 LUX LED headlight and rear blinking light
Six levels of pedal assist
Thumb throttle with throttle-on-demand
Rear-mounted kickstand included
Maximum payload capacity of 385 lbs (175 kg)
Built for mountain trails, gravel roads, and daily commuting

Specifications

Specification	Details
Product	Velowave Forest SM Electric Mountain Bike
Bike Class	Class 3
Motor	500W Rear Hub Motor (760W Peak)
Maximum Torque	130 Nm
Battery	48V 15Ah (720Wh) Removable LG Lithium-Ion Battery
Maximum Speed	Up to 28 MPH (Pedal Assist), 20 MPH (Throttle)
Average Range	60 Miles
Maximum Range	Up to 70 Miles (PAS Level 1), Up to 40 Miles (Throttle)
Pedal Assist	6 Levels
Sensor	Torque Sensor
Throttle	Thumb Throttle (Throttle-on-Demand)

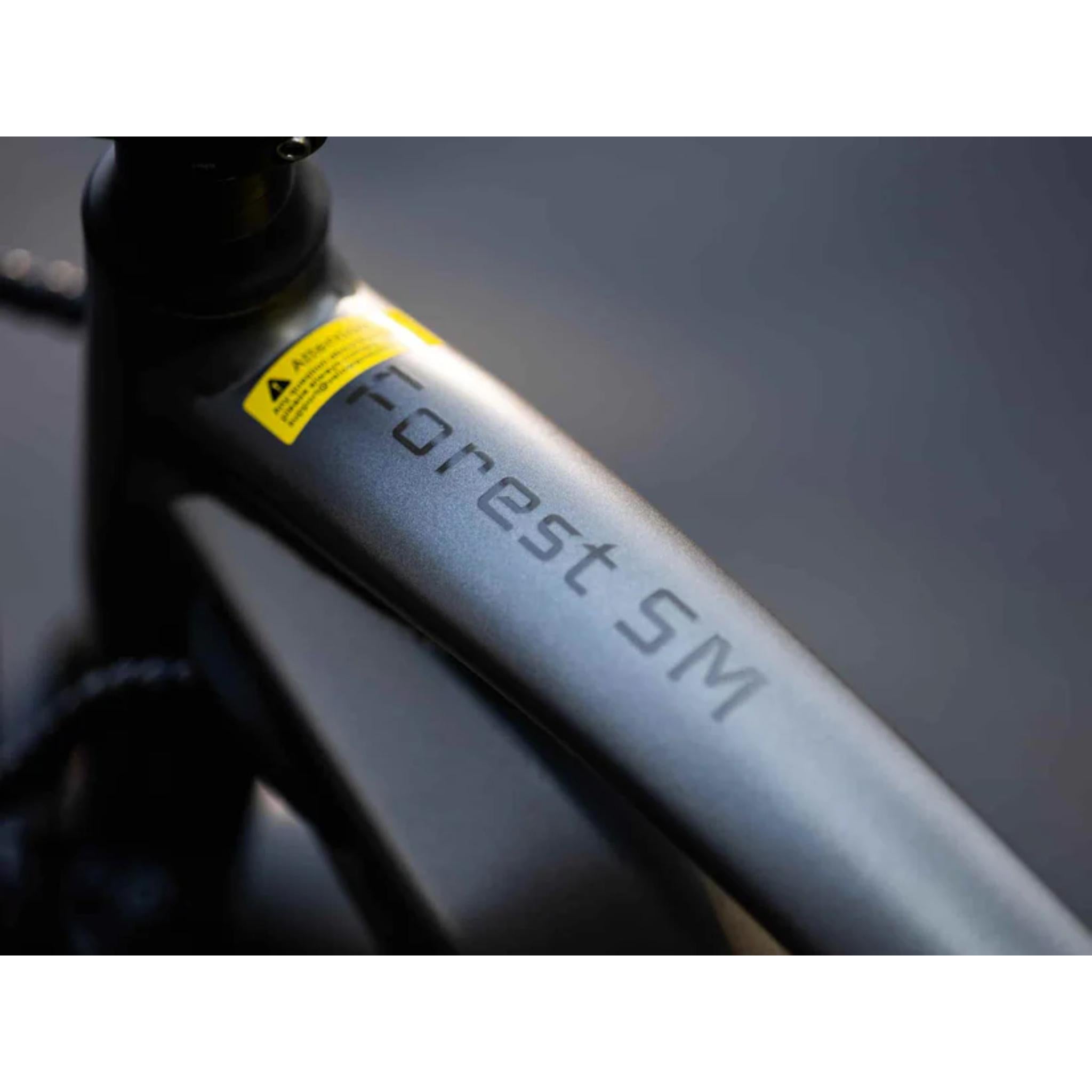

Frame	6061 Aluminum Alloy Full-Suspension Frame
Frame Travel	121 mm

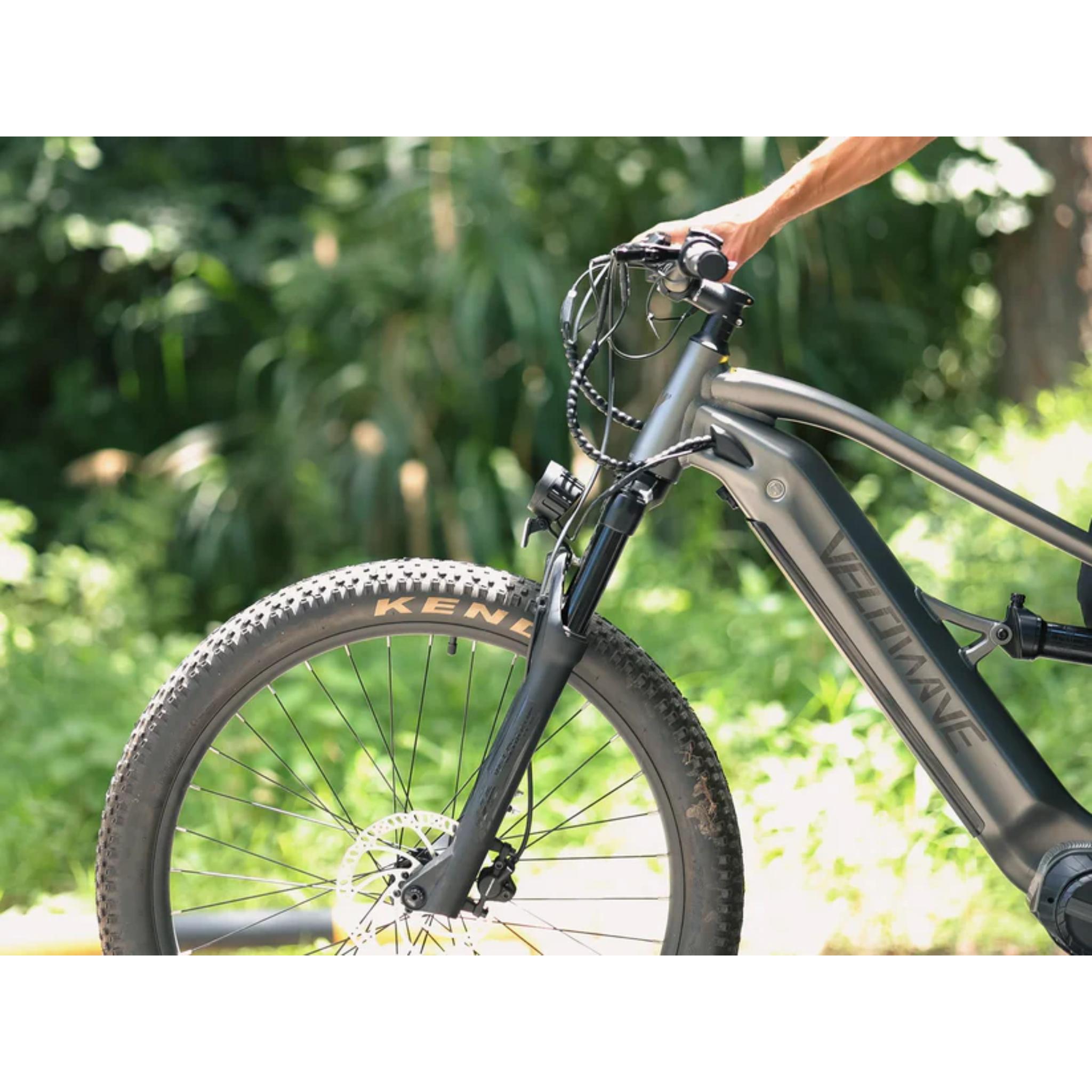

Front Fork	Air Suspension Fork, 140 mm Travel, Lockout

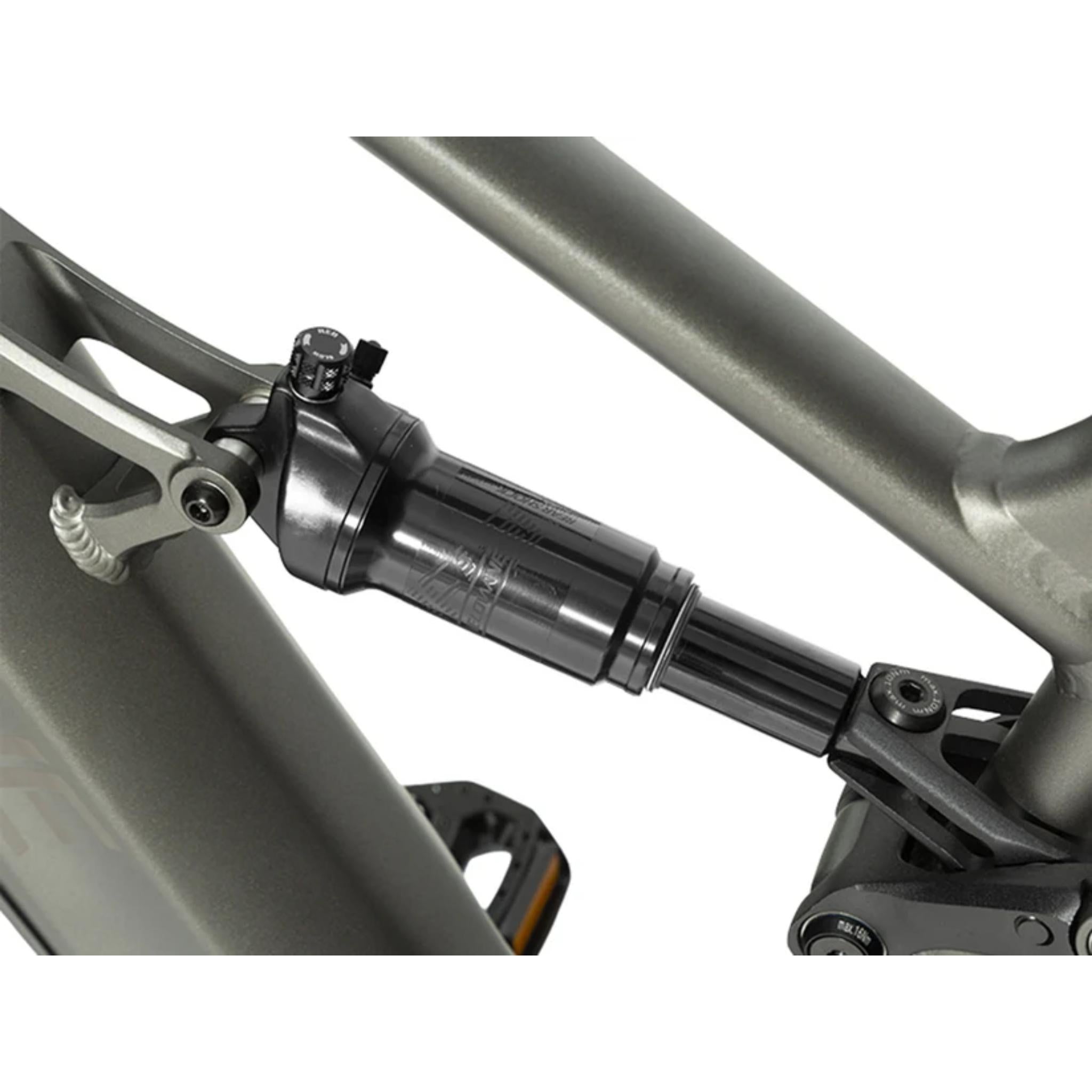

Rear Suspension	185 × 45 mm Air Shock with External Rebound Adjustment
Drivetrain	Shimano Deore 10-Speed

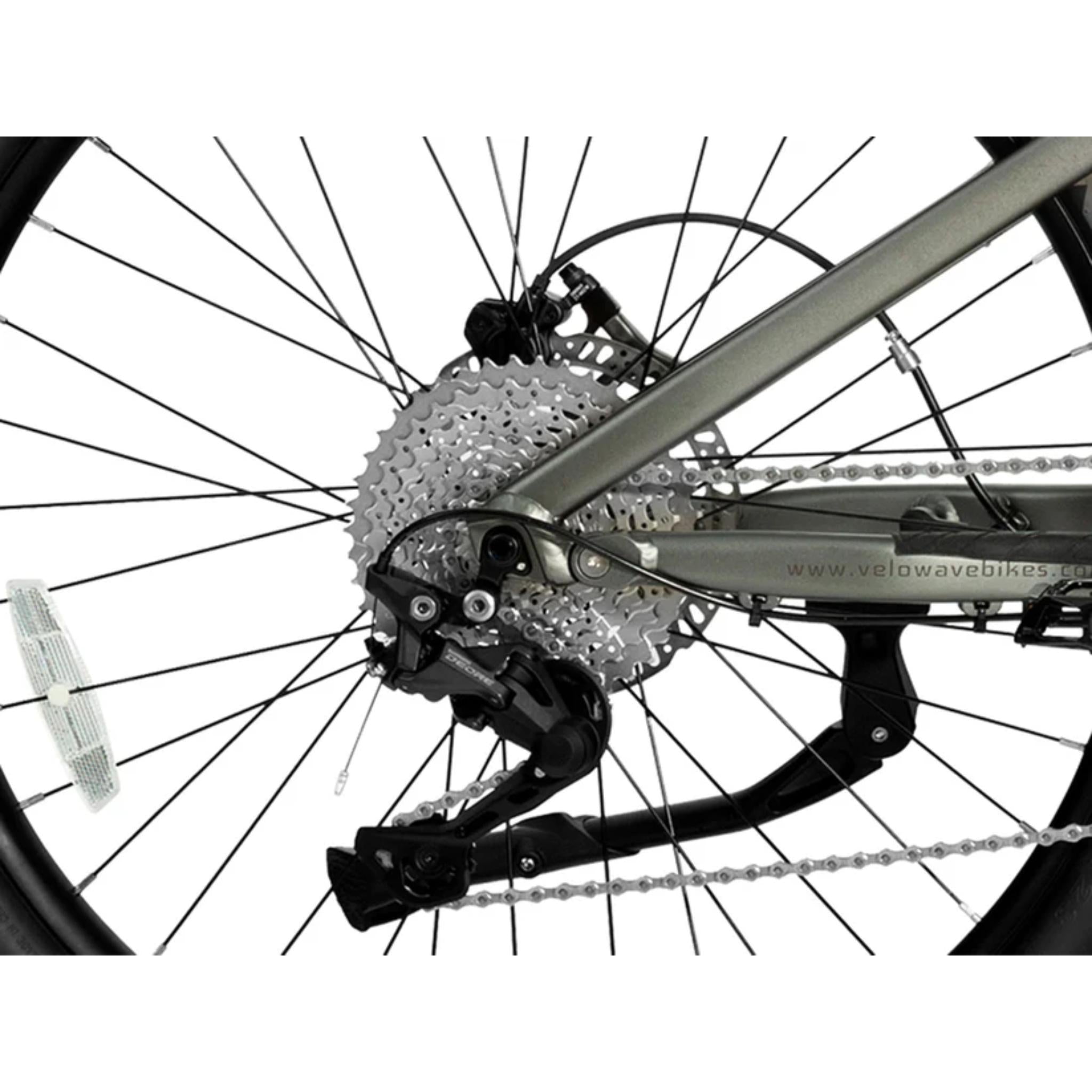

Rear Derailleur	Shimano Deore RD-M4120
Cassette	Shimano 11–42T, 10-Speed
Tires	Kenda 27.5" × 2.8"
Wheels	27.5" Aluminum Alloy Rims
Brakes	Tektro Hydraulic Disc Brakes with 180 mm Rotors

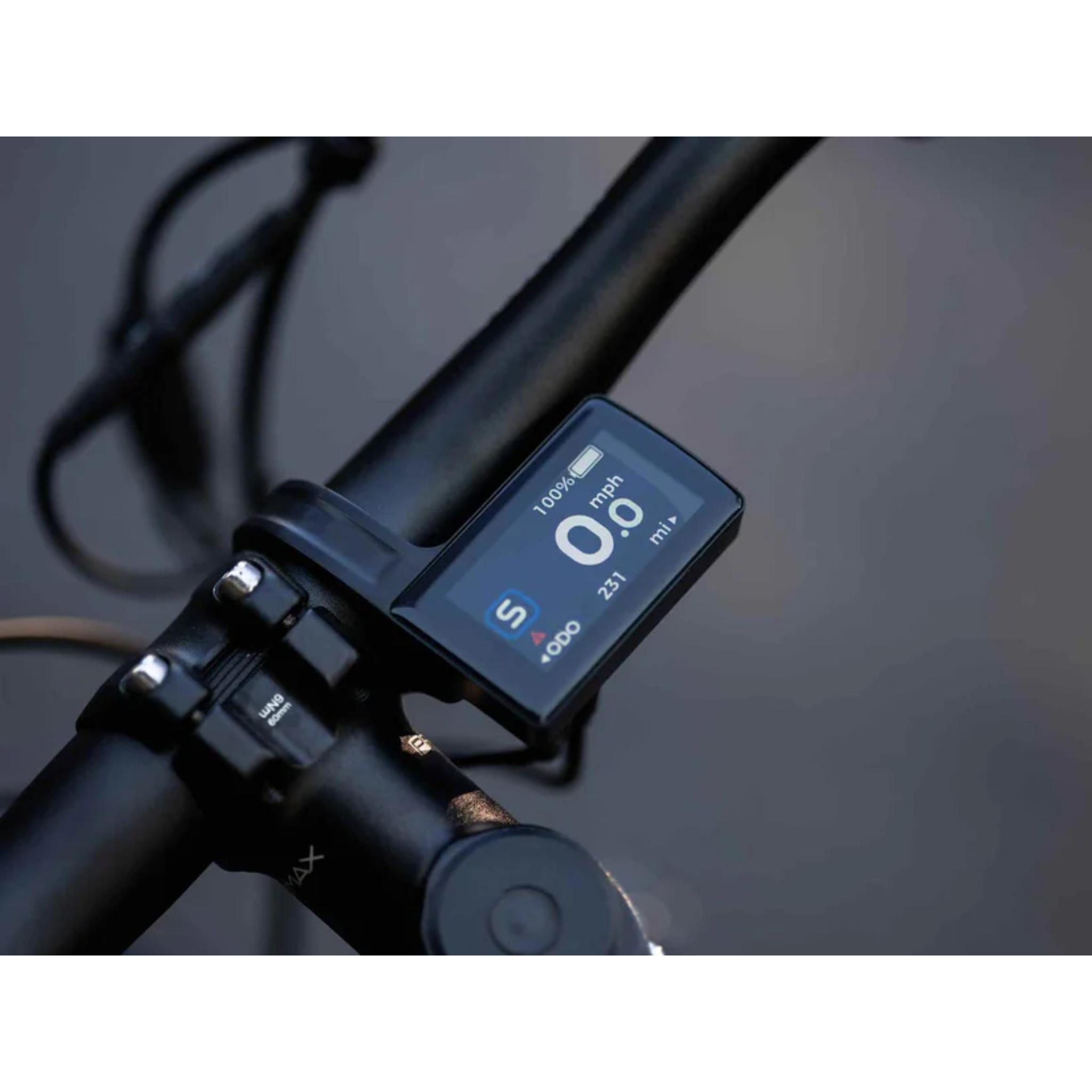

Display	TFT Smart Color Display
Front Light	80 LUX LED Headlight
Rear Light	LED Blinking Taillight
Charger	48V 3A Smart Charger
Charging Time	Approximately 5 Hours
Kickstand	Rear Mount Included
Fenders	Not Included
Rear Rack	Not Included
Maximum Payload	385 lbs (175 kg)
Bike Weight	64 lbs (29.2 kg)
Battery Weight	8.7 lbs (3.95 kg)
Recommended Rider Height	17" Frame: 5'5"–6'4", 19" Frame: 5'6"–6'5"
