Description

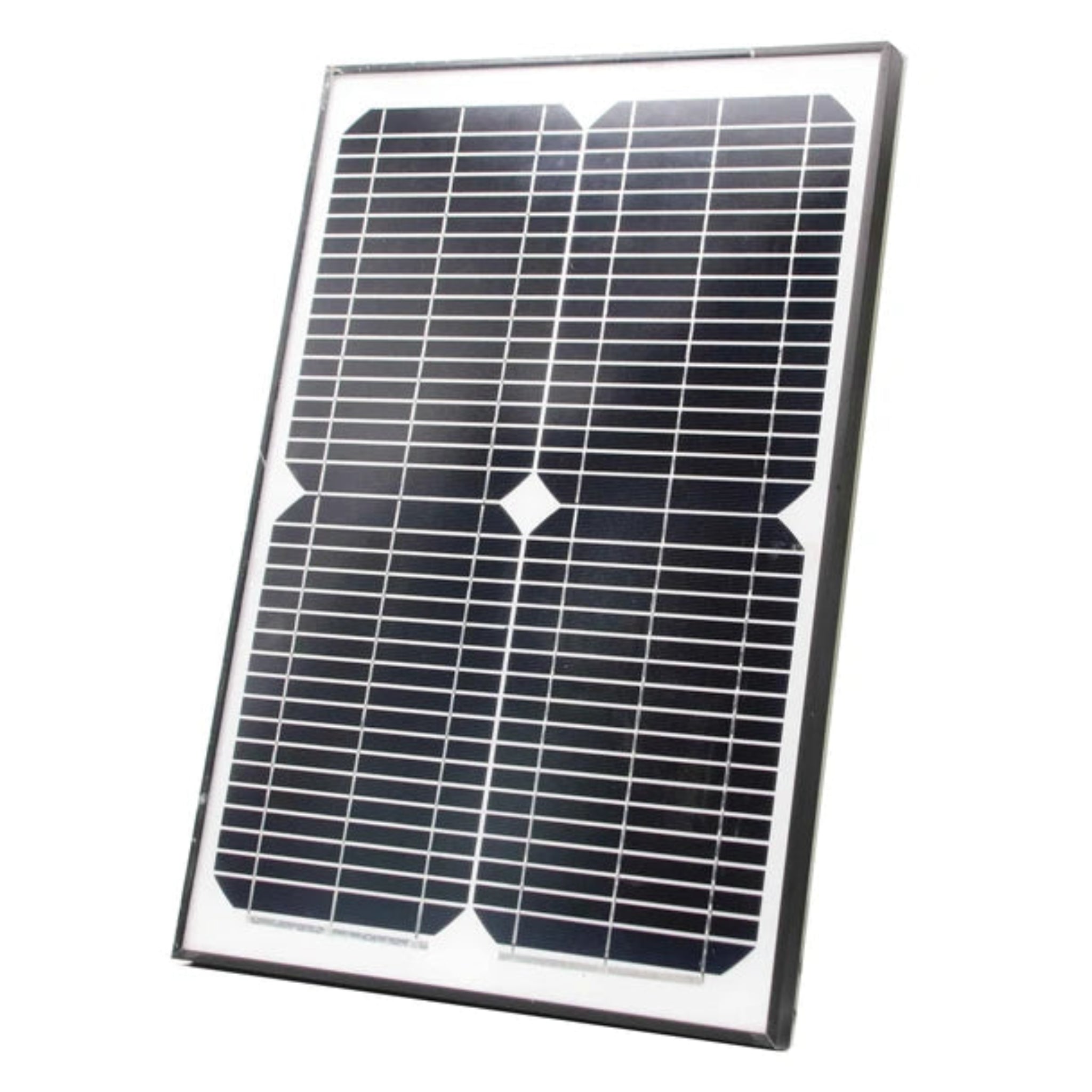

The ALEKO 20W 24V Monocrystalline Solar Panel is designed to convert sunlight into electricity for compatible solar-powered applications. It uses high-purity Grade A monocrystalline silicon cells and premium components to provide an efficient renewable energy solution.
The panel features 36 solar cells, a built-in bypass diode, and mounting brackets for installation. It has a 36.5V operating voltage, 0.45A operating current, and 44.6V open-circuit voltage.
Key Features
- 20W monocrystalline solar panel
- Designed for 24V applications
- Uses high-purity Grade A silicon cells
- 36 solar cells
- Built-in bypass diode
- Converts sunlight into usable electricity
- Suitable for renewable energy applications

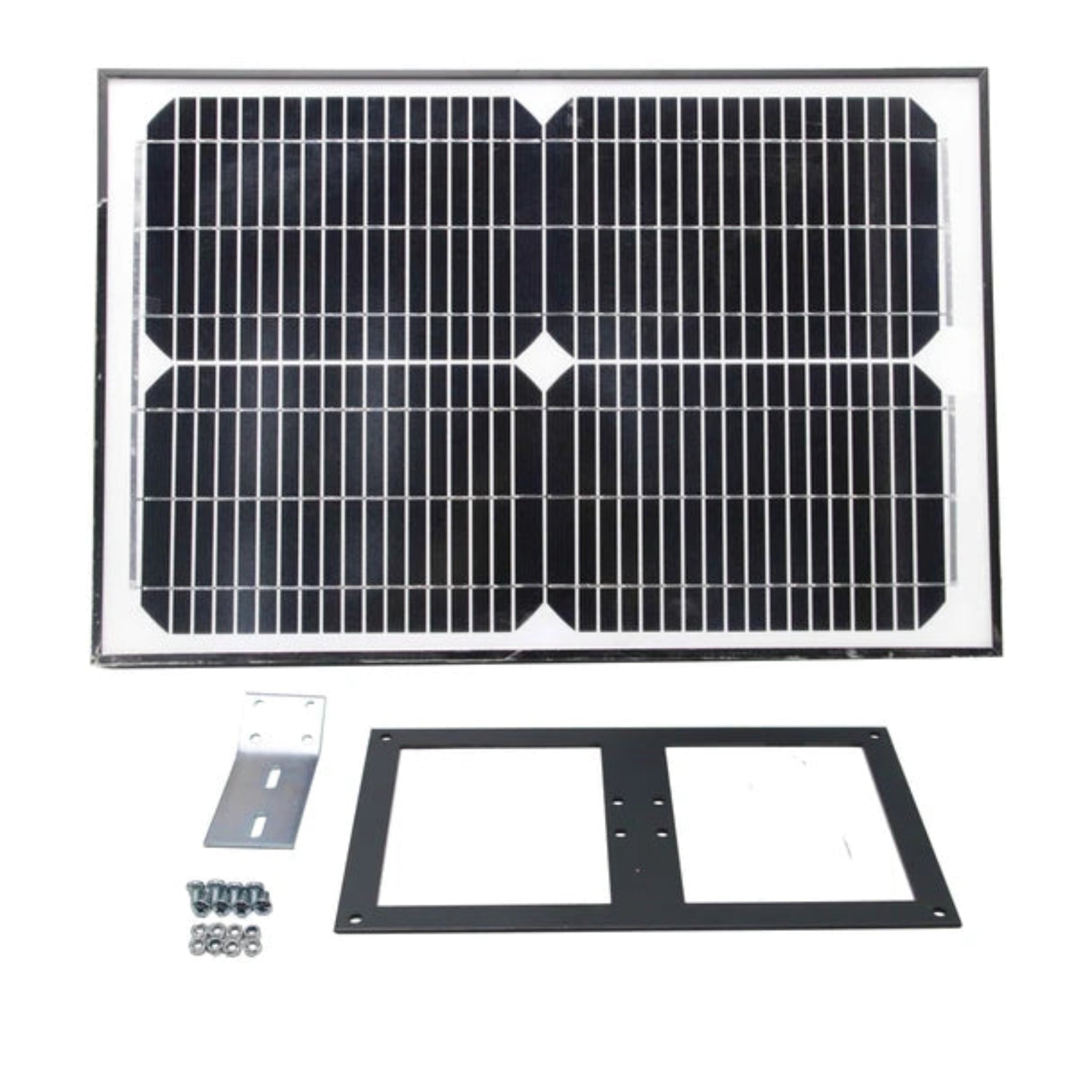

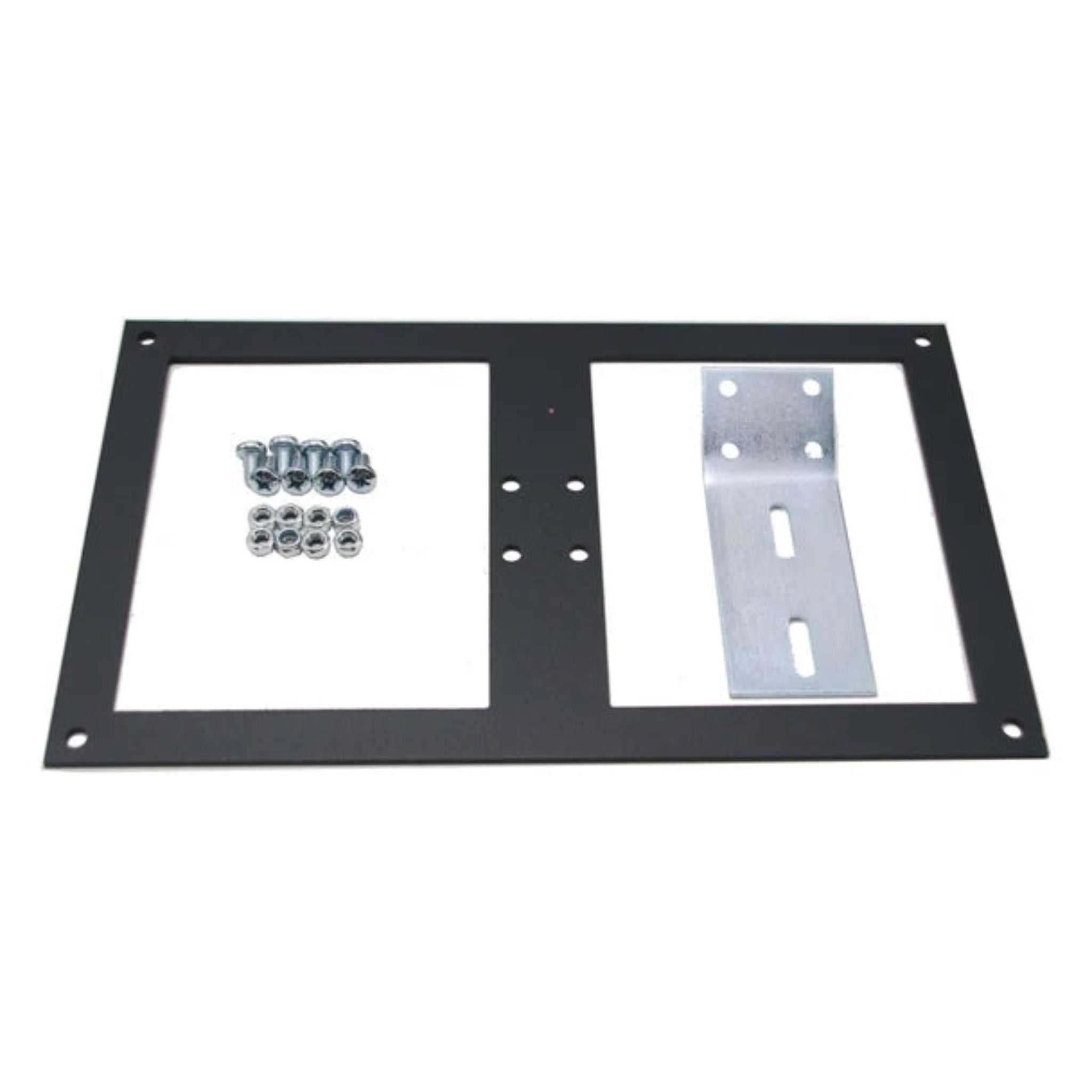

- Includes H and L mounting brackets
- Premium components and raw materials
- Helps reduce reliance on conventional electricity
Specifications
| Specification | Details |
|---|---|
| Product Type | Monocrystalline Solar Panel |
| Power Output | 20W |
| Operating Voltage (Vmp) | 36.5V |
| Operating Current (Imp) | 0.45A |
| Open Circuit Voltage (Voc) | 44.6V |
| Solar Cell Type | Monocrystalline Silicon |
| Solar Cell Quantity | 36 |
| Cell Quality | Grade A High-Purity Silicon |
| Bypass Diode | Equipped |
| H Bracket Dimensions | 12.9 × 7.8 in. |
| L Bracket Dimensions | 5.3 × 1.9 in. |
| Application | Solar Energy / Gate Opener Accessories |
| SKU | SP20W24V-AP |
| MPN | SP20W24V |
| UPC | 013964832457 |
