Description

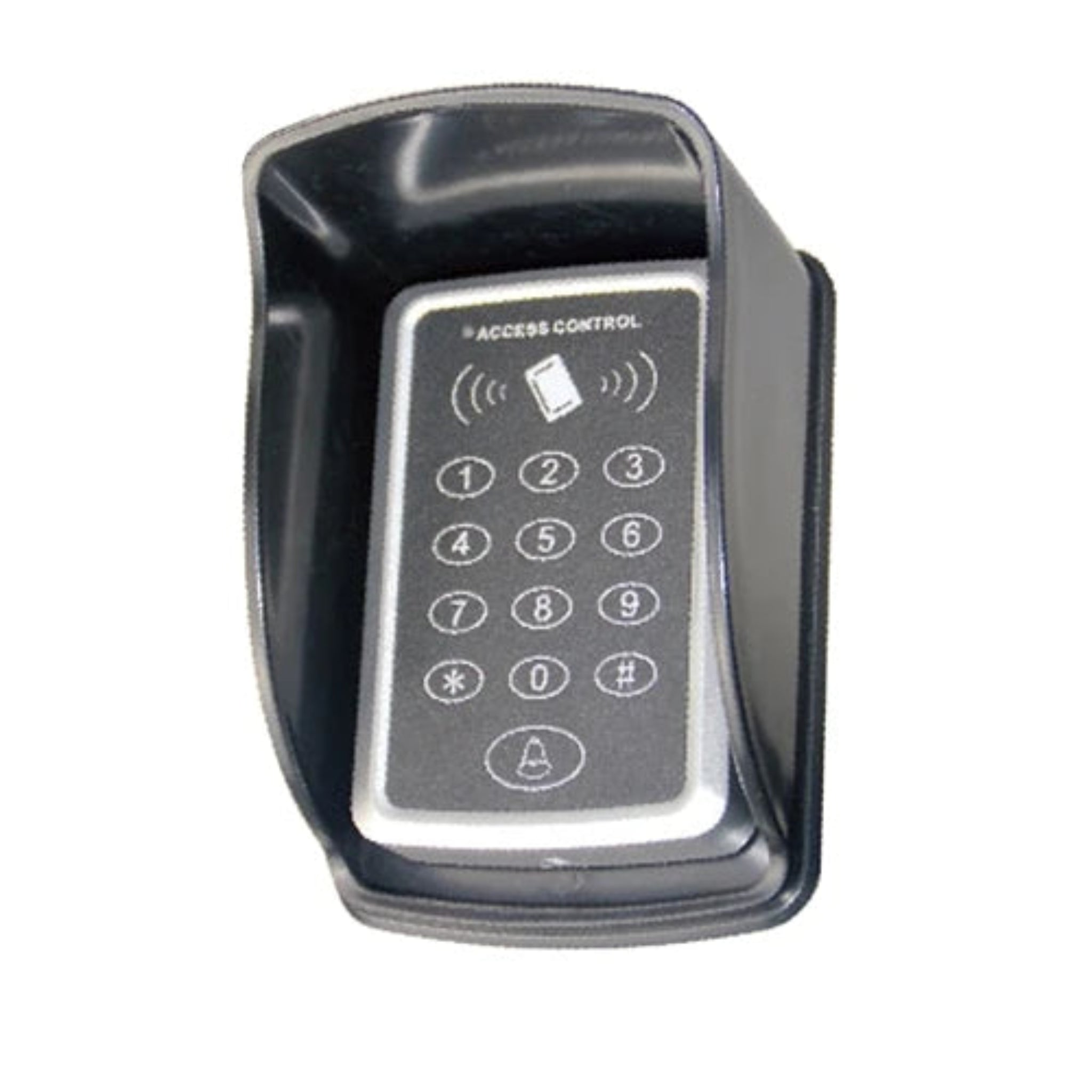

The ALEKO LM174P Universal Touch Wired Keypad provides convenient touch-based access control for compatible gate opener systems. It operates on 12–24 VDC and uses a touchless proximity-style response, allowing users to activate the keypad without needing to physically press a traditional button.
The keypad supports EM (ID) cards and has a registered capacity of up to 1,000 cards, making it suitable for applications that require access for multiple users. Its adjustable response distance ranges from approximately 1/2 to 5 inches.
Key Features
- Universal touch wired keypad
- ALEKO LM174P model
- Wired access-control solution
- 12–24 VDC operating voltage
- Low operating current of less than 100 mA

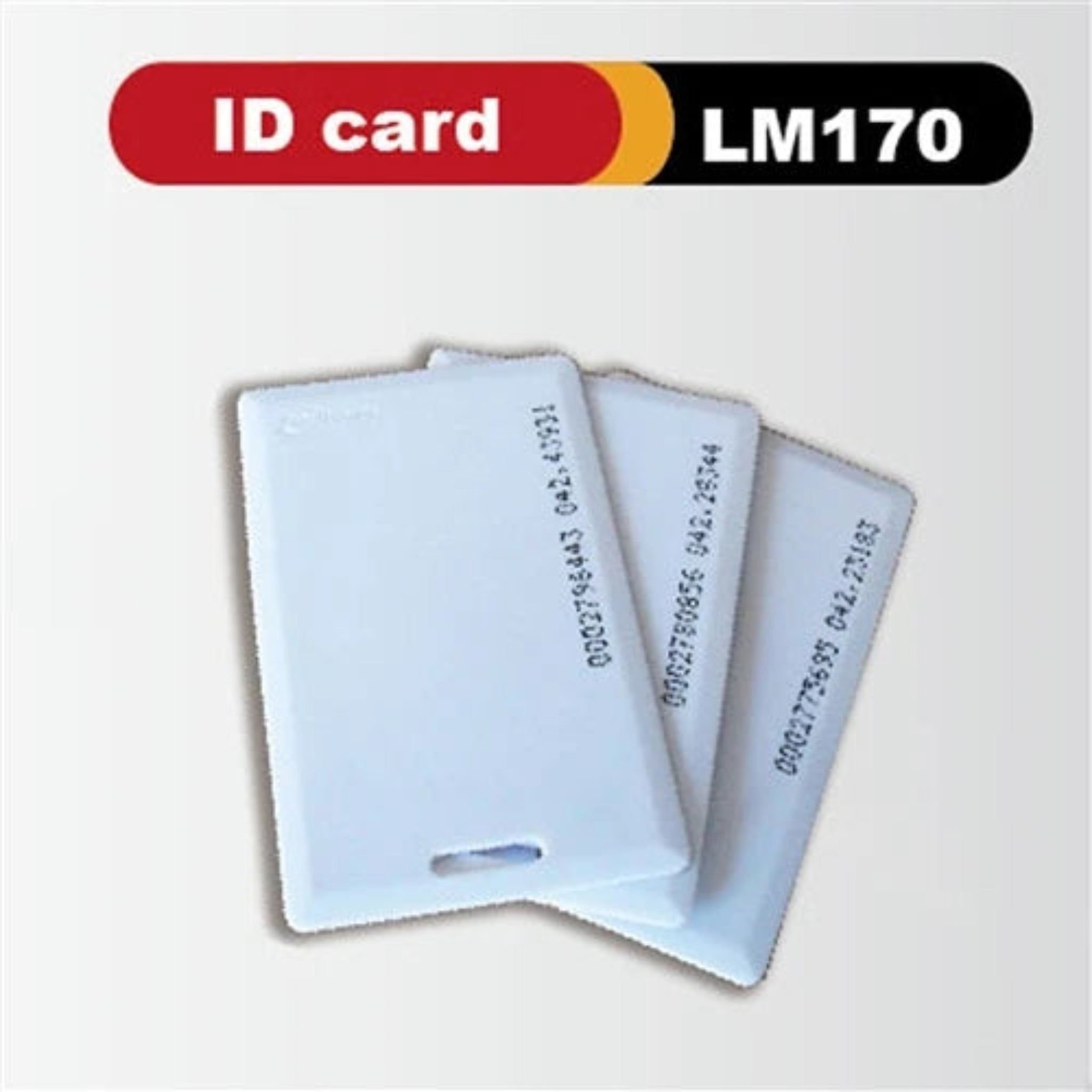

- Supports EM (ID) cards
- Optional IC card support
- Stores up to 1,000 registered cards
- Touch/proximity-based operation
- Response distance of approximately 1/2–5 inches
- Suitable for applications requiring access for multiple users
- Compact access-control solution for compatible gate systems
Specifications
| Specification | Details |
|---|---|
| Product Type | Universal Touch Wired Keypad |
| Model | LM174P |
| Keypad Type | Touch / Wired |
| Operating Voltage | DC 12–24 V |
| Operating Current | < 100 mA |
| Registered Capacity | Up to 1,000 Cards |
| Response Distance | 1/2–5 in. |
| Supported Card | EM (ID) Card |
| Optional Card Support | IC Card |
| Connection Type | Wired |
| SKU | LM174P-AP |
| MPN | LM174P |
