Description

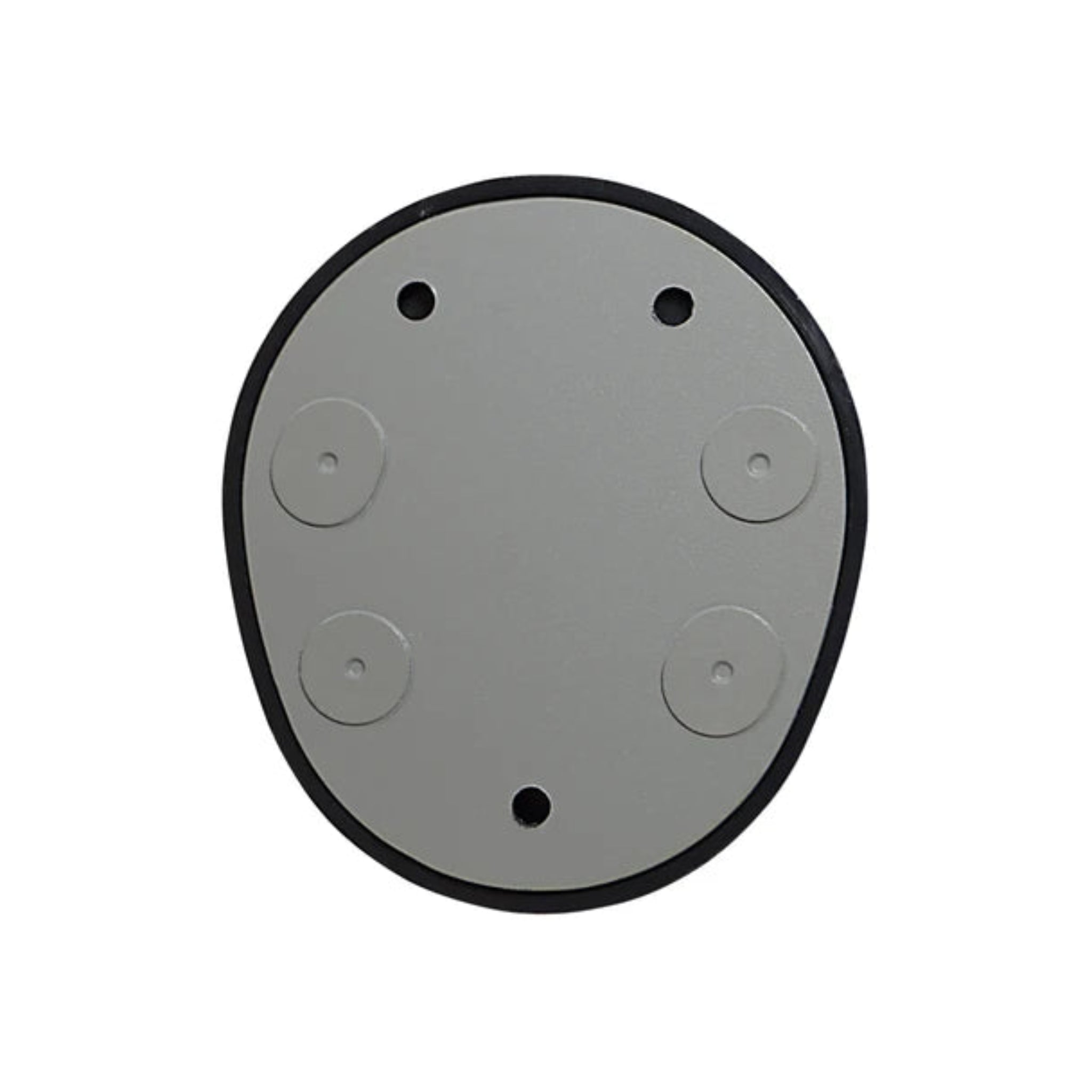

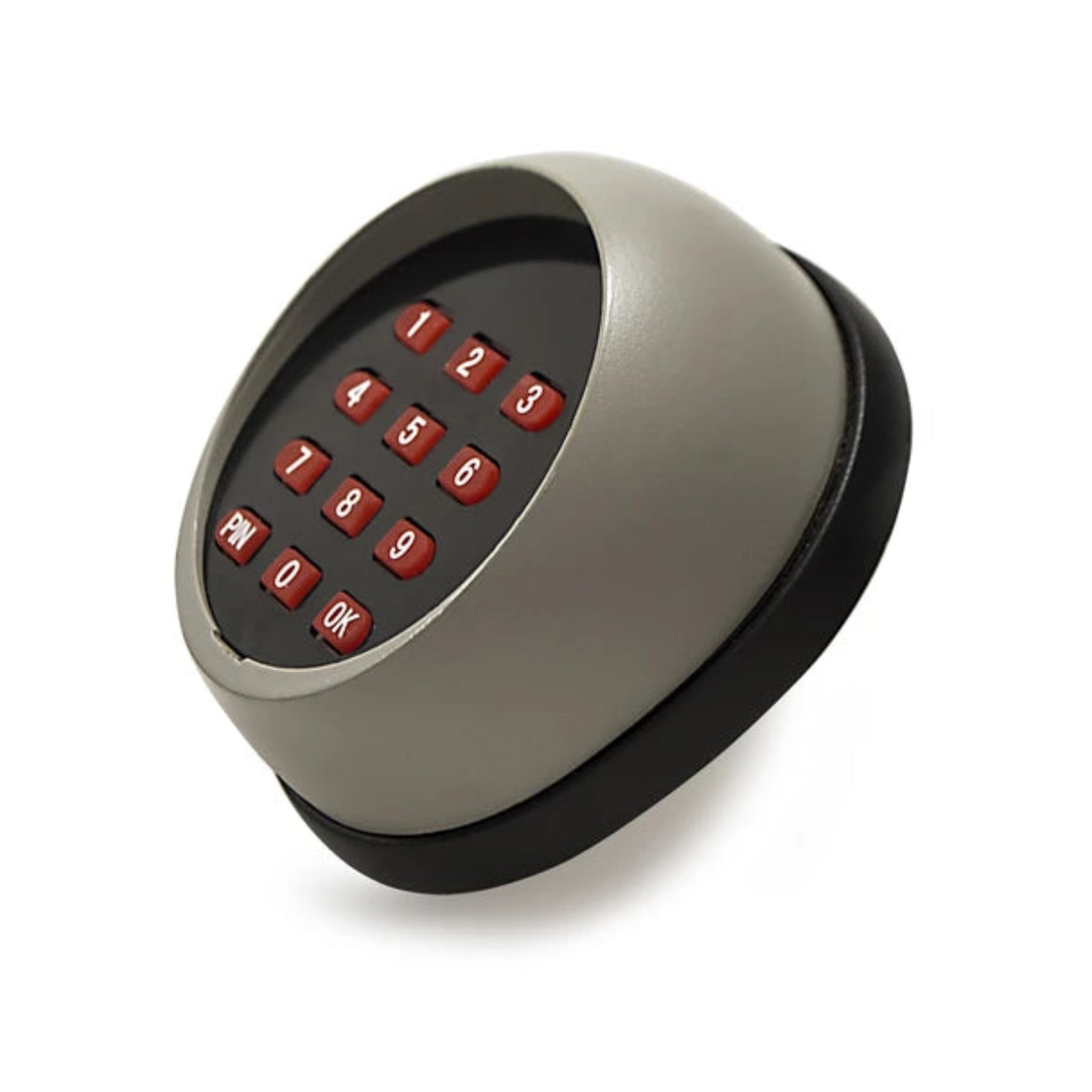

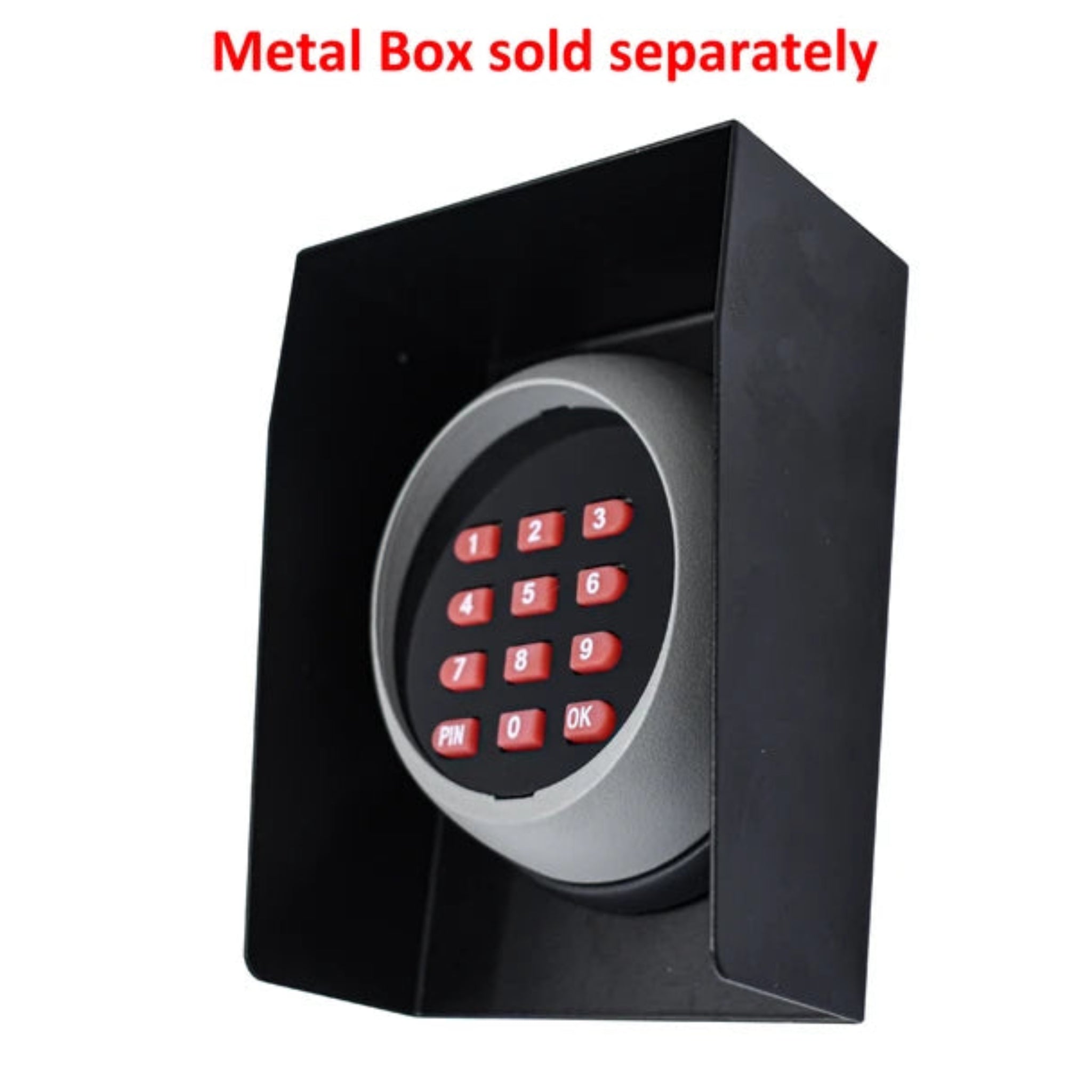

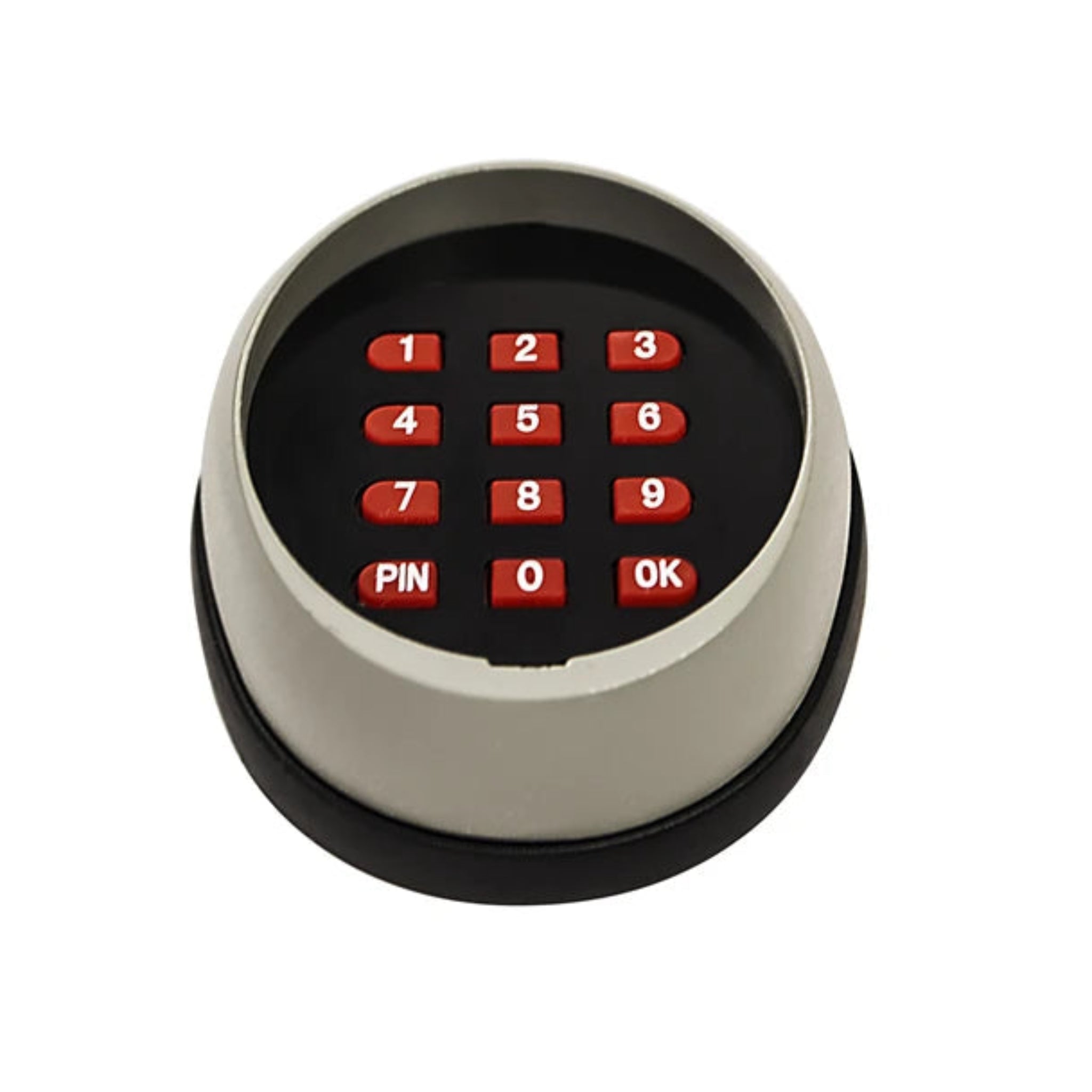

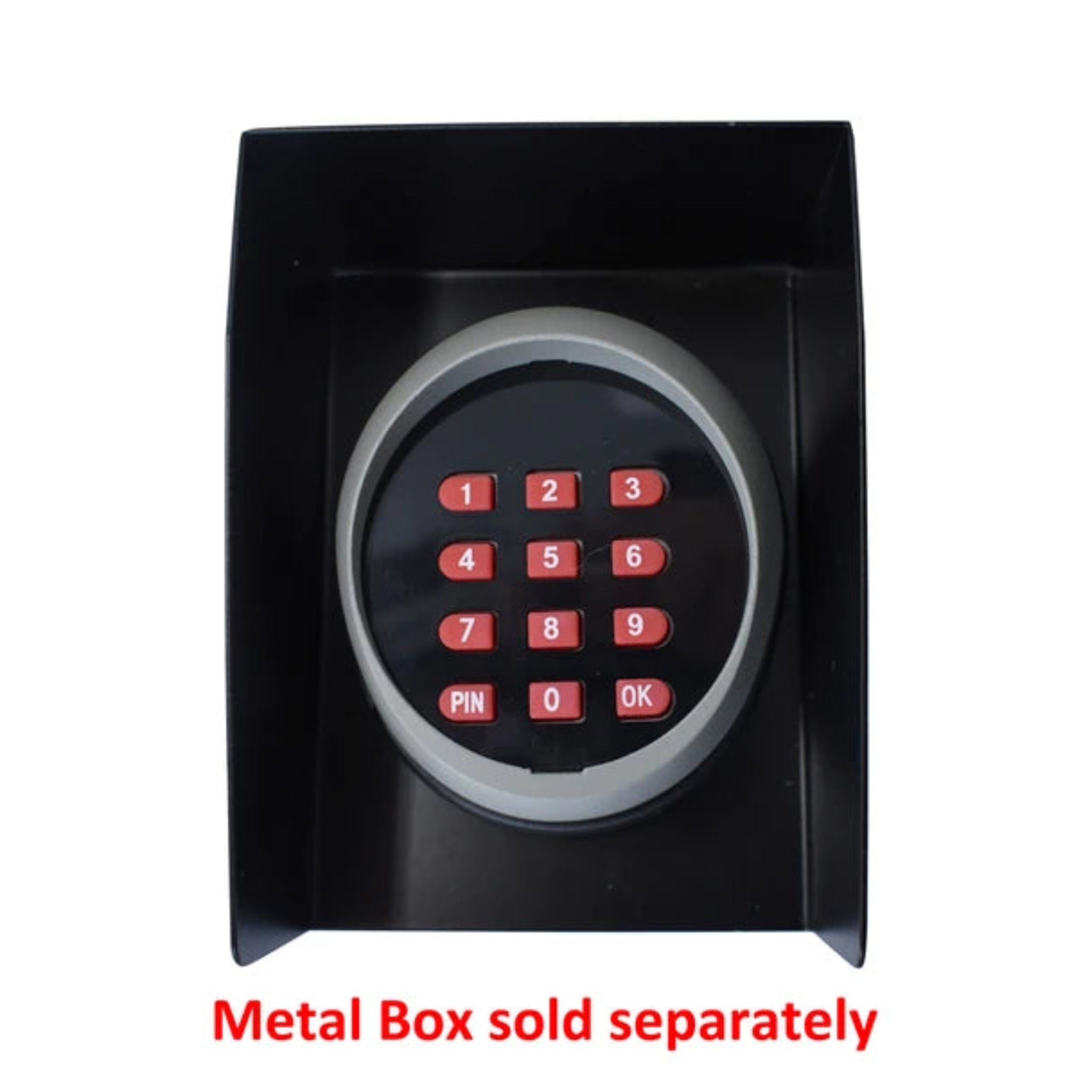

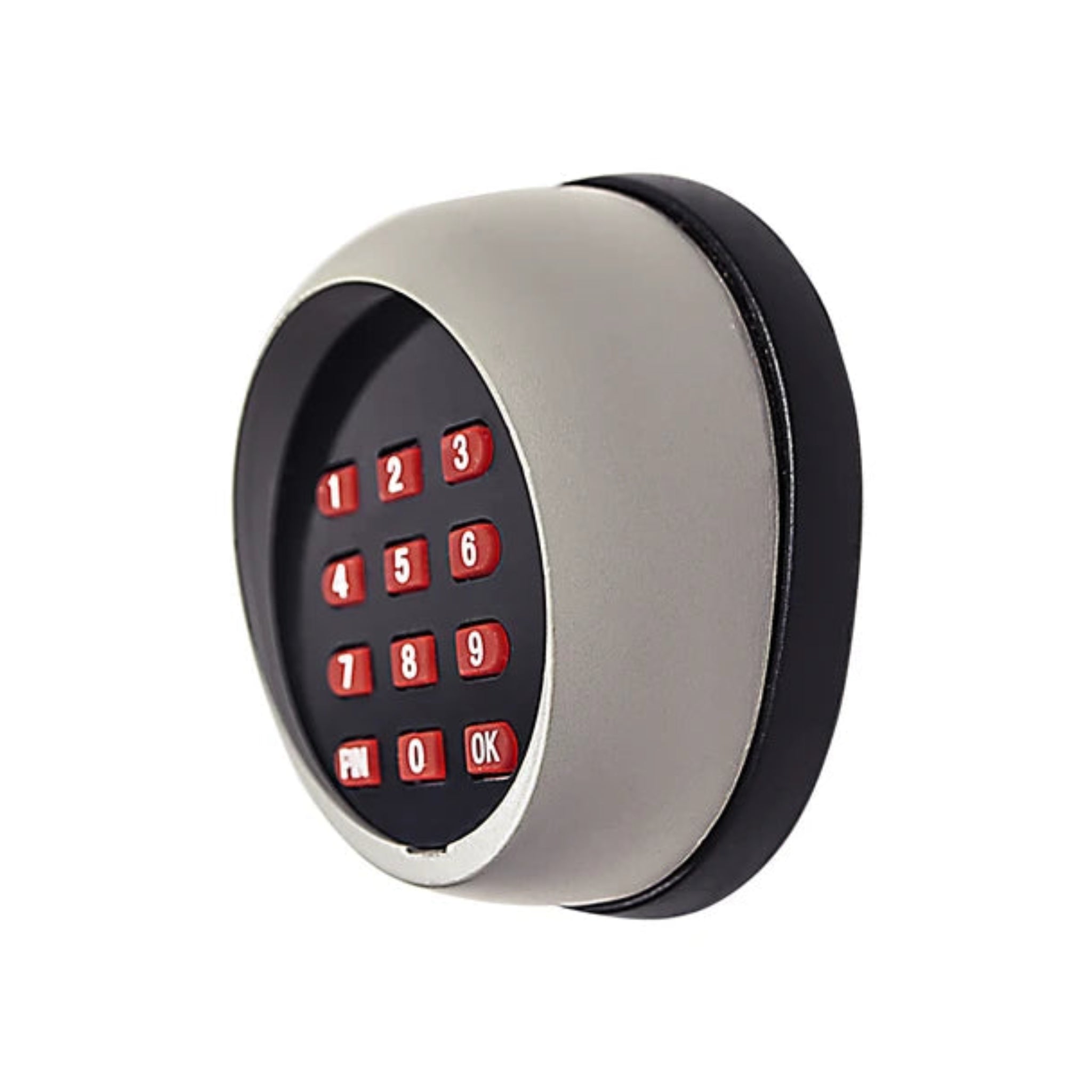

The ALEKO LM172 Wireless Keypad is a convenient wireless access-control solution for compatible ALEKO gate openers. Operating at 433.92 MHz, it allows users to control compatible automatic gates without carrying a remote transmitter. It is compatible with a wide range of ALEKO swing and sliding gate openers, as well as select LockMaster and DSC gate opener systems.
For installation, the keypad should be mounted outside the property on the same side of the driveway as the gate opener control box. The distance between the keypad and control box should not exceed 5 meters (16 feet) to help ensure reliable operation.
Key Features
- Wireless keypad for automatic gate openers
- 433.92 MHz operating frequency
- Designed for ALEKO gate opener systems
- Compatible with ALEKO swing and sliding gate openers
- Compatible with select LockMaster and DSC gate opener systems
- Provides convenient wireless gate access
- No wired connection between keypad and control box
- Suitable for residential gate access
- Recommended installation distance of up to 5 meters (16 feet) from the control box
- Designed for installation outside the property
- Helps provide convenient keypad-based access without a handheld remote
Specifications
| Specification | Details |
|---|---|
| Product Type | Wireless Gate Opener Keypad |
| Model | LM172 |
| Frequency | 433.92 MHz |
| Connection Type | Wireless |
| Compatible Swing Gate Openers | ALEKO AS/GG Series 450, 600, 650, 850, 900, 1200, 1300, 1700 |
| Compatible Sliding Gate Openers | ALEKO AC 1100, 1300, 1500, 1700, 2200, 2400, 2700, 5700; AR 900, 1350, 1550, 1750, 2250, 2450, 2750, 5750 |
| Additional Compatibility | LockMaster LM902, LM901; select DSC DSR SCG/SFG H models purchased after July 2011 |
| Recommended Keypad-to-Control-Box Distance | Up to 5 m (16 ft.) |
| Installation Location | Outside property, same side of driveway as control box |
| UPC | 013964851687 |
| SKU | LM172-AP |
| MPN | LM172 |
